Thermophoresis Across Thermal Bridges Plates Airborne Dust and Soot Onto Cold Drywall, Outlining Hidden Framing

When the first deep freeze of winter hits in late November, a subtle physical process triggers inside residential walls across colder climates. Homeowners begin noticing faint, dark lines appearing on their drywall, perfectly outlining the hidden timber studs and ceiling joists. This shadowy grid is not a trick of the light, nor is it mold.[2]

The phenomenon is known in the building trades as ghosting or thermal tracking. It is the visible manifestation of a temperature gradient, printed directly onto the paint by airborne dust and soot. The dark lines reveal exactly where the building's thermal envelope is failing to hold back the cold.[6]

The root cause begins with the structural skeleton of the house. A standard residential wall consists of timber or steel framing spaced 16 to 24 inches apart, with the cavities between them packed with fiberglass or mineral wool insulation. These materials handle heat transfer very differently.[2]

The Physics of Thermal Bridging

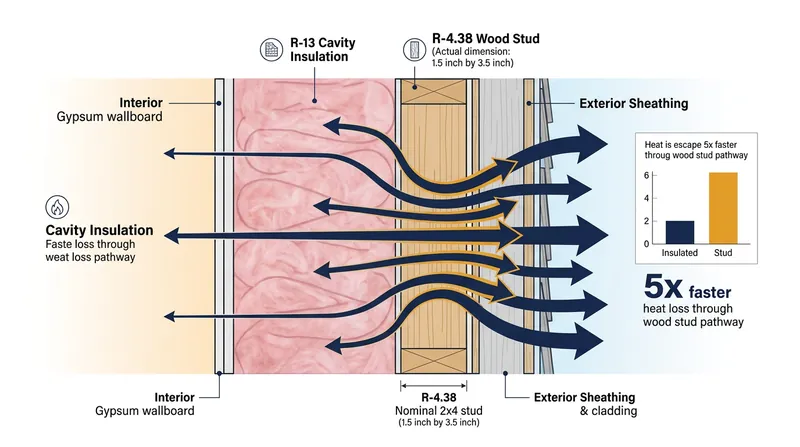

"In winter, the wood studs and joists are much colder than the insulated cavities between them because you lose heat through wood at a rate about five times that of insulation," notes Insulators Canada. A standard two-by-four wood stud offers a thermal resistance of roughly R-4.38, while the fiberglass batt beside it provides R-13.[2]

Because heat always moves toward cold, the framing acts as a thermal highway, drawing warmth out of the room. This process, called thermal bridging, drops the temperature of the drywall directly over the stud by a few degrees compared to the insulated bays on either side.[6]

The material of the framing dictates the severity of the heat loss. While timber is a poor insulator, steel framing is significantly worse. Metal studs conduct heat at a rate exponentially higher than wood, creating even colder spots on the drywall and accelerating the ghosting process in commercial buildings and modern apartments.[6]

This uneven surface temperature creates a precise thermal map of the wall. The colder strips of plasterboard sit closer to the room's dew point, changing how the surface interacts with the indoor environment. The temperature drop alone does not create the stain, but it sets the trap.[2]

Thermophoresis and Particulate Plating

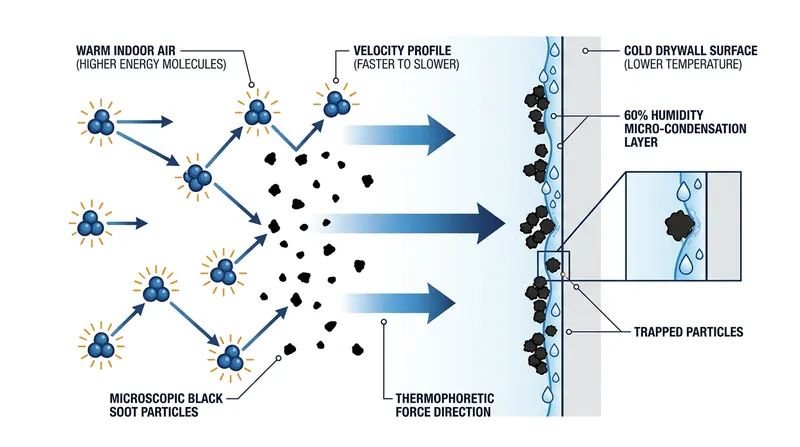

The actual discoloration is driven by a physical effect called thermophoresis. In a temperature gradient, gas molecules on the warmer side possess more kinetic energy than those on the cooler side. This energy imbalance physically pushes suspended microscopic particles away from the heat and toward the colder surface.[5]

"The dark marks you actually see are composed of particulates such as soot, dust, or dirt particles, often known as PM10 and PM2.5," states Peter Cox, a UK-based property care specialist. These fine particles float continuously through the internal environment of any occupied home.[3]

Combustion sources are the primary contributors to this airborne particulate load. Burning scented candles, using unvented gas stoves, operating fireplaces, and even cooking with oils release massive amounts of microscopic carbon soot into the air. Without adequate ventilation, these particles remain suspended until thermophoresis drives them into the walls.[4]

Once the particles reach the colder strips of drywall, they plate out and bond to the surface. Research published in Aerosol and Air Quality Research confirms that in a temperature gradient flow, particles move toward the colder wall, with deposition efficiency increasing as the temperature gradient rises.[1]

The steady bombardment of soot slowly turns the invisible thermal bridge into a highly visible gray or black line. Painters refer to this accumulation as plating, and it happens gradually over months, permanently bonding the greasy carbon to the flat paint finish.[3]

The Role of Indoor Humidity

Moisture acts as the binding agent that accelerates this plating process. The air inside a home always carries suspended water vapor, but its ability to hold that moisture drops as the temperature falls. The colder drywall directly over the studs forces the adjacent air to release its moisture.[4]

"Humidity above 60% can lead to moisture accumulating on walls, increasing the likelihood of stains," according to Beacon Inspections. This micro-condensation does not form visible water droplets, but it makes the paint surface microscopically damp and sticky.[4]

When thermophoresis pushes soot and dust into this damp boundary layer, the particles adhere stubbornly to the paint. The combination of a cold surface and elevated humidity creates the perfect environment for ghosting to thrive. Rooms with high moisture loads, such as kitchens and bathrooms, typically show the darkest tracking.[3]

Why Modern Homes Accelerate the Effect

Paradoxically, ghosting has become more pronounced in modern, energy-efficient construction. Older homes were notoriously drafty, allowing indoor air to exchange with fresh outdoor air several times an hour. This constant ventilation diluted indoor particulate concentrations and kept humidity levels low during the winter.[7]

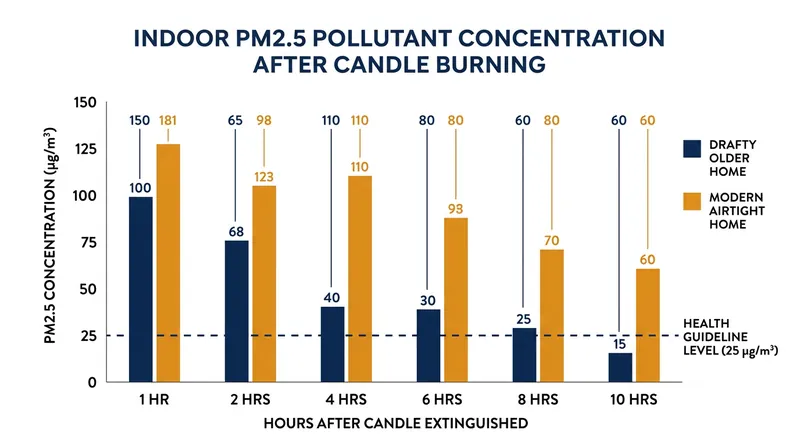

Today's building codes, particularly since the 2021 updates to the International Energy Conservation Code, mandate tight building envelopes to conserve energy. While this reduces heating costs, it also traps internal pollutants. If a modern home lacks mechanical ventilation, the concentration of PM2.5 from a single burning candle can linger for hours.[7]

Furthermore, the stark contrast between high-performance cavity insulation and uninsulated timber framing makes the thermal bridge more severe. The insulated bays stay exceptionally warm, while the studs remain cold, creating a sharper temperature gradient that drives thermophoresis more aggressively than in a uniformly poorly insulated older home.[2]

Remediation and Prevention Strategies

Fixing ghosting requires addressing both the cosmetic damage and the underlying building science failures. Simply washing the walls with a mild detergent will remove the surface soot, but the stains will inevitably return the following winter if the thermal and environmental conditions remain unchanged.[3]

To permanently bury the existing stains, painters must use a specialized stain-blocking primer before applying the topcoat. Standard emulsion paints allow the greasy soot particles to bleed through the new finish. The primer seals the contamination, providing a clean slate for the final color.[3]

Preventing the ghosting from returning requires managing the indoor air quality. Eliminating indoor combustion sources, particularly jar candles and incense, drastically reduces the soot load. Upgrading HVAC filters and running exhaust fans during cooking and bathing removes both particulates and excess moisture from the environment.[4]

For existing homes where adding exterior insulation is cost-prohibitive, homeowners must rely entirely on environmental controls. Balancing the indoor humidity with a whole-house dehumidifier and running HEPA air purifiers can starve the thermophoretic process of the moisture and particles it needs to print the stains.[4]

The ultimate structural solution is eliminating the thermal bridge entirely. Advanced framing techniques now utilize continuous exterior insulation—such as rigid foam boards applied outside the sheathing—to wrap the entire skeleton of the house. This breaks the thermal highway and keeps the interior drywall at a uniform temperature.[2]

"A properly framed high-performance home will never have this problem, because every thermal bridge has been intentionally designed out of the system from the start," concludes Insulators Canada. Until that structural upgrade is made, ghosting remains a reliable, if unwanted, diagnostic tool for a home's energy performance.[2]
