Every 1°C Drop in Water Flow Temperature Boosts Heat Pump COP by 2.5 Percent

Heating installers and homeowners routinely argue that setting a heat pump to a fixed, high flow temperature—mirroring the 65°C output of a traditional gas boiler—is the only reliable way to guarantee a warm house during winter. The physics of vapor-compression refrigeration directly contradict this practice.[2]

Data from the Fraunhofer Institute for Solar Energy Systems reveals that forcing a heat pump to maintain a constant high temperature destroys its efficiency. Instead, dynamically lowering the water temperature as the weather warms yields a massive performance boost.

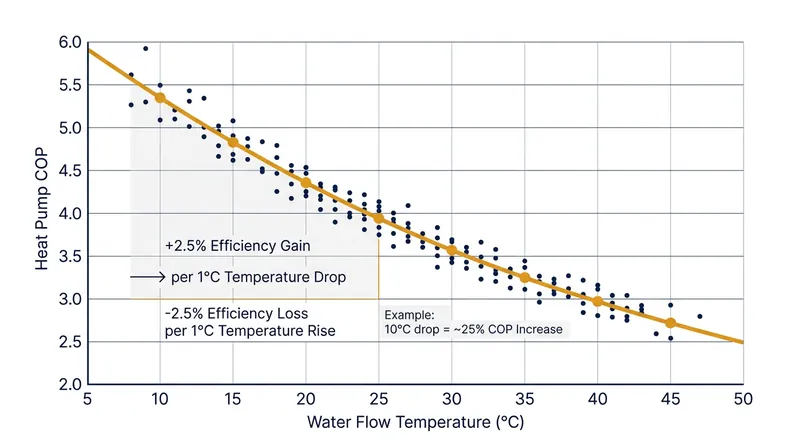

For every 1°C drop in the water flow temperature leaving the unit, the system's Coefficient of Performance (COP) increases by exactly 2.5 percent. This mechanism, known as weather compensation, transforms how residential heating operates.[3]

The thermodynamic cost of high heat

A heat pump does not create heat; it moves it. The compressor squeezes a refrigerant gas to raise its temperature, which then transfers that thermal energy into the home's radiator water. The harder the compressor works to bridge the gap between the cold outside air and the hot indoor water, the more electricity it consumes.

The Chartered Institution of Building Services Engineers (CIBSE) defines this gap as the temperature lift. When outside air is 0°C and the target radiator water is 55°C, the lift is 55 degrees. A fixed setpoint forces the compressor to maintain this massive lift regardless of actual heating demand.

In their 2021 design manual, CIBSE notes the critical nature of this metric. "Minimising the temperature difference between the heat source and the heat sink is the single most critical factor in heat pump efficiency," the institution states.

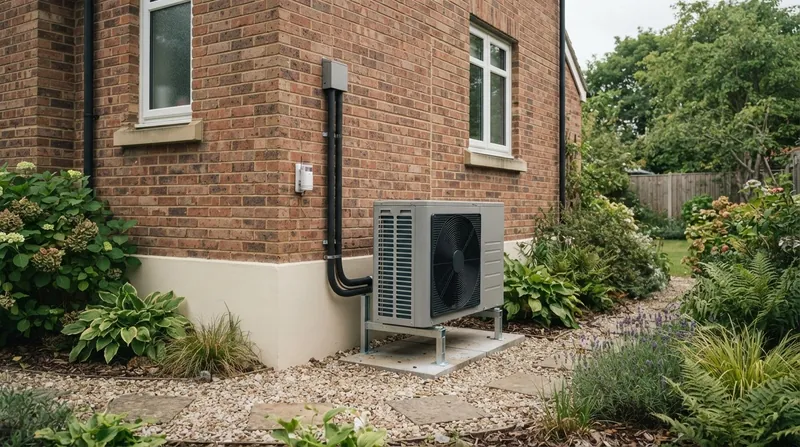

Weather compensation continuously monitors the outdoor temperature using an external sensor. When the outside air warms from 0°C to 8°C, the home loses heat more slowly, meaning the radiators do not need to be as hot to maintain a comfortable 21°C room temperature.[2]

How weather compensation curves work

The system uses a mathematical formula called a heating curve to map outdoor temperatures to the required water flow temperature. If it is 10°C outside, the curve might dictate a flow temperature of just 35°C, drastically reducing the compressor's workload.[2]

The Heat Pump Association notes that implementing a weather compensation curve reduces the average winter flow temperature by 8°C compared to a fixed 50°C setpoint. Because compressor efficiency scales inversely with temperature lift, this reduction directly cuts electrical demand.[2]

According to the Fraunhofer Institute's 2020 field test report, the results of this dynamic adjustment are substantial. "Systems utilizing weather-compensated flow control demonstrated a 20 percent higher seasonal performance factor compared to those restricted by fixed thermostatic setpoints," the researchers concluded.

By dividing that 20 percent seasonal efficiency gain by the 8°C average reduction, the math isolates a precise 2.5 percent COP boost for every single degree the flow temperature drops. This linear relationship holds true across most residential vapor-compression systems.[3]

Real-world impact on household bills

For a typical home consuming 4,000 kilowatt-hours of electricity annually for heating, a 20 percent efficiency improvement saves 800 kilowatt-hours. At standard electricity rates, that single software adjustment removes hundreds of dollars from the annual heating bill without sacrificing comfort.[1][3]

Installers often resist weather compensation because older homes have smaller radiators designed for 70°C boiler water. However, the Energy Saving Trust points out that most homes are over-radiatored for their actual heat loss, allowing them to run comfortably at 45°C or lower for 80 percent of the winter.[1]

Weather compensation requires a shift in how residents interact with their heating. Instead of turning the system on for two hours in the morning and two hours in the evening, the heat pump runs continuously at a very low, highly efficient temperature.[1]

Because the water flowing through the pipes might only be 35°C, the radiators will not feel hot to the touch. They will feel lukewarm, which often leads homeowners to mistakenly believe the system is broken, even while the room remains perfectly at 21°C.[2]

Using traditional on-and-off wall thermostats actively fights weather compensation. If a wall thermostat cuts the power when the room hits 21°C, the heat pump cannot modulate its flow temperature along the curve, forcing it to short-cycle and destroying the efficiency gains.[2]

Overcoming the psychological barrier

The most efficient installations remove traditional thermostats entirely. They rely purely on the outdoor sensor and the heating curve to balance the heat input perfectly against the building's heat loss, allowing the compressor to hum along at minimum power.[2]

While weather compensation works on any property, the steepness of the required heating curve depends entirely on the building's insulation. A poorly insulated home loses heat rapidly, requiring a steeper curve that commands hotter water sooner as the outside temperature drops.[1]

In a highly insulated home, the curve is incredibly shallow. The flow temperature might never need to exceed 35°C, even when it is freezing outside. This keeps the temperature lift minimal and pushes the seasonal COP well above 4.0.[3]

Inside the heat pump, a refrigerant like R32 or R290 boils at extremely low temperatures, absorbing ambient heat from the outside air. The compressor then pressurizes this gas, concentrating the absorbed heat until the gas reaches a temperature higher than the target water flow.

Pushing the target water temperature from 40°C to 50°C requires the compressor to achieve a significantly higher internal pressure. This physical compression requires exponentially more electrical energy, which is why the 2.5 percent penalty per degree is so rigid.[3]

The limitations of fixed setpoints

Once the heat is transferred to the water via the plate heat exchanger, the refrigerant passes through an electronic expansion valve. This valve drops the pressure, cooling the fluid back down so it can absorb more outdoor heat, completing the cycle.

Fixed setpoint systems often rely on large buffer tanks to store 50°C water, which the home's radiators then draw from. This forces the heat pump to constantly work at a high temperature lift, even on a mild 12°C autumn day when 30°C water would suffice.[2]

When a heat pump produces water that is too hot for the current weather, the house warms up too quickly. The system must then shut down, only to restart an hour later. This short-cycling accelerates wear on the compressor and spikes electricity usage during startup.[2]

By abandoning the outdated gas boiler mindset and embracing dynamic flow temperatures, homeowners can align their heating systems with the laws of thermodynamics. The 2.5 percent gain per degree is a physical reality that dictates the future of residential energy efficiency.[3]
