Framing Fraction and Effective R-Value: How Thermal Bridging Reduces Wall Insulation Performance by Up to 50% in Wood and 80% in Steel Construction

The R-value printed on a roll of insulation is not the thermal resistance your wall actually achieves. Because wood and steel framing conduct heat much faster than fiberglass or foam, these structural members act as thermal bridges, bleeding heat right past the insulation and slashing the wall's effective performance by up to 50% in wood and 80% in steel.[3][4]

The discrepancy begins with a metric known as the framing fraction. In a typical residential wall, studs are placed 16 inches on center. Add in the top plates, bottom plates, window headers, and corners, and solid wood makes up roughly 25% of the total wall area.[4]

That means one-quarter of the wall is not insulated by the fluffy fiberglass or dense cellulose you paid for. Instead, it is solid structural timber. Softwood lumber has an R-value of roughly 1.25 per inch, meaning it conducts heat roughly four times faster than standard cavity insulation.

This phenomenon is known as thermal bridging. Heat always takes the path of least resistance. When a wall is packed with high-resistance insulation, the thermal energy simply bypasses it, flowing directly through the conductive wooden studs to escape the house. "There is not a threshold beyond which a material becomes categorized as 'insulation.' However, both wood and steel framing will conduct heat more readily than cavity insulation products," notes Daniel Overbey in Building Enclosure.[3]

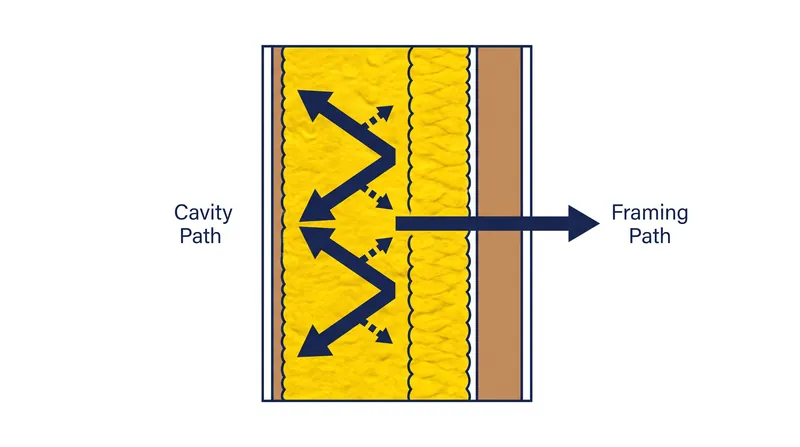

Building scientists calculate this loss using the parallel-path method. This formula determines the effective R-value, or whole-wall R-value, by averaging the thermal resistance of the insulated cavities with the thermal resistance of the framing members based on their respective area fractions.[4]

For a homeowner, the mathematical penalty is severe. If you upgrade a standard 2x4 wall with high-density R-15 fiberglass batts, the 25% framing fraction drags the whole-wall effective R-value down to just R-14.2. In older homes with poorer framing layouts and installation defects, the thermal loss can easily reach 25% to 30%.[4]

But if wood is a leaky bucket, steel framing is an open pipe. Steel conducts heat hundreds of times faster than wood. In commercial conversions or modern steel-framed homes, the thermal bridging effect is catastrophic to energy efficiency.[3]

According to building science data, placing an R-19 fiberglass batt inside a 2x6 steel stud wall spaced at 16 inches on center reduces the insulation's effectiveness by a staggering 63%. The wall performs at an effective R-7.1, entirely negating the premium paid for the thicker batts.[3]

If heavy steel z-girts or cladding attachments are used without thermal breaks, the steel can be responsible for nearly half of the total heat flow through the assembly. This drops the effective R-value by up to 80% compared to the nominal rating printed on the package.[3]

This physics explains why simply stuffing thicker insulation into a wall cavity often fails to lower energy bills or eliminate drafts. The insulation is doing its job, but the structural skeleton of the house is actively subverting it by providing a fast-track exit for the climate-controlled air.[2]

The definitive solution—and increasingly, the mandate in modern energy codes like the 2021 IECC—is continuous insulation. This involves wrapping the entire exterior of the home's framing in an unbroken layer of rigid foam, mineral wool, or wood fiberboard.

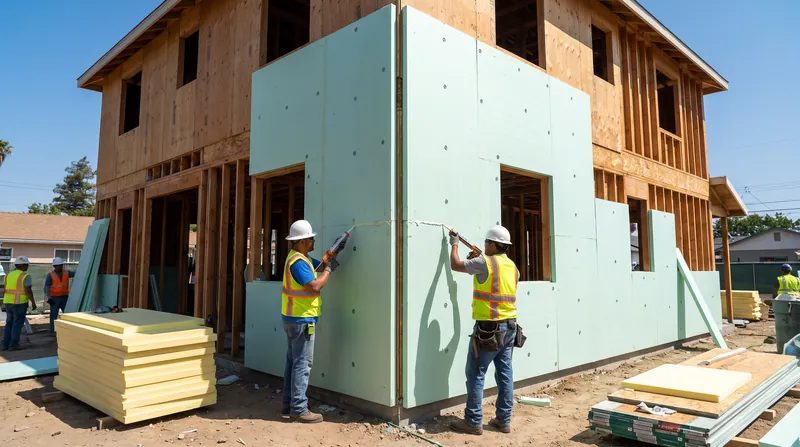

Continuous insulation acts like a thermal blanket, physically separating the conductive framing from the extreme outdoor temperatures. By breaking the thermal bridge, a relatively thin layer of exterior insulation can improve a wall's performance significantly more than a massive upgrade to the cavity insulation.[3]

For homeowners planning a major renovation, re-siding project, or new build, the decision matrix has fundamentally shifted. Asking a contractor for an R-20 wall is no longer the correct parameter. The metric that dictates actual energy consumption is the effective whole-wall R-value, which forces the design to account for the framing fraction and break the thermal bridges before the drywall even goes up.[1]
