The Plastic Limit and Liquid Limit: How Soil Moisture Actually Dictates Foundation Cracking

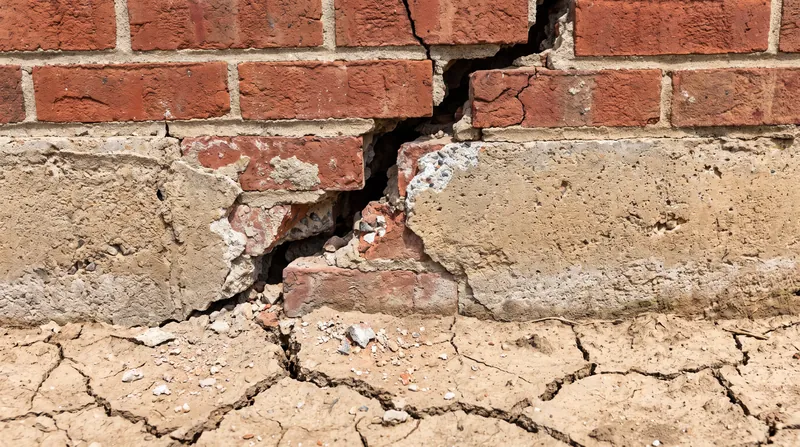

For a homeowner watching a diagonal crack climb their drywall, the instinct is to blame the foundation itself—a poured concrete wall or a cinderblock pier that somehow failed to hold the weight of the house. But structural engineers and geologists view the foundation merely as a rigid boat floating on a sea of soil. When that soil contains high concentrations of expansive clay, it behaves less like a static anchor and more like a sponge, swelling when wet and shrinking when dry. The resulting movement exerts thousands of pounds of pressure per square foot, easily snapping concrete and twisting wood framing. The mechanism that dictates this destruction is not the strength of the concrete, but the physical state of the soil, quantified by a set of metrics known as the Atterberg limits.[7]

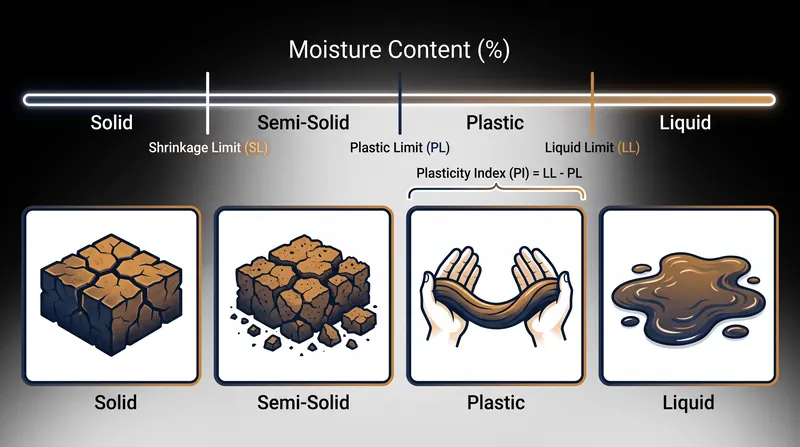

Developed in 1911 by Swedish chemist Albert Atterberg, these limits define the exact moisture content at which a fine-grained soil transitions between four distinct states: solid, semi-solid, plastic, and liquid. The two most critical thresholds for residential construction are the plastic limit (PL) and the liquid limit (LL). The plastic limit is the moisture content at which the soil transitions from a brittle, semi-solid state to a moldable, plastic state. In laboratory testing, this is the point where a thread of soil rolled to a diameter of 3.2 millimeters (1/8 inch) begins to crumble. The liquid limit is the moisture content at which the soil transitions from that plastic state into a flowing liquid. The numerical difference between these two thresholds is the plasticity index (PI), which serves as the primary indicator of a soil's potential to heave and destroy a foundation.[5][6]

A soil with a low plasticity index—say, a PI of 5—has a very narrow window in which it behaves like a moldable paste. It transitions quickly from a solid to a liquid, typical of silts and sands that drain well and do not expand significantly. But a soil with a high plasticity index, often above 20 or 30, contains a high percentage of expansive clays like smectite or montmorillonite. These clays have a unique microscopic structure: their molecular layers are weakly bonded, allowing water molecules to force their way between the sheets. As the soil absorbs water, it remains in a plastic state over a wide range of moisture contents, swelling dramatically in volume. When the soil dries, the water evaporates, the molecular layers collapse back together, and the soil shrinks, often leaving deep fissures in the ground.[2][5][7]

The financial toll of this microscopic expansion is staggering. According to the American Society of Civil Engineers, expansive soils cause an estimated $2.3 billion in damage to homes, buildings, roads, and pipelines in the United States every year—more than the combined annual damage from floods, hurricanes, earthquakes, and tornadoes. The damage is particularly concentrated in regions with distinct wet and dry seasons, where the soil undergoes constant cycles of shrinking and swelling. In the Pierre Shale formation of Colorado, for example, the U.S. Geological Survey documented severe structural damage to subdivisions built on highly expansive clays, noting that the geologic control of the soil fundamentally dictated the survival of the homes above it.[1][7]

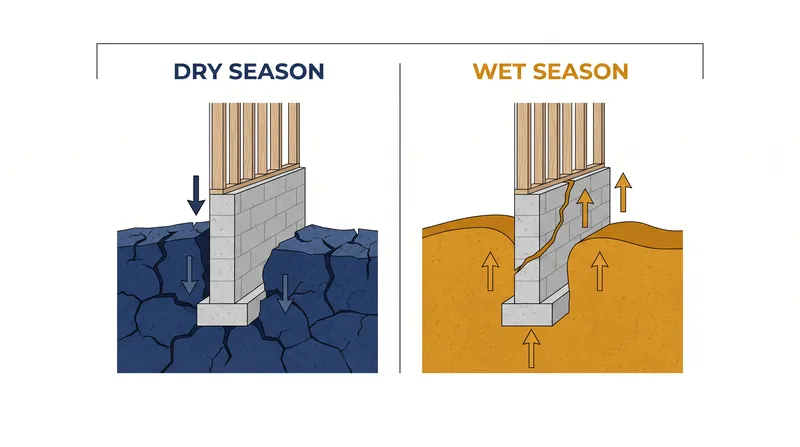

For a homeowner, the plasticity index of their soil translates directly into the necessity of moisture control. If a house sits on soil with a high PI, allowing the ground to dry out completely during a summer drought will cause the soil to shrink and pull away from the foundation, removing its support and causing the house to settle unevenly. Conversely, allowing water to pool near the foundation during a heavy rain will cause the soil to swell, exerting upward pressure (heave) that can lift the foundation and crack the walls. The goal is not to keep the soil perfectly dry, but to maintain a constant moisture level that keeps the soil volume stable.[3][4]

This is why structural engineers and foundation repair specialists emphasize the importance of grading and drainage. The ground must slope away from the foundation—typically a drop of 6 inches over the first 10 feet—to prevent surface water from saturating the expansive clay. Gutters and downspouts must discharge water well away from the house. In regions with severe expansive soils, homeowners often install root barriers to prevent large trees from drawing moisture out of the soil near the foundation during dry spells, and some even use soaker hoses around the perimeter of the house to artificially maintain soil moisture during droughts.[3]

When a foundation does fail due to expansive soil, the repair methods must account for the underlying geology. Simply patching a crack in the concrete does nothing to stop the soil from moving. Underpinning—driving steel or concrete piers deep into the ground until they reach stable bedrock or load-bearing strata—bypasses the active zone of expansive clay entirely, anchoring the house to a stable layer. Alternatively, chemical injection techniques can alter the molecular structure of the clay itself. By injecting a potassium-based solution into the soil, the potassium ions replace the water molecules between the clay sheets, permanently reducing the soil's plasticity index and preventing future expansion.[4][7]

Ultimately, the survival of a home rests on the physical properties of the dirt beneath it. The Atterberg limits provide a quantifiable metric for a soil's behavior, translating the microscopic interaction of clay and water into a predictable risk of structural failure. By understanding the plastic limit and the liquid limit, homeowners and builders can move beyond reacting to cracked drywall and begin managing the moisture that drives the destruction.[5][6][8]
