Why Bookshelves Sag: The Physics of Span, Thickness, and Material Creep

A homeowner loading a newly built 48-inch bookcase with hardcovers watches the center dip by a quarter of an inch. The shelf is not going to break, but the visible curve instantly ruins the aesthetic of the room. The physics of that bend dictate that the length of the shelf matters far more than what it is made of.[8]

The underlying mechanics belong to structural engineering, specifically the formulas governing beam deflection. When a shelf is uniformly loaded with books—typically estimated at 20 pounds per running foot—the downward force is distributed across the entire span. The material resists this force based on its inherent stiffness and its physical dimensions.[4]

The most punishing variable in this equation is the span between supports. According to standard engineering formulas, deflection under a uniform load scales with the fourth power of the span. That exponential relationship means that small increases in length produce massive increases in how much the wood bends.[3][4]

"For a shelf loaded with books, the sag grows with the fourth power of the span," notes Dannico Woodworks in a 2026 design guide. "Make a shelf 50% longer (24 inches to 36) and you get roughly five times the sag."[2]

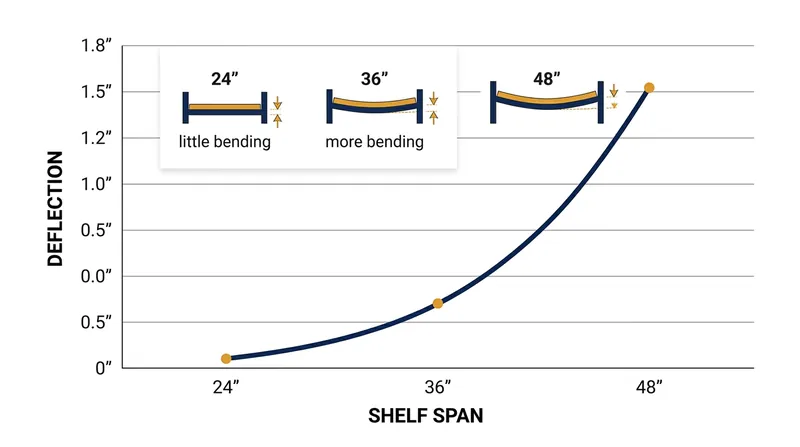

If a homeowner decides to double a shelf's length from 24 inches to 48 inches and fills the entire new length with books, the deflection does not double. It increases sixteenfold. This is why long, unsupported spans in modern minimalist furniture frequently fail the visual test once actually used.[2][4]

The geometry of stiffness

To fight the exponential penalty of a long span, builders must rely on the second geometric factor: thickness. Deflection is inversely proportional to the cube of the shelf's thickness, a property engineers call the moment of inertia.[3]

Because the thickness factor is cubed, minor adjustments to the board's depth yield disproportionate improvements. Doubling the thickness of a shelf reduces its sag by a factor of eight. A one-inch thick board is nearly two and a half times stiffer than a standard 3/4-inch board of the exact same material.[1][2]

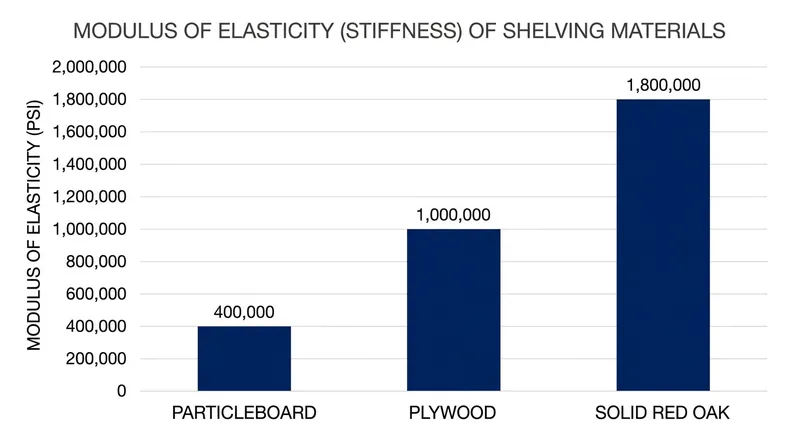

This geometric reality explains why material upgrades often disappoint buyers who keep the same dimensions. Solid red oak has a modulus of elasticity around 1.8 million pounds per square inch, making it roughly four times stiffer than standard 400,000 psi particleboard.[5]

However, a homeowner upgrading from a 3/4-inch particleboard shelf to a 3/4-inch oak shelf only gains that linear four-fold improvement. If they instead kept the cheap particleboard but increased its thickness to 1.25 inches, the cubed geometric factor would make the cheap shelf stiffer than the thin oak one.[8]

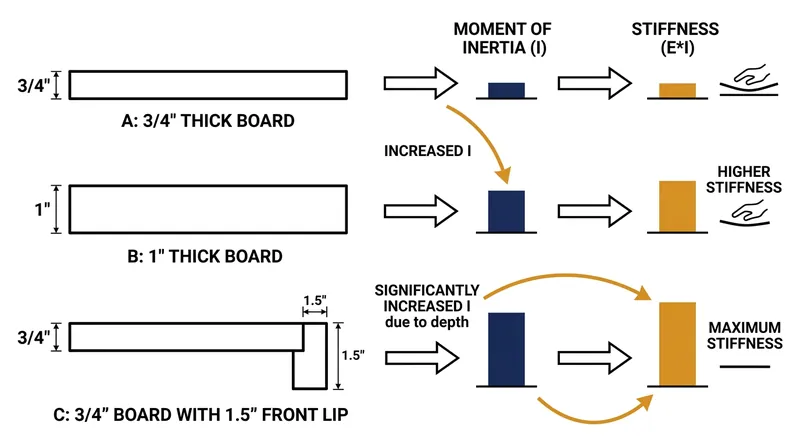

Adding a solid wood lip to the front edge of a shelf exploits this exact principle. A 1.5-inch tall trim piece glued to the front of a 3/4-inch plywood shelf drastically increases the overall moment of inertia, effectively tricking the load into behaving as though the entire shelf were thicker.[7]

The limits of visual tolerance

The threshold for failure in residential shelving is rarely a catastrophic break. Instead, it is a failure of visual tolerance. The human eye is remarkably adept at detecting curves in horizontal lines, especially when referenced against a flat ceiling or floor.[8]

The Sagulator, a widely used deflection calculator maintained by WoodBin, quantifies this threshold. "The eye will notice a deflection of 1/32 of an inch per running foot," the site's documentation explains. For a standard 36-inch wide bookcase, that means a sag of just 3/32 of an inch becomes glaringly obvious.[1]

This distinction between breaking and bending is a core concept in structural design. Sepco Consulting Engineers, writing in a December 2025 technical bulletin, emphasizes that "Strength protects life safety. Stiffness protects performance, comfort, finishes, and long-term durability."[6]

A standard 3/4-inch pine shelf spanning 36 inches has more than enough sheer strength to hold 60 pounds of books without snapping. But its stiffness is insufficient to keep the deflection under that critical 3/32-inch visual threshold, resulting in a shelf that looks structurally unsound even when it is perfectly safe.[6][8]

Joinery also plays a critical role in managing this deflection. A shelf that simply rests on four metal pins acts as a simply supported beam, allowing the ends to pivot slightly inward as the center dips under the weight of the books.[4]

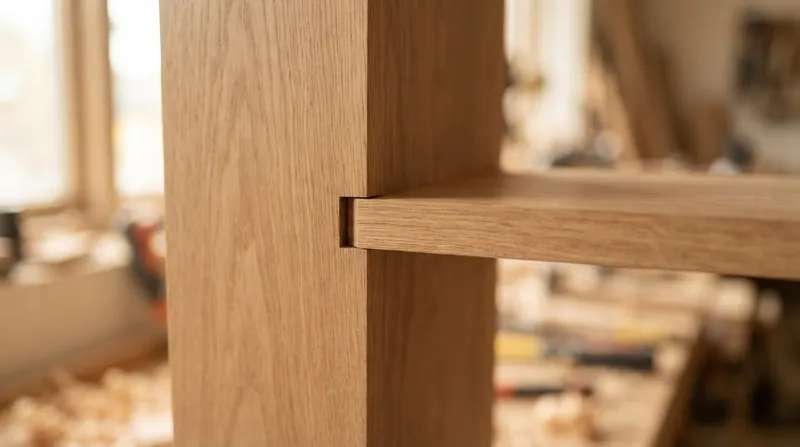

If that same shelf is glued and screwed into dados—grooves cut into the side panels—it becomes a fixed-end beam. Securing the ends prevents them from pivoting, which effectively cuts the overall mid-span deflection by up to 80 percent compared to a floating shelf.[2][4]

The long-term effects of creep

Even a shelf that passes the visual test on day one may fail it a year later due to a material phenomenon known as creep. Creep is the time-dependent deformation of a material under a constant, sustained load, and it affects wood products significantly.[5]

When heavy books sit on a shelf for months, the wood fibers slowly compress and stretch, causing the sag to deepen. "As an engineering rule of thumb, wood beams/shelves will sag an additional 50% over time beyond the initial deflection induced by the load," WoodBin notes.[1]

This time-dependent sagging is particularly severe in composite materials like medium-density fiberboard and particleboard. Because these materials are made of glued wood particles rather than continuous long fibers, they lack the structural memory to resist sustained loads over years.[7]

"Once particleboard bends, it stays bent," Dannico Woodworks explains regarding children's furniture. "That's the 'it was fine for a while' pattern many parents describe. The shelf didn't fail on day one. It gave up slowly."[2]

Plywood performs better under sustained loads because its alternating grain directions distribute the stress more evenly. Solid hardwoods perform best of all, maintaining their initial deflection state far longer than engineered sheet goods, provided the ambient humidity remains relatively stable.[2][5]

Practical applications for buyers

For consumers navigating the modern furniture market, these physical laws offer a clear buying guide. The trend toward wide, minimalist bookcases with thin, floating shelves is fundamentally at odds with the physics of uniform loading.[8]

Buyers looking at spans wider than 32 inches should demand shelves that are at least a full inch thick, or ensure the design includes intermediate vertical supports. A bookcase divided into narrower cubbies will always outlast a wide-open design made of the same material.[7][8]

When evaluating flat-pack furniture, weight is not a reliable proxy for stiffness. Dense particleboard is heavy, but its low modulus of elasticity and susceptibility to creep make it a poor choice for spans over 24 inches unless it is exceptionally thick.[2]

Ultimately, gravity does not negotiate with aesthetic preferences. A homeowner who understands that span penalizes them to the fourth power and thickness rewards them to the third power can spot a sagging shelf before they ever put a book on it.[8]
