Unsealed End Grain and Vapor Pressure Differences Cause Floating Laminate Planks to Peak at the Joints

When solid hardwood flooring absorbs moisture from a damp subfloor, the entire board cups. The bottom of the plank swells faster than the sealed top, causing the edges to curl upward in a uniform curve across the room.[4]

Floating laminate flooring reacts to that exact same moisture entirely differently. Instead of cupping uniformly across the width of the board, laminate develops sharp, raised ridges exclusively where the individual planks connect to one another.[2]

This localized swelling is known as joint peaking. It occurs because laminate is a manufactured composite, and its vulnerability to water vapor is concentrated entirely in the unsealed end grain hidden inside its click-lock mechanisms.[1]

Understanding why those joints peak requires looking beneath the decorative surface. The structural backbone of a laminate plank is its thick core layer, which provides the rigidity necessary to span minor subfloor imperfections and support heavy furniture.[2]

This core is typically manufactured from high-density fiberboard (HDF), created by compressing wood fibers and phenolic resins under extreme heat. The resulting material achieves a density of 810 to 830 kilograms per cubic meter, making it exceptionally hard.[2]

However, because HDF is fundamentally composed of wood fibers, it remains highly hygroscopic. It acts like a dense, rigid sponge that constantly attempts to reach an equilibrium with the moisture levels in its surrounding environment.[4]

The Physics of Vapor Drive

The moisture that attacks laminate floors rarely comes from a spilled glass of water. Instead, it rises invisibly from the subfloor through a continuous physical process known as vapor drive.

Concrete slabs are highly porous at a microscopic level, containing capillary channels that allow water vapor to pass through. This movement is powered by vapor pressure differentials between the damp soil below and the conditioned air above.[3]

Warm indoor air holds more moisture and creates a natural draw, pulling vapor upward through the concrete. If a floating floor is installed directly over that slab, the moisture becomes trapped against the underside of the planks.

The building science community measures this moisture transmission in perms, or permeability. A single perm represents one grain of water vapor passing through one square foot of material per hour under specific pressure conditions.[3]

The End Grain Vulnerability

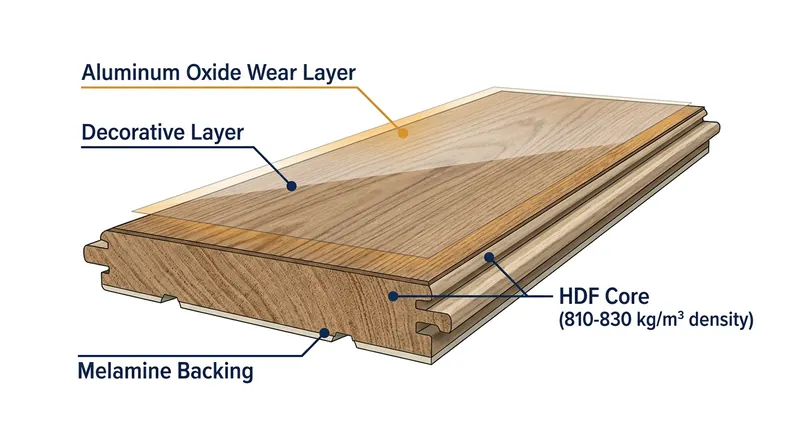

When rising vapor hits the bottom of a laminate plank, the melamine backing layer blocks most of the moisture. The top wear layer, coated in aluminum oxide, is similarly impervious to water.[2]

The structural weak point lies at the perimeter of every plank. When manufacturers mill the intricate tongue-and-groove click-lock profiles into the HDF core, they expose the raw, unsealed end grain of the compressed wood fibers.[1]

Water vapor naturally seeks the path of least resistance, migrating toward these microscopic gaps between the planks. As the vapor concentrates in the seams, the exposed HDF end grain begins to absorb the trapped dampness.[4]

How the Joint Levers Upward

As the wood fibers inside the locking mechanism absorb moisture, they physically expand. Because the HDF is so densely compressed, this swelling generates an immense amount of localized pressure within the joint.[4]

The expanding core material has nowhere to go horizontally, as it is locked tightly against the adjacent plank. Consequently, the swelling forces the edges of the planks upward, levering the click-lock joint toward the ceiling.[1]

This upward movement creates the visible, raised ridges known as peaking. Once the HDF core expands and deforms the locking mechanism, the physical change is permanent, and the joint will not flatten even if the floor completely dries.[1]

The raised peaks also compromise the floor's durability and the home's overall appeal. Real estate experts note that visible flooring damage immediately signals underlying maintenance issues to buyers, actively decreasing a property's market value.[5]

The Role of Core Thickness

The severity of joint peaking is heavily influenced by the overall thickness of the laminate plank. Thicker boards provide greater dimensional stability and resist the upward levering force more effectively.[2]

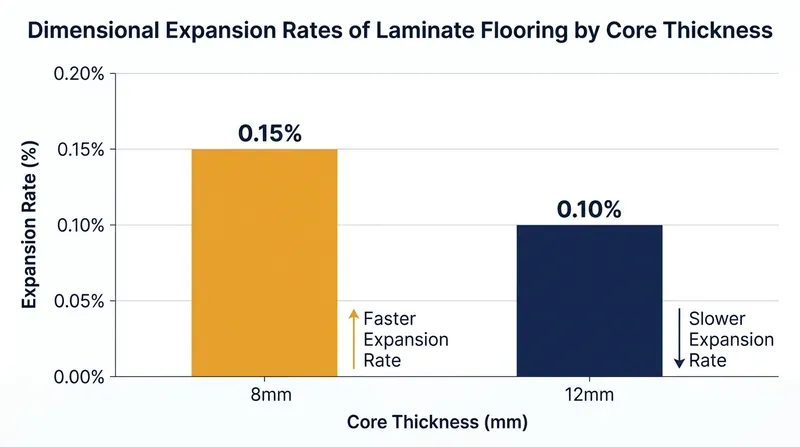

Testing demonstrates that a premium 12-millimeter laminate plank expands at a rate of approximately 0.1 percent under standard humidity fluctuations. In contrast, a thinner 8-millimeter board experiences an expansion rate closer to 0.15 percent.[1]

That seemingly minor difference in expansion becomes critical across a large room. The additional four millimeters of HDF core in a thicker plank provide the structural rigidity necessary to keep the locking mechanisms flat under moderate vapor stress.[1]

Blocking the Moisture Path

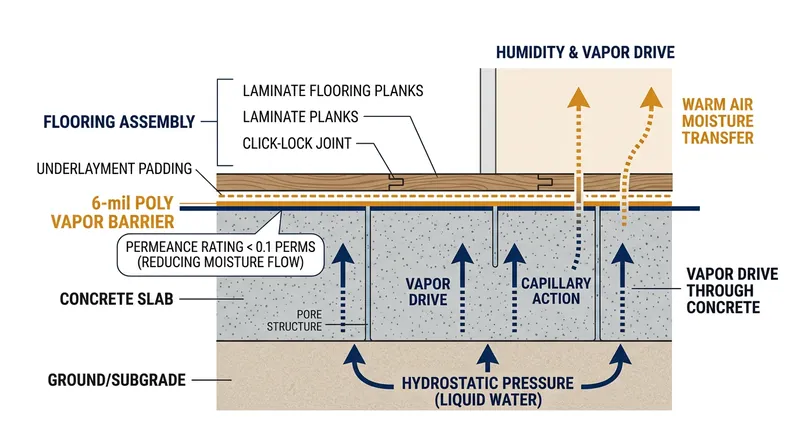

Preventing joint peaking requires stopping vapor drive before it reaches the HDF core. This is achieved by installing a dedicated vapor barrier between the concrete slab and the floating floor.

In 2026, industry standards require a protective layer over concrete subfloors to block this transmission. "Any material with a perm rating of less than 1 is considered a vapor retarder," notes the International Association of Certified Home Inspectors, though concrete slabs typically demand a Class I rating below 0.1 perms.[3]

The most common and effective solution is a continuous sheet of 6-mil polyethylene plastic. When the seams are overlapped by several inches and taped securely, this barrier isolates the vulnerable click-lock joints from ground moisture.

Many modern underlayments combine acoustic foam with an integrated foil or film moisture skin. These dual-purpose pads absorb hollow footstep sounds while simultaneously providing the required vapor protection for the HDF core.[2]

Ultimately, the longevity of a floating laminate floor depends on respecting the physics of its materials. By sealing off the vapor drive, the unsealed end grain remains dry, and the click-lock joints remain perfectly flat.[1]
