The 21% Chemically Bound Water: How Gypsum Drywall Resists Fire by Releasing Steam

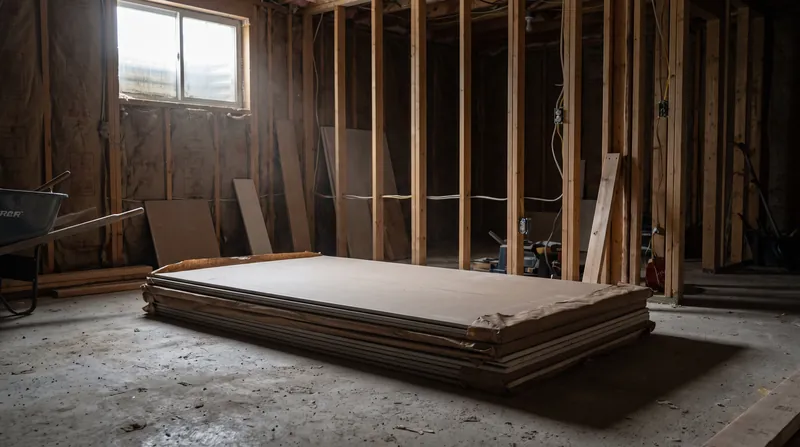

A homeowner finishing a basement or remodeling a kitchen faces a specific material choice before the first coat of paint goes on: whether to hang standard half-inch drywall or upgrade to 5/8-inch Type X board. That decision, usually framed around local building codes or a marginal cost increase of a few dollars per sheet, actually dictates how their walls will behave if a fire breaks out. Drywall is not just a flat surface for interior design; it is an active, water-bearing fire suppression system built into the architecture of the house.[1][4]

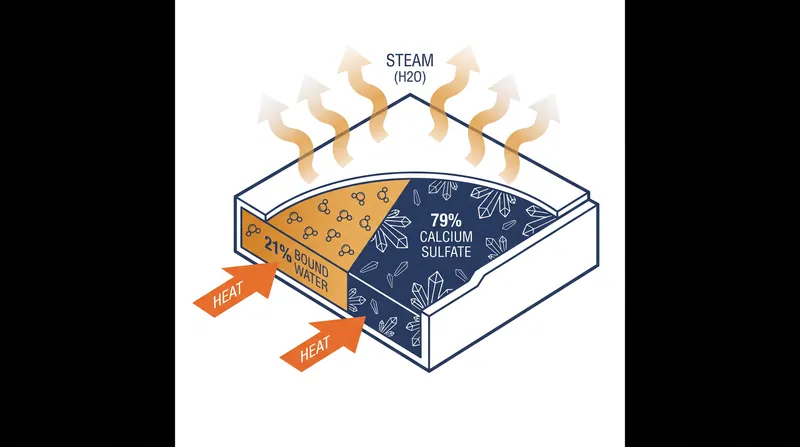

The core of that system is the chemical composition of gypsum itself, known scientifically as calcium sulfate dihydrate. By weight, a standard sheet of gypsum board is approximately 21 percent chemically bound water, alongside about 79 percent inert calcium sulfate. When a contractor installs a standard 4-by-8-foot sheet of half-inch drywall, they are effectively hanging roughly two gallons of solid water on the studs.[1]

That trapped water remains entirely stable at normal room temperatures. However, when exposed to the intense heat of a room fire—which can exceed 1,500 degrees Fahrenheit within minutes—the gypsum undergoes a process called calcination. The heat energy forces the chemical bonds holding the water molecules to break, converting the solid water into steam.[4][7]

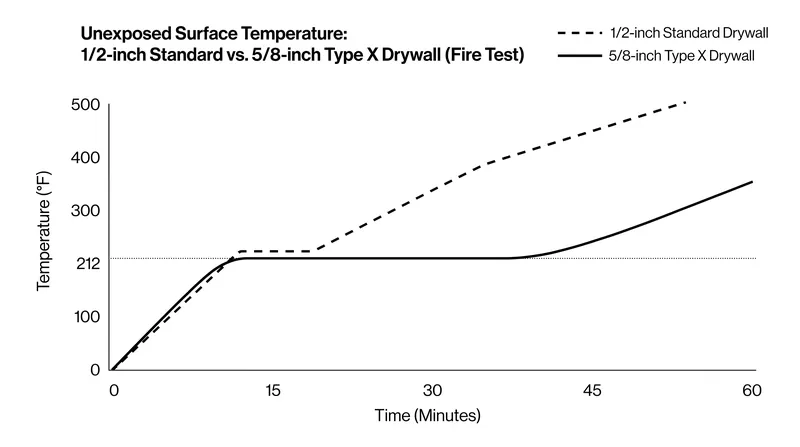

In a 2009 analysis of heat transfer through partitions, researchers at the National Institute of Standards and Technology observed this exact mechanism. "The endothermic dehydration of gypsum absorbs a massive amount of thermal energy," the NIST report notes, detailing how the conversion of water to steam requires continuous energy input. Because of this, the temperature of the drywall itself plateaus at 212 degrees Fahrenheit (100 degrees Celsius) until all the bound water is driven off.[5]

This temperature plateau is the critical mechanism that protects the structural framing behind the wall. While the fire-facing side of the drywall is subjected to extreme heat, the unexposed side facing the wooden studs will not exceed 212 degrees Fahrenheit as long as the calcination process is actively releasing steam. Wood typically ignites at around 400 to 500 degrees Fahrenheit, meaning the studs remain safe while the drywall sweats out its bound water.[5][8]

The rate at which this dehydration front moves through the board determines the wall's survival time. Researchers tracking moisture transport in gypsum found that the calcination zone progresses from the fire-exposed surface toward the unexposed surface at a predictable rate, pushing a wave of condensed liquid water ahead of it into the cooler portions of the board.[3]

In a standard half-inch sheet of drywall, this process buys the occupants approximately 15 to 20 minutes before the board is completely dehydrated. Once the 21 percent water content is fully exhausted, the remaining material is calcined gypsum—calcium sulfate hemihydrate or anhydrite—which is highly brittle. Without the water bonds holding it together, standard drywall shrinks, cracks, and eventually falls away from the studs, exposing the wood to direct flame.[6][7]

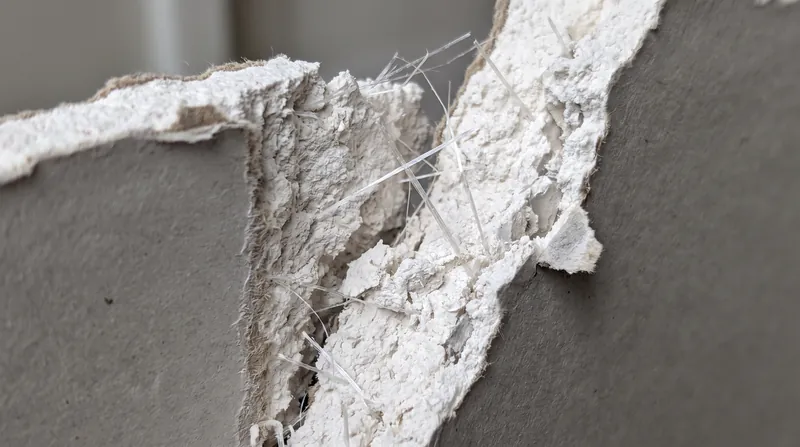

This structural failure is where the homeowner's initial material choice becomes paramount. A 2024 technical review by the National Gypsum Company outlines how Type X drywall, mandated by code for specific applications like garage-to-house shared walls or furnace rooms, is manufactured to be 5/8-inch thick and includes non-combustible glass fibers mixed into the gypsum core.[4]

The glass fibers do not change the thermodynamics of the calcination process, nor do they add more water to the chemical equation. Instead, they act as a reinforcing mesh that holds the brittle, dehydrated gypsum together after the steam has been released. By preventing the board from cracking and falling off the wall, Type X drywall forces the fire to burn through the remaining inert calcium sulfate, extending the wall's survival time to 45 or 60 minutes.[4][9]

Researchers at Western Kentucky University documented this exact physical difference during comparative studies on fire-rated wallboards. "The addition of glass fibers maintains the integrity of the board, allowing it to act as a thermal barrier long after the endothermic cooling effect has ceased," the researchers concluded. This extended barrier is what earns Type X its one-hour fire resistance rating under standard ASTM E119 testing.[6]

Modern research into hydrated salts under vapor-restricted conditions reveals that the exact dehydration pathway is highly sensitive to the surrounding vapor pressure. If the steam cannot easily escape—for instance, if the drywall is covered by multiple layers of impermeable vinyl wallpaper or certain vapor-barrier paints—the internal pressure can alter the rate of calcination and potentially cause localized spalling, where chunks of the board blow off prematurely.[2]

Flammability tests on painted gypsum wallboard subjected to varying heat fluxes confirm that while standard latex paints burn off quickly without significantly impeding the steam release, heavy elastomeric coatings can trap moisture and change the thermal profile of the unexposed surface. For a homeowner, this means that the fire-resistance rating of a wall is a system-level property, dependent not just on the drywall, but on what is applied over it.[8]

The rehydration mechanism of soluble anhydrite also plays a role in post-fire forensics. Studies on the dehydration pathways of gypsum show that once the fire is extinguished, the completely dehydrated calcium sulfate can slowly absorb ambient moisture from the air, partially reverting to a hemihydrate state. Fire investigators use the depth of the calcination line and the state of the remaining gypsum to reconstruct the intensity and duration of the fire in a specific room.[7]

The decision made in the lumber aisle translates directly to evacuation time. The 21 percent chemically bound water in gypsum is a reliable, passive safety mechanism that requires no maintenance, no power supply, and no sensors. It simply waits in the walls, ready to absorb heat and release steam the moment the temperature reaches the critical threshold.[1][9]
