Check Valves Seal Plumbing Into Closed Systems, Forcing Thermal Expansion to Discharge Relief Valves

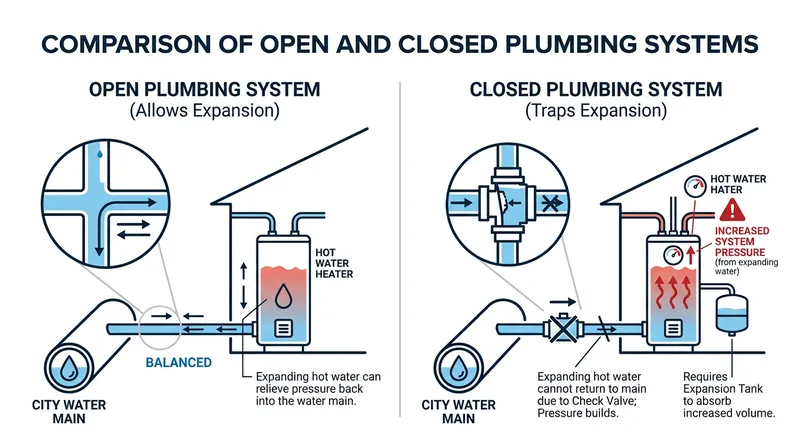

The outcome is determined the moment a plumber threads a backflow preventer or check valve onto the main water line at the meter. This single component, designed to protect the municipal water supply from contamination, fundamentally alters the physics of a home's plumbing. It transforms an open network into a hydraulically closed system.[3]

In older homes without these valves, plumbing operates as an open loop. When the water heater fires up, the water inside expands as it warms. Because the system is open, that extra volume simply pushes backward through the supply pipe and out into the city water main, dissipating the pressure harmlessly.[3]

Modern plumbing codes mandate backflow prevention to keep stagnant or contaminated water from flowing backward into public drinking supplies. Pressure-reducing valves installed to protect fixtures from high city pressure also act as one-way gates. Once water passes through, it cannot return.[3]

This one-way street creates a hidden mechanical conflict. A standard 50-gallon water heater warming water from 50 degrees Fahrenheit to 120 degrees Fahrenheit will cause the liquid to expand by approximately 1.7 percent. That equates to nearly a gallon of new volume that suddenly needs a place to go.[5]

The Physics of a Closed Loop

The problem with this new volume is a fundamental property of fluid dynamics: water is essentially incompressible. Physicists measure a material's resistance to being squeezed using a metric called the bulk modulus. For liquid water, the bulk modulus is approximately 2.1 gigapascals, or roughly 304,000 pounds per square inch (psi). By comparison, the bulk modulus of air is a mere 14.2 psi, making it vastly easier to compress.[1]

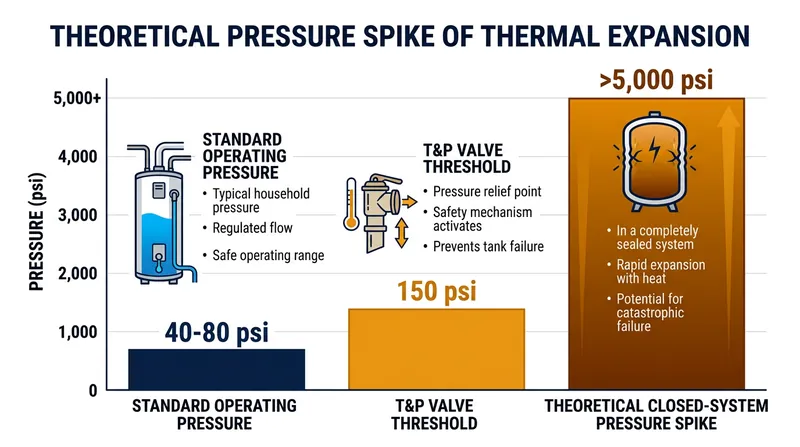

Because water cannot be compressed into a smaller space, that 1.7 percent thermal expansion translates directly into a massive pressure spike. If the pipes were perfectly rigid and no safety valves existed, the pressure inside a closed 50-gallon system would theoretically skyrocket past 5,000 psi during a standard heating cycle. That is more than enough force to tear apart solid steel.[2][5]

Real-world copper and cross-linked polyethylene (PEX) pipes possess some elasticity, which absorbs a small fraction of this force by expanding their own diameter slightly. However, the expansion still easily overwhelms the system's standard operating pressure of 40 to 80 psi. Within minutes of the burner igniting, the internal pressure races upward, seeking an escape route.[5]

"If you have a pressure reducing valve or a backflow device, your household water system may become a closed system," notes municipal guidance from the City of Santa Rosa. "A closed system just means there is no place for the hot water to expand."[3]

Why the Relief Valve Discharges

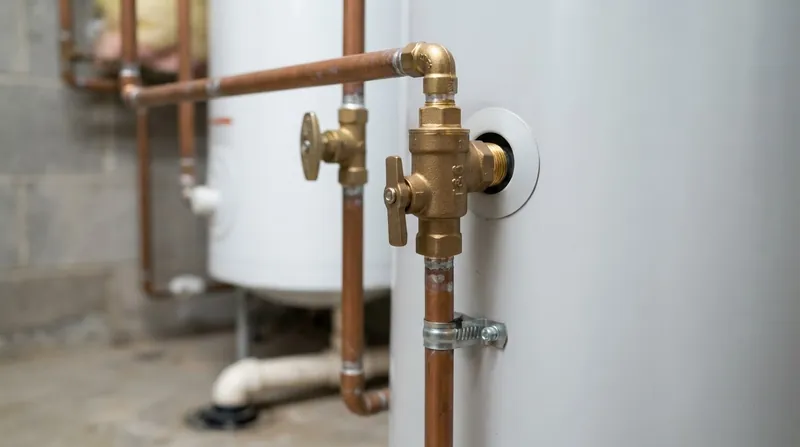

Before the pressure can rupture a pipe or blow out a washing machine hose, the water heater's ultimate safety mechanism intervenes. Every storage water heater is equipped with a Temperature and Pressure (T&P) relief valve. This brass component sits near the top of the tank and is calibrated to open if conditions become dangerous.[3]

The standard T&P valve is designed to discharge at 150 psi or 210 degrees Fahrenheit. As the trapped, expanding water pushes the system pressure to that 150-psi threshold, the spring inside the valve compresses. The valve unseats, weeping a small amount of water onto the floor or down a drain tube to instantly relieve the pressure.[3][5]

This weeping is often the first symptom a homeowner notices after a closed system is created. It is frequently misdiagnosed as a faulty valve. Plumbers are routinely called to replace a dripping T&P valve, only to find the new valve drips exactly the same way because it is doing exactly what it was engineered to do.[5]

Relying on the T&P valve to manage daily thermal expansion is dangerous. A temperature and pressure relief valve is not considered a thermal expansion device, because the constant dripping of water from the valve can result in a mineral deposit that creates a blockage.[3]

If calcium and magnesium deposits calcify the valve seat, the T&P valve can freeze shut. Without that fail-safe, the relentless pressure of thermal expansion will find the next weakest link in the closed system. This often results in burst supply lines, split toilet fill valves, or a ruptured water heater tank that floods the surrounding room.[3][5]

How an Air Cushion Solves the Problem

To safely manage the physics of a closed plumbing system, the incompressible water must be paired with a compressible medium. This is achieved by installing a thermal expansion tank. These small steel vessels are plumbed directly into the cold water supply line just above the water heater.[3]

Inside the steel shell, a flexible butyl rubber diaphragm divides the tank into two distinct chambers. The top chamber connects to the plumbing system and fills with water. The bottom chamber is pre-charged with pressurized air, typically pumped in through a standard air valve to match the home's incoming water pressure.[3][5]

Unlike water, air is highly compressible. When the water heater fires and the water expands, the excess volume pushes into the expansion tank. The rubber diaphragm flexes downward, compressing the air cushion and absorbing the extra volume without allowing the system pressure to spike.[3][5]

Once a faucet is opened and hot water is drawn from the tank, the system pressure drops back to normal. The compressed air in the expansion tank acts like a spring, pushing the diaphragm back up and returning the stored water into the plumbing lines. The closed system remains balanced.[5]

Code Requirements and System Lifespan

Recognizing the severe damage caused by unchecked thermal expansion, modern building regulations have adapted. Plumbing codes now explicitly require thermal expansion control on all closed water heating systems. Whenever a pressure-reducing valve or check valve is present, an expansion tank must be installed downstream.[3]

Despite the code requirements, many older homes transition into closed systems silently. A municipal water meter upgrade that includes a check valve, or the addition of a pressure regulator to fix high street pressure, instantly closes the loop. The homeowner is often unaware until the water heater begins to leak.[5]

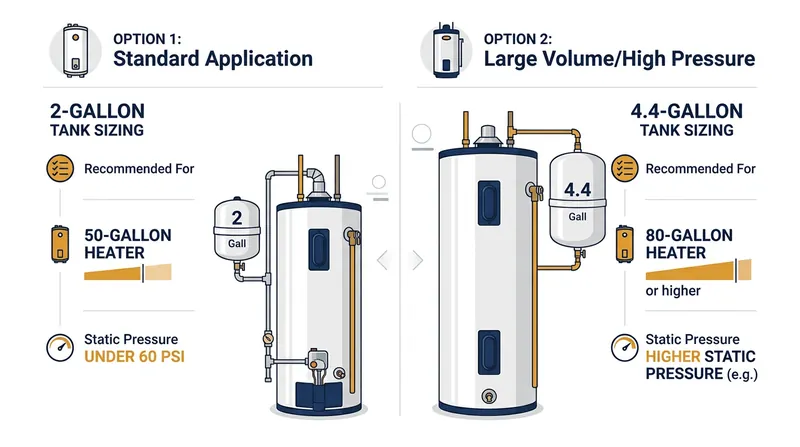

Sizing the expansion tank correctly is critical for it to function. A standard two-gallon tank is typically sufficient for water heaters up to 50 gallons, provided the incoming water pressure is below 60 psi. Larger 80-gallon tanks or systems with higher static pressure require a 4.4-gallon expansion tank to safely absorb the greater volume of displaced water.[5]

Expansion tanks are not permanent fixtures; they require maintenance and eventual replacement. Over time, the rubber diaphragm can degrade and rupture, or the air valve can slowly leak its pre-charge. When this happens, the tank fills completely with incompressible water, rendering it useless.[5]

A simple diagnostic test involves tapping the side of the expansion tank with a metal tool. The air chamber should produce a hollow, resonant ring, while the water side sounds dull and solid. If the entire tank sounds solid, the internal bladder has failed, and the home's plumbing is once again at the mercy of thermal expansion.[5]
