The L/360 and L/240 Deflection Limits: How Acceptable Sag Actually Dictates Floor and Ceiling Spans

Before a homeowner can remove a load-bearing wall, install a kitchen island, or convert an empty attic into a bedroom, the underlying framing must satisfy a strict mathematical threshold: it cannot bend too much. This bending, known in structural engineering as deflection, is the binding constraint of residential remodeling.

If the joists beneath a new ceramic tile floor sag beyond a specific fraction of their total length, the grout will crack and the tiles will pop, regardless of how strong the wood is. In modern residential construction, this constraint currently holds through two primary ratios dictated by the International Residential Code (IRC): L/360 for floors and L/240 for ceilings.[1][5]

The distinction between a floor that collapses and a floor that simply bounces is the difference between strength and stiffness. A wooden joist might possess the sheer strength to support a 500-pound cast-iron bathtub without breaking, but if it lacks the stiffness to remain rigid under that weight, the surrounding finishes will fail. The 2021 International Residential Code explicitly addresses this in Table R301.7, stating that "the allowable deflection of any structural member under the live load listed in Table R301.5 shall not exceed the values in Table R301.7."[1]

The formula itself is a straightforward fraction where "L" represents the span length of the joist in inches. For standard residential living areas, the code mandates an L/360 limit. This means the maximum allowable sag in the center of the joist is the total span divided by 360. This ratio ensures that the floor feels solid underfoot and that standard finishes, like hardwood or carpet, do not suffer from excessive movement.[1][5]

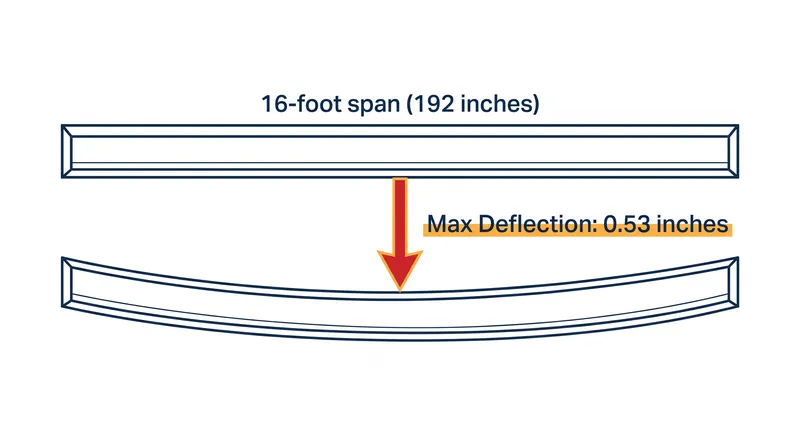

When applied to a real-world remodeling scenario, the math dictates exactly what a contractor can build. If a living room features a 16-foot clear span between supports, that equals 192 inches. Dividing 192 by 360 yields 0.53 inches. Therefore, under a normal live load—the weight of people, furniture, and temporary objects—that floor is legally permitted to deflect just over half an inch at its center.[5]

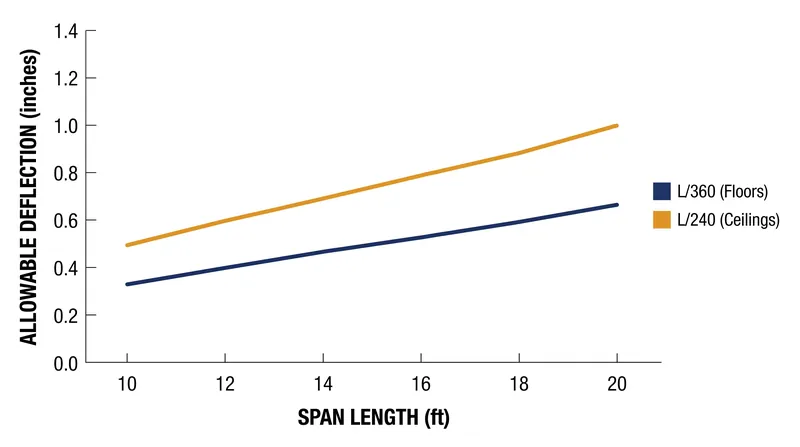

Ceilings operate under a more forgiving mathematical standard because homeowners do not walk on them. The IRC sets the ceiling limit at L/240 for structures finished with brittle materials like drywall or plaster. Using the same 16-foot span, the 192-inch length divided by 240 allows for 0.80 inches of deflection.[1]

This 50 percent increase in allowable bending explains the most common structural failure in DIY attic conversions. When a homeowner repurposes an attic built to the L/240 ceiling standard into a bedroom requiring the L/360 floor standard, the existing joists are mathematically guaranteed to flex beyond the tolerance of the drywall attached below them. The result is a web of cracked plaster across the ceiling of the floor beneath.[5]

The University of Massachusetts Amherst Building and Construction Technology program highlights that span tables are fundamentally designed around these limits. In their 2009 technical guidance, researchers emphasize that understanding the relationship between dead loads (the permanent weight of the structure) and live loads is critical for using these tables correctly. A joist must support both its own weight and the dynamic weight of the occupants without exceeding the deflection threshold.[2]

Modern building materials often require even stricter stiffness than the baseline code. While L/360 satisfies the legal minimum for a carpeted or hardwood floor, natural stone or large-format ceramic tile demands an L/720 limit. At that threshold, the same 16-foot span is allowed a mere 0.26 inches of deflection, requiring significantly deeper joists, tighter spacing, or engineered lumber to prevent the mortar bed from fracturing.[5]

AI

The engineering response to these strict limits has driven the adoption of manufactured lumber in modern homebuilding. Companies like TRIFORCE produce open-joist systems that use triangulation to achieve greater stiffness over longer spans than traditional dimensional lumber. Their published span tables demonstrate how engineered wood can maintain the L/360 limit across spans exceeding 20 feet without requiring intermediate steel beams.

The principles of deflection extend beyond residential wood framing into commercial and structural steel. According to CalcSteel, deflection limits in steel design codes follow similar proportional logic, though the material's inherent stiffness allows for different span-to-depth ratios. Steel beams are frequently deployed in residential remodels specifically to reduce the depth of the floor system while maintaining the required L/360 rigidity.

Calculating these limits once required manual engineering tables, but digital tools have democratized the math. FIRGELLI Engineering provides free deflection limit calculators that allow contractors and architects to instantly verify whether a proposed span meets the L/360 or L/240 thresholds before ordering materials. This immediate verification prevents costly tear-outs during the framing inspection.[3]

The regulatory framework governing these limits remains highly stable. A comparison between the 2015 International Residential Code and the 2021 edition reveals that the fundamental L/360 and L/240 ratios in Table R301.7 have not changed. This stability provides a reliable baseline for manufacturers developing new flooring products and structural components.[1][4]

For a prospective buyer touring a renovated home, these invisible mathematical limits manifest in how the house feels. A floor that bounces slightly underfoot or causes china to rattle in a cabinet has likely been built to the absolute minimum L/360 standard, whereas a floor that feels like a concrete slab has been over-engineered to L/480 or L/720.[5]

The next phase of structural code development focuses not on changing the L/360 ratio, but on how new materials like mass timber and advanced composites meet it. As local municipalities begin adopting the upcoming 2024 and 2027 code cycles, building inspectors will continue relying on these exact span-to-deflection ratios to determine whether a renovation is legally habitable.[1][5]
