The 800 Millimeter Clear Opening: How International Accessibility Standards Dictate Doorway Width

When a homeowner remodels a kitchen or bathroom, the dimensions of the plumbing pipes and electrical outlets are largely dictated by rigid, universally adopted standards that leave almost no room for interpretation. The width of a doorway, however, operates under a surprisingly fragmented set of rules that differ in one crucial respect: despite the existence of a global baseline, local jurisdictions routinely rewrite the math. While the International Organization for Standardization (ISO) provides a specific metric for wheelchair accessibility, the actual physical space required for a person to pass through a residential door changes dramatically depending on which country's building code governs the renovation. For a property owner or renter planning an accessible upgrade, this regulatory patchwork means that an off-the-shelf door marketed as compliant in one region may fail a building inspection in another.[2]

The global benchmark for an accessible built environment is established by ISO 21542, a comprehensive standard that dictates everything from ramp gradients to tactile paving. Within this framework, the baseline for a wheelchair-accessible doorway is defined as an 800-millimetre clear opening. This specific measurement is not arbitrary; it is calculated to accommodate the width of a standard manual wheelchair, which typically spans between 600 and 700 millimetres, while leaving enough lateral tolerance for the user's hands and elbows to clear the frame without scraping. However, the critical phrase in the ISO documentation is "clear opening," a technical term that frequently trips up inexperienced builders and do-it-yourself renovators. The clear opening is not the width of the door leaf itself, nor is it the structural distance between the bare wall studs.[1][2][4]

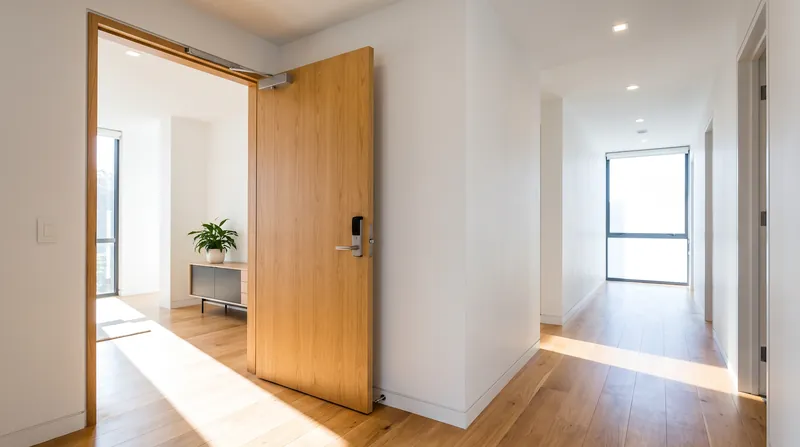

Instead, the clear opening is measured with the door open at a 90-degree angle, calculating the exact distance between the face of the open door and the opposite door stop on the strike jamb. Because the physical thickness of the door leaf and the projection of the hinges intrude into the passageway, a standard 800-millimetre door will never yield an 800-millimetre clear opening. To achieve the ISO 21542 baseline, a builder typically must install a door leaf that is at least 838 millimetres wide—often sold commercially as a 33-inch door—set within a wider structural frame. If a homeowner simply purchases an 800-millimetre door and hangs it in a standard frame, the resulting clear space will shrink to approximately 760 millimetres, rendering the passage non-compliant and potentially impassable for wider power chairs.[1][2]

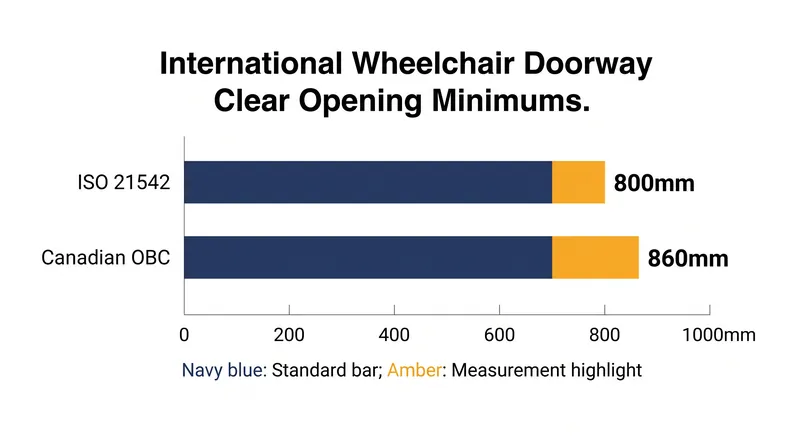

While the 800-millimetre ISO standard provides a theoretical baseline, national building codes enforce their own distinct measurements, forcing local markets to adapt. In Canada, for example, the regulatory math demands considerably more space than the international average. Under the Ontario Building Code (OBC) and the National Building Code of Canada (NBC), the minimum clear opening for a barrier-free doorway is set at 860 millimetres. As Canadian Access, a regional accessibility consultancy, notes in its technical breakdown of "Wheelchair Door Width Canada: OBC & NBC Minimums Explained," builders must carefully navigate these specific thresholds to ensure legal compliance. This 860-millimetre requirement represents a full 60-millimetre increase over the ISO standard. To satisfy the Canadian regulations, builders must routinely specify 36-inch (914-millimetre) or even 38-inch door leaves for all accessible routes, ensuring the clear space remains compliant even after the hinges and door thickness are accounted for.[3]

For a homeowner retrofitting an older property, this fragmentation of standards turns a simple door replacement into a major framing project. Achieving an 860-millimetre clear opening often requires structural demolition, as the existing wall studs must be pushed back to widen the rough opening. If a property owner assumes that an "accessible" door manufactured to the 800-millimetre ISO standard will pass a local inspection, they risk installing a unit that is legally too narrow for the jurisdiction. This regulatory patchwork means that an off-the-shelf door marketed as compliant in one region may fail a building inspection in another, forcing multinational hardware companies to engineer hinges and handles that do not project into the critical clear-width zone.[2][3]

The fragmentation of these standards creates a complex landscape for manufacturers producing hardware and doors for the global market. Because a door compliant in one country will fail an inspection in another, hardware companies must engineer hinges, handles, and automatic closers that do not project into the critical clear-width zone. As Safetell, a physical security and access provider, outlines in its briefing on "Disabled Door Width Requirements," the precise measurements dictate the hardware choices available to consumers. Consequently, lever-operated handles and push-type mechanisms are designed to sit as flush as possible against the door face, ensuring that the hardware itself does not reduce the effective width of the passage and trigger a code violation.[1]

The International Organization for Standardization's "DRAFT PROPOSAL 2nd ISO/CD 21542" establishes the framework for these measurements, but the enforcement remains strictly local. When a homeowner applies for a permit to remodel a bathroom for aging in place, the local inspector will measure the clear opening based on the municipal code, not the ISO guideline. This discrepancy often catches property owners off guard, particularly when they purchase imported doors or pre-hung units online that are manufactured to the 800-millimetre international standard rather than the stricter 860-millimetre Canadian standard. The financial penalty for this mistake is severe, as widening a doorway after the drywall and trim have been installed requires tearing the wall down to the studs and starting over.[2][3][4]

In 2026, as populations age and the demand for accessible housing outpaces supply, the pressure to harmonize these doorway dimensions is mounting. Retrofitting a narrow doorway is one of the most expensive and structurally invasive modifications a homeowner can undertake, often requiring the rerouting of electrical wiring and the reinforcement of load-bearing headers. By understanding the specific clear-opening requirements of their local jurisdiction—whether that is the 800-millimetre ISO baseline or the 860-millimetre Canadian standard—property owners can make informed framing decisions during initial construction. Planning for the widest applicable standard ensures their homes remain navigable and compliant without the need for costly future demolition.[2][3]
