Why Unbuffered Thin-Set Mortar Reacts With Gypsum Board to Shear Off Wall Tiles

Traditional contractors argue that standard drywall provides a perfectly flat, stable, and cost-effective substrate for kitchen backsplashes and bathroom walls, provided the area avoids direct water exposure. Materials scientists and failure analysts counter that the problem is not moisture from the room, but the chemical incompatibility between the wallboard's core and the adhesive itself.

The dispute centers on a microscopic chemical reaction that occurs long before the first drop of water hits the tile. When highly alkaline Portland cement meets calcium sulfate, the resulting interface becomes a ticking clock of crystal growth.

The Chemical Clash Behind the Wall

Standard thin-set mortar relies on Portland cement, which cures through a hydration process and maintains a highly alkaline pH of 12.5 to 13.5. Standard drywall, or gypsum board, is composed primarily of calcium sulfate dihydrate sandwiched between heavy paper facings.[2]

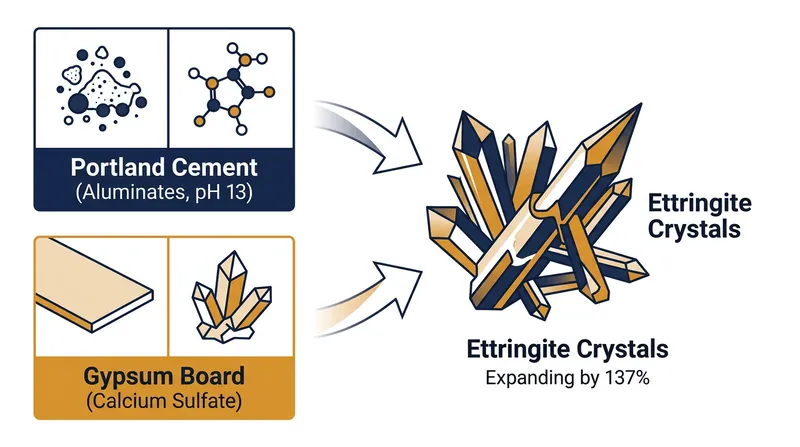

When wet mortar is troweled directly onto the drywall, the moisture carries dissolved aluminates from the cement into the porous gypsum core. This volatile mixture of calcium, sulfur, and aluminum triggers the rapid formation of ettringite, a complex needle-like crystal structure.

Ettringite is not inherently dangerous; it forms naturally during the early stages of cement hydration to regulate the setting time and prevent flash curing. However, when it forms at the interface between two different materials weeks after the initial cure, the crystals demand up to 137 percent more physical space than the raw materials did.

This delayed ettringite formation creates a microscopic expansion zone right at the boundary where the adhesive is supposed to grip the wall. The chemical reaction fundamentally alters the structural integrity of the bonding surface before the tile is even grouted.

How Microscopic Expansion Severs Bonds

As the ettringite crystals grow, they exert immense expansive pressure against the back of the cured thin-set mortar. This microscopic swelling pushes the rigid cement matrix away from the relatively soft gypsum core, creating a constant outward stress.

The expansion creates a mechanical shear force that the paper facing of the drywall simply cannot withstand over time. "Ettringite expansion exerts pressures exceeding 2,000 pounds per square inch, easily shearing the 50-psi bond strength of drywall paper," explains Dr. Robert Higgins, a materials scientist specializing in cementitious failures.[1]

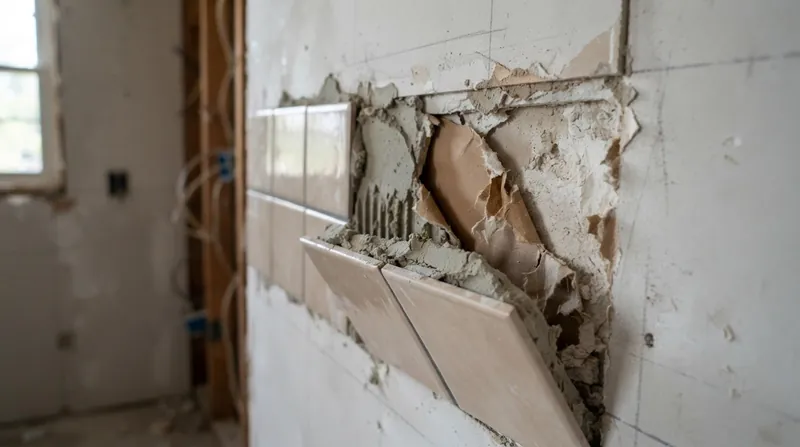

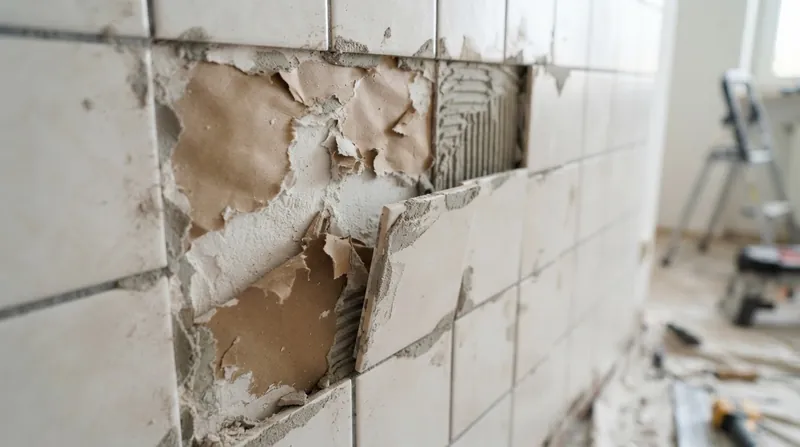

"The failure plane is almost always right at the paper-to-core interface," notes the Tile Council of North America's 2026 technical guidelines for substrate preparation. The sheer weight of the ceramic or porcelain then pulls the entire assembly downward, often resulting in a sudden, catastrophic collapse.

This failure mechanism explains why tiles often sound hollow when tapped months before they actually fall off the wall. The bond has already been chemically severed, and the tiles are merely resting on the grout joints and the remaining friction of the torn paper.

Why Water Accelerates the Collapse

While the chemical incompatibility exists immediately upon application, ambient moisture acts as the primary catalyst that drives the reaction to failure. Even in nominally dry areas like kitchen backsplashes, the initial mix water in the mortar is enough to start the ettringite formation process.

In damp environments, such as shower surrounds or poorly ventilated bathrooms, vapor drive continuously feeds the chemical reaction. The crystals continue to grow and expand as long as moisture and unreacted sulfates are present within the enclosed wall cavity.

Modern tile installations avoid this catastrophic failure by using buffered substrates, such as cement board, extruded polystyrene panels, or liquid-applied waterproofing membranes. These barriers physically separate the highly alkaline mortar from the reactive gypsum, halting the chemical transfer entirely.

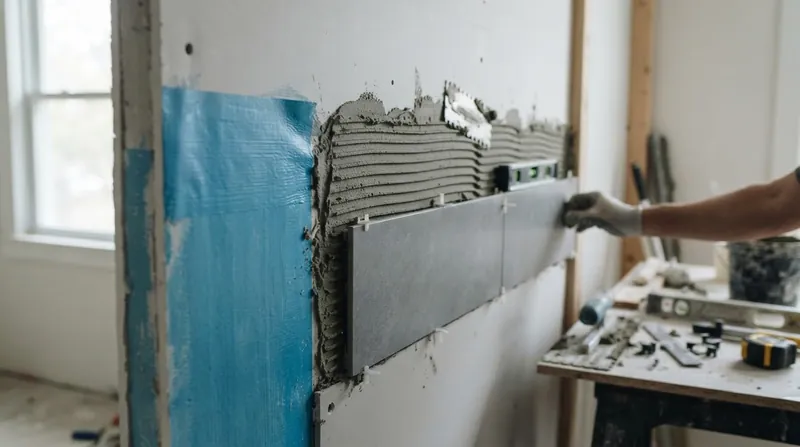

Liquid membranes, painted directly over the drywall before tiling, create an elastomeric shield that blocks both moisture and chemical migration. This allows installers to use standard drywall in dry zones without risking the delayed ettringite reaction.

The Cost of Hidden Chemical Failures

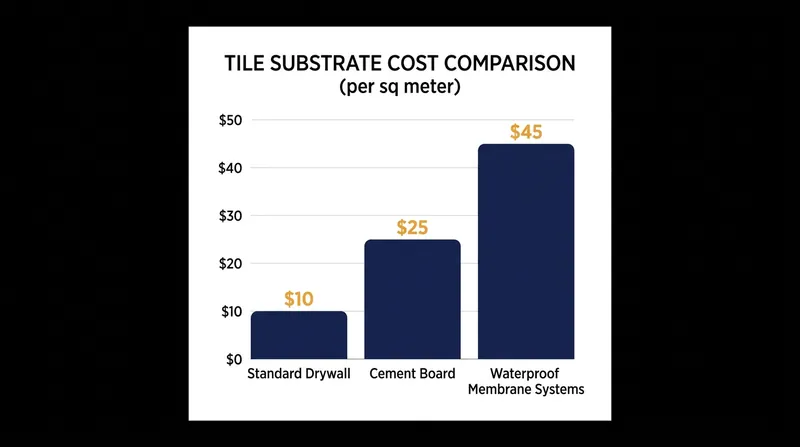

For a homeowner planning a bathroom renovation, this chemical reality dictates material choices that significantly impact the project's upfront budget. Upgrading from standard drywall to a dedicated tile backer board adds roughly $15 to $25 per square meter in raw material costs.

However, the cost of remediating a shear failure completely dwarfs the initial savings of using standard gypsum board. A collapsed shower wall requires completely gutting the enclosure, replacing the water-damaged substrate, and purchasing new tile, which typically exceeds $4,000 in labor and materials.

Real estate inspectors increasingly flag direct-to-drywall tile installations in wet areas as critical hidden defects during home sales. Buyers are often advised to request a substantial credit for future replacement, as the chemical degradation cannot be reversed once the ettringite crystals begin forming.

The risk is particularly acute in flipped properties, where budget-conscious contractors may use standard drywall to accelerate the renovation timeline. The resulting tile failures often occur 12 to 18 months later, leaving the new homeowner responsible for the structural repairs.

Shifting Industry Guidelines

Industry standards have steadily shifted away from permitting gypsum board as a tile substrate, even in areas protected from direct water spray. The Gypsum Association formally withdrew its recommendation for using water-resistant greenboard behind tile in wet areas in 2006, citing widespread shear failures.[2]

Despite these updated guidelines, the practice persists in budget-focused residential construction due to the speed and familiarity of hanging standard drywall. Contractors often rely on highly modified thin-sets with elevated polymer content, hoping the added flexibility will absorb the expansive forces.

Materials scientists warn that polymers only delay the inevitable shear failure rather than preventing the underlying chemical reaction. The American National Standards Institute (ANSI) A108.11 specifications now explicitly require isolating the calcium sulfate core from the Portland cement entirely in wet applications.[3]

Engineering Better Adhesives and Substrates

Chemical manufacturers are currently developing advanced epoxy and urethane-based adhesives that contain absolutely zero Portland cement. These alternative mortars cure through a chemical cross-linking process without water, eliminating the alkaline conditions required for delayed ettringite formation.

While highly effective at preventing crystal growth, these synthetic adhesives cost up to four times as much as traditional thin-set and require specialized ventilation during application. Until these manufacturing costs decrease, physical isolation membranes remain the most reliable defense against crystal-induced shear failure.

Understanding the microscopic chemistry behind the wall empowers property owners to demand appropriate substrates from their contractors. A successful, decades-long tile installation relies just as much on chemical compatibility as it does on visual alignment and grout color.
