Permeance and Vapor Drive: The Moisture Physics Dictating Wall Assembly Survival

Air leaking through a wall assembly can carry up to 100 times more moisture into a home than vapor slowly diffusing through the building materials themselves. Yet when homeowners and contractors open a wall during a remodel, they routinely focus on the latter, stapling up sheets of polyethylene plastic in an attempt to waterproof the house. In many regions, that plastic sheet is the exact mechanism that will eventually rot the framing. The physics of moisture movement—specifically vapor drive and permeance—dictate that a wall must be able to dry out when it inevitably gets wet.[1][4]

Vapor drive is the natural tendency for moisture to move from areas of high concentration and temperature to areas of lower concentration and temperature. In cold climates during the winter, the warm, humid air inside a house pushes outward toward the cold, dry exterior. In hot and humid climates during the summer, the heavy outdoor humidity pushes inward toward the air-conditioned interior. This movement is relentless, and the materials chosen for the wall assembly determine whether that moisture passes through harmlessly or condenses into liquid water inside the stud cavity.

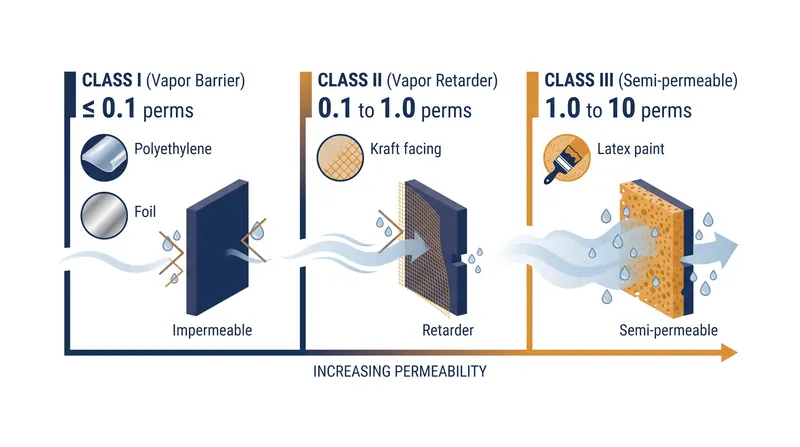

To measure how easily moisture moves through a material, the building industry uses a metric called a perm rating, established by the ASTM E96 standard test. A lower perm rating means the material is more resistant to vapor diffusion. The International Residential Code (IRC) divides these materials into three distinct classes. Class I materials, commonly called vapor barriers, have a perm rating of 0.1 or less. Polyethylene sheeting, aluminum foil, and foil-faced rigid foam fall into this category, essentially stopping all vapor movement.[2][4]

Class II materials are vapor retarders, with perm ratings between 0.1 and 1.0. The kraft paper facing on standard fiberglass insulation batts is the most common example, offering a perm rating of exactly 1.0. Class III materials are semi-permeable retarders, scoring between 1.0 and 10 perms. Standard latex paint applied to drywall typically acts as a Class III retarder, with a rating around 0.45 perms. Anything above 10 perms, such as unpainted drywall or standard house wrap, is considered vapor permeable and allows moisture to flow freely.[1][2]

The critical failure point in modern remodeling occurs when builders apply cold-climate logic to mixed climates—specifically ASHRAE Climate Zone 4, which covers a massive swath of the central United States. In a purely cold climate (Zones 5 through 8), placing a Class I polyethylene barrier on the interior side of the insulation works because the vapor drive is almost exclusively outward. The barrier stops the indoor moisture before it hits the cold exterior sheathing and condenses.[4][5]

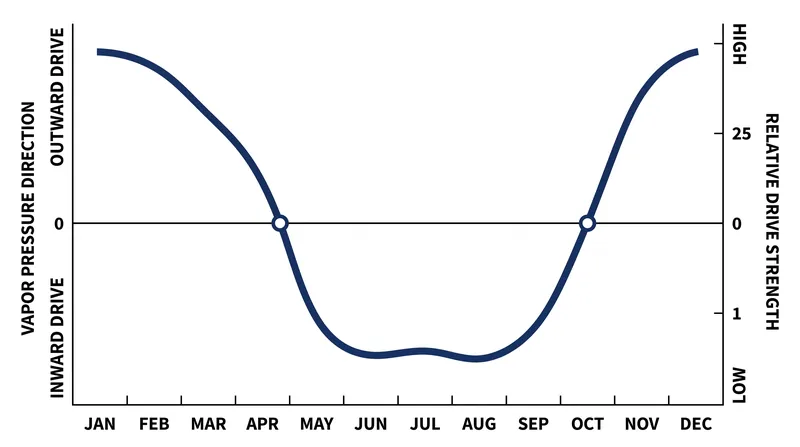

However, in a mixed climate, the vapor drive reverses seasonally. During the winter, moisture pushes outward. During the summer, it pushes inward. If a Class I vapor barrier is installed on the interior side of the drywall, the summer inward vapor drive hits that impermeable plastic and stops. Because the plastic is cooled by the home's air conditioning, the moisture condenses into liquid water directly against the drywall and fiberglass insulation. With a perm rating of 0.06, the polyethylene ensures the wall has zero drying potential to the interior.[2][3]

"In the warmer climate zones, installing a vapor retarder with a very low perm rating on the interior of a wall assembly can lead to moisture problems," notes the Insulation Institute's 2026 technical guidance. The phenomenon is exacerbated by what building scientists call inward solar vapor drive. When rain wets an absorptive exterior cladding like brick or stucco, and the sun subsequently heats that wet surface, the moisture is driven forcefully into the wall cavity.[2][3]

If the wall assembly features a Class I barrier on the inside, that solar-driven moisture is trapped. Building Science Corporation research highlights that when outward flowing moisture is inhibited by a weather-resistive barrier and inward flowing moisture is blocked by an interior vapor barrier, the assembly cannot dry in either direction. The resulting super-saturation leads to mold growth, wood rot, and structural degradation, often hidden behind pristine interior drywall until the damage is catastrophic.[3][5]

The solution for mixed climates is to abandon Class I barriers entirely in favor of Class II or Class III vapor retarders. A Class II kraft-faced batt or a Class III latex paint layer slows the winter outward vapor drive enough to prevent condensation on the exterior sheathing, but remains permeable enough to allow the wall to dry to the interior during the summer. By prioritizing drying potential over absolute impermeability, the wall assembly can survive the seasonal reversal of moisture movement.[2][5]

Recent updates to the IRC, including the 2021 and 2024 cycles, have increasingly recognized this dynamic, offering prescriptive allowances for Class II and Class III retarders in zones where Class I was previously common. The industry is also seeing rapid adoption of "smart" vapor retarders—nylon-based membranes that change their perm rating based on ambient humidity. In dry winter conditions, they act as a Class II retarder to block moisture; in humid summer conditions, they open up to become highly permeable, allowing the wall to dry.[1][2]

Managing moisture in a remodel requires accepting that walls will inevitably get wet, whether through minor flashing leaks, air infiltration, or vapor diffusion. The goal is not to build an impenetrable submarine, but to ensure that the drying capacity of the assembly always exceeds its wetting potential. For homeowners in mixed climates, that means leaving the plastic sheeting out of the wall cavity and relying on permeable retarders that allow the structure to dry.[4][5]
