The 100% vs. 50% vs. 20% Rule: How Depth of Discharge Quadruples a Lithium-Ion Battery's Total Cycle Life

Device manufacturers and carrier sales representatives routinely advise new buyers to drain their smartphone or laptop battery completely before plugging it in to calibrate the sensor and prevent battery memory. The electrochemical reality of modern energy storage directly contradicts this advice. Lithium-ion cells do not suffer from the memory effect that plagued older nickel-cadmium batteries; instead, pushing a lithium-ion cell to a 100% depth of discharge (DoD) actively accelerates the degradation of its internal cathode structure.[1]

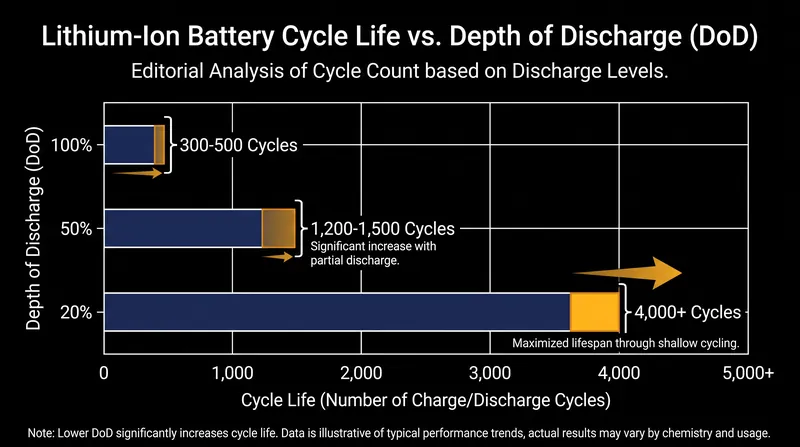

The actionable takeaway for hardware longevity is straightforward: shallow discharges prolong battery life exponentially. A standard lithium-ion cell subjected to a full 100% discharge—dropping from 100% to 0% before recharging—will typically survive 300 to 500 cycles before its maximum capacity permanently degrades below 80%.[1]

By contrast, restricting that discharge depth to 50% (plugging the device in when it reaches half capacity) increases the battery's lifespan to between 1,200 and 1,500 cycles. Shrinking the usage window further to a 20% DoD yields upwards of 4,000 cycles before the same 20% capacity loss occurs.[1]

This non-linear relationship dictates the total return on investment for high-cost hardware like electric vehicles and premium laptops. "The smaller the discharge (low DoD), the longer the battery will last," notes Battery University in its comprehensive testing guidelines. "If at all possible, avoid full discharges and charge the battery more often between uses."[1]

To understand why deep cycling destroys capacity, one must look at the physical mechanics of lithium intercalation. When a battery discharges, lithium ions travel from the graphite anode through a liquid electrolyte and embed themselves into the metallic cathode.[2]

A 100% discharge forces the maximum possible volume of lithium ions into the cathode lattice. This physical crowding causes the cathode material to expand and contract dramatically. Over 400 full cycles, this mechanical stress induces micro-fractures in the cathode structure, permanently reducing the number of sites available to store ions.[2]

Shallow discharges limit this mechanical strain. A 20% DoD moves only a fraction of the lithium inventory back and forth, keeping the structural expansion well within the material's elastic limits. The total energy throughput increases because the cell avoids the compounding physical damage of extreme volume changes.[2]

Voltage stress compounds the mechanical wear. Lithium-ion cells operate at a nominal 3.6V per cell, but charge to 4.2V to reach 100% capacity. Holding a battery at 4.2V for extended periods oxidizes the electrolyte and builds solid electrolyte interphase (SEI) layers that increase internal resistance.[1]

This is why Apple introduced "Optimized Battery Charging" in iOS 13 and expanded it across its product lines through 2025. The software learns a user's daily routine and halts charging at 80%, only pushing the cell to 100% just before the device is unplugged.[3]

"Optimized Battery Charging is designed to reduce the wear on your battery and improve its lifespan by reducing the time your iPhone spends fully charged," Apple states in its technical documentation. By keeping the cell near a 3.92V resting state rather than a 4.2V maximum, the software mitigates high-voltage stress.[3]

Electric vehicle manufacturers employ similar logic at the hardware level. A 2026 electric vehicle battery pack might physically hold roughly 82 kilowatt-hours (kWh) of energy, but the battery management system (BMS) locks away the top and bottom margins.[4]

When the dashboard displays 100%, the pack is actually resting at a lower true state of charge. When it reads 0%, a buffer remains to prevent the catastrophic copper dissolution that occurs if a cell drops below 2.5V.[1]

Despite these built-in protections, user behavior remains the primary variable in battery longevity. A laptop left plugged in continuously at 100% charge experiences zero cycle wear but maximum voltage stress, degrading the cell through heat and oxidation rather than mechanical fatigue.[1]

Conversely, a smartphone drained to 5% daily and fast-charged to 100% experiences maximum mechanical fatigue. The optimal usage pattern—often termed the 80/20 rule—keeps the battery state of charge between 20% and 80%, utilizing a 60% DoD that balances convenience with chemical preservation.[4]

The financial implications scale directly with the size of the battery. Replacing a degraded smartphone battery costs roughly $80 to $100 in 2026. Replacing a laptop battery averages $150 to $250.[4]

For an electric vehicle, a replacement pack ranges from $10,000 to $15,000. Adhering to a shallow-discharge regimen can push the 80% capacity threshold from year six of ownership to year twelve, effectively outlasting the chassis of the vehicle itself.[2]

The shift from nickel-based chemistry to lithium-ion fundamentally inverted the rules of battery maintenance. The hardware no longer requires periodic calibration through deep discharging, and the software management systems are increasingly designed to prevent it. The remaining variable is whether the user's charging habits align with the chemistry.[4]
