Why Airflow Volume, Not Just Filter Grade, Determines an Air Purifier's Real Effectiveness

Air purifier manufacturers and consumer buying guides consistently market True High-Efficiency Particulate Air (HEPA) filtration as the ultimate benchmark of clean air, leaning heavily on the standard's requirement to capture 99.97% of particles at 0.3 microns. But the mathematical reality of indoor air quality contradicts that framing. According to the US Environmental Protection Agency (EPA) and the American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE), single-pass filter efficiency is only a fraction of the equation.

The actual effectiveness of an air purifier is determined by Air Changes Per Hour (ACH)—the volume of air the device can push through its filter in a given timeframe. Because HEPA filters are incredibly dense, they severely restrict airflow, meaning a purifier equipped with a less restrictive Minimum Efficiency Reporting Value (MERV) 13 filter can often process the air in a room significantly faster, removing more total particulate matter over an hour despite letting more particles slip through on each individual pass.[1][6]

The HEPA standard was originally developed during the Manhattan Project in the 1940s to capture radioactive particles, and it remains the gold standard for single-pass efficiency. To earn the True HEPA designation from the EPA, a filter must demonstrate the ability to capture at least 99.97% of particles that are exactly 0.3 microns in diameter.

This specific size is used because it represents the most penetrating particle size—particles both larger and smaller than 0.3 microns are actually easier for the filter media to trap due to the physics of diffusion and inertial impaction. When a particle enters a HEPA filter, it is almost guaranteed not to exit.[1]

In contrast, the MERV system, developed by ASHRAE under Standard 52.2, grades filters on a scale from 1 to 16 based on their ability to capture particles across three size ranges. A MERV 13 filter, which is the minimum rating recommended by the Centers for Disease Control and Prevention (CDC) for mitigating airborne pathogens, is required to capture at least 50% of particles in the 0.3 to 1.0 micron range, and 85% of particles in the 1.0 to 3.0 micron range.

On paper, a 50% capture rate sounds vastly inferior to 99.97%. However, the MERV 13 filter achieves this with a significantly looser weave of synthetic fibers, which fundamentally changes the aerodynamics of the purifier.[2][5][6]

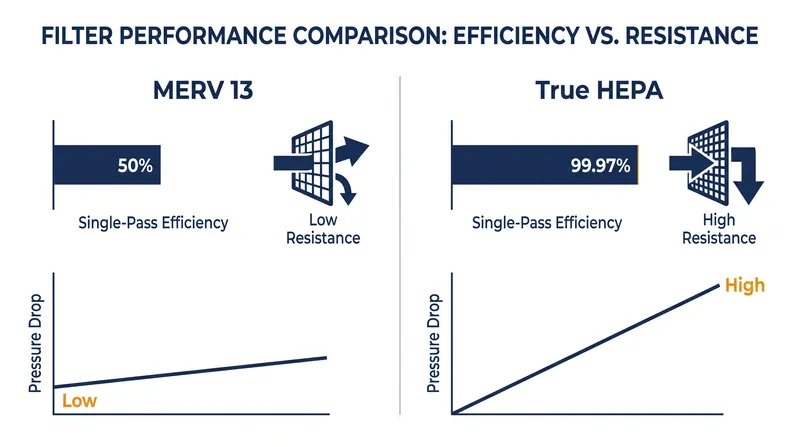

The physical trade-off between these two standards is measured in pressure drop, or airflow resistance. Forcing air through the dense mat of a HEPA filter requires substantial mechanical force. As the National Air Filtration Association (NAFA) guidelines note, HEPA filters need fan power that ordinary commercial air handlers are not built to deliver. When a consumer-grade air purifier is equipped with a HEPA filter, its fan motor must work exceptionally hard just to pull a moderate volume of air through the media.[4]

This resistance directly limits the device's Clean Air Delivery Rate (CADR), which is the metric that actually dictates how fast a room gets clean. CADR is calculated by multiplying the single-pass efficiency of the filter by the airflow rate passing through it, measured in cubic feet per minute (CFM).

If a filter is 99.97% efficient but only allows 100 CFM of air to pass through, its CADR is roughly 100. If a MERV 13 filter is only 50% efficient at the target particle size but allows 300 CFM of air to pass through due to lower resistance, its effective CADR for those particles is 150.[8]

That volume metric translates directly into Air Changes Per Hour (ACH). The ACH formula, as outlined by engineering firm h2x, is straightforward: multiply the purifier's CFM by 60 minutes, then divide by the total cubic volume of the room. For a standard 500-square-foot room with 8-foot ceilings (4,000 cubic feet), a purifier delivering 100 CFM will achieve 1.5 ACH. A purifier delivering 300 CFM in the same room will achieve 4.5 ACH.[3]

The reason ACH outranks single-pass efficiency lies in the mathematics of exponential decay. Indoor air purification is not a linear process where a filter cleans a distinct block of dirty air and then moves on to the next. Instead, the purifier constantly mixes clean exhaust air with the remaining dirty air in the room.

As the purifier runs, the concentration of particles drops exponentially, following the formula where the remaining concentration equals the initial concentration multiplied by the mathematical constant 'e' raised to the negative power of the ACH multiplied by the filter's efficiency.[8]

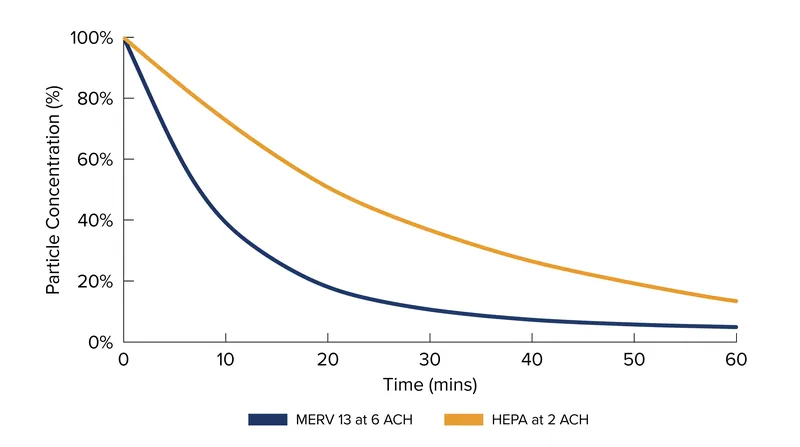

When those variables are calculated side-by-side, the high-flow, lower-efficiency model wins. Consider a scenario comparing a True HEPA purifier operating at 2 ACH against a MERV 13 purifier operating at 6 ACH in the same room. The HEPA filter captures 99.97% of 0.3-micron particles on each pass. Over one hour, the exponential decay formula dictates that the HEPA purifier will reduce the ambient particle concentration by 86.5%.[8]

The MERV 13 filter, meanwhile, only captures 50% of those same 0.3-micron particles on each pass. But because its lower pressure drop allows the fan to cycle the room's air six times in that same hour, the math shifts dramatically. The exponential decay formula shows that the MERV 13 purifier will reduce the ambient particle concentration by 95.0% in one hour. By moving three times as much air, the filter with the lower single-pass rating removes significantly more total particulate matter from the breathing zone.[8]

This volumetric advantage is why public health guidance prioritizes air changes over absolute filter density. The CDC's ventilation guidelines state that increasing the number of air changes per hour is the primary mechanism for improving indoor air cleanliness. Similarly, a 2021 framework published by the Harvard T.H. Chan School of Public Health recommends a target of 5 to 6 ACH for classrooms and offices to maintain an excellent air quality rating, noting that it takes multiple air changes to completely replace the air in a room due to inefficient mixing.[2][7]

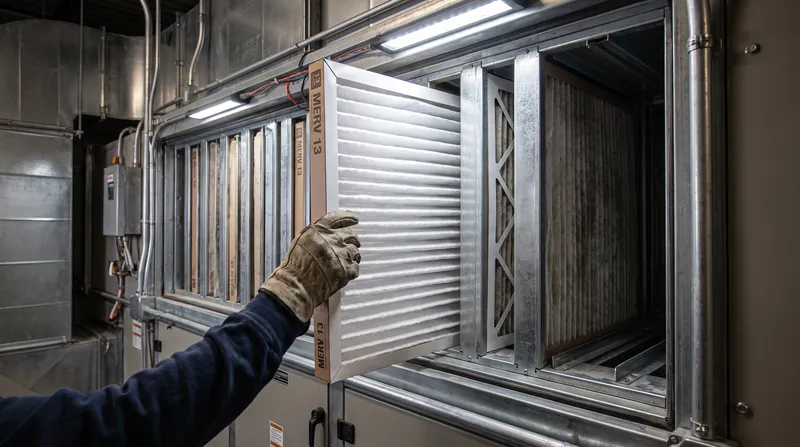

The preference for volume over density is also reflected in commercial building design. Central HVAC systems in office buildings and schools almost exclusively rely on MERV-rated filters rather than HEPA. According to ASHRAE's Filtration and Disinfection FAQ, "ASHRAE recommends using a filter with a Minimum Efficiency Reporting Value (MERV) of 13 or better" for mitigating infectious aerosols.

The organization explicitly warns against upgrading to HEPA in standard systems because the increased pressure drop "can lead to reduced air flow through the HVAC system, more energy use for the fan to compensate for the increased resistance, or both," which actively worsens indoor air quality by lowering the ACH.[6]

Beyond the raw mathematics of particle decay, the pressure drop of HEPA filters introduces practical usability issues in residential settings, primarily noise. To push adequate CFM through a HEPA filter, consumer purifiers must run their fans at high RPMs. A unit operating at 60 decibels—the volume of a loud conversation—is often too disruptive for a bedroom or office. Consequently, users frequently turn HEPA purifiers down to their lowest, quietest settings, which drastically reduces the CFM and plummets the ACH to near-useless levels.[8]

A MERV 13 filter, offering less resistance, allows the fan to move the same volume of air at a much lower RPM. This means a high-ACH MERV purifier can often operate at 40 decibels while delivering the same CADR as a HEPA unit screaming at 60 decibels. In real-world applications, the most effective air purifier is the one that occupants are actually willing to leave turned on at an effective speed.[8]

Energy consumption follows the same curve. Fan motors working against the high static pressure of a HEPA filter draw significantly more wattage to maintain their CADR. Over a year of continuous 24/7 operation, the electricity costs of a high-resistance HEPA unit can easily exceed the purchase price of the purifier itself, whereas lower-resistance filters allow for more efficient motor operation.[8]

Filter lifespan also favors the lower-efficiency, high-volume approach. Because HEPA filters trap 99.97% of everything that hits them, their microscopic pores clog rapidly in dusty environments. As the filter loads with particulate matter, its pressure drop increases even further, choking off the CFM and reducing the ACH. MERV 13 filters, while still requiring regular replacement, maintain their rated airflow longer because they allow the smallest, least harmful particles to pass through rather than blinding the media.[8]

There are, however, specific edge cases where True HEPA is non-negotiable. In environments where a single microscopic particle can cause catastrophic failure or infection—such as semiconductor cleanrooms, pharmaceutical manufacturing facilities, or hospital surgical suites—single-pass efficiency is paramount. In these settings, the HVAC systems are custom-built with massive, high-draw blowers specifically engineered to overcome the pressure drop of HEPA arrays, ensuring both 99.97% capture and high ACH simultaneously.[8]

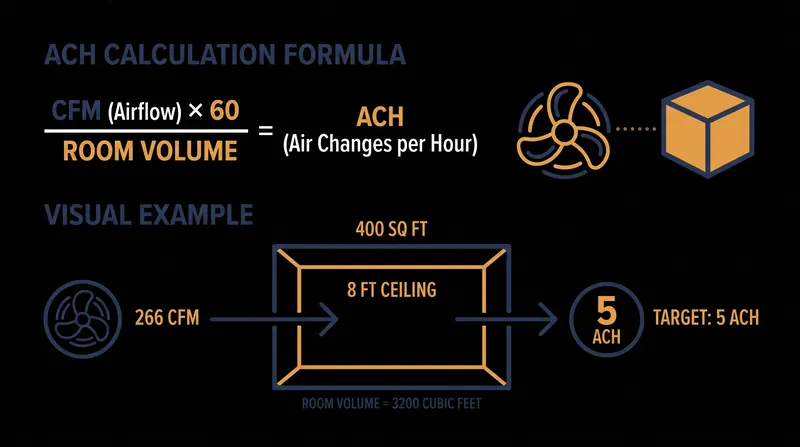

For consumers and facility managers evaluating portable air cleaners, the math dictates a shift in purchasing priorities. Rather than filtering search results by HEPA certification, buyers must calculate the required CFM for their specific room volume to hit the 5 ACH target. If a room is 400 square feet with an 8-foot ceiling (3,200 cubic feet), achieving 5 ACH requires a continuous delivery of 266 CFM.[3]

AI

Even when that CFM target is met, the calculations assume perfect air mixing, which rarely occurs in reality. Furniture, walls, and thermal gradients create dead zones where air stagnates. To combat this, the Harvard T.H. Chan School of Public Health guidelines suggest that "multiple PACs can be used to achieve the target air change per hour (ACH) as they can be more effective than one large PAC" by distributing the airflow and eliminating dead zones.[7]

The regulatory landscape is slowly catching up to the physics of airflow. The rollout of ASHRAE Standard 241, which establishes minimum requirements for equivalent clean airflow rates per occupant during airborne infection risk periods, represents a definitive pivot away from single-pass filter ratings. By mandating total clean air delivery rather than specific filter types, the standard forces building operators to prioritize the metric that actually clears the room: the volume of air moving through the machine.[6]
