RAID Storage Trade-Offs: Balancing Drive Failure Tolerance Against Write Speed and Capacity Overheads

Deploying a multi-drive storage array forces an immediate, mathematically fixed compromise between how much data fits on the hardware and how fast it writes to the disks. A buyer purchasing four 10-terabyte drives secures 40 terabytes of raw capacity, but configuring them for redundancy instantly reduces that usable space to either 20 or 30 terabytes depending on the chosen architecture. The Redundant Array of Independent Disks (RAID) standard dictates these exact penalties, distributing data across multiple physical drives to prevent a single mechanical failure from destroying a database or media archive.[1][4]

The baseline configurations represent the extreme ends of this trade-off. RAID 0, known as disk striping, splits data evenly across two or more drives to maximize read and write speeds, utilizing 100% of the purchased capacity. "RAID 0 offers no redundancy or fault tolerance," notes the Enterprise Storage Forum, meaning that if one drive in a four-drive RAID 0 array fails, the entire volume is permanently lost. It is strictly deployed for temporary scratch disks where speed is the only metric that matters.[1][3]

Conversely, RAID 1 mirrors data identically across two drives. This guarantees that the system survives a single drive failure without interruption, but it imposes a strict 50% capacity penalty. Every block of data must be written twice, which inherently limits write speeds to the performance of a single drive. For small-scale deployments like a two-drive network-attached storage (NAS) device holding critical financial records, RAID 1 provides the simplest and most reliable hardware-level backup.[2][4]

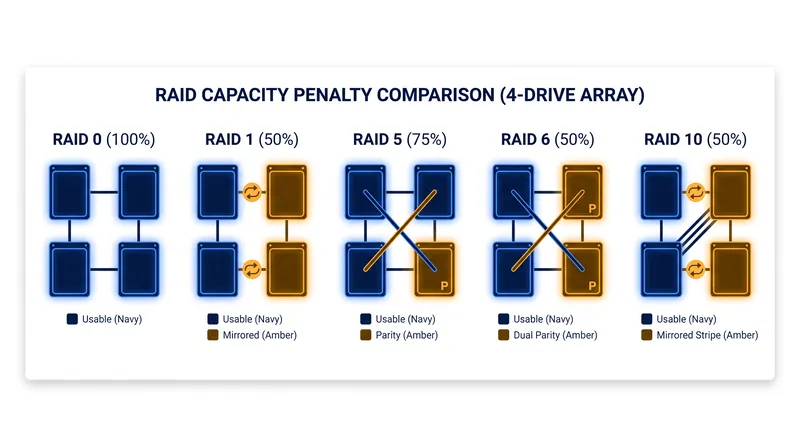

For environments requiring both capacity and protection, RAID 5 introduces distributed parity. Spanning a minimum of three drives, RAID 5 writes data across the array while calculating a mathematical parity block that can reconstruct missing data if a single drive dies. This configuration costs exactly one drive's worth of capacity regardless of the array size. A three-drive setup yields 66% usable space, while a four-drive setup yields 75%.[1][5]

While read speeds on RAID 5 scale efficiently with each added drive, the computational overhead of calculating parity penalizes write performance. Every write operation requires the controller to read the existing data, read the existing parity, calculate the new parity, and then write both the new data and the new parity to the disks. This "write penalty" makes RAID 5 poorly suited for write-intensive database applications that process thousands of small transactions per second.[3][5]

As individual hard drives ballooned past 20 terabytes in the 2020s, the time required to rebuild a failed RAID 5 array stretched from hours to days. During this rebuild window, the remaining drives operate under maximum sustained load. If a second drive fails during this intensive process, the entire array collapses. This vulnerability, known as an unrecoverable read error (URE) during rebuild, fundamentally shifted enterprise storage strategies away from RAID 5 for large-capacity mechanical drives.[4][6]

RAID 6 mitigates this rebuild vulnerability by writing two independent parity blocks across a minimum of four drives. This dual-parity architecture allows the system to survive two simultaneous drive failures. The cost is a two-drive capacity penalty and a further reduction in write speed due to the double-parity calculation. On an eight-drive array, RAID 6 reserves 25% of the raw capacity for parity, compared to 12.5% for RAID 5, but provides the necessary safety margin for massive storage pools.[4][6]

"RAID 6 is the practical choice for standard enterprise storage," according to HPE's technology brief, pushing the configuration primarily into archival and high-capacity backup roles where read reliability outranks write velocity. The heavy write penalty of dual parity calculations is often offset in modern systems by dedicated hardware RAID controllers equipped with gigabytes of onboard cache memory, which absorb the incoming data bursts while the processor calculates the parity blocks in the background.[5][6]

Workloads that demand both high fault tolerance and maximum write performance bypass parity entirely in favor of RAID 10. By combining the mirroring of RAID 1 with the striping of RAID 0 across a minimum of four drives, RAID 10 delivers exceptional read and write speeds. It can survive multiple drive failures, provided the failures do not occur within the same mirrored pair. Because it does not calculate parity, the write penalty is eliminated.[2][3]

The financial barrier to RAID 10 remains its 50% capacity penalty, requiring buyers to purchase double the raw storage they intend to use. A 40-terabyte raw array yields only 20 terabytes of usable space. Video editing bays, virtualization hosts, and high-transaction databases justify this cost to maintain write speeds under heavy load. The decision locks in the array's performance ceiling and failure threshold the moment the volume is formatted, dictating the hardware's capabilities for its entire operational lifespan.[1][2]
