The Mechanics of Concrete: Comparing the Trade-Offs of Portland Cement, Fly Ash, and Slag

Here is the short version: If you need fast setting times and cold-weather performance, use straight Ordinary Portland Cement (OPC). If you need high workability, lower water demand, and a 15 to 30 percent carbon reduction, replace a portion of that cement with fly ash. If you need maximum durability against chemical attack, low permeability for marine environments, and up to a 50 percent carbon reduction, replace it with ground granulated blast-furnace slag. There is no single perfect concrete mix, only the correct engineering trade-off for the specific environment your structure will inhabit.[5]

Concrete is fundamentally simple: it is a mixture of aggregates (sand and gravel), water, and a binder. For the last century, that binder has almost exclusively been Ordinary Portland Cement. OPC is a miracle of modern engineering, capable of binding rock into artificial stone that can scrape the sky or hold back the ocean. However, the chemical process of superheating limestone to create OPC releases massive amounts of carbon dioxide. Producing one ton of OPC emits roughly 0.8 to 0.9 tons of CO2, making the concrete industry responsible for approximately 8 percent of all global greenhouse gas emissions.[2][3]

To solve this, structural engineers and materials scientists have turned to Supplementary Cementitious Materials (SCMs). These are industrial byproducts that exhibit cementitious properties when mixed with water and calcium hydroxide. By swapping out a percentage of the OPC for an SCM, builders can drastically lower the carbon footprint of a pour. The two most dominant SCMs in the global supply chain are fly ash, a byproduct of coal-fired power plants, and slag, a byproduct of steel manufacturing.[1][4]

Understanding the trade-offs requires looking at the chemistry of hydration. When water hits OPC, it triggers a rapid exothermic reaction. This generates significant heat and creates calcium silicate hydrate (the glue that gives concrete its strength) alongside calcium hydroxide (a relatively weak byproduct). This rapid reaction is why straight OPC concrete gains strength so quickly, often reaching its design strength within the standard 28-day testing window.[5]

That rapid heat generation, known as the heat of hydration, is highly beneficial if you are pouring a foundation in freezing winter temperatures. The concrete effectively keeps itself warm while it cures. However, in massive pours like dams or thick mat foundations, that trapped heat becomes a liability. The core of the concrete expands while the surface cools and contracts, leading to severe thermal cracking that compromises the structure before it is even put into service.[1][5]

This is where fly ash excels. Fly ash consists of microscopic, glassy spheres captured from the exhaust flues of coal power plants. When added to a concrete mix, these spherical particles act like microscopic ball bearings. They dramatically improve the workability and pumpability of the wet concrete, allowing crews to place it more easily into complex formwork or pump it up high-rise towers.[4]

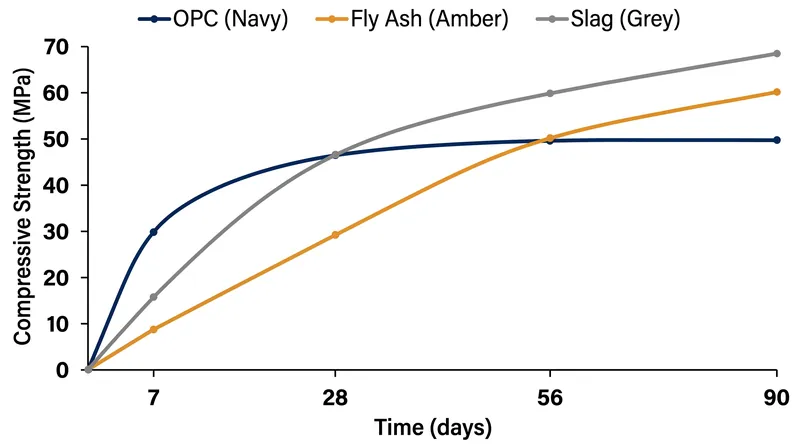

Because fly ash improves flow, it reduces the amount of water needed in the mix. A lower water-to-cement ratio directly translates to stronger, less permeable concrete. Furthermore, fly ash is a pozzolan. It reacts with the weak calcium hydroxide produced by the OPC hydration, converting it into additional calcium silicate hydrate. This secondary reaction is slow, meaning fly ash concrete gains early strength slower than straight OPC, but it continues to gain strength long after the 28-day mark, often surpassing OPC's ultimate strength at 90 days.[3][4]

Slag, officially known as Ground Granulated Blast-Furnace Slag (GGBFS), offers a different set of mechanical advantages. Slag is formed when molten iron slag is rapidly quenched in water, creating a glassy, granular material that is then ground into a fine powder. Unlike fly ash, which is primarily pozzolanic, slag is latently hydraulic. It reacts directly with water, though it requires the alkalinity of the OPC to activate the process efficiently.[1][2]

The defining characteristic of slag concrete is its extreme density and low permeability. The hydration products of slag fill the microscopic pores in the concrete matrix far more effectively than OPC alone. This creates a nearly impenetrable barrier to moisture and aggressive chemicals. For structures exposed to seawater, de-icing salts, or sulfate-rich soils, slag is the premier choice. It prevents chloride ions from reaching and rusting the internal steel rebar, which is the primary cause of structural failure in bridges and marine infrastructure.[1][5]

Slag also allows for much higher replacement rates. While fly ash is typically capped at a 15 to 30 percent replacement rate to avoid excessively slow setting times, slag can routinely replace 30 to 50 percent of the OPC in a mix, and sometimes up to 80 percent in massive, specialized pours. This higher replacement ceiling means slag offers a steeper absolute carbon reduction per cubic yard of concrete compared to standard fly ash mixes.[1][2]

However, the environmental math is nuanced. While slag allows for a higher total volume replacement yielding a steeper absolute carbon reduction, fly ash provides a superior early-stage workability-to-emissions ratio. This means slag is mathematically optimal for subterranean foundations and marine environments where curing speed is secondary to durability, while fly ash wins for complex above-ground structural forms where pumpability is critical.[2][5]

Both SCMs require a paradigm shift in construction scheduling. Because the secondary reactions of fly ash and slag take longer to initiate, the concrete takes longer to set. Formwork cannot be stripped as quickly as it can with straight OPC, which can slow down the floor-by-floor cycle time on a fast-paced commercial high-rise. Engineers must weigh the carbon savings and ultimate durability against the hard costs of extended construction timelines.[3][5]

Curing protocols must also be strictly managed. Because SCMs rely on secondary reactions that occur over weeks and months, the concrete must be kept continuously moist. If a fly ash or slag slab is allowed to dry out prematurely, the pozzolanic reactions halt, and the concrete will never reach its designed strength or durability. Wet curing with burlap or specialized curing compounds is non-negotiable.[4][5]

Aesthetics also play a role in architectural concrete. Slag produces a noticeably lighter, almost white concrete, which is highly prized for exposed architectural finishes and helps reduce the urban heat island effect by reflecting more sunlight. Fly ash, depending on the coal source, can impart a slightly darker, buff, or greyish tint to the finished surface. Furthermore, slag concrete can occasionally exhibit a temporary blue-green mottling on the surface due to sulfide oxidation, which fades over time but can alarm uninitiated clients.[1][5]

The future of these materials is tied to broader industrial shifts. As the world transitions away from coal power, high-quality fly ash is becoming scarcer and more expensive in certain regions, prompting the industry to harvest and beneficiate legacy ash from old landfills. Similarly, as steel production shifts from blast furnaces to electric arc furnaces, the supply of traditional GGBFS will evolve. For now, mastering the specific trade-offs of OPC, fly ash, and slag remains the most actionable tool engineers have to build durable, low-carbon infrastructure.[3][5]
