Monocrystalline vs. Polycrystalline vs. Thin-Film: How Solar Cell Architectures Trade Off Efficiency, Cost, and Temperature Performance

Residential installers treat monocrystalline silicon as the only viable option in 2026, pointing to 23% efficiency ratings and a collapsed price premium. But utility-scale developers and commercial operators in extreme climates argue that thin-film architectures and legacy polycrystalline arrays still deliver a superior levelized cost of energy when heat and diffuse light are factored in. The decision dictates the physical footprint, the upfront capital requirement, and the total 25-year yield of the system.[1][2][4]

For a residential roof with limited square footage, monocrystalline is the mathematical winner, maximizing the kilowatt-hours generated per square meter. However, for ground-mounted commercial arrays or installations in regions where summer ambient temperatures exceed 40°C (104°F), the thermal stability of thin-film materials fundamentally changes the return on investment.[1][4]

The structural difference begins at the ingot. Monocrystalline cells are manufactured using the Czochralski method, where a seed crystal is drawn from a vat of molten, high-purity silicon to form a single, continuous crystalline cylinder. Because the atomic structure is perfectly aligned, electrons flow with minimal resistance. According to the 2026 Fraunhofer ISE Photovoltaics Report, "Commercial silicon modules have improved in efficiency from about 17% to just under 25% over the past ten years," with laboratory monocrystalline cells now reaching 27.9%.[4]

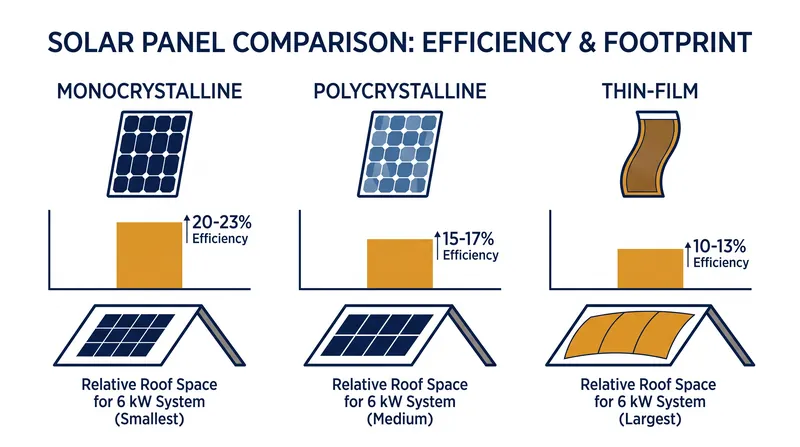

Polycrystalline panels, by contrast, are cast. Manufacturers melt silicon fragments and pour them into a square mold, creating a mosaic of distinct crystals. The boundaries between these crystals create resistance, restricting electron mobility and capping commercial efficiency at roughly 15% to 17%. While the manufacturing process is less energy-intensive and historically cheaper, the lower efficiency means a polycrystalline array requires 15% to 20% more physical space to generate the same 6 kilowatts of power as a monocrystalline system.[2][4]

Thin-film architectures abandon silicon wafers entirely. Instead, materials like cadmium telluride or copper indium gallium selenide are deposited in microscopic layers onto glass, plastic, or metal substrates. The material usage is roughly one-twenty-fifth that of a crystalline silicon panel. While baseline efficiencies are lower—typically 10% to 13% for commercial modules—the manufacturing cost per watt is the lowest in the industry, and the flexible substrate allows for deployment on curved surfaces or low-load-bearing commercial roofs.[4]

The cost gap between the silicon architectures has largely vanished. According to the Department of Energy's 2024 Solar Photovoltaic System Cost Benchmarks, the historical price advantage of polycrystalline panels has been erased by the massive scaling of monocrystalline production. Monocrystalline modules now trade at a premium of just $0.05 per watt over polycrystalline equivalents. Over a standard 15-year period documented by the OSTI, the levelized cost of monocrystalline energy has dropped so sharply that polycrystalline is rarely specified for new residential builds.[2][3]

However, baseline efficiency at 25°C (77°F) standard test conditions does not dictate real-world yield. As solar panels heat up, electrical resistance increases and voltage drops. This performance penalty is measured by the temperature coefficient. Monocrystalline panels typically carry a temperature coefficient of -0.38% per degree Celsius, meaning they lose 0.38% of their rated output for every degree above the 25°C baseline.[1][5]

In hot and arid regions, this thermal penalty is severe. An experimental analysis by MDPI evaluating photovoltaic technologies in desert conditions found that panel surface temperatures routinely reach 65°C (149°F) during summer months. At 40 degrees above the test baseline, a monocrystalline array suffers a 15.2% reduction in total power output. A 400-watt panel effectively operates as a 339-watt panel during peak afternoon irradiance.[1]

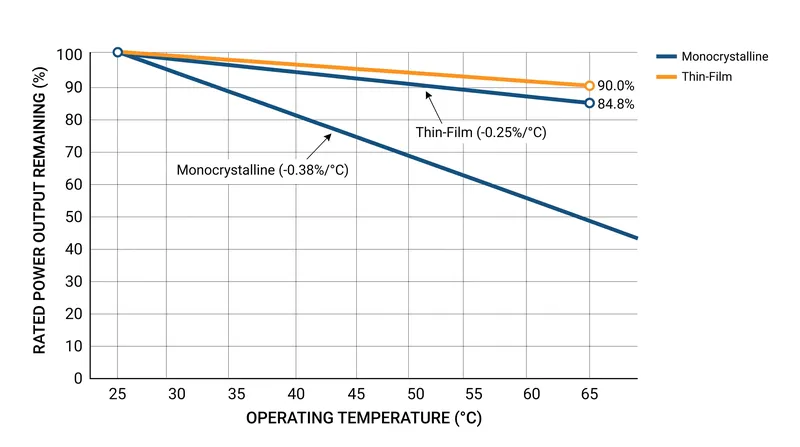

Thin-film architectures possess a distinct thermal advantage. Cadmium telluride panels feature a temperature coefficient of roughly -0.25% per degree Celsius. Under the same 65°C operating conditions, a thin-film array loses only 10.0% of its rated output. While the monocrystalline panel still generates more absolute power per square meter, the thin-film array retains a higher percentage of its theoretical yield, narrowing the levelized cost gap in extreme climates.[1][5]

Long-term degradation also separates the architectures. The National Laboratory of the Rockies Photovoltaic Lifetime Project tracks the annual performance loss of deployed arrays. Monocrystalline panels exhibit the highest durability, degrading at a rate of just 0.3% to 0.5% per year. After 25 years, a high-quality monocrystalline system will still produce 85% to 90% of its original day-one output.

Polycrystalline panels degrade slightly faster, losing between 0.5% and 0.8% of their efficiency annually, leaving them at roughly 80% capacity at year 25. Thin-film panels face the steepest degradation curve, often losing 1% or more per year. Consequently, thin-film systems are typically modeled for a 15- to 20-year operational lifespan, requiring earlier replacement or repowering compared to crystalline silicon arrays.

The final variable is diffuse light performance. Thin-film modules absorb a broader spectrum of light than crystalline silicon, allowing them to generate power more effectively during overcast days, at dawn, or at dusk. For utility-scale operators balancing grid loads, this extended generation window can offset the lower peak efficiency, providing a smoother, more predictable power curve throughout the day.[1][4]
