How Layer Normalization Stabilizes Transformer Training by Standardizing Input Across the Feature Dimension

The architects of deep learning argue that neural networks fail to converge because the distribution of inputs shifts at every layer—a phenomenon called internal covariate shift. In this view, standardizing the data forces the network to learn from a stable baseline, preventing earlier layers from constantly undermining the assumptions of later ones. Conversely, optimization researchers contend that covariate shift is a phantom problem. They argue that normalization layers succeed entirely because they act as a mathematical shock absorber, smoothing the loss landscape and preventing gradients from exploding during the backward pass.[1][6]

This theoretical divide centers on Layer Normalization, the unassuming mathematical operation that makes the modern Transformer architecture possible. Without it, a 175-billion-parameter language model collapses into numerical static within the first few hundred training steps. The operation sits inside every block of a Transformer, quietly standardizing the activations before they are passed to the self-attention and feed-forward mechanisms.[7]

To understand the mechanism, one must look at how data moves through a neural network. In 2015, Batch Normalization became the industry standard, calculating the mean and variance across a batch of training examples for each individual feature. If a network processed 32 images at once, Batch Normalization would look at a single pixel location across all 32 images, find the average value, and standardize it.[5]

But sequence models like Transformers process text of varying lengths, making batch statistics highly unstable. As Jimmy Ba, Ryan Kiros, and Geoffrey Hinton noted in their 2016 paper introducing Layer Normalization, computing statistics across a batch fails when dealing with recurrent or sequential data, because different sentences have different lengths and padding tokens distort the mathematical mean.[1]

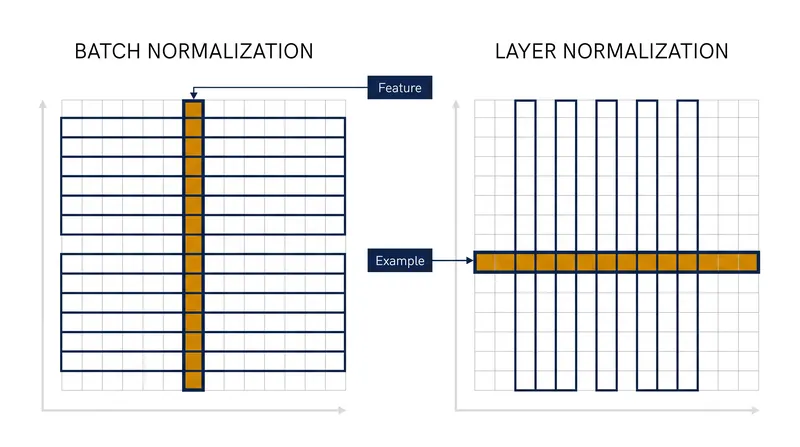

"Layer normalization performs exactly the same computation at training and test times," Ba and his co-authors wrote in 2016, noting its independence from the batch size. Instead of normalizing a single feature across many examples, Layer Normalization standardizes all features for a single example.[1]

The mathematics are straightforward but computationally profound. For a given token—say, a word embedded as a 512-dimensional vector—the layer calculates the mean and variance of those 512 numbers. It looks only at the internal representation of that specific word at that specific moment in the network.[2][3]

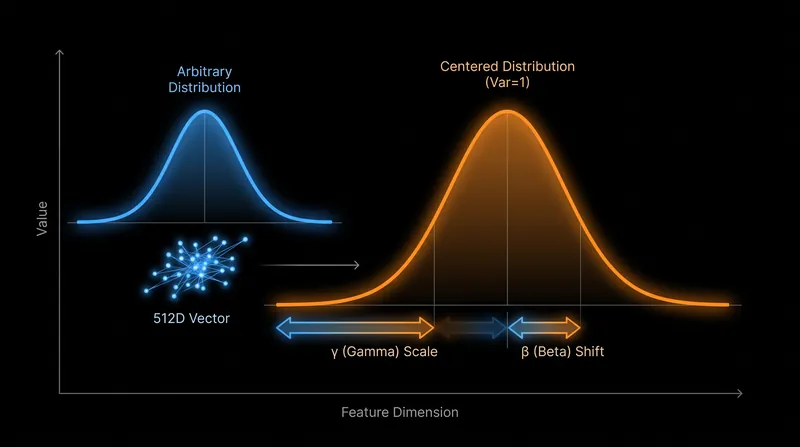

It then subtracts the mean and divides by the standard deviation, centering the vector around zero with a variance of one. Finally, it applies two learned parameters, gamma and beta, allowing the network to scale and shift the normalized output if the raw standardization destroys necessary representational information.[4]

This feature-dimension standardization solves the sequence-length problem. Because the statistics are computed independently for each token, a sequence of 10 words and a sequence of 10,000 words can be processed with identical stability. The batch size becomes irrelevant to the normalization process.[1][5]

Yet the placement of this operation within the Transformer block sparked a second, equally consequential debate. The original 2017 "Attention Is All You Need" architecture placed Layer Normalization after the residual connection—a design known as Post-LayerNorm.[6]

Post-LayerNorm models, however, are notoriously difficult to train. They require a "warm-up" period where the learning rate is artificially suppressed for thousands of steps to prevent the gradients from vanishing near the output layers. If the learning rate starts too high, the model's weights update too aggressively, and the training run fails.[6]

In 2020, researchers Ruibin Xiong and colleagues published a mathematical proof demonstrating why this instability occurs. They showed that in Post-LayerNorm architectures, the variance of the gradients scales exponentially with the depth of the network.[6]

"The gradients of the parameters near the output layer are significantly larger than those near the input layer," Xiong's team wrote, explaining that this imbalance causes the optimization process to tear itself apart when standard learning rates are applied.[6]

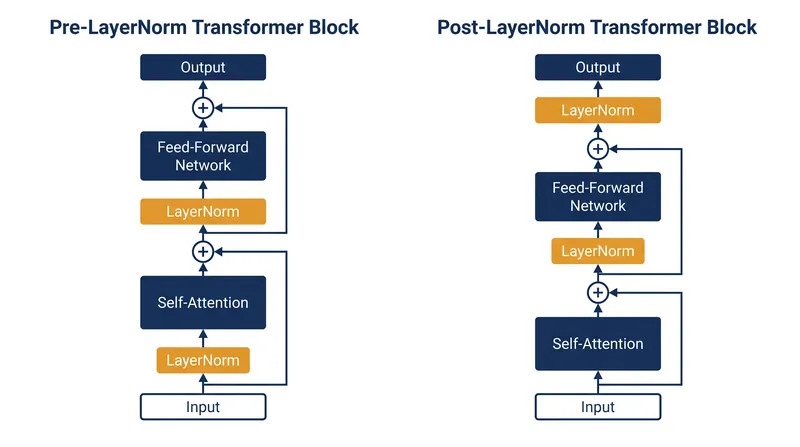

The solution was Pre-LayerNorm: moving the normalization step inside the residual block, before the self-attention and feed-forward mechanisms. This subtle architectural shift bounds the gradient variance, eliminating the need for learning rate warm-up and allowing models to scale to hundreds of layers without collapsing.[6]

Today, the consensus leans heavily toward the optimization perspective. While Layer Normalization does standardize the forward pass, its true value lies in how it conditions the backward pass, ensuring that the error signals used to update the model's weights remain stable from the final prediction all the way back to the input embedding.[6][7]

The debate over covariate shift versus gradient smoothing may never fully resolve, but the engineering reality is settled. By standardizing across the feature dimension, Layer Normalization provides the mathematical scaffolding that allows deep Transformers to learn complex linguistic patterns without collapsing under their own numerical weight.[7]
