Evaluating CO2 Miscible Flooding Versus Steam Injection for Enhanced Oil Recovery

Primary and secondary oil recovery are like draining a sponge by gravity and then squeezing it once; they leave up to 70% of the hydrocarbon permanently trapped in the microscopic pore space of the rock. Enhanced Oil Recovery (EOR) differs by fundamentally altering the physical properties of the oil itself within the reservoir—either by heating it to reduce its viscosity or by dissolving a gas into it to make it swell and flow.[2]

The two dominant commercial methods for this tertiary phase are steam injection (thermal recovery) and CO2 miscible flooding (gas injection). Together, they account for the vast majority of the world's EOR production, yet they serve entirely different geological masters and carry vastly different energy penalties.[1][2]

Thermal recovery, primarily utilized in heavy oil fields like California's San Joaquin Valley or Canada's oil sands, relies on latent heat. Operators inject steam at temperatures frequently exceeding 300°C (572°F) to melt crude that is otherwise the consistency of peanut butter.[2]

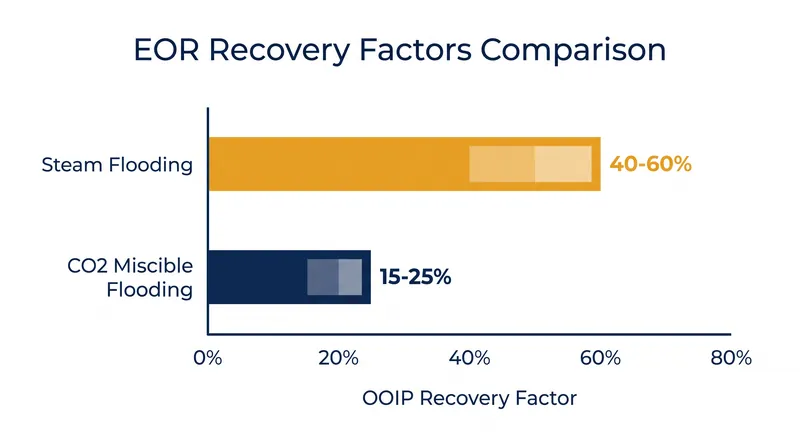

According to the Society of Petroleum Engineers (SPE), steam flooding can recover 40% to 60% of the Original Oil In Place (OOIP). "The physics of thermal recovery are brute-force but highly effective for crude that is otherwise too thick to pump," notes the SPE's 2025 reservoir engineering overview.[2]

However, steam has a strict geological depth limit. Beyond roughly 3,000 feet, the heat loss through the wellbore casing to the surrounding rock becomes economically fatal, as the steam condenses back into hot water before it ever reaches the target formation.[2][4]

CO2 miscible flooding operates on chemistry rather than raw heat. When injected at high pressures—typically above 1,500 pounds per square inch (psi)—supercritical carbon dioxide acts as a solvent, mixing completely with the oil to reduce its surface tension.[1]

The Department of Energy (DOE) reports that CO2 EOR typically recovers an additional 15% to 25% of OOIP. Crucially, it requires deep reservoirs (usually below 2,500 feet) to maintain the Minimum Miscibility Pressure (MMP) without fracturing the overlying caprock.[1]

"CO2 flooding is effectively a closed-loop solvent wash for deep, light-oil reservoirs," states a 2025 International Energy Agency (IEA) technical review on carbon utilization.[3]

The energy economics of the two methods diverge sharply. Generating steam requires burning massive quantities of natural gas at the surface. The SPE data indicates that producing one barrel of steam requires approximately 350,000 British Thermal Units (BTU).[2][4]

Conversely, CO2 EOR's primary energy draw is mechanical compression. Pumping CO2 to 2,000 psi demands roughly 120 kilowatt-hours per metric ton, according to DOE baseline figures, which can be powered by grid electricity rather than direct combustion.[1][4]

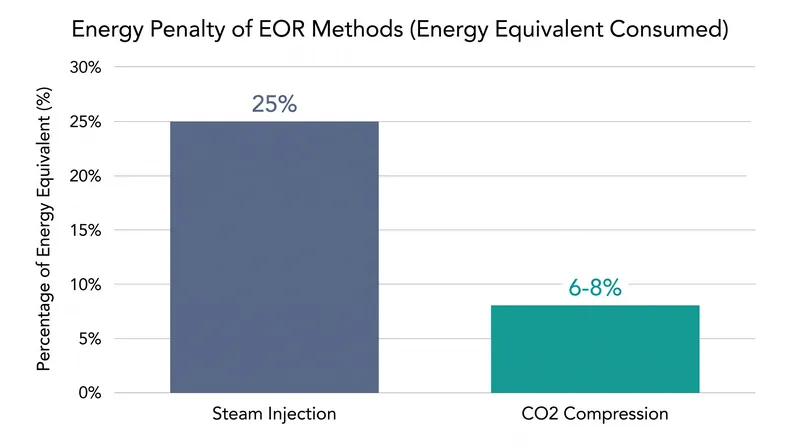

This creates a distinct carbon-intensity gap. Steam flooding consumes up to 25% of the energy equivalent of the oil it produces, making it one of the most carbon-intensive extraction methods globally.[3][4]

CO2 EOR, by contrast, operates at a 6% to 8% energy penalty and permanently traps a portion of the injected gas underground—between 0.2 and 0.5 metric tons of CO2 per barrel of oil recovered, offering a pathway to lower-carbon extraction if the CO2 is sourced from industrial emissions.[1][3][4]

The capital expenditure profiles also dictate deployment. Steam requires extensive surface facilities, including once-through steam generators (OTSGs) and complex water treatment plants to recycle the produced water.[2]

CO2 requires access to a high-pressure pipeline network and corrosion-resistant metallurgy in the wellbore, making it highly dependent on regional infrastructure like the Permian Basin's 4,000-mile CO2 pipeline web.[1][4]

The final investment decision between thermal and CO2 EOR is rarely a jump ball for reservoir engineers. The rock dictates the method: shallow and heavy demands heat, while deep and light demands a solvent.[2][4]
