The 3:2:1 Ratio and the Futures Contracts That Define the Refinery Crack Spread

Retail investors often assume a refinery's profitability is dictated simply by the price of crude oil, but the futures market tracks a much more specific metric: the 3-2-1 crack spread. While a rising barrel of West Texas Intermediate (WTI) might signal a boom for upstream drillers, a refinery's actual margin depends entirely on the price difference between that unrefined input and the finished fuels it sells downstream [1][6]. The term "crack" refers to the physical process of using heat and pressure to break long-chain hydrocarbons into smaller, more useful molecules [1][5]. Because refineries cannot simply sell crude oil, their economic viability is locked into the spread between their raw material costs and their wholesale product revenues [4].[1][4][5]

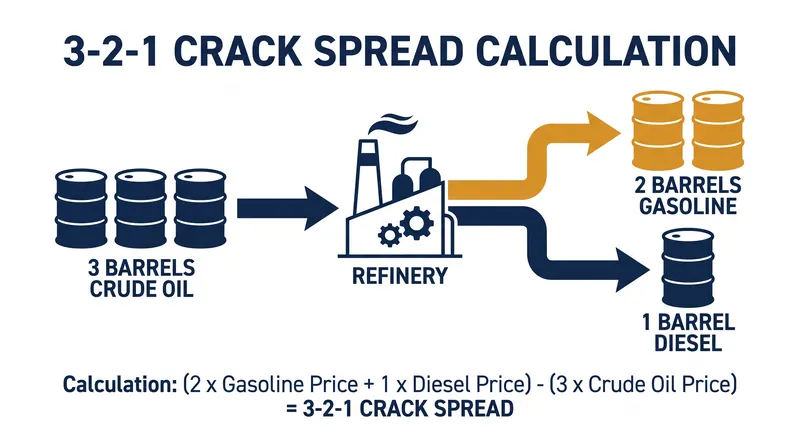

The 3-2-1 ratio is not an arbitrary financial construct; it physically approximates the real-world output of a typical United States refinery [5][6]. For every three barrels of crude oil that enter a domestic facility, the refining process yields roughly two barrels of gasoline and one barrel of distillate fuel, such as ultra-low sulfur diesel or heating oil [1][7]. By bundling the purchase of three crude oil futures contracts with the simultaneous sale of two gasoline contracts and one heating oil contract, the 3-2-1 crack spread allows operators to lock in a fixed margin before the physical oil is even delivered [1][4].[1][4][5][6]

Calculating the spread requires standardizing the units, as crude oil is priced per barrel while refined products are priced per gallon [1][7]. A standard oil barrel contains 42 gallons [1][7]. To determine the 3-2-1 crack spread on a per-barrel basis, traders multiply the per-gallon prices of Reformulated Blendstock for Oxygenate Blending (RBOB) gasoline and ultra-low sulfur diesel (ULSD) by 42, add the value of two barrels of gasoline to one barrel of diesel, subtract the cost of three barrels of crude oil, and divide the entire sum by three [1][7]. This final figure represents the gross margin a refinery earns per barrel of crude processed [7].[1][6]

When the crack spread widens, refineries are incentivized to maximize their utilization rates and produce as much fuel as possible [1][6]. For example, if gasoline prices surge to $2.50 per gallon while crude oil remains steady at $50 per barrel, the crack spread expands, signaling strong downstream demand [6]. Conversely, if crude oil prices spike due to geopolitical tensions but consumer demand for gasoline remains flat, the crack spread compresses [1][7]. If the spread drops too low—historically hovering near $20 to $25 per barrel in normalized markets—refineries may not generate sufficient profit to cover their fixed operating costs and could be forced to reduce production runs [1].[1][6]

The New York Mercantile Exchange (NYMEX) launched the crack spread contract in 1994 to ease the margin burden on commercial hedgers [5]. Prior to this innovation, a refinery attempting to hedge its output had to post separate capital requirements for its crude oil, gasoline, and heating oil positions [5]. By treating the simultaneous purchase and sale of these multiple futures as a single integrated trade, the exchange significantly reduced the capital required to maintain the hedge [1][5]. For a standard 3-2-1 crack spread trade, a market participant might post $1,451 in margin, representing a roughly 26 percent reduction compared to holding the outright futures contracts individually [1].[1][5]

The mechanics of trading the spread involve precise contract sizing on the exchange [1]. On the CME Group, both RBOB gasoline and heating oil futures contracts represent 42,000 gallons, which is exactly equivalent to 1,000 barrels [1]. Crude oil futures are also sized at 1,000 barrels per contract [1]. Therefore, executing a 3-2-1 crack spread requires a trader to buy three crude oil contracts (representing 3,000 barrels) and sell two gasoline contracts and one heating oil contract (representing 3,000 barrels of refined products) [1][5]. This 1-to-1 volumetric match ensures the hedge is perfectly balanced [1].[1][5]

Independent refiners, which purchase crude oil on the open market and sell refined products wholesale, face immense economic risk from adverse price movements [5]. Unlike integrated oil majors that control the entire supply chain from the wellhead to the retail gas station, independent operators are entirely exposed to the volatility of the crack spread [5]. By executing a 3-2-1 hedge in the futures market, these companies can lock in their refining margin months in advance, insulating their balance sheets from sudden spikes in crude oil prices or unexpected drops in consumer gasoline demand [4][5].[4][5]

Speculators also play a crucial role in the crack spread market, providing the liquidity necessary for commercial refiners to execute their hedges [1][5]. A speculator who believes that summer driving demand will outpace gasoline production might buy the crack spread—going long on the refined products and short on the crude oil [1]. If the price of RBOB gasoline rises faster than the price of WTI crude, the speculator profits from the widening spread [1]. Conversely, if a trader anticipates an economic slowdown that will destroy diesel demand, they might sell the crack spread, profiting if product prices fall relative to crude [1].[1][5]

The crack spread is a gross margin indicator, not a measure of net profitability [7]. "What it really measures is whether the refinery will make money at the margin — i.e., whether an additional barrel of crude oil purchased upstream will yield sufficient revenues from saleable products downstream," explains the Penn State University College of Earth and Mineral Sciences [7]. It explicitly excludes the variable costs of operating a refinery, which can amount to $20 per barrel depending on utility pricing, labor, chemical catalysts, and short-term financial borrowing costs [7].[6]

If a calculated 3-2-1 crack spread sits at $26.58 per barrel, the true net margin for the operator might only be $6.58 per barrel once the physical costs of running the facility are deducted [7]. Consequently, a positive crack spread does not guarantee a profitable quarter if operating expenses surge simultaneously [7]. The benchmark also relies on specific futures contracts that may not perfectly match a refinery's actual physical inputs and outputs [7]. The standard calculation typically uses the NYMEX futures price for West Texas Intermediate, a relatively light and sweet crude oil [7].[6]

However, many complex U.S. refineries in the Gulf Coast are engineered to process heavier, sour crude oils that trade at a discount to WTI [5][7]. If the price differential between heavy crude and WTI fluctuates, the standard 3-2-1 crack spread will not accurately reflect the specific economics of a facility running on heavy feedstock [7]. Regional variations further complicate the landscape [5]. The most widely quoted benchmarks are the "Gulf Coast 3-2-1" and the "Chicago 3-2-1," which reflect the specific pricing dynamics of those distinct geographic markets [3][5].[3][5][6]

A refinery in the Midwest may face entirely different crude oil acquisition costs and local product demand than a facility located on the Texas coast [5]. As a result, financial intermediaries have developed tailored over-the-counter products that allow operators to hedge their specific regional exposures rather than relying solely on the national NYMEX benchmarks [5]. The seasonality of refined product demand also dictates the behavior of the crack spread [5]. During the summer months, the demand for transportation fuels like gasoline peaks, often driving the gasoline component of the spread higher [5].[5]

In contrast, the winter months see a surge in demand for heating oil and diesel fuel [5]. Refineries attempt to anticipate these seasonal shifts by adjusting their physical yields, but the futures spread provides a continuous, year-round financial mechanism to manage the inherent volatility of these changing consumption patterns [1][5]. While the 3-2-1 ratio is the most heavily traded benchmark, it is not the only configuration used in the energy markets [5][7]. Refineries with different physical capabilities or those operating in regions with distinct demand profiles rely on alternative ratios [5].[1][5][6]

The 5-3-2 crack spread, for instance, models a facility that produces three barrels of gasoline and two barrels of distillate from five barrels of crude oil, while the 2-1-1 spread represents a simpler yield of one barrel of each product from two barrels of crude [5][7]. The specific ratio chosen depends entirely on the refinery's equipment and the specific blend of heavy or light crude oil it processes [1][5]. Despite these variations, the core mechanism remains identical across all configurations [1].[1][5][6]

The 3-2-1 crack spread serves as the critical translation layer between the upstream extraction of crude oil and the downstream consumption of refined fuels [2][4][8]. It quantifies the value added by the refining sector, stripping away the absolute price of oil to reveal the pure margin of the industrial process [4][6]. Whether utilized by a Gulf Coast refinery locking in its quarterly revenue or an equity analyst forecasting the dividend yield of an energy stock, the spread remains the most accurate financial representation of the physical realities governing the global petroleum supply chain [2][6].[2][4][7]
