Securing the U.S. Nuclear Arsenal: The Cryptographic Chain From Presidential Order to Warhead Unlock

U.S. nuclear weapons are secured by a dual-layered system requiring both a validated Emergency Action Message (EAM) from the president and a physical Permissive Action Link (PAL) code to arm the warhead. This cryptographic bottleneck ensures that neither physical possession of the weapon nor intercepted communications alone can initiate a detonation.[3]

The system operates on the principle of negative control—preventing unauthorized use—while maintaining positive control, which guarantees the weapons function when legitimately commanded. The Department of Defense manages this balance through a strict procedural and hardware chain that links the National Command Authority to the individual delivery platforms.[1]

The process begins with an Emergency Action Message. The Milcom Monitoring Post defines an EAM as a highly formatted, encrypted alphanumeric broadcast used by the National Command Authority to direct nuclear-capable forces. These messages contain the specific authorization codes required to initiate a launch sequence.

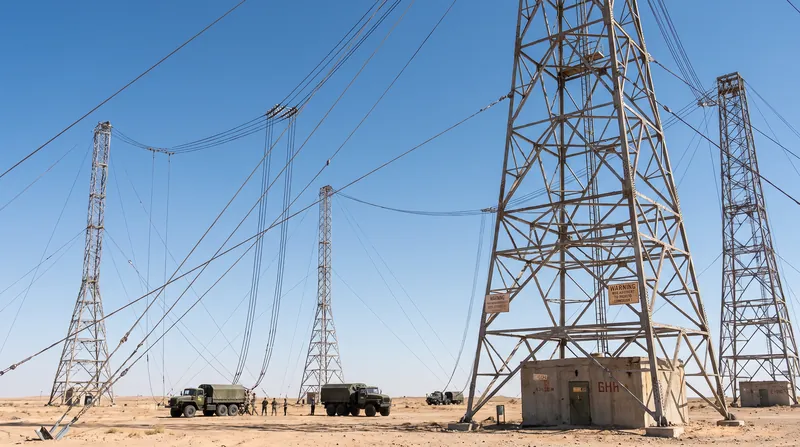

These messages are transmitted globally over multiple frequencies, including High Frequency (HF) and Very Low Frequency (VLF) bands, ensuring submarines and airborne command posts receive them. In 2021, the Nautilus Institute noted that the U.S. Nuclear Command, Control, and Communications (NC3) system relies on a resilient network of satellites and relay stations to guarantee EAM delivery even in degraded environments.[4]

Upon receiving an EAM, a launch crew must authenticate it. The message contains a specific cryptographic format that matches sealed authentication systems held by the operators. Two operators must independently verify the message's validity, adhering to a strict procedural mandate.[1]

"The Two-Person Rule requires the presence at all times of at least two authorized persons, each capable of detecting incorrect or unauthorized procedures with respect to the task to be performed," according to the Nuclear Matters Handbook published by the Department of Defense.[1]

Once the EAM is authenticated, the operators receive the authorization to employ the weapon, but they still face a physical barrier: the Permissive Action Link. The PAL serves as the final hardware safeguard between the launch platform and the nuclear yield.[3][5]

A PAL is a security device embedded within the nuclear weapon itself. Columbia University researchers describe the PAL as a mechanism designed to preclude the arming or launching of a nuclear weapon until a prescribed discrete code is inserted, physically blocking the firing circuitry.[5]

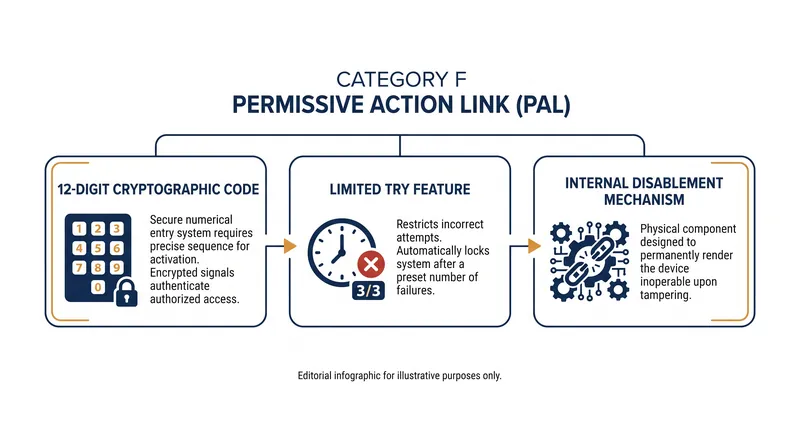

Modern PALs, such as the Category F devices introduced in the 1980s, utilize a 12-digit cryptographic code. This provides a massive number of possible combinations, rendering brute-force guessing mathematically unfeasible within a tactical timeframe.[3]

The Nuclear Weapon Archive details that these advanced PALs include a "limited try" feature. If an incorrect code is entered multiple times, the system permanently disables the weapon's internal firing circuitry, rendering it a useless mass of conventional explosives and fissile material.[3]

This disabling mechanism often involves the use of small explosive charges or electrical surges that destroy critical components, such as the neutron generators or the firing set, without initiating a nuclear yield. The weapon must then be returned to a Department of Energy facility for extensive rebuilding.[3][5]

The integration of EAMs and PALs creates a sequential dependency. The EAM provides the authorization and, crucially, the unlock codes required to bypass the PAL. Without the EAM, the crew cannot generate the 12-digit sequence; without the PAL, the EAM is merely a piece of paper.[1]

However, this architecture faces modern challenges. A 2020 analysis in War on the Rocks highlighted vulnerabilities in the NC3 system, particularly concerning "Right of Launch" and the survivability of command links following a limited nuclear strike.[2]

The authors argued that adversaries might target the communication nodes responsible for transmitting EAMs, attempting to sever the National Command Authority from the deployed forces. If the EAM cannot reach the silo or the submarine, the PAL remains locked, effectively neutralizing the deterrent.[2]

To counter this, the U.S. maintains redundant platforms like the E-6B Mercury "TACAMO" (Take Charge And Move Out) aircraft, designed to relay EAMs to ballistic missile submarines even if ground-based transmitters are destroyed.[4]

The evolution of PALs also reflects changing threat landscapes. Early weapons in the 1950s and 1960s relied heavily on physical security and procedural rules, lacking internal cryptographic locks. The military initially resisted PALs, fearing they would delay response times during a Soviet attack.[3][5]

The transition to universal PAL implementation was driven by concerns over weapons deployed in volatile regions or the risk of theft by non-state actors. Today, the Department of Energy's National Nuclear Security Administration oversees the continuous modernization of these fail-safes.[1][5]

The overarching goal remains a system that is fail-safe against accidents or rogue actors, yet reliably responsive to a verified presidential directive. The precise balance of these competing requirements dictates the ongoing upgrades to both the NC3 networks and the warhead-integrated PALs.[1][2]
