Silencing the Hull: How Anechoic Tiles, Isolation Mounts, and Pump-Jets Suppress Submarine Radiated Noise

The acoustic signature of a submarine is dictated at the boundary where the vessel's outer steel meets the surrounding water. If mechanical energy from the reactor, turbines, or drivetrain reaches this boundary, it propagates through the ocean as a pressure wave that passive sonar arrays can detect at ranges exceeding 50 nautical miles. Consequently, naval architects treat the submarine not as a single vehicle, but as a series of nested, acoustically isolated zones designed to trap kinetic energy before it can radiate outward.[4]

This containment strategy relies on three distinct physical interventions: internal vibration isolation, external acoustic absorption, and hydrodynamic wake management. Each targets a different segment of the acoustic spectrum and addresses a different source of radiated noise. As detailed in a 2018 analysis by Navy Matters, the integration of these systems has fundamentally altered anti-submarine warfare, forcing detection efforts to rely on increasingly subtle acoustic anomalies.[2]

The first line of defense operates entirely inside the pressure hull. Submarines generate immense internal vibration from coolant pumps, reduction gears, and electrical generators. If these components are bolted directly to the structural frames, the hull acts as a massive amplifier. To prevent this, engineers utilize isolation mounts—complex elastomeric or active-pneumatic shock absorbers that decouple the machinery from the steel skeleton.[3]

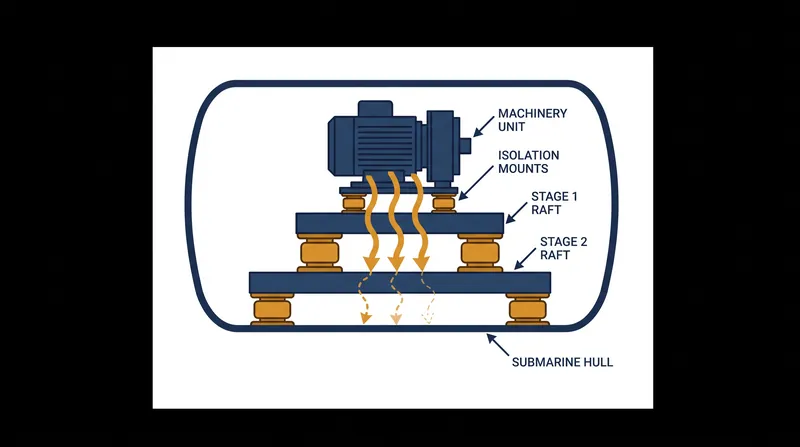

Modern isolation systems employ a two-stage or "raft" mounting technique. The machinery is secured to a massive internal platform, which is itself suspended on a secondary set of mounts attached to the hull. According to research published by the Submarine Science Technology and Engineering Conference, this dual-layer approach effectively severs the mechanical transmission path for low-frequency vibrations, which are the most dangerous because they travel the furthest in seawater.[3]

While isolation mounts contain internal noise, the submarine must also defend against external acoustic energy—specifically, the active sonar pulses emitted by hunting destroyers and helicopters. This is the domain of the anechoic tile. Applied to the exterior of the outer hull, these thick rubberized coatings are engineered to absorb incoming sound waves rather than reflecting them back to the sender.[1]

The physics of anechoic absorption rely on micro-structural deformation. As outlined in an MDPI materials science overview, the elastomeric matrix of the tile contains thousands of microscopic voids. When an acoustic pressure wave strikes the submarine, it compresses these voids. The mechanical effort required to deform the rubber converts the acoustic energy into a minute amount of thermal energy, which is harmlessly dissipated into the ocean.[1]

The effectiveness of these coatings is highly frequency-dependent. A standard anechoic tile formulation is optimized to absorb frequencies between 1,000 and 10,000 Hz, the band most commonly used by tactical active sonar systems. Within this range, high-quality tiles can reduce the reflected target strength by 10 to 15 decibels, effectively shrinking the detection radius of an adversary's sonar by more than half.[4]

However, anechoic tiles present significant operational challenges. The adhesive bonds securing the tiles to the hull are subjected to extreme thermal cycling, immense hydrostatic pressure at depth, and the sheer force of water moving over the hull at 20 knots. As noted by Professional Mariner in their review of marine acoustic engineering, maintaining the integrity of these coatings requires specialized adhesives and continuous maintenance, as a missing tile creates an acoustic "bright spot" that compromises the entire vessel.[5]

The third pillar of submarine silencing addresses the most prominent source of broadband noise: the propulsion system. Traditional open propellers generate thrust by creating a pressure differential across their blades. At high speeds, this pressure drop causes the water to boil, forming vapor bubbles that violently collapse—a phenomenon known as cavitation. The collapsing bubbles produce a distinct, high-volume acoustic signature that is easily identifiable.[6]

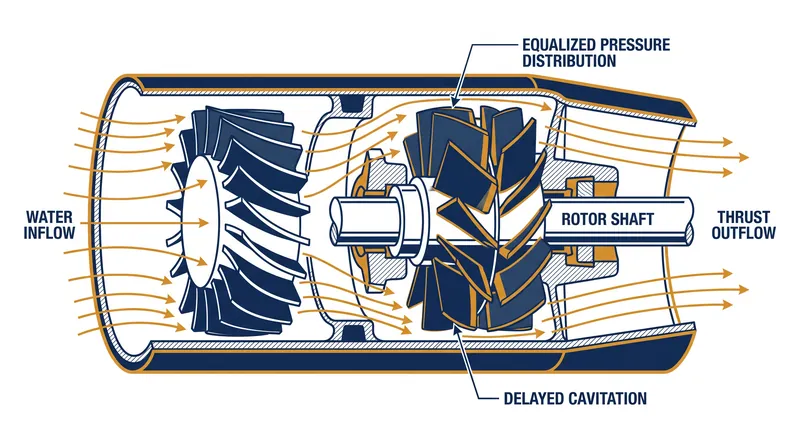

To delay the onset of cavitation, advanced submarines increasingly utilize pump-jet propulsors. A pump-jet encloses a multi-bladed rotor within a hydrodynamic shroud or duct, paired with a set of stationary stator blades. The stator blades pre-swirl the water entering the propulsor, ensuring that it meets the rotor at the optimal angle of attack, which equalizes pressure distribution across the blade surfaces.[8]

By managing the flow of water through the duct, the pump-jet significantly raises the speed threshold at which cavitation occurs. While an open propeller might begin cavitating at 15 knots, a well-designed pump-jet can often operate quietly at speeds exceeding 20 to 25 knots. Furthermore, the shroud itself acts as a physical acoustic baffle, directing the remaining high-frequency flow noise directly aft rather than allowing it to radiate laterally into the surrounding ocean.[6]

Despite their acoustic advantages, the adoption of pump-jets involves complex engineering trade-offs. They are significantly heavier than traditional propellers, adding mass to the extreme aft of the submarine, which complicates weight distribution and pitch control. Additionally, as the Australian Defence Magazine highlighted regarding future submarine procurement, the specific hydrodynamic efficiencies and "pumpjet propulsion technology choice still not well explained" in unclassified literature due to the highly sensitive nature of the rotor-stator design.[7]

The integration of isolation mounts, anechoic tiles, and pump-jets creates a compounding effect, where the suppression of one noise source reveals the next. As broadband propulsion noise is reduced by the pump-jet, the discrete tonal frequencies of internal pumps become the dominant signature. When those are suppressed by isolation mounts, the flow noise of water moving over the hull takes precedence.[4]

The evidence indicates that acoustic superiority is not achieved through a single breakthrough, but through the meticulous management of thousands of individual noise sources. Researchers presenting at the International Congress on Acoustics emphasize that broadband noise prediction now requires modeling the wall pressure spectrum across the entire hull surface, treating the submarine as a unified acoustic system rather than a collection of parts.[8]

As detection algorithms improve and autonomous sensor networks proliferate, the margins for acoustic error continue to shrink. The physical limits of elastomeric absorption and hydrodynamic flow management are well understood, meaning future reductions in radiated noise will likely require active cancellation technologies or entirely new propulsion paradigms, rather than incremental improvements to existing materials.[1][3]
