Evidence Pack: The Architecture of Active Protection Systems and the Limits of Armored Survivability

For decades, the contest between armored vehicles and anti-tank weapons tilted steadily against the tank. The proliferation of cheap, highly lethal anti-tank guided missiles (ATGMs) and rocket-propelled grenades (RPGs) meant that a multimillion-dollar main battle tank could be destroyed by a single infantryman operating from miles away. As anti-tank weaponry advanced, incorporating characteristics such as dual-charge warheads designed to defeat reactive armor, the traditional Western approach of simply bolting thicker steel onto vehicles reached its physical limits. Passive armor alone could no longer guarantee survival without adding untenable weight to the vehicle, degrading its mobility and exceeding the capacity of expeditionary airlift. In response to this mounting vulnerability, militaries around the world turned to Active Protection Systems (APS)—a revolutionary technology that shifts the paradigm of armored survivability from absorbing a hit with heavy steel to rapid, automated interception.[1][4]

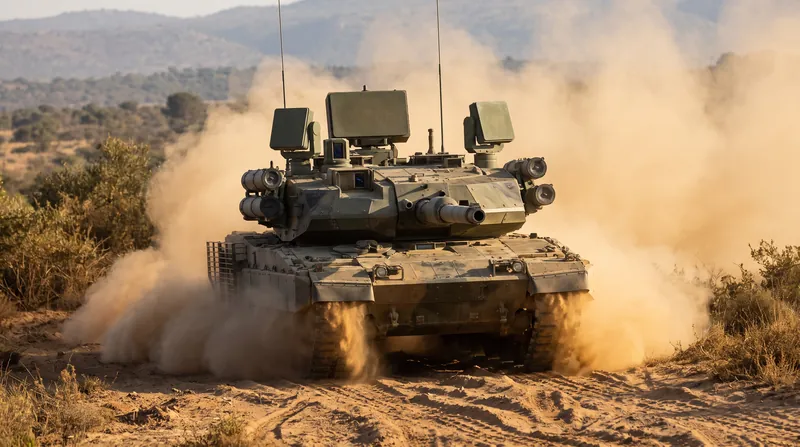

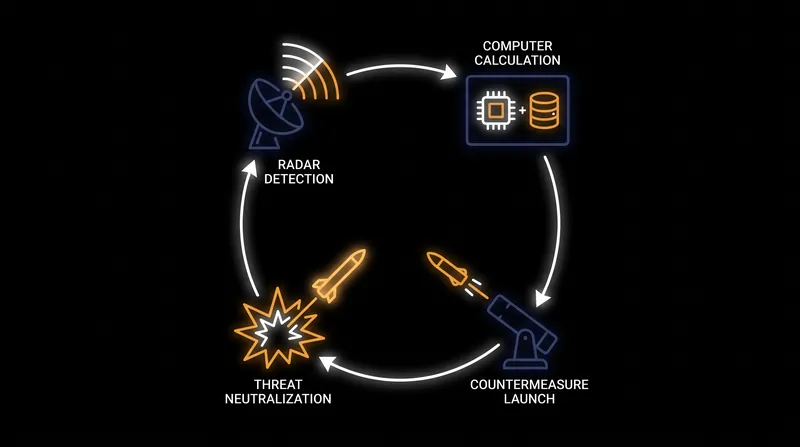

Active protection systems divide into two broad operational categories: soft-kill and hard-kill. Soft-kill systems rely on electronic warfare, utilizing infrared jammers, laser dazzlers, or instantaneous opaque smoke screens to disrupt the guidance system of an incoming missile, causing it to veer off course. While effective against guided threats, soft-kill measures are entirely useless against unguided weapons like RPGs. Hard-kill systems take a much more direct and kinetic approach, physically intercepting and destroying the incoming projectile before it ever reaches the vehicle's armor. The architecture of a hard-kill APS relies on a continuous, automated detect-track-intercept loop. Flat-panel radar antennas mounted around the turret scan a full 360 degrees. When a threat is detected, a fire-control computer instantly classifies it, calculates a precise intercept point in space, and fires a focused explosive countermeasure to neutralize the warhead mid-air.[3][4]

The empirical evidence supporting the effectiveness of hard-kill APS against chemical-energy warheads is exceptionally robust. Systems like the Israeli-designed Trophy have accrued over a million operational hours and thousands of successful field tests since their introduction. Against traditional ATGMs and RPGs fired from a standoff distance, the system works exactly as designed, shredding the incoming missile with a shotgun-like blast of penetrators before it reaches the hull. This capability was vividly demonstrated during operations in Gaza, where tanks equipped with APS survived dozens of attacks that would have otherwise been catastrophic. The technology has proven so reliable that every major Western military is now either fielding or actively acquiring hard-kill systems, transforming them from an experimental curiosity into an operational necessity for modern ground combat.[2][4]

However, the data reveals strict limitations to this architecture, particularly when armored columns are forced to operate in dense urban environments. The system requires a fraction of a second to complete its processing loop—detecting the launch, confirming the track, calculating the geometry, and firing the countermeasure. When operating in close-quarters urban interiors, this latency creates a critical vulnerability. An unguided weapon fired from an alleyway or a second-story window at extremely close range can cross the distance to the tank before the APS has time to react. This creates a functional "dead zone" around the vehicle—a perimeter within which the hard-kill system cannot close the kill chain fast enough, leaving the tank entirely exposed to point-blank ambushes.[4][5]

Furthermore, the evidence shows that hard-kill systems are currently incapable of defeating kinetic energy anti-tank weapons, such as Armor-Piercing Fin-Stabilized Discarding Sabot (APFSDS) rounds. These kinetic penetrators rely on extreme velocity and dense mass—often a solid tungsten or depleted uranium dart traveling at hypersonic speeds—rather than a chemical explosive. Because hard-kill systems are designed to disrupt chemical-energy detonation sequences or deflect shaped charges, their explosive countermeasures cannot impart enough lateral force to meaningfully alter the trajectory of a massive kinetic rod. Consequently, in a direct tank-on-tank engagement, an APS provides zero protection against the enemy's main gun, leaving the vehicle entirely reliant on its passive armor plates.[1][4][5]

The proliferation of low-cost drones and loitering munitions presents another profound challenge to current APS architectures. Traditional APS radars were optimized to detect lateral threats approaching the sides or front of the vehicle, reflecting the historical reality of ground-launched missiles. Drones, however, exploit the relatively thin armor on the roof of the tank, attacking from high angles or dropping shaped charges directly from above. While newer APS iterations are attempting to incorporate hemispheric radar coverage to detect these vertical threats, the evidence regarding their effectiveness against top-attack drone swarms remains thin. The radar clutter generated by trees, buildings, and overhead wires further complicates the system's ability to track small, slow-moving quadcopters.[3][5]

Magazine depth is a critical constraint that asymmetric adversaries are already learning to exploit. A hard-kill system carries a limited number of interceptors before it must be manually reloaded by the crew—a process that cannot be done under fire. In an environment saturated by cheap, commercially available drones, an APS can easily be overwhelmed by a coordinated swarm. If an adversary launches multiple drones or missiles simultaneously into the same radar sector, the system will exhaust its countermeasures neutralizing the first wave, leaving the vehicle entirely defenseless against the follow-on strikes. This unfavorable cost-exchange ratio—multimillion-dollar tanks defending against five-hundred-dollar drones—threatens to undermine the strategic viability of heavy armor.[2][5]

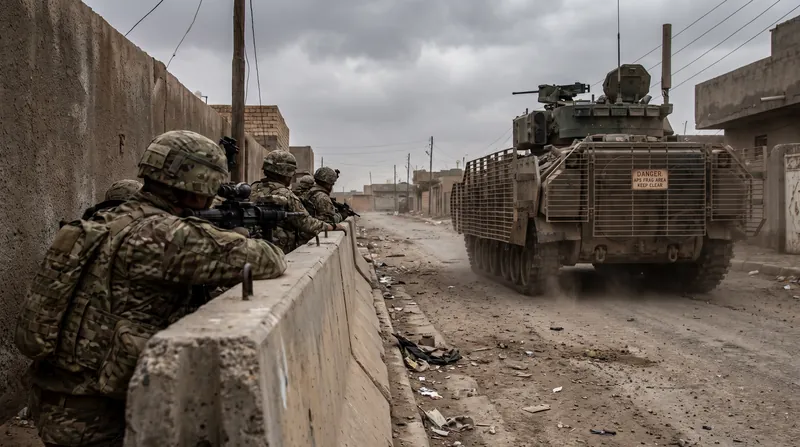

Finally, the deployment of hard-kill APS introduces significant tactical complications for combined arms operations. The explosive countermeasures generate a lethal fragmentation zone around the vehicle when they detonate an incoming missile. This poses a severe risk to dismounted infantry operating in close proximity to the tank. The traditional doctrine of combined arms relies on infantry advancing closely alongside armor, using the vehicle's mass for physical cover while protecting its blind spots from enemy anti-tank teams. Because of the fragmentation risk, tacticians argue that infantry must now maintain a standoff distance, fracturing the close coordination required in dense urban environments and forcing commanders to navigate a difficult trade-off between protecting the vehicle and safeguarding the troops.[2][3][5]

Ultimately, while Active Protection Systems have restored a vital measure of survivability to armored formations, they are not an invincibility cloak. They represent a necessary and highly effective adaptation against a specific generation of chemical-energy weapons, but they are already being challenged by the rapid evolution of drone warfare and top-attack munitions. As militaries look to the future, the next generation of armored survivability will likely require a layered approach, integrating hard-kill APS with directed-energy weapons, electronic warfare suites, and advanced passive materials. Until those integrated architectures mature, commanders must operate with a clear-eyed understanding of exactly where their active protection ends and their vulnerability begins.[5]
