The Inverse Fourth Power Law: How Range and Power Trade Off in Radar Detection

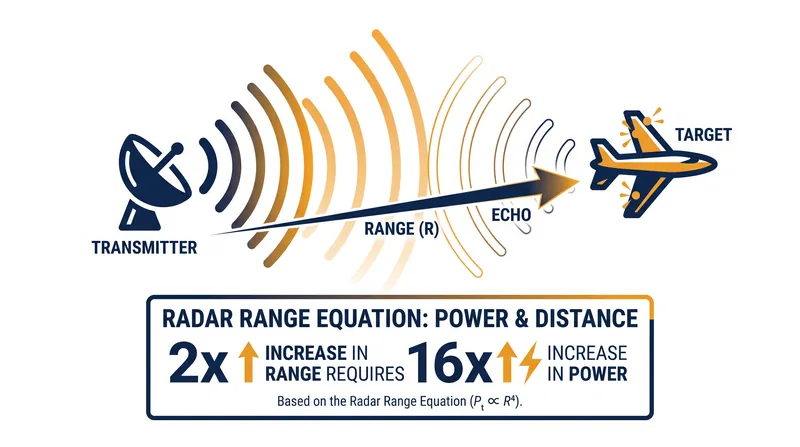

Light from a flashlight and sound from a siren both decay according to the inverse square law, spreading their energy over an expanding sphere as they travel outward from the source. Radar, however, must make a round trip. The radio frequency energy travels to the target, reflects off its surface, and returns to the receiver, subjecting the signal to the inverse square law twice. This creates the inverse fourth power law: the defining physical constraint of radar engineering, which dictates that extending detection range requires an exponential, rather than linear or quadratic, increase in transmitter power.[1][3]

The radar range equation mathematically formalizes this relationship. It states that the maximum detection range is proportional to the fourth root of the transmitted power, the antenna gain, the radar cross-section of the target, and the wavelength, divided by the minimum detectable signal. In practical terms, this means that if a defense system or an autonomous vehicle needs to see twice as far, it cannot simply double its power output.[1][2]

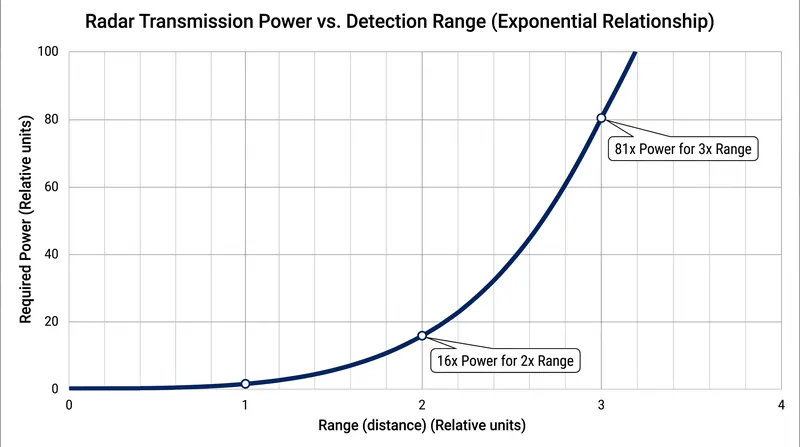

Instead, doubling the range requires multiplying the transmitter power by 16. Tripling the range requires 81 times the power. This scaling factor creates a hard physical ceiling on how much raw energy can be pushed through a system before thermal management, power generation, and component size become insurmountable engineering barriers.[3][4]

In automotive applications, this constraint dictates the architecture of advanced driver assistance systems (ADAS). A standard automotive radar operating at 77 GHz might reliably detect a vehicle at 150 meters. Pushing that detection threshold to 300 meters for highway-speed autonomy requires a 16-fold power increase, which exceeds the thermal dissipation limits of compact sensor housings embedded in vehicle bumpers.[4][5]

Consequently, the automotive industry has largely abandoned the pursuit of raw power. Instead, engineers focus on the denominator of the radar equation: the minimum detectable signal. By lowering the noise floor through advanced signal processing and utilizing multiple-input multiple-output (MIMO) antenna arrays, systems can extract weaker return signals from the background clutter without increasing the transmission energy.[1][5]

Defense radar systems face the same physical laws but operate on a vastly different scale. Early warning radars designed to detect ballistic missiles at ranges exceeding 3,000 kilometers require massive power generation facilities, often drawing megawatts of electricity. Even with such power, the inverse fourth power law means that detecting a target with a small radar cross-section (RCS)—such as a stealth aircraft—drastically reduces the effective range.[1][6]

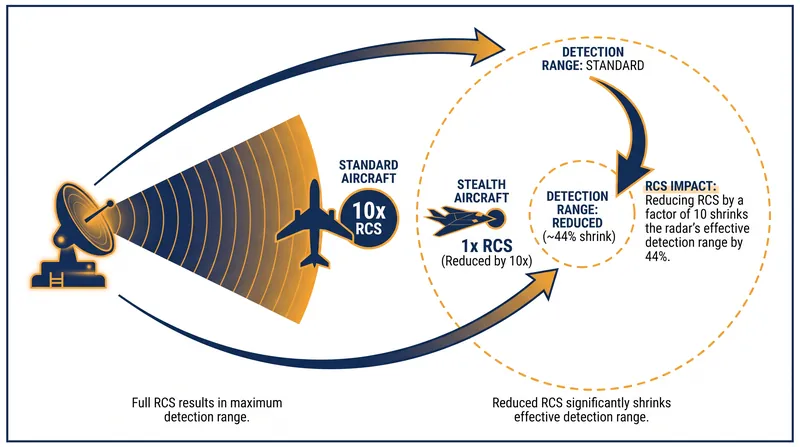

The radar cross-section is the only variable in the range equation controlled by the adversary. If an aircraft's design reduces its RCS by a factor of 10, the radar's detection range is reduced by the fourth root of 10, or roughly 44%. To regain that lost detection range, the radar operator would again have to increase power by a factor of 10, creating an asymmetric cost advantage for stealth technology.[1][2][6]

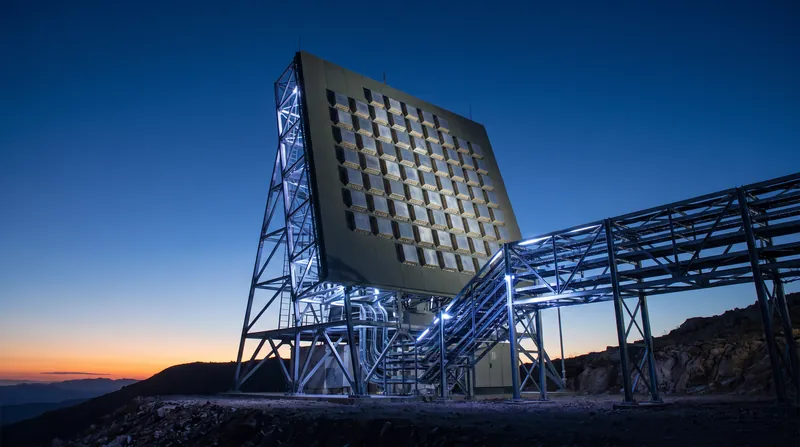

This dynamic explains the shift toward active electronically scanned array (AESA) radars in modern fighter aircraft and naval vessels. Rather than relying on a single, high-power transmitter, AESA systems distribute power across thousands of individual transmit and receive modules. This architecture allows the radar to focus its energy electronically, increasing the effective antenna gain—another numerator in the range equation—without proportionally increasing the total power draw.[2][6]

The trade-off between power and range is further complicated by atmospheric attenuation. The standard radar equation assumes propagation through a vacuum. In reality, water vapor, oxygen, and precipitation absorb radio frequency energy, particularly at higher frequencies like the K and Ka bands. This absorption introduces an exponential loss factor that compounds the inverse fourth power law, meaning that a 16-fold power increase in heavy rain will not yield a doubled detection range.[1][4][6]

For short-range applications, such as industrial level sensors or traffic monitoring, the inverse fourth power law is less restrictive. At ranges under 50 meters, the required transmission power is often measured in milliwatts, allowing for continuous-wave operation and compact, low-cost hardware. However, even in these domains, the physics dictate that detecting a pedestrian with a low RCS requires significantly more sensitivity than detecting a commercial truck at the same distance.[4][5]

The limitations imposed by the inverse fourth power law have driven the integration of radar with other sensor modalities. Because radar struggles to achieve high resolution at long ranges without prohibitive power and antenna size requirements, systems increasingly fuse radar data with optical and LiDAR inputs. Radar provides robust velocity and distance measurements in all weather conditions, while optics provide the angular resolution necessary for target classification.[5][7]

The inverse fourth power law ensures that radar engineering remains an exercise in optimization rather than brute force. Whether designing a millimeter-wave sensor for a commercial drone or a phased array for a guided missile destroyer, engineers must balance power, aperture size, and processing capability against the unyielding physics of signal propagation. The future of radar lies not in transmitting louder, but in listening better.[3][6][7]
