The Mechanics of EV Battery Degradation: Comparing SEI Layer Growth and Lithium Plating

Automotive engineers programming battery management systems must decide exactly how aggressively to push current into a lithium-ion cell, a choice they execute through software updates and thermal conditioning protocols. What they are actually able to do is throttle voltage and regulate coolant flow to maximize charging speed without permanently destroying the cell's capacity. When they next calibrate these algorithms for the upcoming generation of 800-volt architectures, they face a strict electrochemical trade-off: mitigating the slow, inevitable parasitic drain of Solid Electrolyte Interphase (SEI) growth against the acute, catastrophic risk of lithium plating.[9]

Every time an electric vehicle charges or discharges, lithium ions travel between the cathode and the graphite anode through a liquid electrolyte. During the very first charge cycles at the factory, the electrolyte reacts with the anode to form the SEI—a passivating layer measuring between 10 and 50 nanometers thick. This layer is essential because it prevents further uncontrolled decomposition of the electrolyte, but its formation permanently consumes a fraction of the cell's active lithium inventory.[2][7]

The engineering challenge is that the SEI is never truly stable. As the battery expands and contracts during normal operation, micro-cracks form in the SEI layer, exposing fresh graphite to the electrolyte. The system then consumes more active lithium to repair the breach. According to a 2023 analysis published in Preprints.org, "The continuous consumption of active lithium by the SEI layer remains the primary driver of linear capacity fade during standard operation."[1]

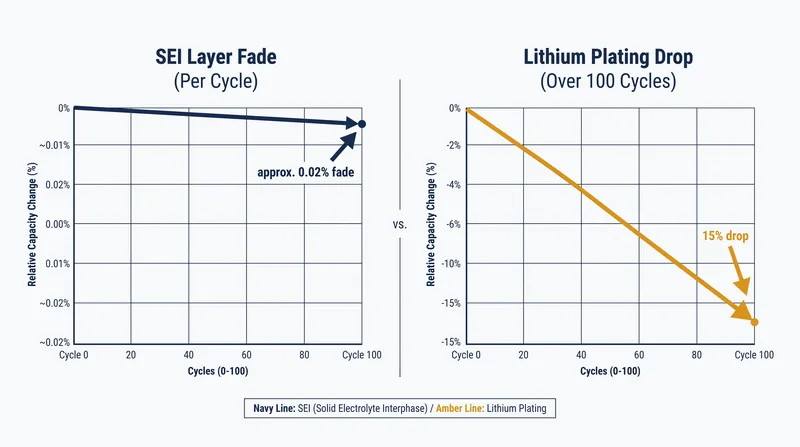

This continuous repair mechanism dictates the baseline calendar life of the vehicle. Data from the Journal of the Electrochemical Society indicates that under standard 1C charging conditions at 25 degrees Celsius, SEI growth accounts for a steady capacity fade of approximately 0.02 percent per cycle. Over a 10-to-15-year lifespan, this linear degradation slowly reduces the pack's total range, establishing the fundamental limit of current polymer electrolyte-based architectures.[3]

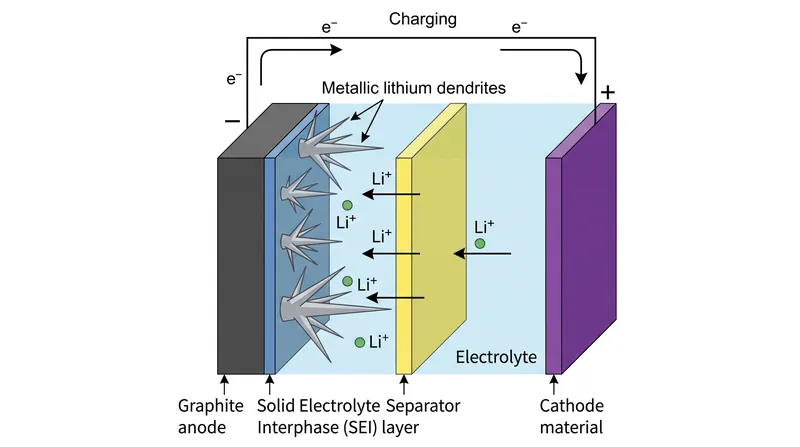

However, when drivers plug into 350-kilowatt DC fast chargers, the battery management system must navigate a completely different degradation pathway: lithium plating. Plating occurs when lithium ions arrive at the graphite anode faster than they can intercalate, or embed themselves, into the carbon structure. Instead of safely storing inside the anode, the ions accumulate on the surface and reduce into metallic lithium.[6][9]

The onset of lithium plating is highly dependent on temperature and current density. Research published in Frontiers in Energy Research in 2022 demonstrates that pushing charge rates above 2C—charging the battery fully in under 30 minutes—at temperatures below 25 degrees Celsius forces the cell past its intercalation limit. The metallic lithium forms a barrier that not only blocks subsequent ions from entering the anode but also reacts aggressively with the electrolyte to form a secondary, highly resistive SEI layer.[4]

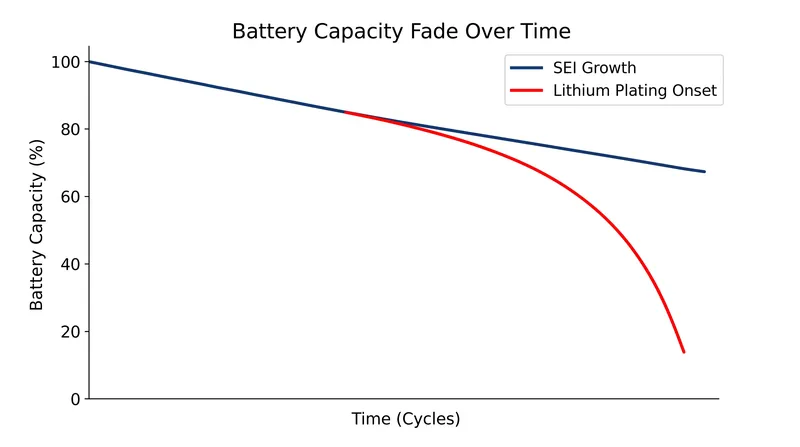

The consequences of plating are severe and non-linear. While SEI growth causes a predictable, slow decline, lithium plating can trigger a sudden drop in performance. A study in the journal Energies found that repeated fast-charging under plating conditions can result in up to a 15 percent capacity loss over just 100 cycles. In extreme cases, the plated lithium grows into needle-like structures called dendrites, which can pierce the separator and cause a short circuit.[6]

To manage these competing risks, battery management systems employ dynamic charge profiles. When a driver navigates to a fast charger, the vehicle's software initiates thermal pre-conditioning, actively heating the battery pack to an optimal window between 30 and 35 degrees Celsius. This elevated temperature increases the diffusion rate of lithium ions into the graphite, significantly reducing the risk of plating even at high currents.[9]

Yet, elevating the temperature introduces its own penalty. While heat prevents lithium plating during a fast charge, sustained high temperatures accelerate the chemical reactions that drive SEI layer growth. Engineers must therefore program the thermal management system to aggressively cool the pack the moment the fast-charging session concludes, dropping the cell temperature back below 25 degrees Celsius to arrest the parasitic SEI expansion.[7][9]

The transition to solid-state batteries aims to alter this calculus entirely. By replacing the liquid electrolyte with a solid polymer or ceramic material, researchers hope to eliminate the traditional SEI layer and physically block dendrite formation. An analysis in ACS Applied Energy Materials notes that managing the lithium anode interface remains the primary hurdle for capacity retention in these next-generation cells, as the solid-to-solid contact introduces new mechanical stresses.[5]

Until solid-state architectures reach commercial scale, the industry relies on increasingly sophisticated software to balance the electrochemical ledger. Modern electric vehicles continuously monitor internal cell resistance, voltage curves, and ambient temperatures, adjusting the maximum allowable charge current in real-time. If the system detects the voltage signatures of incipient lithium plating, it immediately throttles the charging speed, prioritizing the physical integrity of the anode over the driver's convenience.[8][9]

The longevity of an electric vehicle battery is not determined by a single failure point, but by how successfully the software navigates the boundary between these two mechanisms. The physical limits of graphite and lithium dictate the rules, and the battery management system must constantly calculate the exact thermal and electrical parameters required to keep the cell operating safely within them.[9]
