Axial Flux vs. Radial Flux Motors: The Trade-Offs Defining Next-Generation EV Performance

Automotive chief technology officers finalizing drivetrain architectures for 2028–2030 vehicle platforms face a binary choice that dictates the packaging, weight, and cost of their next generation of electric vehicles. They must decide whether to retain the century-old radial flux motor—a known, highly scalable commodity—or transition to the emerging axial flux topology, which promises massive reductions in mass and volume. With supply chains locking in over the next 18 months, engineering teams are actively weighing the cubic torque scaling of axial designs against the 25 to 40 percent manufacturing cost advantage of traditional radial units.[1][5]

The fundamental distinction between the two architectures rests entirely on the path of the magnetic field. In a traditional radial flux motor, the rotor sits inside a cylindrical stator, and the magnetic flux travels perpendicularly outward from the axis of rotation. This geometry has powered everything from industrial water pumps to the vast majority of modern electric vehicles on the road today. In an axial flux motor, the rotor and stator are arranged side-by-side as flat, pancake-like discs, and the magnetic flux flows parallel to the central shaft.[1][6]

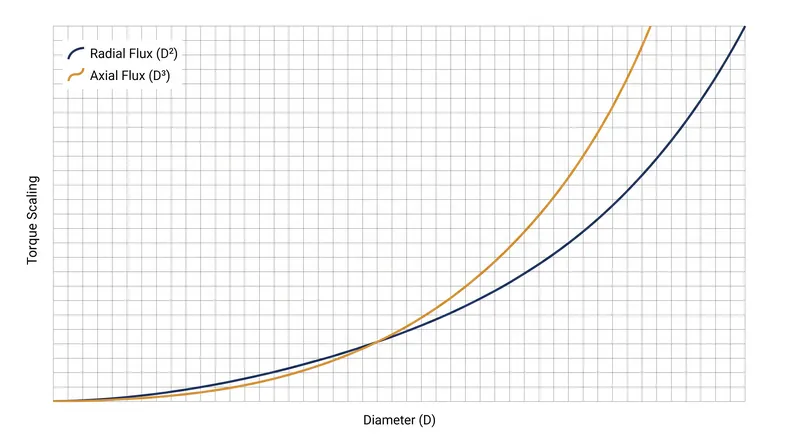

That geometric shift changes the underlying physics of torque generation. In a radial machine, torque scales proportionally to the square of the motor's diameter. In an axial machine, torque scales with the cube of the diameter, because the active magnetic material sits at a larger average radius and provides significantly higher mechanical leverage. This mathematical reality allows axial flux motors to deliver three to four times the torque density of their radial counterparts, fundamentally altering how much physical space a drivetrain requires within a vehicle chassis.[3][6]

The mass reductions achieved by this architecture are severe. A premium radial flux motor typically tops out at a power density of 3 to 5 kilowatts per kilogram. In contrast, advanced axial flux units have pushed those boundaries exponentially. A 2025 iteration of an axial flux motor developed by UK-based YASA weighs just 12.7 kilograms while delivering 750 kilowatts of peak power. "I was five weeks into my Ph.D at Oxford University, when I suddenly realized there was a much better way to build an electric machine," said YASA founder Tim Woolmer regarding the architecture's origins. "The insight I had was that by removing the motor's stator yoke, and splitting it into segments, we could reduce the motor's weight — and yet at the same time improve its torque, power density, efficiency and manufacturability."[2][3]

In June 2026, researchers from Pangoo Power and the Chinese Academy of Sciences demonstrated an axial flux motor utilizing a novel permanent magnet material that achieved 25.73 kilowatts per kilogram at 18,000 revolutions per minute. By stabilizing the disc-shaped architecture at high rotational speeds—a historical vulnerability for the topology—the engineering team demonstrated that axial motors can reduce overall drivetrain weight and axial length by approximately 50 percent compared to radial motors delivering identical performance metrics.[4]

Efficiency gains compound the physical packaging advantages over the lifespan of the vehicle. A premium radial flux EV motor typically operates at 92 to 94 percent efficiency at its optimal speed and load. Axial flux motors, benefiting from shorter, one-dimensional magnetic flux paths, routinely reach 95 to 97 percent efficiency. While a two to three percentage point gap appears marginal on paper, efficiency losses compound exponentially in applications where motors run continuously. Furthermore, axial flux motors maintain near-peak efficiency across a much wider band of rotational speeds, which is critical for the highly variable load cycles of passenger vehicles navigating stop-and-go traffic.[1]

However, the transition to axial flux is heavily constrained by manufacturing maturity and capital expenditure. Radial flux motors benefit from over a century of industrial refinement; the tooling exists in every major manufacturing hub globally, and the supply chains for electrical steel laminations and copper windings are highly competitive. Consequently, a radial flux motor of given specifications costs 25 to 40 percent less to manufacture than an equivalent axial unit. For automakers operating on razor-thin margins in the entry-level EV segment, that cost differential overrides any physical packaging advantages.[1][5]

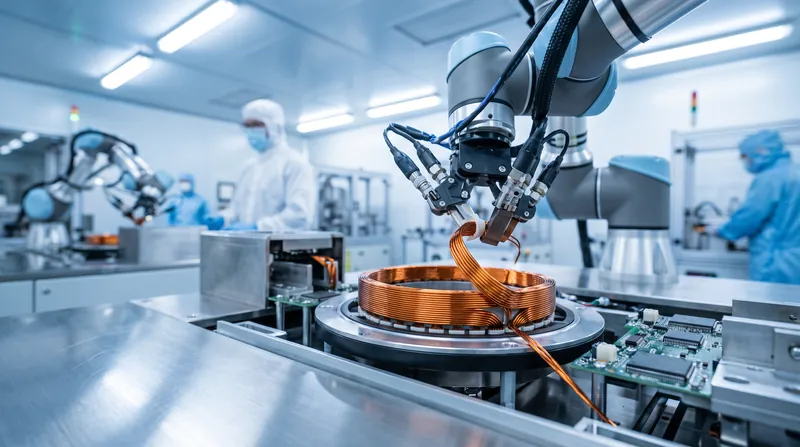

Axial flux designs introduce severe mechanical tolerances that complicate mass assembly. The double-sided stators require extremely precise alignment, with air gaps between the spinning discs often measuring under one millimeter. The magnetic attraction between the rotor and stator is immense and unbalanced, requiring rigid, heavy structural housings that can offset some of the motor's inherent weight advantages. Until recently, producing the stators required complex manual assembly, though recent breakthroughs in manufacturing continuous coils that function as separate laminates have begun to unlock economical production at scale.[1][5]

The integration of these compact motors triggers a cascade of downstream design changes across the entire vehicle platform. Because the motor is lighter and flatter, it can be packaged directly into the wheel hubs or integrated into ultra-compact e-axles, freeing up volumetric space between the wheels. This reduces the required mass of supporting structural components, including the chassis rails, suspension linkages, and friction brakes. The compounding weight reduction means that a smaller, lighter battery pack can achieve the same aerodynamic range, further reducing the vehicle's total mass and raw material cost.[2][4]

The deciding factor for the 2030 production cycle rests on stator manufacturing yields. While radial flux motors will maintain their hold on the mass market through sheer scale, the commercialization of continuous-coil axial stators is actively eroding that cost barrier. If production tolerances for the sub-millimeter air gaps can be automated at high volume, the 50 percent reduction in drivetrain mass will force even budget-conscious automakers to reevaluate their chassis blueprints.[1][7]
