How the Megawatt Charging System is Solving the Electric Trucking Bottleneck

Passenger EV charging is racing toward a new benchmark, but heavy-duty commercial vehicles face a much steeper climb. A Class 8 semi-truck requires a battery pack up to ten times larger than a standard passenger car. Using conventional fast chargers means hours of downtime, a delay that destroys the strict economics of long-haul freight logistics.[7]

The solution to this bottleneck is the Megawatt Charging System (MCS). In early 2026, the International Electrotechnical Commission (IEC) officially published the IEC TS 63379 standard, moving MCS from a prototype concept to a globally recognized framework ready for mass deployment.[1][7]

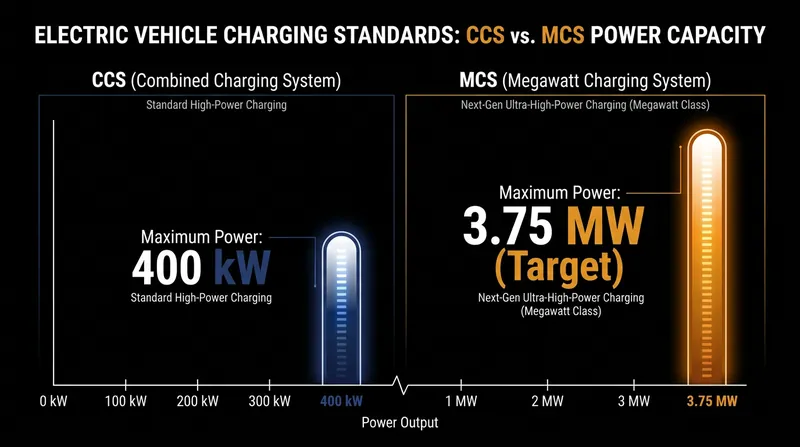

Developed by the Charging Interface Initiative (CharIN)—the same consortium behind the passenger car standard—MCS is designed to deliver unprecedented energy. The standard supports a maximum charging rate of 3.75 megawatts, operating at up to 1,250 volts and 3,000 amps of direct current.[1][3]

Pushing 3,000 amps of electrical current generates immense heat, creating a significant engineering challenge. To prevent the hardware from overheating or melting, MCS relies on active liquid cooling systems integrated directly into the infrastructure.[2][6]

A specialized coolant, typically a water-glycol mixture, circulates through the charging cable and the connector itself. This thermal management allows the cables to remain flexible and light enough for a single driver to handle manually, despite transferring enough energy to power a small neighborhood.[2]

The physical connector is a radical departure from the Combined Charging System (CCS) used by passenger cars. It features a distinctive inverted-triangle design housing seven specialized pins.[1][2]

Two massive pins at the top handle the primary direct current power delivery, while four smaller central pins manage communication and detection. The system utilizes the ISO 15118 protocol, which enables secure "Plug & Charge" functionality and advanced energy management between the vehicle and the grid.[1][7]

The operational impact of this technology is profound for fleet operators. In the logistics industry, profitability relies on strict adherence to schedules and regulatory requirements. Under European Union law, truck drivers are mandated to take a 45-minute rest break after every 4.5 hours of driving.[4][5]

MCS aligns perfectly with this regulatory rhythm. By delivering over a megawatt of power, an MCS charger can replenish a heavy-duty truck's battery from 20 percent to 80 percent in just 30 to 40 minutes.[3][4]

This synchronization means the truck charges while the driver rests, effectively eliminating dedicated charging downtime from the route schedule. Furthermore, faster charging allows operators to specify smaller, lighter battery packs, which directly increases the truck's allowable payload capacity.[4][5]

The commercial rollout of this technology is accelerating rapidly in 2026. Major truck manufacturers, including Scania and Volvo, are preparing to deliver their first series-production MCS-capable trucks by mid-year.[4][6]

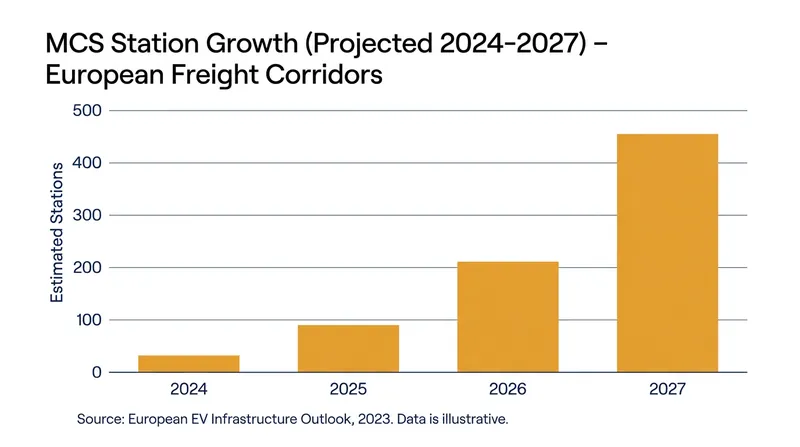

Simultaneously, the necessary infrastructure is catching up. The Milence initiative is deploying high-performance charging points across Europe, while companies like BP Pulse and Iberdrola are opening 1-megawatt stations along major freight corridors.[3][5]

To ease the transition period, many charging stations and vehicle manufacturers are adopting a dual-inlet strategy. Trucks will feature both standard CCS ports for overnight depot charging and MCS ports for rapid highway top-ups, ensuring maximum flexibility.[6]

Despite the technological triumph, significant challenges remain on the infrastructure side. Delivering 3.75 megawatts to a single vehicle—let alone a bank of ten trucks at a highway rest stop—places extraordinary strain on local electrical grids.[3][7]

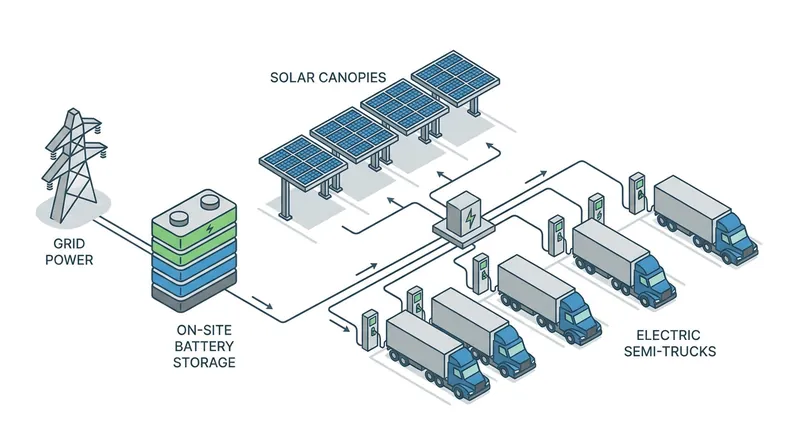

Future deployments will increasingly rely on on-site battery storage, solar canopies, and smart sequential charging algorithms to buffer the massive grid draw. While grid upgrades will take time, MCS has successfully solved the physical bottleneck of energy transfer, clearing the final major technical hurdle for zero-emission heavy freight.[7]
