The Mechanics of EV Motor Technology: Comparing Permanent Magnet, Induction, and Switched Reluctance Architectures

The electric vehicle industry is caught in a fundamental physics and supply chain tension: the most efficient way to turn electrons into forward motion requires materials that are geographically concentrated, expensive, and environmentally taxing to extract. For years, the pursuit of maximum EPA range ratings drove automakers toward a single, highly optimized solution, masking the underlying vulnerabilities of the hardware.[1][9]

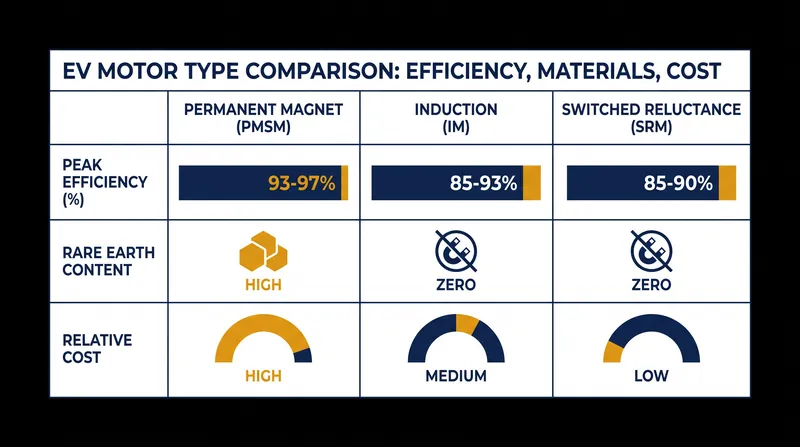

Resolving this tension requires looking past the battery pack and into the traction motor itself. Automakers are actively weighing three distinct electromagnetic architectures—Permanent Magnet Synchronous Motors (PMSM), Induction Motors (IM), and Switched Reluctance Motors (SRM)—each offering a different compromise between efficiency, manufacturing cost, and material independence. The choice of motor architecture cascades through the entire vehicle design, influencing thermal management loops, inverter specifications, and overall curb weight.[1][5]

A traction motor is not an isolated component; it is a node in a larger powertrain system. Permanent Magnet Synchronous Motors currently dominate the passenger EV market, found in the vast majority of modern electric vehicles. By embedding rare-earth magnets—typically neodymium-iron-boron—directly into the rotor, these motors generate a constant magnetic field without requiring electrical current to induce it.[3][4]

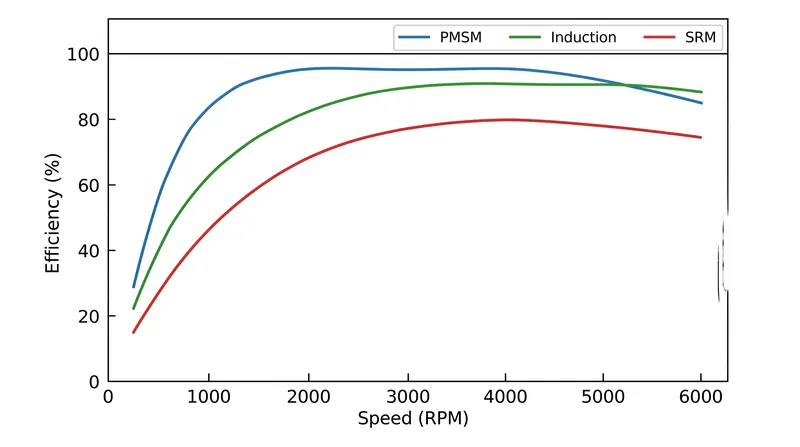

This magnetic baseline translates to exceptional volumetric power density and peak efficiencies that routinely exceed 93%. Because the rotor does not need to draw current to create its magnetic field, thermal losses are minimized. This allows the motor to remain compact and lightweight while delivering immediate, high-density torque from a standstill, a characteristic that defines the modern EV driving experience.[1][4]

However, the reliance on rare-earth metals introduces severe supply chain vulnerabilities. Neodymium and dysprosium are subject to intense price volatility and geopolitical export controls. Furthermore, these magnets are highly sensitive to heat; at high operating temperatures, they risk irreversible demagnetization, necessitating robust and heavy liquid cooling systems that offset some of the motor's initial weight advantages during sustained high-load operations.[1][9]

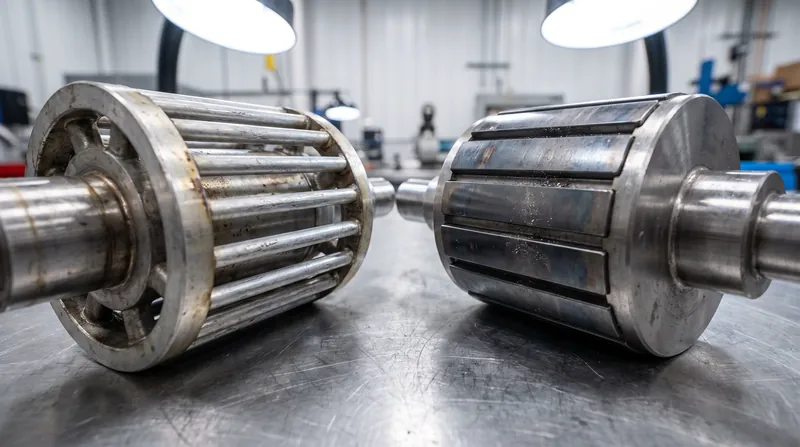

Induction Motors, famously popularized by early Tesla models, offer a fundamentally different approach to the powertrain system. Instead of permanent magnets, an induction motor uses alternating current in the stator to induce a magnetic field in a simple, robust rotor—typically constructed from copper or aluminum bars. This architecture entirely eliminates the need for rare-earth materials.[4][6]

Because they contain zero rare-earth metals, induction motors insulate automakers from supply chain shocks and drastically reduce raw material costs. They also excel at high-speed cruising, where the magnetic field can be dynamically weakened to reduce electromagnetic drag when the motor is freewheeling. The primary trade-off is efficiency at lower speeds and higher thermal loads; inducing the rotor's magnetic field generates heat, requiring careful thermal management and resulting in a bulkier, heavier motor for the same power output.[4][6]

Switched Reluctance Motors represent the most radically simplified architecture available to powertrain engineers. The rotor contains neither magnets nor copper windings; it is simply a piece of shaped, laminated steel. The motor operates by sequentially energizing stator coils, pulling the steel rotor into alignment with the magnetic field through the principle of magnetic reluctance.[5][8]

This structural simplicity makes SRMs incredibly cheap to manufacture, virtually indestructible, and entirely free of rare-earth materials. They can operate at extreme temperatures and high speeds without the risk of demagnetization or rotor melting, making them highly attractive for heavy-duty commercial applications and environments where durability outweighs volumetric compactness.[2][8]

The historical barrier to SRM adoption in passenger vehicles has been torque ripple and acoustic noise. The pulsed nature of the magnetic attraction creates vibrations that can resonate unpleasantly through the vehicle chassis. While advanced power electronics and high-frequency switching algorithms are mitigating these issues, SRMs still lag behind PMSMs in volumetric power density, requiring a larger physical footprint to achieve the same torque output.[5][7]

The industry is increasingly moving toward hybrid powertrain approaches to balance these trade-offs. Many all-wheel-drive vehicles now utilize a highly efficient PMSM on the primary axle for low-speed efficiency and a cheaper, drag-free induction motor on the secondary axle that only engages when maximum acceleration or traction is required.[2][6]

As computational power in motor controllers increases, software is beginning to compensate for the hardware deficiencies of magnet-free architectures. Advanced switching algorithms are smoothing the torque ripple of SRMs and optimizing the thermal efficiency of induction motors, slowly decoupling the electric vehicle transition from the rare-earth supply chain and shifting the competitive advantage from material extraction to silicon and code.[5][8]
