The State of Charge and Temperature Limits: How EV Battery Management Systems Cap Regenerative Braking Power

At the summit of the 14-mile Pikes Peak highway in Colorado on a 5°C morning, a fully charged electric vehicle beginning its descent will rapidly heat its mechanical brake rotors to over 300°C. Despite possessing a 400-volt or 800-volt traction motor capable of absorbing immense kinetic energy, the vehicle's software will actively refuse to use it. The motor, acting as a generator, could easily provide the necessary deceleration, but the battery pack cannot accept the returning current without sustaining permanent chemical damage.[2][7]

This intervention is governed by the Battery Management System (BMS), the central node that dictates the flow of power in every modern electric vehicle. When a driver lifts their foot off the accelerator, the vehicle's kinetic energy drives the electric motor, converting mechanical rotation back into electrical current. Under ideal conditions, this process captures up to 80 percent of the energy that would otherwise be lost as heat through traditional friction brakes.[1][3]

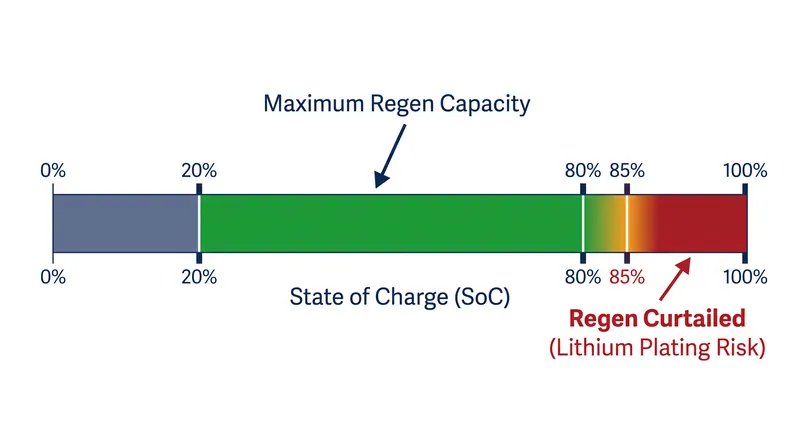

However, the BMS treats the battery pack not as a bottomless reservoir, but as a fragile chemical environment with strict operational boundaries. The most rigid of these boundaries is the State of Charge (SoC). When a lithium-ion battery exceeds an 85 percent charge level, its internal resistance increases. Forcing high-amperage current into a nearly full cell causes lithium ions to accumulate on the surface of the graphite anode faster than they can intercalate into the structure.[2][4]

This phenomenon, known as lithium plating, permanently reduces the battery's capacity and can lead to the formation of dendrites—microscopic metallic spikes that risk piercing the separator and causing a short circuit. To prevent this, the BMS dynamically curtails the allowable regenerative braking torque. If the battery is at 100 percent SoC, regenerative braking is disabled entirely, and the vehicle relies 100 percent on its hydraulic friction brakes to slow down.[4][5]

Temperature imposes an equally severe constraint on energy recovery. The electrochemical reactions required to absorb a sudden 50 kW to 100 kW surge of regenerative power slow down dramatically in cold weather. Below 15°C, the viscosity of the liquid electrolyte increases, impeding ion transport. If the BMS allowed full regenerative braking on a cold battery, the resulting voltage spike would trigger the same lithium plating seen at high charge levels.[2][7]

Conversely, high temperatures present a thermal runaway risk. Fast-charging a battery—which is effectively what aggressive regenerative braking does during a steep descent—generates internal heat. If the ambient temperature is above 35°C and the battery's liquid cooling circuit is already saturated from sustained highway driving, the BMS will throttle the regenerative input to keep the cell temperatures below their critical 45°C to 50°C threshold.[2][4]

The engineering challenge is masking these dynamic limitations from the driver. Early electric vehicles exhibited inconsistent pedal feel; the car would decelerate sharply on a warm day with a half-empty battery, but coast unexpectedly on a cold morning with a full charge. To solve this, manufacturers developed brake-by-wire systems that decouple the physical brake pedal from the hydraulic calipers.[6][7]

In a modern blended braking architecture, the brake pedal acts merely as a sensor requesting a specific rate of deceleration. The BMS calculates in real-time exactly how much kinetic energy the battery can safely absorb at that exact millisecond. As noted in a 2026 comprehensive review by MDPI: "The efficiency of regenerative braking is fundamentally constrained by the electrochemical acceptance rate of the battery pack, requiring dynamic curtailment when state of charge exceeds 85 percent."[4]

If the driver requests 0.3g of deceleration, but the cold battery can only safely accept enough current to provide 0.1g of motor drag, the system seamlessly commands the hydraulic actuator to apply the mechanical brake pads to make up the 0.2g difference. The driver feels a smooth, linear stop, entirely unaware that the friction brakes did the majority of the work.[6][7]

This invisible handoff highlights the reality of EV efficiency: the maximum theoretical range extension from regenerative braking is only accessible within a narrow 20 percent to 80 percent SoC window at optimal ambient temperatures. Outside of that window, the vehicle must shed its kinetic energy as waste heat, underscoring why thermal management and battery chemistry remain the defining bottlenecks in automotive electrification.[2][5][7]
