Flat Open-Circuit Voltage Curves Accumulate Coulomb Drift: Why LFP Electric Vehicles Require Regular 100 Percent Charges

The Battery Management System (BMS) in a modern electric vehicle dictates exactly how much range appears on the dashboard. Yet, despite processing thousands of data points per second, the computer cannot physically measure the energy remaining inside the battery pack. It must estimate the state of charge indirectly, relying on voltage readings and current tracking to guess how far the car can drive.[3]

For years, the standard advice for lithium-ion batteries was to stop charging at 80 percent to prevent chemical degradation. That rule is now being rewritten by automakers like Ford and Tesla for vehicles equipped with lithium iron phosphate (LFP) packs. Owners of these specific models are instructed to plug in and charge to 100 percent at least once a week.[2]

This requirement has nothing to do with extending the physical life of the battery cells. Instead, it is a software necessity driven by the unique electrochemical behavior of the LFP chemistry. Without a regular 100 percent charge, the vehicle's computer slowly loses track of its own battery, eventually leading to sudden range drops or unexpected shutdowns.[4]

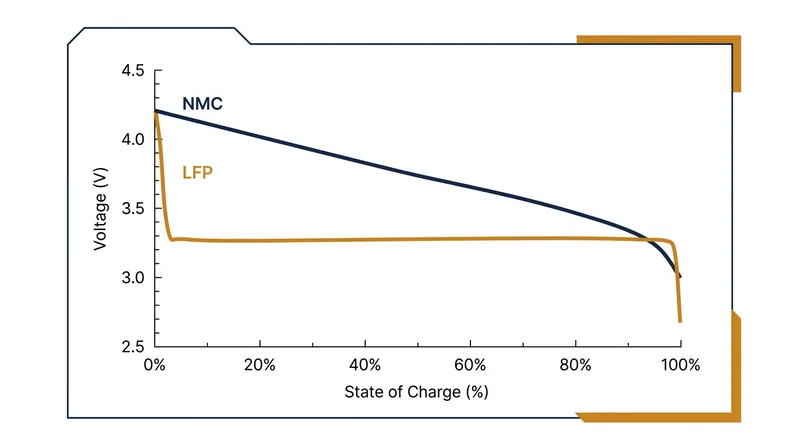

The flat voltage plateau

In traditional nickel-manganese-cobalt (NMC) batteries, the voltage drops steadily as the battery drains. An NMC cell might start at 4.2 volts when full and decline smoothly to 3.0 volts when empty. This predictable slope gives the BMS a reliable, real-time fuel gauge, as every voltage level corresponds to a specific state of charge.

Lithium iron phosphate cells behave entirely differently. According to battery engineers, LFP chemistry produces a pronounced, flat voltage plateau across the vast majority of its discharge cycle. Between 20 percent and 80 percent state of charge, an LFP cell maintains a nearly constant output of 3.2 to 3.3 volts.

Because the voltage barely moves, the BMS cannot use it to determine how much energy remains. "A cell at 25% SOC and a cell at 75% SOC look nearly identical on OCV," notes Sunlith Energy in a technical review. The computer is effectively flying blind through the middle 60 percent of the battery's capacity.

Accumulating Coulomb drift

To navigate this flat zone, the BMS relies on a technique called Coulomb counting. This method functions like a digital ledger, measuring the exact amount of electrical current flowing into and out of the battery pack over time. By integrating these current measurements, the system calculates the total remaining capacity.[1]

Coulomb counting is highly accurate over short durations, but it suffers from a fatal flaw: it drifts. Tiny inaccuracies in the current sensors, temperature fluctuations, and small parasitic power drains from the vehicle's electronics introduce microscopic errors into the ledger. Over time, these unmeasured fractions of an amp accumulate.[1]

Cold weather accelerates this drift significantly. As temperatures drop, the internal resistance of the LFP cells increases, altering the baseline capacity and making the current integration even less precise. A vehicle parked outside in winter will accumulate Coulomb drift much faster than one kept in a climate-controlled garage.

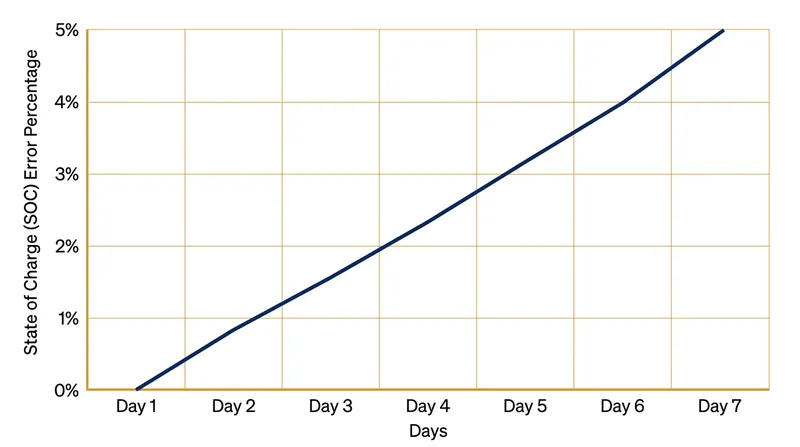

Without a way to verify its math, the BMS's estimated state of charge gradually diverges from the physical reality of the cells. Research indicates that this Coulomb drift can skew the dashboard readout by 2 to 5 percent over just a few days. If left uncorrected for weeks, the error compounds significantly.

This drift creates the conditions for a dangerous "voltage cliff." A driver might see 15 percent remaining on the dashboard, but because the BMS has overestimated the capacity, the physical cells are actually empty. The vehicle will suddenly lose power and shut down, stranding the driver despite the screen promising miles of range.[3][4]

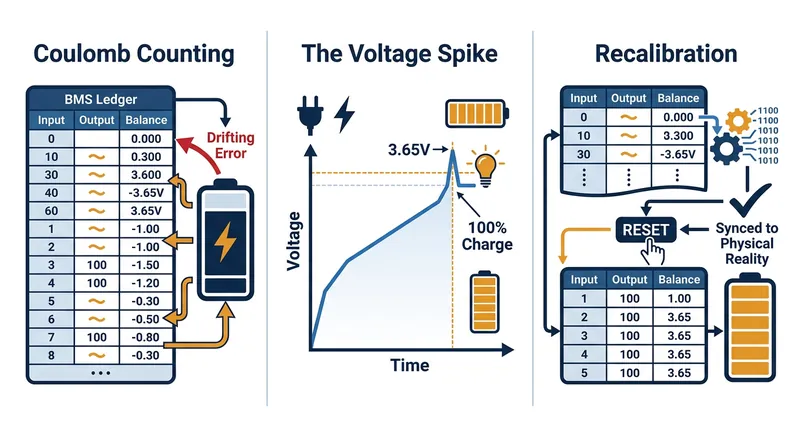

Forcing a calibration anchor

To prevent this divergence, the BMS requires periodic anchor points where it can definitively verify the battery's state of charge. Because the LFP voltage curve is flat in the middle, the only distinct voltage markers occur at the extreme ends of the cycle. The voltage spikes sharply upward just before 100 percent and drops sharply just before zero.

Pushing the battery to a full 100 percent charge forces the cells into that upper voltage spike, typically hitting 3.65 volts per cell. When the BMS detects this specific voltage threshold, it knows with absolute certainty that the battery is full. It then overwrites the drifted Coulomb ledger, resetting the dashboard display to a true 100 percent.[4]

The system could theoretically recalibrate by draining to absolute zero, where the voltage drops off a steep cliff to 2.5 volts per cell. However, running a lithium-ion battery to complete depletion causes severe physical damage to the internal structure. The 100 percent ceiling is the only safe anchor point available to the software.[4]

Automakers mandate weekly full charges specifically to trigger this recalibration. By regularly syncing the software's estimate with the battery's physical reality, the vehicle maintains an accurate range prediction. The practice ensures that the driver can trust the dashboard readout during daily commutes and longer trips.[2]

Safe at maximum capacity

Instructing owners to charge to 100 percent would rapidly degrade a traditional NMC battery, which suffers chemical stress when held at maximum voltage. However, lithium iron phosphate trades some energy density for exceptional chemical and thermal stability. The iron-phosphate cathode does not degrade under high states of charge in the same way nickel-based cells do.[1]

"Unlike nickel-based cells, LFP batteries are not chemically stressed by sitting at a 100% state of charge," reports PatSnap's analysis of voltage plateau characteristics. This inherent resilience allows automakers to solve the software calibration problem without sacrificing the physical longevity of the battery pack.

Still, battery chemists note that while LFP is highly tolerant of full charges, it is not entirely immune to wear. A 2024 study from a Tesla-funded laboratory found that cycling LFP cells at lower states of charge still results in slightly less capacity fade over time, particularly in high-temperature environments.

For the average driver, the trade-off is heavily weighted toward calibration. The minor chemical wear from a weekly 100 percent charge is vastly preferable to the operational risk of a drifting fuel gauge and a sudden highway shutdown. The software simply needs the data more than the chemistry needs the rest.[4]

Advanced prediction models

As LFP chemistry dominates both the entry-level EV market and grid-scale energy storage, engineers are developing more sophisticated ways to track capacity. Advanced battery management systems are moving beyond simple Coulomb counting, incorporating machine learning and cloud-based predictive analytics to model the flat voltage curve.[1][3]

These hybrid algorithms use complex physics models, such as Kalman filters, to detect microscopic voltage inflection points even within the flat plateau. By analyzing relaxation voltages when the battery is at rest, these systems can correct Coulomb drift without requiring a full charge to 100 percent.[1][3]

"Using relaxation voltage data recorded at intervals as short as 1 min, the SOC resetting estimation solution... achieves mean absolute errors lower than 3.25%," researchers published in the journal ACS. These advanced models are currently being deployed in massive grid-storage projects where taking a battery offline for a calibration charge costs thousands of dollars in lost revenue.[1][3]

For consumer electric vehicles, however, the weekly 100 percent charge remains the most reliable and cost-effective solution. It requires no cloud computing or advanced machine learning—just a simple habit from the owner. Until next-generation BMS hardware becomes standard, the physical voltage spike will remain the ultimate source of truth.[4]

The shift to LFP chemistry requires drivers to unlearn years of lithium-ion best practices. Plugging in to reach maximum capacity is no longer a rare exception for road trips, but a routine maintenance step that keeps the vehicle's software tethered to reality.[4]
