How Reversible Lithium Loss in Cathode Lattices Drives Calendar Aging in Parked EVs

When a smartphone battery degrades over a year of heavy use, the loss is driven by the physical wear of daily charging cycles. Electric vehicle batteries, however, face a different primary adversary: calendar aging, a silent capacity drain that occurs even when the vehicle is parked and powered down.[1]

For years, battery engineers attributed this idle degradation almost entirely to the anode. The prevailing consensus held that the liquid electrolyte continuously reacts with the graphite negative electrode, forming a solid electrolyte interphase layer that permanently consumes active lithium ions.

Recent materials science research, however, reveals a parallel mechanism operating on the opposite side of the cell. A significant fraction of the capacity lost during prolonged idling is not permanently destroyed by interphase growth, but rather trapped by reversible lithium loss within the cathode's crystal lattice.[3]

This distinction fundamentally changes how automotive engineers approach battery longevity. Because this specific form of lithium loss is reversible, the capacity fade experienced by a parked electric vehicle is partially recoverable through targeted software management and specific cycling protocols.[1]

The mechanics of lattice distortion

The cathode in a modern electric vehicle battery is typically a highly structured metal oxide, such as nickel-cobalt-aluminum or nickel-manganese-cobalt. These materials form a rigid crystal lattice, featuring dedicated atomic layers where lithium ions reside when the battery is discharged.[2]

When an electric vehicle is charged to 100 percent, nearly all the lithium ions are extracted from the cathode and pushed across the separator to the anode. This leaves the cathode in a highly delithiated state, essentially emptying the structural scaffolding that holds the metal oxide layers apart.[3]

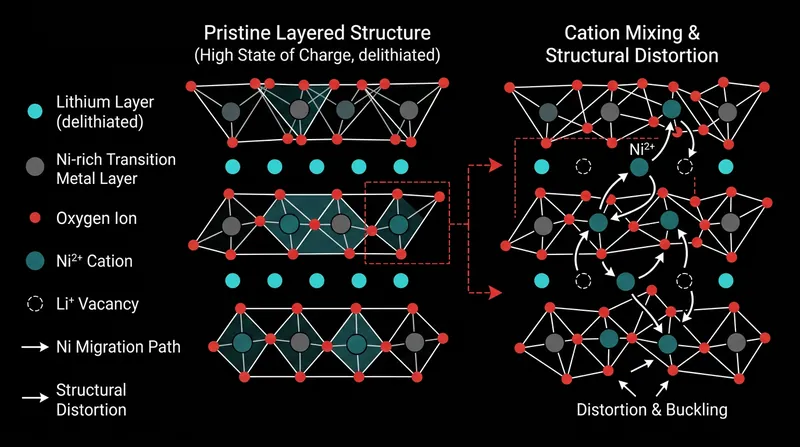

In this emptied state, the crystal lattice becomes thermodynamically unstable. Transition metal ions, particularly nickel, have a similar atomic radius to lithium and can migrate into the newly vacated spaces. This phenomenon, known as cation mixing, distorts the local crystal structure and physically blocks the pathways lithium ions need to return.[3]

The longer a battery sits at a high state of charge, the more pronounced this lattice distortion becomes. The trapped transition metals prevent a portion of the lithium inventory from re-intercalating during the next discharge cycle, registering on the vehicle's dashboard as a permanent loss of driving range.[3]

The anode overhang effect

Beyond the cathode lattice, the physical construction of the battery cell introduces a second reversible aging mechanism. To prevent dangerous lithium metal from plating on the edges of the electrodes during fast charging, manufacturers design the graphite anode to be physically larger than the cathode.[2]

In standard commercial pouch cells, this anode overhang area is typically 4.0 to 4.3 percent larger than the active cathode area facing it. While this geometric buffer ensures safety, it creates an unintended concentration gradient when the battery is left idling at a high state of charge.[2]

During a long parking period, active lithium ions slowly diffuse from the fully charged central region of the anode out into the uncharged overhang edges. Because this lithium has migrated outside the active electrochemical window between the two electrodes, it can no longer participate in power delivery.[2]

Accelerated aging tests conducted at 60 degrees Celsius demonstrate that this migration happens steadily over weeks of idling. In a standard 3-ampere-hour cell, a 5 percent capacity fade corresponds to roughly 152 milliampere-hours of displaced lithium, much of which simply drifted into the overhang rather than being consumed by side reactions.[2]

Recovering the lost capacity

The critical difference between solid electrolyte interphase growth and these newly detailed mechanisms is reversibility. Lithium consumed by the interphase is permanently locked into chemical compounds, but lithium trapped by cation mixing or displaced into the anode overhang remains chemically active.[1][3]

Reversing the anode overhang effect requires altering the concentration gradient. By discharging the battery to a low state of charge and leaving it there for a period, the central area of the anode becomes depleted, prompting the trapped lithium in the edges to slowly diffuse back into the active zone.[2]

Similarly, the structural distortion within the cathode lattice can be partially corrected. Specific cycling protocols that avoid the extreme upper voltage limits allow the transition metals to migrate back to their original lattice sites, reopening the diffusion channels for lithium ions.[3]

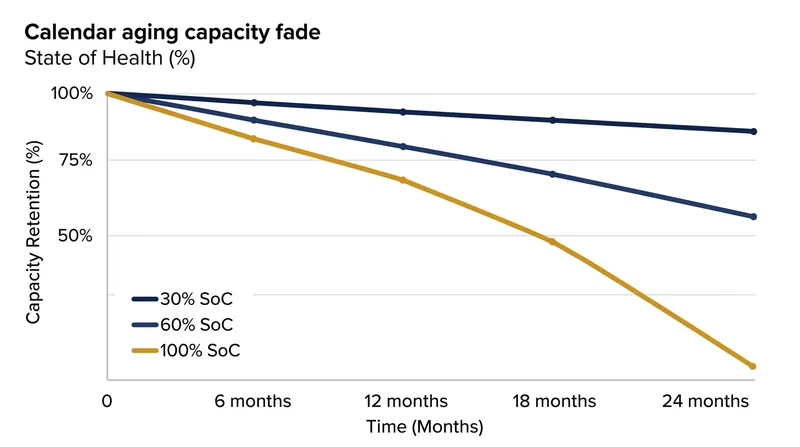

Research from the Technical University of Munich indicates that calendar aging rates remain relatively flat when a battery is stored between 30 and 60 percent state of charge. Above the 60 percent threshold, the rate of both interphase growth and reversible lattice distortion accelerates sharply.

The role of ambient temperature

Temperature acts as a powerful catalyst for both the irreversible and reversible components of calendar aging. While chemical reactions like interphase formation naturally accelerate in warmer environments, the physical migration of atoms within the crystal lattice is also highly temperature-dependent.[2]

At 25 degrees Celsius, the migration of nickel ions into lithium vacancies proceeds at a glacial pace, taking months to register a measurable impact on capacity. However, when the ambient temperature rises to 40 or 50 degrees Celsius, the thermal energy provides the necessary activation force to rapidly distort the lattice.[3]

This thermal acceleration explains why electric vehicles parked in hot climates experience steeper initial capacity drops. The heat drives active lithium into the anode overhang and facilitates cation mixing in the cathode simultaneously, compounding the apparent degradation observed by the driver.[2][3]

Implications for vehicle management

These findings explain why modern electric vehicles often feature software limits that cap daily charging at 80 percent. By preventing the cathode from reaching a fully delithiated state, the battery management system suppresses the thermodynamic instability that drives cation mixing and lattice distortion.[1]

For fleet operators and long-term vehicle storage, understanding reversible lithium loss offers a practical maintenance strategy. Rather than accepting calendar aging as a permanent degradation, operators can implement periodic deep-discharge conditioning cycles to pull displaced lithium back into the active inventory.[1]

As battery chemistry evolves, manufacturers are increasingly doping nickel-rich cathodes with elements like aluminum or titanium. These dopants act as structural pillars within the crystal lattice, physically preventing transition metals from migrating and ensuring that calendar aging remains a manageable, reversible phenomenon.[3]
