The Onboard Charger's Bypass: Why AC Charging is Limited by the Car and DC Charging is Not

AC charging is limited by the car because the vehicle's onboard charger must convert alternating current to direct current, and automakers cap the size of this heavy, heat-generating inverter. DC charging is not limited by the car in this way because the conversion happens inside the massive external station, bypassing the onboard charger to feed direct current straight to the battery. The physical location of this electrical conversion dictates the speed, cost, and thermal limits of the entire electric vehicle ecosystem.[1][2]

The electrical grid transmits power as alternating current (AC), but lithium-ion batteries can only store energy as direct current (DC). When an electric vehicle plugs into a standard Level 1 or Level 2 AC station, the electricity flows into the vehicle's onboard charger. As Aptiv's engineering documentation outlines, this component is responsible for converting the AC power from the grid into the DC power required by the battery pack.[1]

The onboard charger is essentially a heavy, liquid-cooled rectifier. Because it lives permanently inside the vehicle, it is strictly constrained by weight, packaging space, and thermal management limits. As of 2026, most passenger electric vehicles are equipped with onboard chargers rated between 7.2 kilowatts and 11 kilowatts, with only a few premium models carrying hardware capable of 22 kilowatts.[4]

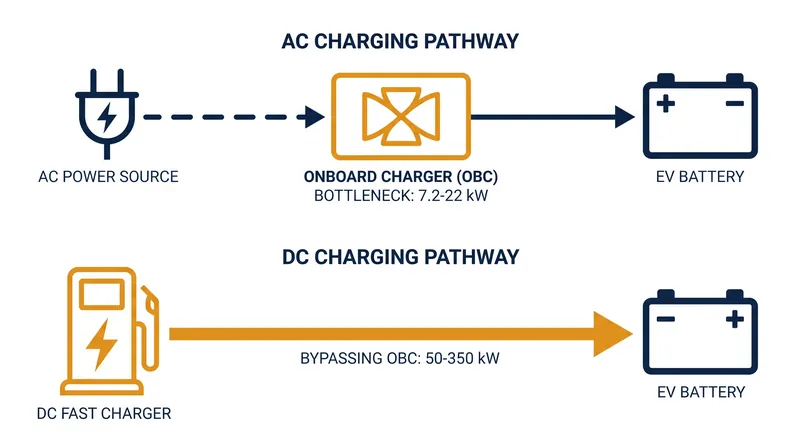

This internal hardware creates a hard physical cap on AC charging speeds. If a commercial AC charging station is capable of delivering 22 kilowatts, but the vehicle's onboard charger is only rated for 7.2 kilowatts, the car will only draw 7.2 kilowatts. The bottleneck is the vehicle's internal silicon, meaning infrastructure upgrades to AC stations yield zero time savings for vehicles with standard onboard chargers.[1][4]

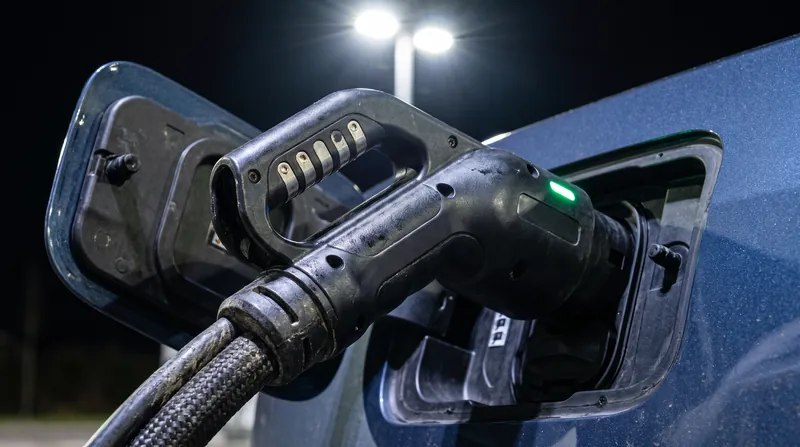

DC fast charging, classified as Level 3 charging, fundamentally alters this electrical architecture. A DC fast charger contains its own massive, highly cooled rectifiers that convert grid AC to DC before the power ever crosses the charging cable. EV Safe Charge documentation highlights that this external conversion is what defines the fast-charging process.[2]

Because the power arriving at the vehicle's charge port is already direct current, it bypasses the onboard charger entirely. The current flows directly through the vehicle's high-voltage contactors to the battery pack, mediated only by the Battery Management System. This bypass is the mechanical reason why DC charging is exponentially faster than AC charging.[3]

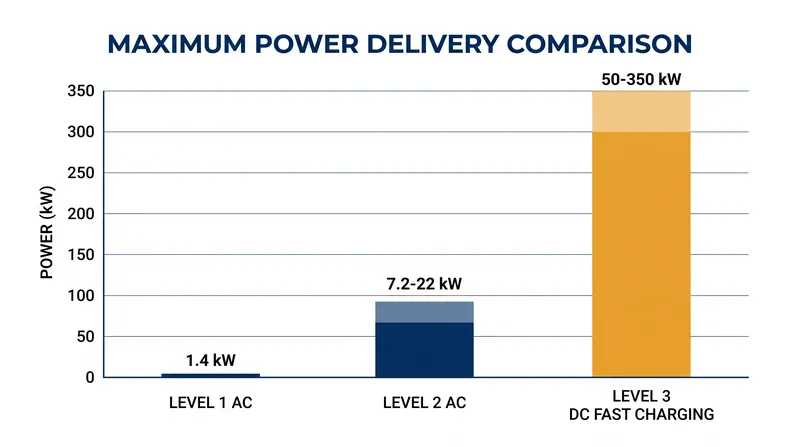

By moving the heavy, hot conversion equipment out of the vehicle and into a stationary cabinet, DC charging scales to power levels that are physically impossible to package inside a passenger car. Modern DC stations deliver between 50 kilowatts and 350 kilowatts, reducing charging times from several hours to under 30 minutes for a standard 80-kilowatt-hour battery.[2][3]

However, bypassing the onboard charger does not mean DC charging is limitless. Once the inverter bottleneck is removed, the limiting factor becomes the battery chemistry itself. The vehicle's Battery Management System must carefully throttle the incoming DC current based on the pack's state of charge, internal resistance, and temperature to prevent lithium plating and thermal runaway.[3]

The division between these two architectures defines how charging networks are deployed. AC charging relies on the vehicle's internal hardware for slow, distributed energy replenishment, while DC charging relies on massive external infrastructure for rapid transit. The physical location of the AC-to-DC conversion remains the defining variable in electric vehicle infrastructure planning.[5]
