The Hodgkin-Huxley Equations: How Voltage-Gated Sodium and Potassium Channels Generate the Action Potential

In the late summer of 1939, at the Plymouth Marine Laboratory on the southern coast of England, Alan Hodgkin and Andrew Huxley managed a delicate mechanical feat. They inserted a glass capillary microelectrode directly down the center of a 0.5-millimeter-thick nerve fiber dissected from a North Atlantic squid. For the first time, researchers were recording the electrical potential from inside a living cell, measuring a resting voltage of roughly −45 millivolts relative to the outside seawater.[6]

The outbreak of the Second World War halted their research for nearly a decade, but when they returned to the squid giant axon, they brought a new theoretical rigor to the problem. In a landmark series of five papers published in The Journal of Physiology in 1952, they demonstrated that the nerve impulse—the action potential—was not merely a passive breakdown of the cell membrane. Instead, it was a highly coordinated, voltage-dependent exchange of specific ions.[1][6]

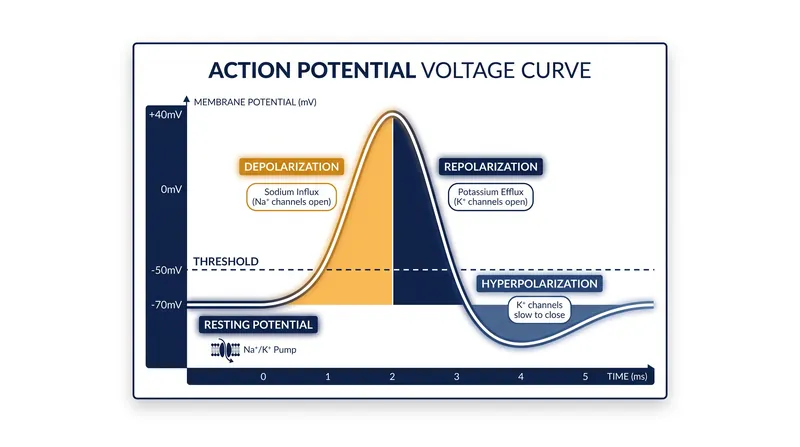

The mechanism they uncovered relies on proteins embedded in the lipid bilayer of the cell membrane, now known as voltage-gated ion channels. When a neuron receives a stimulus and its internal voltage rises past a critical threshold, sodium channels snap open. Positively charged sodium ions rush into the cell, driving the internal voltage rapidly upward to a peak of approximately +40 millivolts.[2][7]

A fraction of a millisecond later, the system reverses itself. The sodium channels undergo a process called inactivation, physically blocking further influx. Simultaneously, voltage-gated potassium channels open, allowing positively charged potassium ions to flood out of the cell. This outward current repolarizes the membrane, briefly driving the voltage below its resting state before the channels close and the cell resets for the next signal.[1][2]

Hodgkin and Huxley’s enduring triumph was not just observing this sequence, but reducing it to a precise mathematical model. They formulated a set of four non-linear ordinary differential equations that treat the cell membrane as an electrical circuit. As they wrote in their 1952 summary, "It is assumed that the membrane current may be divided into a capacity current and an ionic current," establishing a framework that remains untouched today.[1][5]

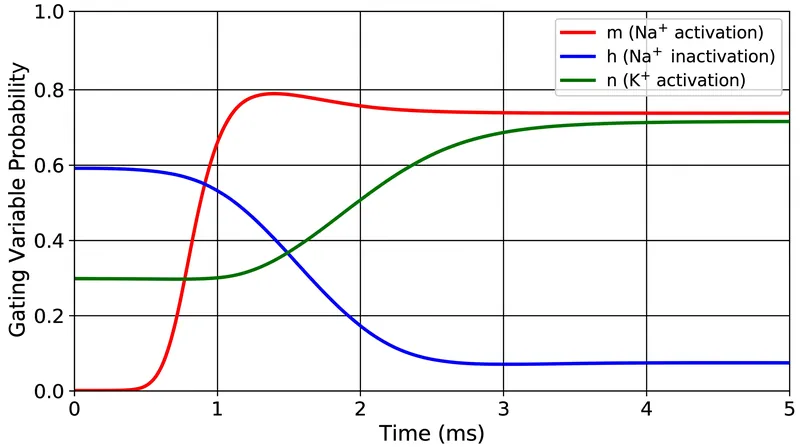

In their circuit model, the lipid bilayer acts as a capacitor, storing electrical charge, while the ion channels act as variable resistors whose conductance changes with voltage and time. They introduced three dimensionless gating variables—labeled m, h, and n—to represent the probability that the sodium activation, sodium inactivation, and potassium activation gates are open at any given moment.[2][8]

The original equations assumed that these gating variables operated entirely independently of one another. However, modern computational research continues to refine this assumption. A 2024 analysis published in arXiv explores the thermodynamic interdependence of sodium and potassium gating variables, suggesting that the physical state of one channel type can subtly influence the local membrane environment of the other.[4]

The biological gap between a cold-water squid and a human being is vast, yet the fundamental mathematics scale perfectly. The original squid axon recordings were taken at a chilly 6.3 degrees Celsius. Human cortical neurons operate at 37 degrees Celsius and must fire at vastly higher frequencies. Recent work in Science Advances demonstrates how human voltage-gated sodium and potassium channels have evolved specific kinetic properties to underlie sustained, fast action potential signaling at rates up to 300 Hertz.[3]

The implications of the Hodgkin-Huxley model extend far beyond basic biology. By defining exactly how ion channels respond to voltage, the equations provided the blueprint for understanding how pharmacological agents interact with the nervous system. Local anesthetics like lidocaine work by physically blocking the sodium channels described by the model, preventing the initial upward spike of the action potential and stopping pain signals from reaching the brain.[5][7]

For their work, Hodgkin and Huxley shared the 1963 Nobel Prize in Physiology or Medicine. Today, as researchers attempt to map the human connectome and build artificial neural networks that mimic biological brains, the 1952 equations remain the fundamental unit of simulation. Every modern attempt to model the brain computationally begins with the mathematical rules written in Plymouth over seventy years ago.[9][10]
