The Three Stages of a Scramjet: How Compression, Combustion, and Expansion Enable Hypersonic Flight

On July 30, 2002, the HyShot project recorded the first successful sustained supersonic combustion in flight, maintaining ignition for a fraction of a second as the experimental payload descended through the atmosphere at Mach 7.6. That brief telemetry burst validated a thermodynamic concept that aerospace engineers had pursued since the 1950s: an air-breathing engine with no moving parts, capable of operating at velocities where traditional turbines melt.[4][7]

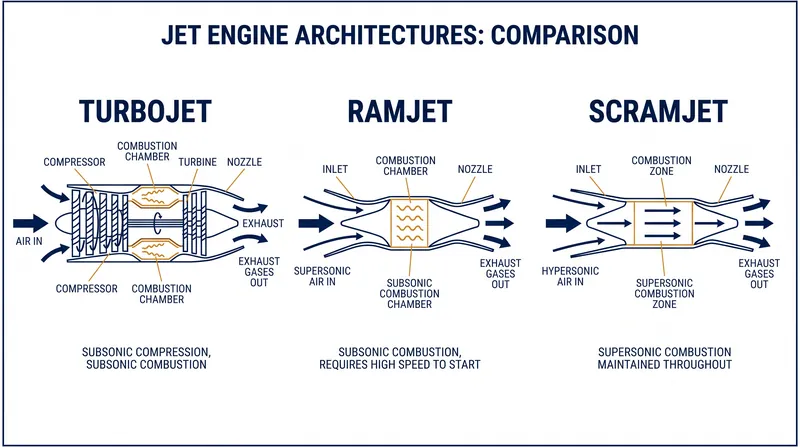

The scramjet—short for supersonic combustion ramjet—represents a structural departure from the turbojets that power commercial aviation. A conventional jet engine relies on rotating compressor blades to squeeze incoming air before mixing it with fuel. At transonic and low supersonic speeds, this mechanical compression is highly efficient. However, as an aircraft approaches Mach 3, the sheer kinetic energy of the incoming air generates immense heat and pressure, rendering compressor blades both unnecessary and structurally hazardous.[2][7]

Ramjets solve this by removing the compressor and turbine entirely, using the forward motion of the vehicle to "ram" air into a constricted inlet. Yet ramjets still require the incoming air to be decelerated to subsonic speeds before combustion can occur. This deceleration creates a normal shockwave, which imposes a severe aerodynamic drag penalty and drives internal temperatures to levels that threaten the engine's structural integrity, effectively capping ramjet operation at roughly Mach 6.[2][5]

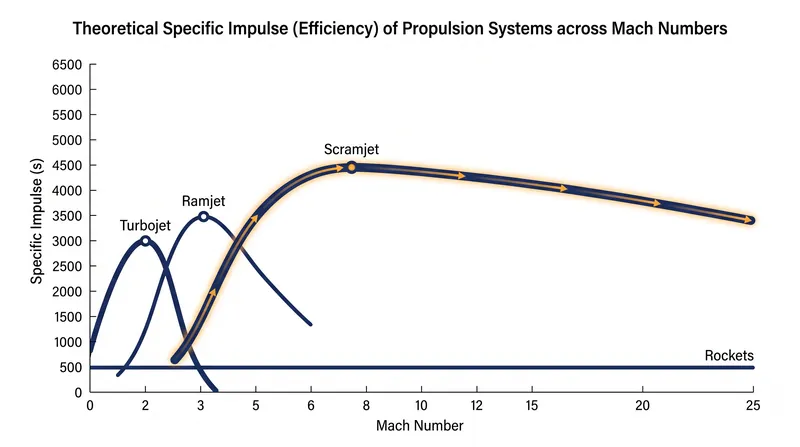

The scramjet bypasses this thermal limit by allowing the airflow to remain supersonic throughout the entire engine cycle. By never slowing the air below Mach 1, the engine minimizes pressure losses and thermal loads, theoretically enabling flight between Mach 12 and Mach 24. Achieving this requires managing the flow through three distinct, highly interdependent stages: compression, combustion, and expansion.[1][7]

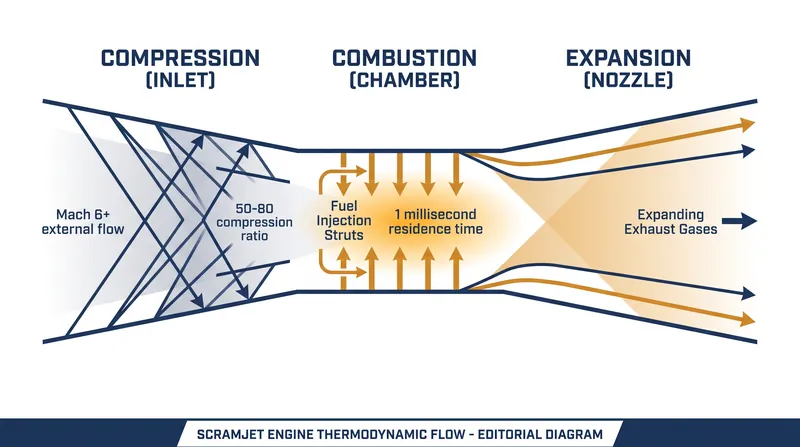

The compression stage begins before the air even enters the engine cowling. In a scramjet architecture, the entire forebody of the aircraft acts as the initial compressor. As the vehicle cuts through the atmosphere at hypersonic velocity, it generates a series of oblique shockwaves. The vehicle's underside is shaped to ride these shockwaves, systematically compressing the freestream air and directing it into the engine inlet.[3][5]

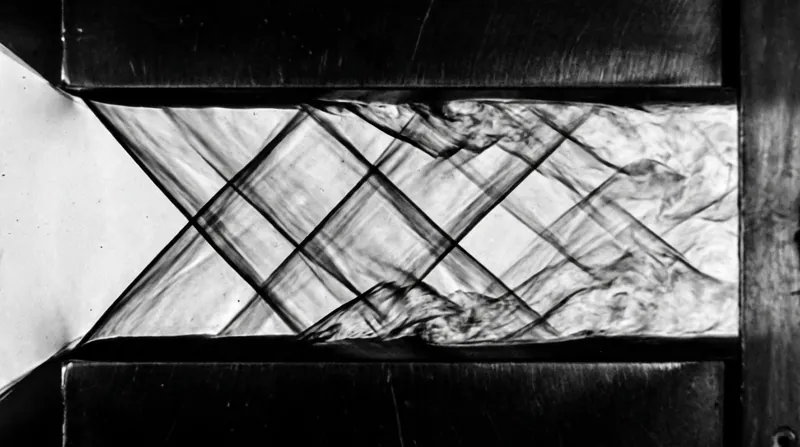

Inside the inlet, the air undergoes further compression through internal flow contraction. The geometry of the inlet is calculated to bounce shockwaves back and forth between the walls, stepping up the pressure and temperature with each reflection. Research indicates that a compression ratio between 50 and 80 is required for optimal efficiency during flight between Mach 6 and Mach 12.[5][8]

By the time the air reaches the end of the compression section, it has been squeezed to a fraction of its original volume, and its static temperature has spiked to approximately 950 Kelvin. Yet, crucially, it is still traveling at supersonic velocities—often around Mach 2.6 internally, even if the vehicle is traveling at Mach 6 externally.[8]

Between the inlet and the combustor sits a critical transition zone known as the isolator. Because combustion generates its own pressure waves that can travel upstream and disrupt the delicate shockwave geometry of the inlet—a catastrophic event known as an "unstart"—the isolator acts as a buffer. It contains a complex train of shockwaves that absorb the pressure rise from the combustor, isolating the compression stage from the violent reactions occurring just aft of it.[1][5]

The second stage, combustion, is the central engineering challenge of the scramjet. Because the air is moving through the chamber at supersonic speeds, the fuel-air mixture has an incredibly short residence time—typically on the order of one millisecond. Aerospace engineers frequently compare the process to keeping a match lit in a hurricane.[6][7]

To achieve ignition in this window, fuel must be injected, atomized, mixed with the supersonic oxygen, and burned before it exits the rear of the engine. Early designs relied on injecting fuel from the walls of the combustor, but the supersonic flow prevented the fuel from penetrating deeply into the air stream. Modern architectures utilize strut injectors positioned in the center of the flow path, which introduce drag but ensure the fuel mixes circumferentially.[6]

The choice of fuel dictates the engine's operational limits. Hydrogen is the preferred propellant for pure scramjets because of its rapid ignition time and high specific energy. However, hydrogen requires bulky cryogenic storage tanks, which severely limits the volumetric efficiency of the vehicle. Hydrocarbon fuels, such as JP-7, are denser and easier to store, but they burn slower, requiring longer combustion chambers or pyrophoric additives like silane to prevent flameouts.[6][7]

When the fuel ignites, the exothermic reaction adds heat to the supersonic flow. "The ability to generate high pressure gas by exothermic combustion at supersonic speed is very limited," notes a thermodynamic analysis of the cycle. Experiments show that the pressure of the combustion products reaches roughly 2.4 to 4.4 times the inlet pressure. This pressure rise must be carefully managed; if it exceeds the capacity of the isolator, the engine will unstart.[8][9]

As the vehicle accelerates, the thermodynamics of the combustion stage shift. At velocities approaching Mach 8, the kinetic energy of the freestream air entering the engine becomes so massive that the heat released by hydrogen combustion accounts for only about 10 percent of the total enthalpy of the working fluid. At these extremes, minimizing aerodynamic drag through the engine becomes more critical to maintaining velocity than maximizing the chemical energy released by the fuel.[7][9]

The final stage is expansion, where the high-pressure, high-temperature exhaust gases are converted into forward thrust. Just as the forebody of the aircraft serves as the compressor, the aft underbelly of the vehicle serves as the expansion nozzle. The internal nozzle of the engine is typically too small to fully expand the exhaust gases to atmospheric pressure.[2][5]

As the exhaust exits the internal combustor, it flows along the diverging surface of the vehicle's tail. This expansion accelerates the gas to a velocity significantly higher than the freestream air entering the inlet. The difference in momentum between the incoming air and the exiting exhaust is what generates the net positive thrust that propels the vehicle forward.[2][7]

The integration of these three stages means that a scramjet is not a discrete pod hung beneath a wing, but rather a propulsion system that is indistinguishable from the airframe itself. The geometry of the vehicle dictates the shockwaves, which dictate the compression, which dictates the combustion efficiency. A change to the nose cone alters the exhaust plume.[3][5]

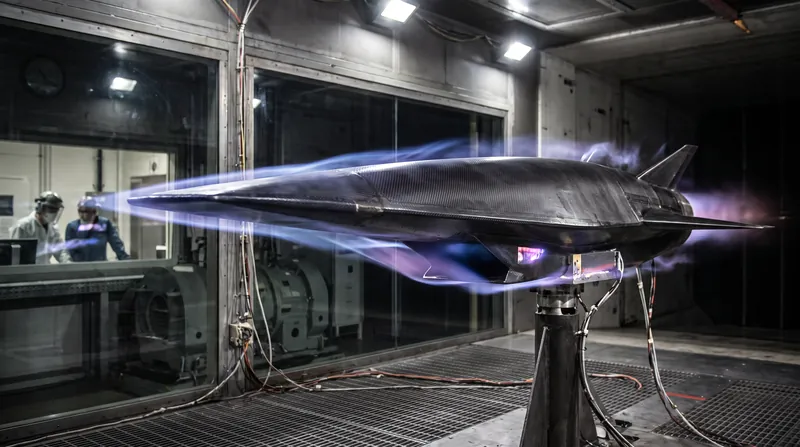

This deep integration makes ground testing notoriously difficult. Wind tunnels can simulate the extreme velocities and temperatures of hypersonic flight, but only for fractions of a second before the facility's own energy reserves are depleted or its components begin to melt. Consequently, computational fluid dynamics and expensive flight tests remain the primary methods for validating scramjet designs.[4][6]

The U.S. Air Force's X-51A Waverider program provided one of the most significant validations of this integrated design. On May 1, 2013, the X-51A separated from a B-52 bomber, accelerated via a solid rocket booster, and ignited its hydrocarbon-fueled scramjet. The engine burned for 210 seconds, accelerating the vehicle to Mach 5.1 and proving that a thermally balanced, dual-mode scramjet could operate in the atmosphere for a sustained duration.[3][4]

Despite these milestones, the transition from experimental demonstrators to operational vehicles requires overcoming severe materials science hurdles. The leading edges of a scramjet vehicle must withstand temperatures exceeding 2,000 degrees Celsius, requiring advanced carbon-carbon composites and active cooling systems that circulate the vehicle's unburned fuel through the airframe before injecting it into the combustor.[1][6]

The data indicates that the fundamental physics of supersonic combustion are now well understood. The remaining engineering gap lies in system-level reliability: ensuring that the delicate balance of compression, combustion, and expansion can be maintained autonomously as the vehicle maneuvers through varying atmospheric densities, turning a thermodynamic theory into a routine mode of transit.[1][9]
