The Four Mechanisms of Radar Cross-Section Reduction: Shaping, Materials, Cancellation, and Emission Control

A modern tactical aircraft possesses a physical footprint of roughly 50 square meters, but to an X-band radar system searching the sky, it appears no larger than a golf ball—an electromagnetic cross-section of just 0.0015 square meters.

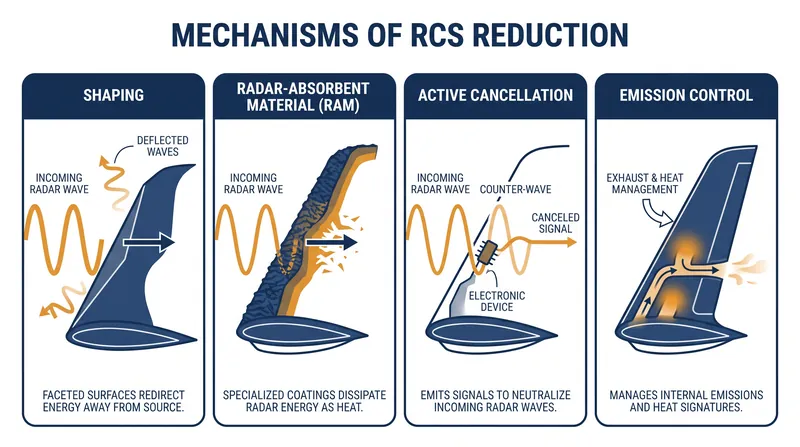

This 99.99 percent reduction in visibility is not achieved by a single cloaking device, but through a layered architecture of four distinct engineering mechanisms: geometric shaping, radar-absorbent materials, active cancellation, and emission control. Together, these systems manipulate the physics of the electromagnetic spectrum to deny early warning networks the return signals required to establish a weapons-grade track.[1][4][7]

The foundation of this architecture is geometric shaping, which dictates the absolute floor of a platform's radar cross-section (RCS). "Shaping is the first and most important step in RCS reduction," notes the American Institute of Aeronautics and Astronautics (AIAA) in its Chapter 7 reference on the subject.

Instead of allowing radar waves to bounce directly back to the receiver, the airframe is designed with specific angles and continuous curvatures that scatter the incoming energy into harmless directions. This mechanism alone accounts for roughly 90 percent of a platform's total signature reduction.[4]

Early shaping efforts in the 1970s relied on flat, faceted surfaces because contemporary computers could only calculate radar reflections across two-dimensional planes. As processing power increased, engineers transitioned to continuous-curvature designs, eliminating the sharp edges that cause radar waves to diffract and return to the source. However, optimizing an airframe purely for electromagnetic deflection severely compromises its aerodynamic stability, forcing designers to constantly balance stealth against speed, maneuverability, and payload capacity.[2][3]

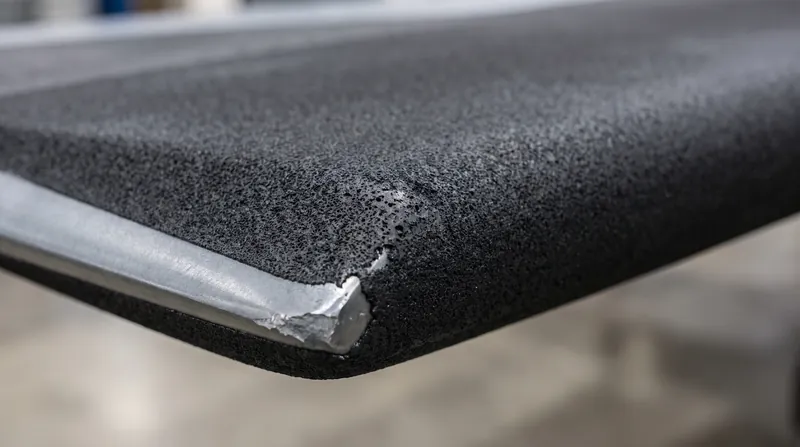

Where shaping scatters energy, radar-absorbent material (RAM) destroys it. Applied as coatings or integrated directly into the composite skin of the aircraft, RAM converts incoming radio frequency energy into microscopic amounts of heat. The International Journal of Scientific Research and Engineering Development (IJSRED) calculates the "10 to 15 percent absorption capability of standard RAM coatings," which serves to clean up the residual signature left behind by the airframe's geometry, particularly along leading edges and engine intakes.[3]

Traditional RAM utilizes iron ball paint—microscopic carbonyl iron spheres suspended in an epoxy base—which resonates at specific radar frequencies to dissipate the wave. Newer iterations incorporate carbon nanotubes and metamaterials that offer broader frequency protection at a fraction of the weight. The thickness of these coatings must be precisely calibrated to a quarter of the target radar's wavelength, creating destructive interference within the material itself, a principle that requires constant maintenance to remain effective.[2][5]

The third mechanism, active cancellation, moves beyond passive defense by actively transmitting a counter-signal. When a radar wave strikes the platform, onboard systems analyze the frequency and amplitude, then instantly broadcast an identical wave shifted exactly 180 degrees out of phase. When the incoming and outgoing waves meet, their amplitudes cancel each other out, effectively erasing the return signal before it can reach the enemy receiver.[6]

Implementing this phase-shift in a dynamic combat environment is computationally massive. "Active cancellation requires real-time phase matching that pushes the limits of modern digital signal processing," according to a 2025 algorithm analysis published via ResearchGate.

The system must calculate and project the canceling wave in microseconds, adjusting continuously as the aircraft changes aspect angle relative to the threat radar. While highly effective against low-frequency bands where shaping and RAM struggle, active cancellation risks turning the aircraft into a beacon if the phase-shift calculation is off by even a fraction of a degree.[6]

The final pillar is emission control (EMCON), the strict management of the platform's own electromagnetic output. An aircraft with a perfect RCS is still highly visible if it is broadcasting its position via standard radio communications, active radar sweeps, or unshielded data links. EMCON protocols dictate when and how a platform can transmit, often relying on directional data bursts or passive sensor fusion to maintain situational awareness without emitting a detectable signal.[1][7]

Modern platforms utilize Low Probability of Intercept (LPI) radars to operate within strict EMCON parameters. These systems spread their transmission energy across a wide band of frequencies, jumping between them thousands of times per second. To an enemy receiver, an LPI radar sweep appears as background thermal noise, allowing the stealth aircraft to actively target adversaries without triggering their radar warning receivers.[1][2]

Thermal and infrared signature management also falls under the broader umbrella of emission control. Jet exhaust temperatures exceeding 1,000 degrees Celsius create a massive infrared target. Engineers mitigate this by mixing ambient bypass air into the exhaust plume before it exits the nozzle, and by burying the engines deep within the fuselage to shield the hot turbine blades from direct line-of-sight observation from below.[2][4]

The integration of these four mechanisms is not additive, but multiplicative. A failure in one compromises the entire system. If a maintenance crew applies RAM coating unevenly, or if a pilot violates EMCON by activating a standard radio, the geometric shaping and active cancellation cannot compensate for the resulting spike in the platform's electromagnetic signature.[4][5]

The engineering of radar cross-section reduction remains a strict management of physical trade-offs. As processing power increases, the balance of these four mechanisms will shift further toward active cancellation and dynamic emission control, but the foundational geometry established by the airframe will continue to dictate the baseline survivability of the platform.[4][7]
