Venting Low-Velocity Gas Cuts Artillery Shell Base Drag by 50 Percent Without Rocket Thrust

Rocket-assisted projectiles extend artillery range by igniting a solid-fuel motor in flight, adding forward thrust to physically overcome aerodynamic resistance. Base bleed technology achieves nearly the same 30 percent range extension without adding a single pound of thrust. Instead of pushing the shell forward, it neutralizes the vacuum pulling it backward.[3]

When a 155mm artillery shell travels at supersonic speeds, the air cannot smoothly follow the blunt contour of its rear face. This flow separation creates a massive low-pressure wake directly behind the flat base of the projectile. The resulting vacuum exerts a continuous rearward suction force on the shell.[1][2]

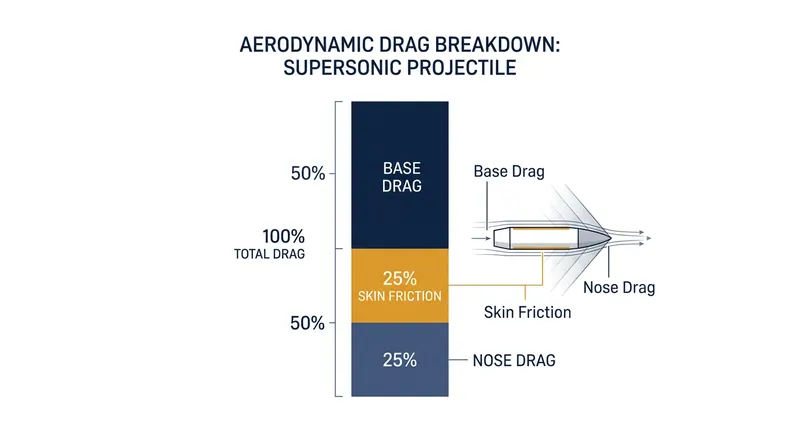

This suction, known to aerodynamicists as base drag, accounts for up to 50 percent of the total aerodynamic resistance on a supersonic projectile. Overcoming it traditionally required larger propellant charges or longer gun barrels. Base bleed units bypass those mechanical limits by altering the airflow directly.[1]

The system houses a small gas generator, typically loaded with a slow-burning solid propellant, inside a cavity at the rear of the shell. Upon firing, the propellant ignites and begins venting low-velocity combustion products into the void. This continuous mass injection fundamentally changes the pressure dynamics of the wake.[3]

By filling the vacuum with hot gas, the system cuts base drag by up to 50 percent during the supersonic phase of flight. For modern 155mm artillery, this aerodynamic efficiency extends the effective firing range by 20 to 35 percent, adding up to 15 kilometers of reach.[1][3]

The Aerodynamics of the Base Vacuum

A standard 155mm artillery shell leaves a modern howitzer barrel at velocities exceeding Mach 2. As the projectile violently displaces the atmosphere, it generates intense shockwaves at the nose that bleed kinetic energy. While nose drag is visually dramatic, the blunt base creates an equally severe aerodynamic penalty.[1]

High-speed air flowing over the cylindrical body of the shell cannot sharply turn the corner at the base. The airflow detaches from the metal surface, forming a turbulent recirculation zone immediately behind the projectile. This detached flow traps a pocket of low-pressure air that travels with the shell.[1][2]

Because the pressure at the nose is immense and the pressure at the base is near-vacuum, the pressure differential pulls the shell backward. This base drag acts as an invisible anchor, rapidly decelerating the projectile as it climbs toward the apex of its ballistic arc.[2]

Engineers traditionally mitigated this suction by tapering the rear of the shell, a geometric design known as boat-tailing. A standard boat-tail angle of eight degrees reduces the surface area of the base, shrinking the size of the recirculation zone. However, geometry alone cannot eliminate the vacuum entirely.[1][3]

Computational fluid dynamics simulations reveal that even an optimized boat-tail leaves a significant low-pressure void. To push artillery ranges beyond 30 kilometers, designers needed a mechanism to actively raise the pressure inside that trailing pocket. Base bleed emerged as the most mass-efficient solution to that aerodynamic problem.[1][2]

Neutralizing Drag Without Thrust

A base bleed unit solves the remaining vacuum problem through active mass injection rather than geometric shaping. The system integrates a small combustion chamber into the rear of the projectile, sitting just behind the high-explosive payload. This chamber holds a specialized composite propellant grain.[1][2]

Manufacturers typically use hydroxyl-terminated polybutadiene, or HTPB, a rubbery synthetic polymer that burns steadily without detonating. The extreme heat and pressure of the initial gun launch ignite the HTPB grain as the shell leaves the barrel. The grain then burns continuously for the first 30 seconds of flight.[4]

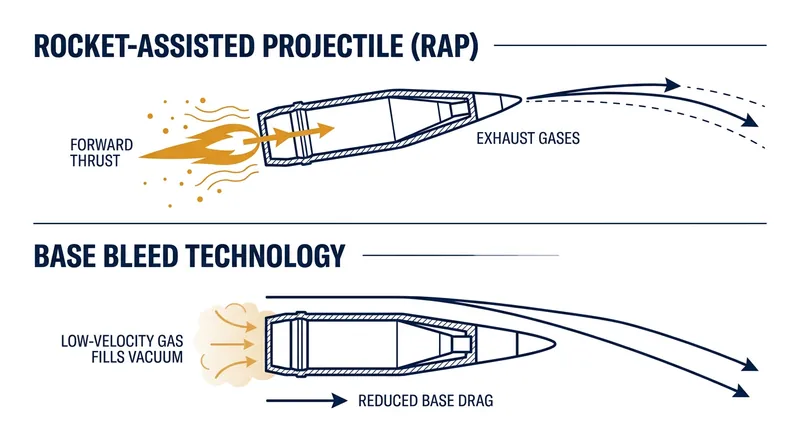

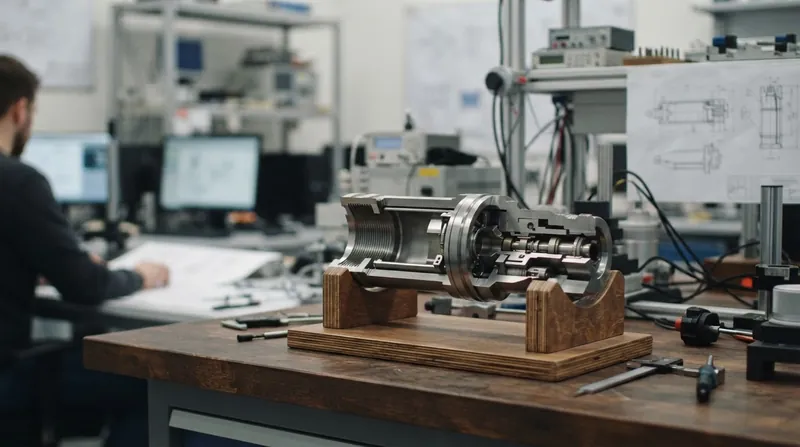

As the propellant burns, it vents hot, low-velocity gas through a central orifice in the base of the shell. Crucially, this gas exits the base at a velocity significantly lower than the shell's forward speed through the air. Because the relative exhaust velocity is subsonic, the unit generates zero net thrust.[3]

Instead of propelling the shell, the injected mass simply fills the low-pressure void in the recirculation zone. The continuous supply of hot gas raises the local base pressure, bringing it closer to the ambient atmospheric pressure. This pressure recovery smooths the turbulent wake trailing the projectile.[1][2]

By neutralizing the vacuum, the base bleed unit effectively severs the invisible anchor pulling the shell backward. The projectile retains its kinetic energy longer, maintaining a flatter, faster trajectory through the thin air of the upper atmosphere.[4]

Translating Pressure into Distance

The aerodynamic gains from this pressure recovery are massive. Wind tunnel tests and computational models show that base mass injection reduces base drag by up to 50 percent at Mach 2. Because base drag constitutes half of the total resistance, overall drag drops by roughly 25 percent.[1][2]

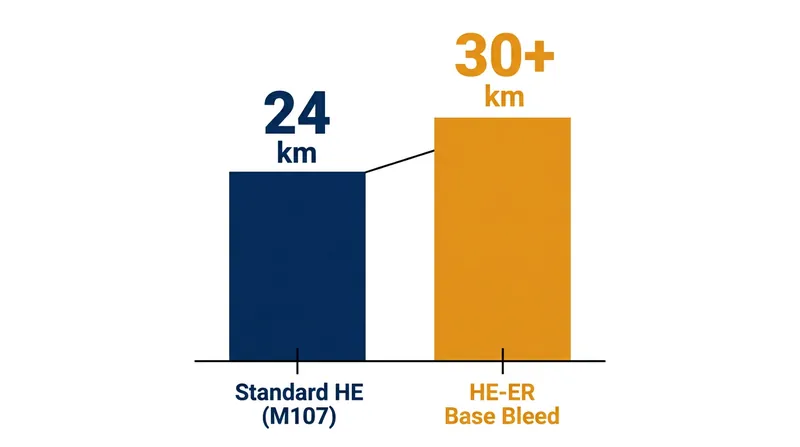

For a standard 155mm artillery system, a 25 percent reduction in total drag translates directly into a massive range extension. A conventional high-explosive shell fired from a 39-caliber barrel might reach 24 kilometers. Swapping that round for a base bleed variant pushes the range past 30 kilometers.[4]

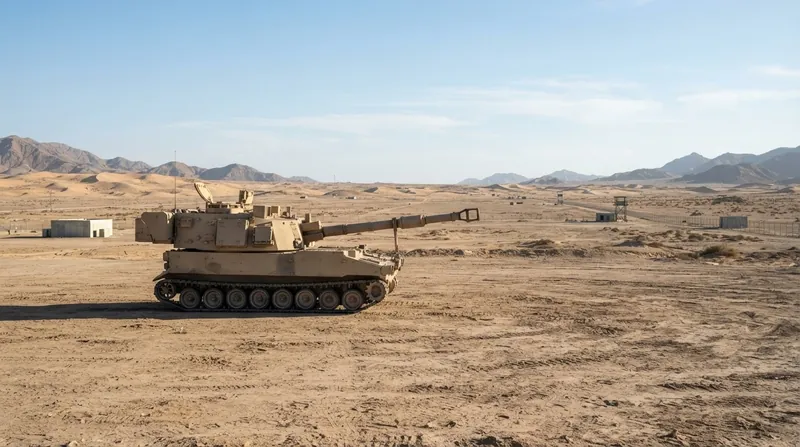

When fired from modern 52-caliber barrels, which generate higher initial muzzle velocities, base bleed shells routinely strike targets 40 kilometers away. This 20 to 35 percent range extension fundamentally alters battlefield geometry. It allows artillery batteries to strike enemy positions while remaining safely outside the reach of retaliatory fire.[3][4]

The efficiency of base bleed becomes even more apparent when compared to rocket-assisted projectiles. A rocket motor requires a heavy steel casing, a nozzle, and a large volume of high-energy propellant to generate physical thrust. This heavy propulsion system consumes a massive portion of the shell's internal volume.[3]

In contrast, a base bleed gas generator requires only a small, low-pressure cavity and a slow-burning grain. The entire unit adds only a nominal mass penalty, typically accounting for less than three percent of the shell's total weight. This leaves far more room for the actual explosive payload.[4]

Payload Penalties and Dispersion

While highly efficient, integrating a base bleed unit still requires sacrificing a small portion of the projectile's internal volume. The gas generator occupies space at the rear of the steel body that would otherwise hold TNT or Composition B. This slightly reduces the shell's lethal fragmentation radius upon impact.[3]

Military planners universally accept this nominal payload penalty because the strategic value of outranging enemy artillery is immense. Delivering a slightly smaller explosive charge from a safe distance is vastly preferable to delivering a larger charge from a vulnerable position. Range dictates survivability in modern counter-battery duels.[4]

The system also introduces minor variations in the shell's trajectory due to the turbulent mixing of the bleed gas and the supersonic wake. As the propellant grain burns, the mass of the shell changes, and the base pressure fluctuates slightly. This can increase the dispersion, or spread, of the rounds.[2]

Historically, this slight loss of accuracy meant base bleed shells were reserved for area bombardment rather than point targets. Today, however, that dispersion is easily offset by modern precision guidance kits. GPS-guided fuzes correct the flight path in the terminal phase, rendering the aerodynamic variations irrelevant.[4]

The combination of base bleed range extension and GPS terminal guidance represents the current gold standard for conventional artillery. It allows gun crews to deliver precision strikes at 40 kilometers using standard howitzers, bridging the gap between unguided shells and expensive guided missiles.[4]

From Coastal Defense to Global Standard

The Swedish Defence Research Agency, known as FOA, originally developed base bleed technology in the late 1960s. The agency sought a cheap, reliable way to extend the reach of Sweden's static coastal artillery batteries against offshore naval threats. Early tests in 1969 utilized modified 105mm steel shells.[3]

The 1969 trials proved the concept unequivocally, achieving excellent range extensions without requiring any alterations to the existing gun systems. Sweden patented the technology in 1971 and rapidly integrated it into its anti-shipping munitions. The concept soon proliferated globally, finding its true niche in 155mm land artillery.[3]

Today, base bleed is a standard feature in the ammunition stockpiles of NATO and allied forces worldwide. It serves as the baseline range-extension technology for nearly every modern 155mm self-propelled howitzer, from the American M109A7 to the German PzH 2000 and the South Korean K9 Thunder.[4]

Advanced munitions programs now combine base bleed with rocket assistance, creating hybrid projectiles that maximize both thrust and drag reduction. These hybrid shells ignite a rocket motor for initial acceleration, then transition to base bleed to sustain the velocity. This dual approach pushes conventional artillery ranges beyond 70 kilometers.[4]

By manipulating the invisible physics of the supersonic wake, base bleed transformed artillery design. It proved that neutralizing a vacuum is often more efficient than fighting it with brute force, cementing its place as one of the most elegant aerodynamic innovations in modern ballistics.[4]
