Constant Line-of-Sight Bearing: Interceptor Missiles Steer by Nulling Target Drift Rate

While popular media depicts heat-seeking missiles chasing the glowing exhaust plume of a fleeing fighter jet, the reality of aerospace engineering is entirely different. Modern anti-aircraft effectors steer by monitoring the target's angular drift against the background, maneuvering aggressively to keep that drift rate at exactly zero.[2]

By nulling the line-of-sight rate, the missile guarantees it will meet the target at a future point in space. This mathematical principle, known as proportional navigation, dictates that if the bearing to a target remains constant while the distance closes, a collision is mathematically inevitable.

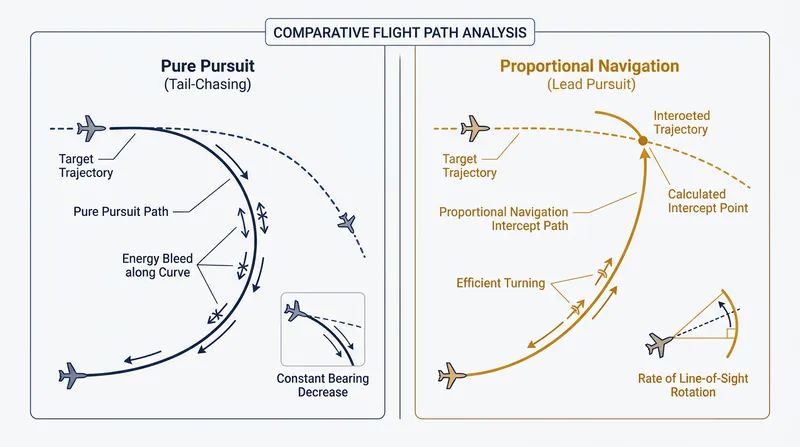

Popular culture routinely depicts air-to-air engagements as a tail-chase, with the missile following the exact path flown by the target. Aerospace engineers call this pure pursuit, and it is a highly inefficient way to catch a maneuvering object in three-dimensional space.

In a pure pursuit trajectory, the interceptor must constantly turn to point its nose directly at the fleeing aircraft's current position. This forces the missile to bleed off its kinetic energy in a tightening spiral, often running out of fuel before it can close the final distance.

The Geometry Of Interception

Instead of aiming where the target is, proportional navigation algorithms aim where the target will be. The guidance computer draws an imaginary line between the missile's seeker head and the target, establishing a geometric baseline known as the line of sight.

As both vehicles move through the sky at high speeds, this line of sight will naturally rotate. The seeker head continuously measures the speed of this rotation, calculating the line-of-sight rate in degrees or radians per second to feed into the autopilot.[1]

The missile's autopilot then commands a lateral acceleration that is strictly proportional to that measured rotation rate. If the line of sight drifts to the right, the missile turns right, but it does so at a multiplied rate to get ahead of the target's motion.

"Proportional navigation aims to generate commanding missile lateral acceleration proportional to line of sight angular rate, so that the missile velocity vector rotates in such a way to assure interception," notes a 2024 analysis in the Journal of Engineering Research and Sciences.

The multiplier used in this calculation is called the navigation constant, typically set between three and five. By turning three to five times faster than the line of sight is rotating, the interceptor rapidly drives the drift rate down to zero.

Once the line-of-sight rate hits zero, the missile stops turning and flies in a straight line. As long as the target remains frozen in the same spot on the seeker's canopy, the two objects are on a perfect collision course, regardless of their respective speeds.[2]

Maritime Origins Of The Math

The foundational logic behind proportional navigation was not discovered in a wind tunnel, but on the open ocean. Ship navigators have relied on the exact same geometric principle for centuries to avoid catastrophic collisions at sea during poor visibility.[2]

Mariners refer to this concept as constant bearing, decreasing range. If a sailor looks through a compass alidade and sees another vessel at a bearing of 045 degrees, and ten minutes later the vessel is still at 045 degrees but visibly larger, the ships will collide.[2]

To avoid the collision, the conning officer must alter course until the relative bearing to the other ship begins to drift. Missile designers simply inverted this maritime survival rule: to guarantee a collision, the autopilot must prevent the bearing from drifting at all.[2]

The United States Navy first successfully tested this inverted maritime logic in 1950 with the Lark missile. By automating the constant-bearing intercept, the Lark proved that a slower interceptor could reliably destroy a faster target by flying a smarter, predictive trajectory.

Inside The Seeker Head

To measure the line-of-sight rate accurately, the missile cannot simply rely on its own forward-looking radar. The interceptor itself is constantly vibrating, rolling, and pitching, which would make the target appear to jump wildly across the sensor's field of view.

Instead, the seeker head is mounted on a mechanical or electronic gimbal, stabilized by internal gyroscopes. These gyroscopes hold the sensor perfectly steady in space, isolating the camera or radar dish from the violent aerodynamic forces acting on the missile body.

When the target moves, the gimbal must physically rotate to keep the enemy aircraft centered in the crosshairs. The guidance computer measures the electrical voltage required to drive those gimbal motors, translating that voltage directly into the line-of-sight rate.

Advanced imaging infrared seekers, which look for the heat of the airframe rather than just the exhaust plume, use image processing algorithms to track the target's pixels. By comparing the target's shift against the static background frame by frame, they calculate the drift rate with extreme precision.

The Energy Management Problem

While proportional navigation is mathematically elegant, it places immense structural demands on the interceptor. A typical air-to-air missile might burn its solid rocket motor for only 8 to 12 seconds, coasting on finite kinetic energy for the remainder of a 30-kilometer flight.

Every time the missile turns to correct the line-of-sight rate, it bleeds off a portion of that kinetic energy. The commanded lateral acceleration is the mathematical product of the navigation constant, the line-of-sight rate, and the closing velocity between the two vehicles.

Because the required G-force scales linearly with closing velocity, engaging a faster target requires exponentially more lateral acceleration to correct the same angular drift. A one-degree-per-second drift against a Mach 1 target might require 15 meters per second squared of lateral thrust.[2]

If the target is a hypersonic glide vehicle moving at Mach 5, correcting that exact same one-degree drift requires 75 meters per second squared of lateral acceleration. This kinematic reality dictates the physical design and structural limits of modern air defense effectors.[2]

To generate these massive lateral forces, traditional missiles rely on large aerodynamic fins. However, at extreme altitudes where the air is thin, fins cannot generate enough lift to pull the required G-forces, causing the missile to miss the intercept point entirely.

Evasion And Countermeasures

Because proportional navigation is so lethal, military pilots are trained in specific evasive maneuvers designed to break the math. The goal of the evader is to maximize the line-of-sight rate just before impact, forcing the missile to pull an impossible G-load.

A pilot will typically fly perpendicular to the incoming missile, holding a steady course to let the interceptor settle into a predictable lead pursuit. At the last possible second, the pilot executes a maximum-G break turn in the opposite direction.

This sudden reversal causes the line of sight to whip violently across the sky. The proportional navigation algorithm instantly commands a massive course correction, multiplying that extreme drift rate by the navigation constant to force the interceptor into a tighter turn.

If the commanded acceleration exceeds the structural limits of the missile's airframe, or if the interceptor has burned all its solid fuel and lacks the kinetic energy to turn, the missile will simply fly past the target and self-destruct.

Electronic warfare systems also target the proportional navigation loop. By broadcasting false radar returns or deploying towed decoys, the target aircraft attempts to trick the seeker into measuring an artificial drift rate, causing the missile to steer itself into empty space.[1]

True Versus Pure Navigation

Aerospace engineers divide the guidance law into two distinct mathematical variants: true proportional navigation and pure proportional navigation. The distinction lies in how the missile measures its own velocity vector relative to the target's motion during the terminal phase.[1]

True proportional navigation calculates the required lateral acceleration perpendicular to the instantaneous line of sight. This requires the seeker to accurately measure the closing velocity between the two vehicles, which typically demands an active radar system to bounce radio waves off the target.

Pure proportional navigation applies the lateral acceleration perpendicular to the missile's own velocity vector. This variant is often used by infrared-guided missiles that cannot easily measure closing speed, relying instead on the interceptor's internal inertial sensors to estimate the required correction.

While true proportional navigation is mathematically more efficient, requiring slightly less energy to achieve the intercept, pure proportional navigation is vastly easier to engineer into smaller, passive airframes. Both variants ultimately achieve the same goal of nulling the angular drift.[1]

Despite modern countermeasures, proportional navigation remains the undisputed standard for aerospace interception. By reducing the chaotic three-dimensional geometry of aerial combat into a single mandate—keep the target stationary against the background—engineers solved the hardest problem in modern rocketry.[2]
