The Four Components of GPS Error: Ephemeris, Clock, Ionosphere, and Troposphere

The United States Space Force, acting as the Global Positioning System control segment, determines the baseline accuracy of the constellation by monitoring satellite trajectories and uploading orbital corrections. Operators are able to transmit updated ephemeris and clock data to the 24-satellite network, a process they execute during each satellite's periodic pass over a ground control station. This continuous intervention is the primary mechanism used to mitigate the four main sources of signal degradation: ephemeris, clock, ionosphere, and troposphere.[2]

Without these routine corrections, the system's accuracy would rapidly degrade. GPS positioning relies on measuring the exact time a radio signal takes to travel from a satellite in Medium Earth Orbit to a terrestrial receiver. Any physical phenomenon that alters the signal's propagation speed or the assumed position of the satellite introduces a User Equivalent Range Error (UERE).[3][4]

The first two components of this error budget originate in space. Ephemeris errors occur when a satellite's actual orbit deviates from the predicted trajectory broadcast in its navigation message. The Institute of Navigation notes that "real-time satellite orbits and clock biases are derived from predicted ephemeris and clock parameters," and residual deviations can still introduce up to 2.5 meters of positioning uncertainty even after ground updates.[5]

Clock errors compound this orbital uncertainty. NAVSTAR satellites carry highly stable atomic clocks, but these instruments can still drift by up to one millisecond. Because the radio signal travels at approximately 300,000 kilometers per second, a clock error of just one microsecond translates to a 300-meter range error. The control segment calculates these clock corrections and broadcasts them to receivers, reducing the residual clock error to roughly 1 to 2 meters.[3]

As the signal enters the Earth's atmosphere, it encounters the ionosphere, a layer of ionized gas located 50 to 1,000 kilometers above the surface. According to the Dutton Institute at Penn State, atmospheric interference is a massive factor, noting that "only about three-quarters of the bias can be removed, however, leaving the ionosphere as the second largest contributor to the GPS error budget" after initial clock drift.[3]

Solar radiation strips electrons from gas molecules in this atmospheric layer, creating a plasma that slows the GPS signal code while advancing its carrier phase. The density of these free electrons, measured as Total Electron Content (TEC), varies heavily with the time of day, the season, and the phase of the 11-year solar cycle.[2][4]

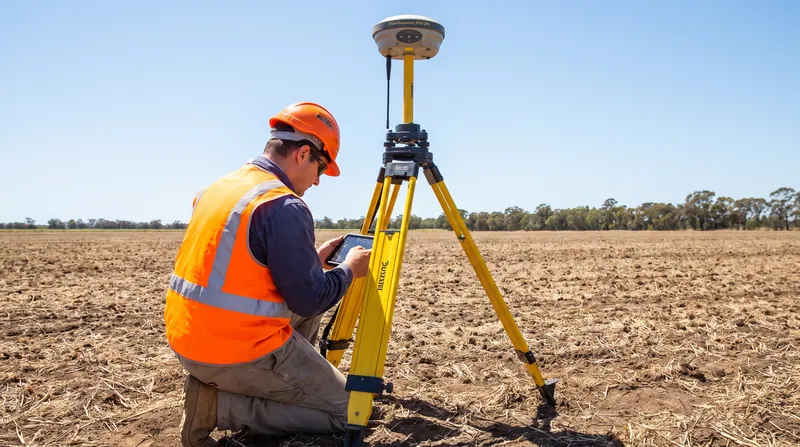

Uncorrected ionospheric delay can introduce up to 15 meters of range error during a standard day, and up to 50 meters during severe solar storms. Dual-frequency receivers mitigate this by comparing the arrival times of two different GPS frequencies, exploiting the dispersive nature of the ionosphere to calculate and cancel out the delay almost entirely.[1][3]

The final component is the troposphere, the lowest layer of the atmosphere extending from the surface up to roughly 15 kilometers, where terrestrial weather occurs. Unlike the ionosphere, the troposphere is non-dispersive, meaning it delays all GPS frequencies equally, rendering dual-frequency cancellation ineffective.[2]

Tropospheric delay is driven by temperature, atmospheric pressure, and humidity. The National Geodetic Survey outlines that while the "dry" component of the troposphere accounts for 90 percent of the delay and is relatively stable, the "wet" component driven by water vapor is highly localized and difficult to predict accurately.[1]

Uncorrected tropospheric errors typically add 2 to 3 meters of uncertainty to the baseline measurement. Because dual-frequency measurements cannot isolate this delay, high-precision users rely on empirical atmospheric models and differential correction techniques, such as Real-Time Kinematic (RTK) positioning, to minimize the effect.[1][4]

AI

The evidence surrounding GPS error budgets is highly robust for systemic hardware, but atmospheric modeling remains inherently probabilistic. The exact magnitude of ionospheric scintillation during a coronal mass ejection cannot be perfectly predicted, leaving a margin of error that single-frequency receivers cannot fully eliminate without external augmentation.[2][3]

The baseline accuracy of a GPS receiver is dictated by how many of these four errors it can independently model or receive corrections for. As the control segment refines its orbital predictions and receiver manufacturers adopt multi-frequency tracking, the physical limits of signal propagation remain the defining boundary of navigation precision.[4][5]
