How Active Electronically Scanned Arrays Steer Radar Beams in Microseconds

A modern air defense operator no longer waits for a mechanical dish to pan across the sky to confirm a target's trajectory. Instead, the radar system itself decides where to look, shifting the phase of thousands of microwave emitters to steer a beam to a new coordinate in a fraction of a microsecond.[1][2]

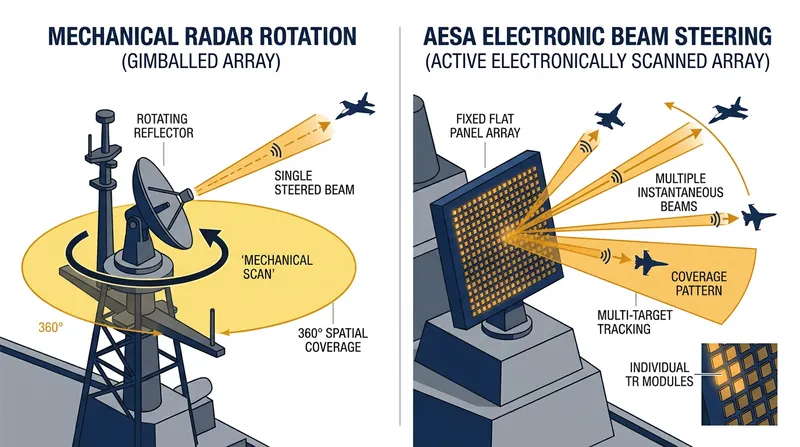

This architectural leap from physical motion to solid-state electronics defines the Active Electronically Scanned Array. Before the advent of solid-state arrays, radar architecture was defined by physical inertia, relying on a centralized transmitter that generated a radio frequency pulse while a motorized antenna rotated to broadcast that energy.[1][2]

If a fast-moving aircraft changed its heading immediately after the beam passed, the system could not register the maneuver until the dish completed its rotation and swept back across that specific patch of sky. That mechanical delay created a fundamental vulnerability in contested airspace.[2]

An operator had to choose between scanning a wide volume of space slowly or tracking a single known threat continuously. The physical mass of the antenna dictated the update rate, placing a hard ceiling on how many targets a single platform could manage before its situational awareness degraded.[1][2]

The Physics of Phase Shifting

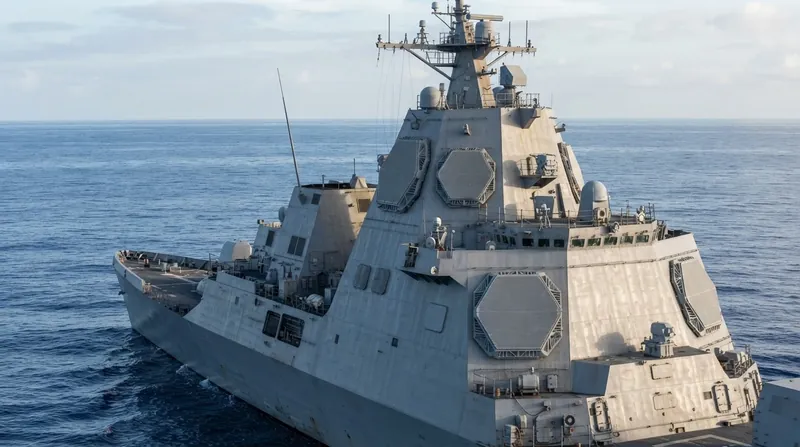

AESA systems remove that physical constraint entirely by decoupling the radar beam from the physical orientation of the antenna. The array remains stationary, bolted to the nose of a fighter jet or the superstructure of a naval destroyer like those carrying the AN/SPY-6(V) radar.[1][3]

The beam itself moves, directed by the precise manipulation of electromagnetic wave interference rather than the rotation of a mechanical gimbal. The mechanism that enables this instantaneous steering relies on the principle of wave superposition.[1][3]

When multiple coherent radiating elements are arranged in a planar grid, their individual electromagnetic waves overlap in space. If those waves crest at the exact same moment, they combine constructively to form a high-gain, focused main beam pointing straight ahead along the broadside vector.[3]

To steer that beam, the radar introduces a calculated delay, or phase shift, into the signal emitted by each successive element across the array. By firing the modules on one side of the antenna a fraction of a nanosecond before the modules on the opposite side, the system creates a phase gradient.[3][5]

The crests of the overlapping waves now align at an angle, tilting the resulting beam in the desired direction. The geometry of this progressive phase shift is governed by a strict mathematical relationship that links the physical distance between elements to the operating wavelength.[3][5]

Solid-State Modules and Decentralization

The required phase offset between adjacent elements depends on the physical distance between them, the wavelength of the operating frequency—typically in the X-band range of 8 to 12 GHz for fighter radars—and the intended spatial steering angle.[3][5]

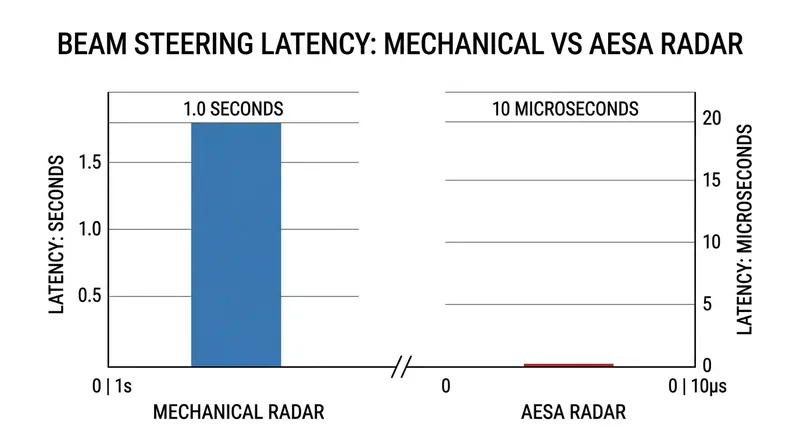

Because this adjustment is calculated digitally and executed electronically, the beam can jump from one extreme of the radar's field of view to the other in microseconds. The mathematical precision required to form these beams is absolute.[3][5]

If the phase shift across the array is miscalculated by even a fraction of a degree, the constructive interference breaks down. The main beam loses its focus, and the electromagnetic energy scatters into undesired side lobes, reducing the radar's effective range and increasing its visibility to enemy sensors.[3][4]

This electronic agility fundamentally alters the concept of radar revisit rates. A mechanical system might take several seconds to complete a 360-degree sweep, leaving a massive temporal gap between updates, whereas an AESA system can reposition its beam thousands of times per second.[1][5]

The hardware that executes these phase shifts represents a total decentralization of radar architecture. Older Passive Electronically Scanned Arrays used a single, centralized high-power transmitter routed through variable phase shifters, but an AESA system abandons the central transmitter entirely.[3][5]

Time-Sharing the Electromagnetic Spectrum

The array is populated by hundreds or even thousands of independent, solid-state Transmit/Receive Modules. Each module is a self-contained radar unit, equipped with its own power amplifier, low-noise receiver, phase shifter, and attenuator.[5]

The absence of moving mechanical parts means beam pointing can be switched only by the response speed of the phase shifters, which can be completed in microseconds, according to technical documentation from StarDL.[5]

By 2026, the transition to Gallium Nitride semiconductors has further accelerated this hardware evolution. These modules can operate at significantly higher temperatures and voltages than legacy silicon or Gallium Arsenide components, allowing modern AESA radars to project more electromagnetic power over greater distances.[6][7]

This decentralized design provides a massive increase in system resilience. In a mechanically scanned radar, a failure in the central transmitter or the rotary drive mechanism disables the entire sensor, but in an AESA system, the loss of individual modules degrades performance only marginally.[1][6]

Because the beam can be redirected in microseconds, an AESA radar does not actually need to divide its modules to perform multiple tasks. Instead, it time-shares the entire array across different functions so rapidly that the operations appear simultaneous to the human operator.[1][5]

Resilience and Electronic Warfare

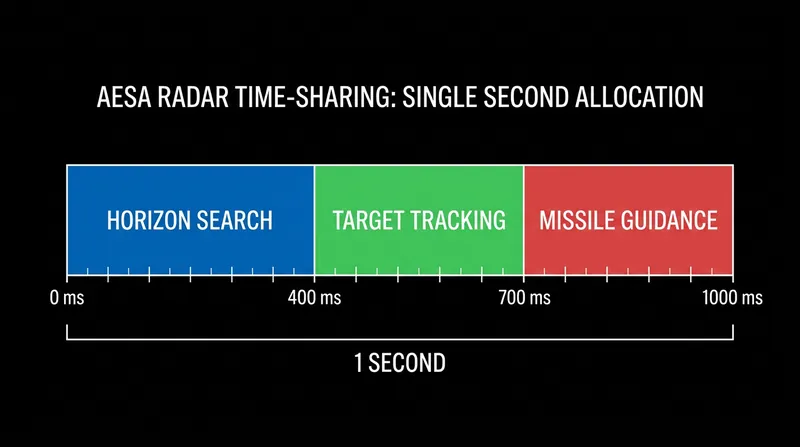

During a single second of operation, the radar might dedicate 400 milliseconds to scanning the horizon for new contacts, 300 milliseconds to updating the tracks of known targets, and 300 milliseconds to guiding an interceptor missile.[1][4]

The system's digital controller constantly prioritizes these tasks, shifting the phase gradient back and forth between coordinates without ever pausing for physical movement. This time-multiplexing capacity solves the historic trade-off between search and track functions.[1][4]

A fighter pilot equipped with an AESA sensor receives a continuous, integrated picture of the airspace, rather than having to manually switch the radar between a wide-area search mode and a narrow-focus targeting mode.[1][5]

Beyond raw speed, the solid-state architecture of an AESA system provides a decisive advantage in the electromagnetic spectrum. Traditional radars broadcast powerful, predictable pulses on fixed frequencies, making them highly visible to enemy warning receivers and vulnerable to electronic jamming.[1][6]

Because each module can be controlled independently, the radar can hop rapidly across a wide band of frequencies, changing its emission parameters thousands of times per second. This frequency agility smears the radar's signature across the spectrum, making it appear as random background noise to hostile sensors.[1][6]

The Shift to Digital Control

If an adversary does attempt to jam the radar by flooding its operating frequency with interference, the AESA system can adapt instantly. The digital controller can identify the direction of the jamming signal and adjust the phase of its receiving modules to create a spatial null.[4][6]

This adaptive nulling ensures that the radar can continue to track genuine targets even in heavily contested electromagnetic environments. The system simply ignores the jammer, steering its transmit and receive beams around the interference while continuing to hop frequencies.[4][6]

The precision required to execute these complex interference patterns demands immense computational power. Early phased arrays relied on analog phase shifters, which were susceptible to thermal drift and component aging, but modern AESA systems utilize digitally controlled phase shifters that execute phase adjustments with mathematical exactness.[4]

High-resolution digital phase shifters allow modern arrays to achieve beam steering accuracy better than 0.1 degrees. This pinpoint precision is critical for guiding interceptor missiles to their targets at extreme ranges, where even a microscopic error in the phase gradient would result in the beam missing the target entirely.[4]

The transition from mechanical dishes to active electronically scanned arrays represents a fundamental shift in how militaries manage the electromagnetic spectrum. By replacing physical inertia with solid-state physics, AESA technology has transformed the radar from a simple detection tool into a dynamic, multi-role node in the broader defense infrastructure.[1][7]
