Atmospheric Constraints on Directed Energy: How Thermal Blooming and Jitter Cap Laser Weapon Range

At a testing range in the New Mexico desert, a 50-kilowatt laser beam strikes a target board two kilometers away. Instead of forming a perfect, intense circle of heat, the spot smears into a crescent-shaped blur, its energy bleeding outward into the surrounding air. This distortion is not a mechanical failure of the weapon system, but the unavoidable physical reality of transmitting concentrated light through the Earth's lower atmosphere.[1][5]

Directed energy weapons are often conceptualized as operating in a vacuum, where light travels in a perfectly straight line. In reality, the atmosphere is a dense, dynamic fluid filled with water vapor, aerosols, and temperature gradients. The Defense Intelligence Agency notes that while laser weapons offer a nearly infinite magazine and light-speed engagement, they must overcome severe propagation losses before delivering lethal irradiance to a target.[1]

The most significant of these self-induced losses is thermal blooming. According to RP Photonics, thermal blooming occurs when the atmosphere absorbs a fraction of the high-power laser's energy. This absorption heats the air directly in the beam's path, causing it to expand. The localized drop in air density lowers the refractive index, effectively turning the air itself into a negative, diverging lens that defocuses the beam.[2]

This creates a paradoxical limit on weapon design: simply increasing the raw power of the laser can actually decrease the amount of energy delivered to the target. A study in the Journal of Optics analyzing steady-state thermal blooming found that pushing higher kilowatts into an incoherent combined beam accelerates the heating of the air channel, causing the beam to spread faster than the added power can compensate for.[4]

The severity of thermal blooming is heavily dependent on environmental conditions, particularly wind. Modeling by the Air Force Institute of Technology (AFIT) demonstrates that a steady crosswind is highly beneficial for laser weapons, as it continuously blows the heated air out of the beam path, replacing it with cool, unexpanded air. In stagnant, windless conditions, the heated channel remains stationary, maximizing the defocusing effect.[5]

Compounding the challenge of thermal blooming is the problem of jitter. The National Defense University outlines jitter as the rapid, microscopic movement of the laser spot on the target, caused by a combination of mechanical vibrations from the firing platform—such as a ship's engines or a Stryker vehicle's suspension—and natural atmospheric turbulence.[3]

To destroy a target like a loitering munition, a laser must maintain a specific level of irradiance (measured in watts per square centimeter) on a single vulnerable point for several seconds. This required duration is known as the dwell time. If jitter causes the beam spot to dance across the target's hull, the energy is spread over a larger area, failing to reach the melting point and forcing the system to start the heating process over.[3][6]

At an engagement range of 5 kilometers, a mechanical jitter of just 10 microradians translates to a spot movement of 5 centimeters on the target. While this sounds small, AFIT modeling indicates that this degree of spread can drop the peak irradiance below the threshold required to penetrate aerospace-grade aluminum within a tactically viable dwell time.[5]

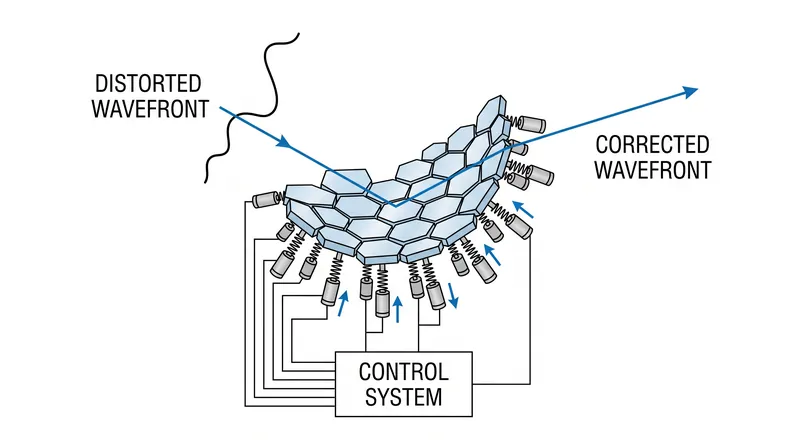

To counter these atmospheric limitations, modern directed energy systems rely heavily on adaptive optics. Originally developed for astronomical telescopes to peer through atmospheric distortion, adaptive optics use deformable mirrors controlled by high-speed algorithms. These mirrors physically change shape thousands of times per second to pre-distort the outgoing laser beam, intentionally introducing aberrations that are exactly canceled out by the atmosphere.[1][2]

However, adaptive optics face a unique challenge with thermal blooming. While they excel at correcting for natural, random atmospheric turbulence, thermal blooming is a deterministic effect caused by the weapon itself. The Proceedings of the IEEE note that attempting to pre-correct for severe thermal blooming can sometimes trigger a feedback loop, where the correction concentrates the beam, which in turn heats the air faster, requiring an even more extreme correction.[6]

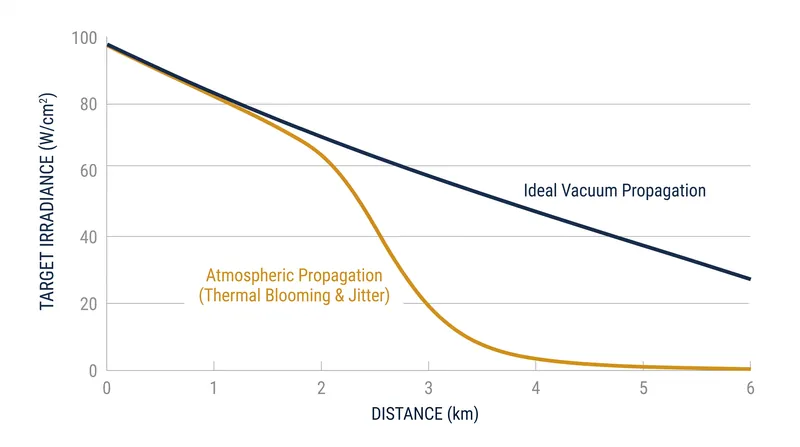

Because of these compounding variables, the effective range of tactical high-energy lasers remains physically capped. While 300-kilowatt class systems are currently entering prototype testing, their primary advantage is reducing the required dwell time at short ranges (under 3 kilometers) rather than extending the maximum engagement range to 10 or 20 kilometers.[1][3]

The next verifiable checkpoint for these systems will be their performance data from sustained maritime deployments. In oceanic environments, the combination of high humidity, salt aerosols, and complex thermal layers directly above the water surface will provide the ultimate test of whether advanced adaptive optics can outpace the fundamental physics of atmospheric propagation.[3][7]
