The Mechanics of Electronic Warfare: Comparing Electronic Attack, Electronic Protection, and Electronic Support

At any given moment, a modern strike aircraft processes hundreds of thousands of invisible electromagnetic pulses per second while operating in contested airspace. This invisible data flow is the foundation of modern military infrastructure, linking sensors, satellites, and strike platforms into a cohesive network. Controlling this domain—the electromagnetic spectrum—is the primary objective of electronic warfare (EW), a discipline that dictates the survivability of nearly all modern defense technology.[7]

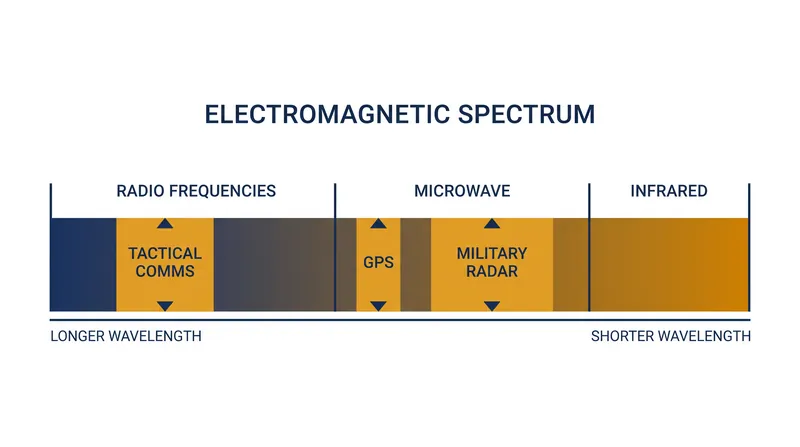

The spectrum itself is a finite physical resource, spanning from low-frequency radio waves to high-frequency gamma rays. Military operations primarily contest the radio frequency (RF), microwave, and infrared bands. According to US Joint Publication 3-13.1, electronic warfare is defined as any military action involving the use of electromagnetic and directed energy to control the spectrum or to attack the enemy.[1]

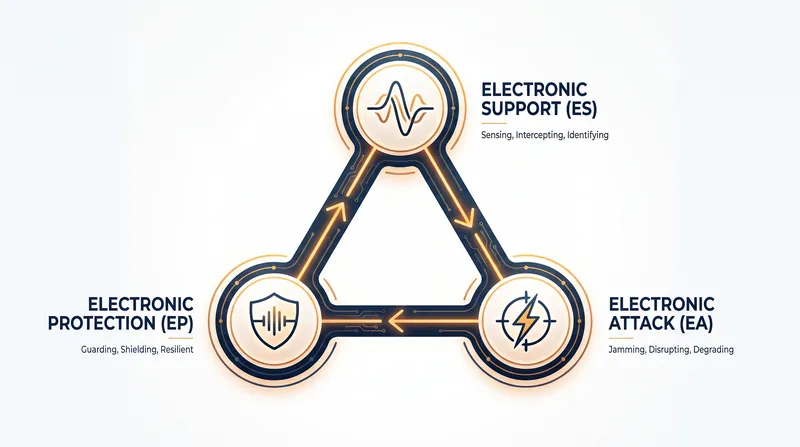

This discipline is not a monolithic capability but a highly structured, interdependent system divided into three core pillars: Electronic Support (ES), Electronic Attack (EA), and Electronic Protection (EP). These pillars operate in a continuous, closed-loop cycle where sensing enables disruption, and disruption necessitates shielding.[1][7]

Claim 1: Electronic Support (ES) is the prerequisite for all other electromagnetic actions. Before a system can jam a radar or protect a communication link, it must first understand the invisible environment. Electronic Support involves actions tasked by an operational commander to search for, intercept, identify, and locate sources of radiated electromagnetic energy.[5]

The evidence for ES primacy is rooted in the physics of signal processing. A receiver must isolate a specific waveform from the background noise of civilian broadcasts, atmospheric interference, and friendly military transmissions. The Naval Postgraduate School's curriculum on EW principles emphasizes that without accurate ES, subsequent electronic attacks are effectively blind, wasting energy and risking detection without achieving tactical effects.[3]

Modern ES systems rely on vast libraries of known signal profiles, matching intercepted emissions against databases to identify the specific type of radar or radio transmitting them. However, the evidence regarding the efficacy of these libraries against novel, software-defined radios remains limited, as adversaries constantly alter their emission parameters to avoid categorization.[3][7]

Claim 2: Electronic Attack (EA) relies on precise energy projection, not just brute force. Once a target is identified via ES, Electronic Attack is employed to degrade, neutralize, or destroy the enemy's combat capability. This includes the use of electromagnetic energy, directed energy, or anti-radiation weapons.[1][4]

While early EW relied on broadband noise jamming—flooding a wide frequency range with static to drown out communications—modern EA is highly surgical. Systems generate deceptive signals, known as spoofing, which feed false velocity or location data into an enemy radar. BAE Systems notes that effective EA requires projecting the exact right waveform at the exact right millisecond to exploit the processing vulnerabilities of the target receiver.[4]

The limitations of EA are dictated by the inverse-square law of physics; the power of a jamming signal degrades exponentially over distance. Consequently, airborne electronic attack platforms must operate dangerously close to the emitters they intend to disrupt, balancing the need for proximity against the risk of kinetic interception.[1][3]

Claim 3: Electronic Protection (EP) must account for both hostile action and friendly fratricide. The third pillar, Electronic Protection, encompasses the actions taken to protect personnel, facilities, and equipment from any effects of friendly or enemy use of the electromagnetic spectrum.[4]

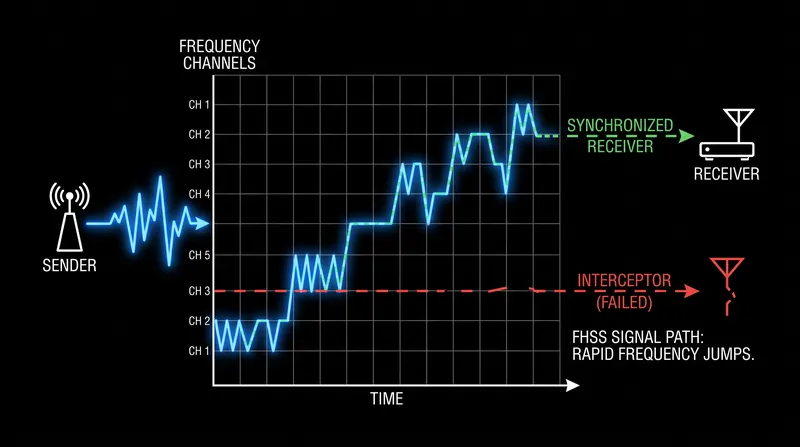

NATO's Allied Joint Doctrine for Electronic Warfare (AJP-3.6) highlights that EP is not merely a defensive reaction to enemy jamming, but a foundational design requirement for all modern military hardware. This includes techniques like frequency-hopping spread spectrum (FHSS), where a radio changes its operating frequency thousands of times per second in a synchronized pattern known only to the receiver and transmitter.[2]

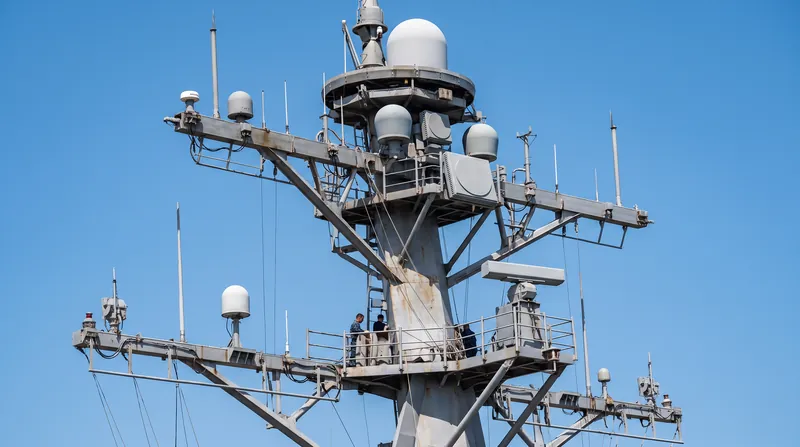

A significant, often underreported challenge in EP is managing electromagnetic fratricide. When a naval strike group activates its own high-powered EA jammers to blind an incoming missile, it risks simultaneously blinding its own radar and communication networks. EP requires stringent emission control (EMCON) and complex spectrum management software to deconflict friendly signals in real-time.[2][7]

Claim 4: The legal architecture governing EW remains ambiguous compared to kinetic warfare. As EW capabilities expand, their application intersects with the Law of Armed Conflict (LOAC). The Lieber Institute at West Point notes that while the electromagnetic spectrum is a domain of warfare, the non-kinetic nature of EW complicates traditional legal assessments of proportionality and distinction.[6]

For example, wide-area GPS spoofing designed to protect a military installation may inadvertently disrupt civilian aviation or maritime navigation miles away. Legal scholars debate whether such disruption constitutes an "attack" under Article 49 of Additional Protocol I to the Geneva Conventions, particularly if it does not result in physical destruction or loss of life.[6]

Furthermore, Article 36 of Additional Protocol I requires states to conduct legal reviews of new weapons. Applying this standard to software-defined EW systems is highly complex, as the "weapon" is not a physical munition but a continuously updated algorithm capable of generating novel, untested waveforms in the field.[6][7]

The integration of machine learning into this triad—often termed Cognitive EW—represents the frontier of the discipline. Instead of relying on pre-programmed libraries, cognitive systems use artificial intelligence to analyze unknown signals, synthesize a custom jamming waveform, and evaluate its effectiveness in real-time. While theoretically sound, the operational reliability of these autonomous systems in a saturated, chaotic spectrum remains largely unproven in unclassified literature.[3][7]
