The Mechanics of Ballistic Missile Defense: How Layered Systems Intercept Threats

The fundamental disagreement in missile defense architecture is a problem of timing versus clarity. Do you attempt to destroy a missile in its first moments of flight, when it is slow, highly visible, but geographically inaccessible? Or do you wait until it reaches space, where you have twenty minutes to calculate an intercept, but the target is traveling at 15,000 miles per hour and surrounded by decoys?[3][4]

The modern engineering solution is not to choose, but to build a layered system that attempts interception across all three phases of flight: boost, midcourse, and terminal. This approach acknowledges that no single layer can guarantee a kill, but stacking imperfect systems mathematically compounds the probability of a successful defense.[2][7]

A ballistic missile defense system is a network of space-based sensors, ground-based radars, and kinetic interceptors designed to destroy an incoming warhead by physically colliding with it. This concept, often described as hitting a bullet with a bullet, requires extraordinary precision and real-time data integration.[1][3]

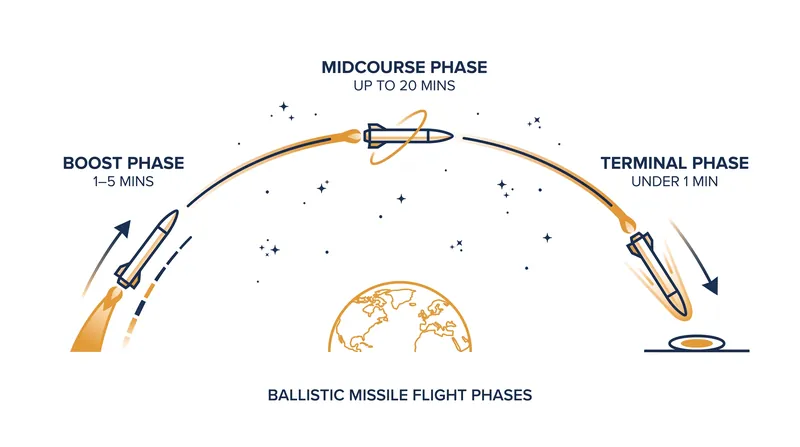

The architecture of this defense is dictated by the three distinct phases of a ballistic missile's trajectory. Each phase presents unique physical constraints, requiring entirely different classes of interceptors, radar frequencies, and command-and-control latency tolerances.[2][4]

The first and theoretically most advantageous window for interception is the boost phase, which lasts between one and five minutes depending on the missile's solid or liquid propulsion system. During this period, the missile's engines are actively firing, creating a massive infrared signature that space-based early warning satellites can easily detect against the cold background of the Earth.[3][4]

The primary advantage of a boost-phase intercept is that the missile is moving relatively slowly and has not yet deployed its warheads or countermeasures. Destroying the launch vehicle here neutralizes the entire payload over the adversary's own territory, eliminating the risk of collateral damage to the defending nation.[1][7]

However, the evidence for boost-phase viability remains thin in practice. The core limitation is geography. Because the time window is so short, interceptors must be positioned extremely close to the launch site, often requiring platforms like airborne lasers or forward-deployed naval vessels operating in highly contested airspace or waters.[3][5]

If the missile survives the boost phase, its engines burn out and it enters the midcourse phase, traveling through the vacuum of space. This is the longest segment of the flight, lasting up to twenty minutes for an intercontinental ballistic missile traversing the globe.[1][4]

The extended duration of the midcourse phase provides the defense architecture with its best opportunity to track the target, calculate a firing solution, and launch multiple interceptors if the first one fails. The U.S. Ground-based Midcourse Defense system is specifically designed to exploit this extended temporal window.[1][2]

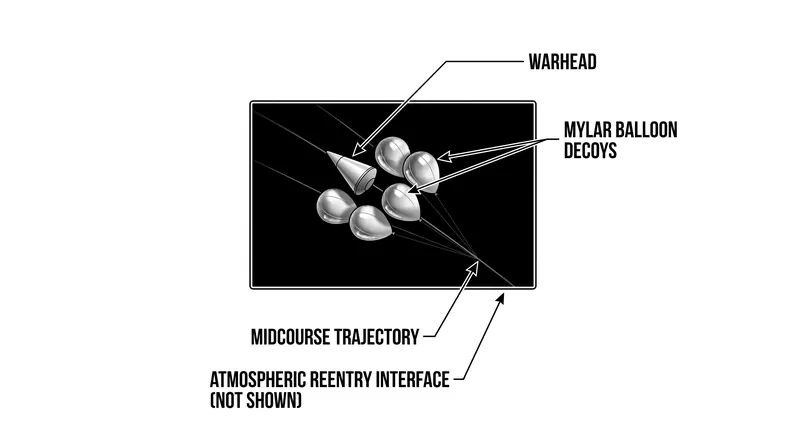

The tension in the midcourse layer lies in the proliferation of countermeasures. In the vacuum of space, heavy nuclear warheads and lightweight mylar balloons travel at the exact same speed because there is no atmospheric drag. A single missile can release dozens of these decoys.[3][4]

This forces the defense system to identify the actual warhead among a cloud of false targets and debris. Critics argue that the evidence supporting midcourse discrimination capabilities is weak, noting that unclassified testing data often relies on scripted scenarios where the defense system has prior knowledge of the decoy signatures.[3][5]

The final opportunity for interception occurs when the warhead re-enters the Earth's atmosphere. This terminal phase is incredibly brief, lasting less than a minute before the weapon detonates over its target.[4][7]

The physics of atmospheric re-entry naturally strip away lightweight decoys, which burn up or decelerate rapidly due to friction, leaving only the heavier, heat-shielded warhead. This atmospheric filtering solves the discrimination problem that plagues the midcourse phase.[3][4]

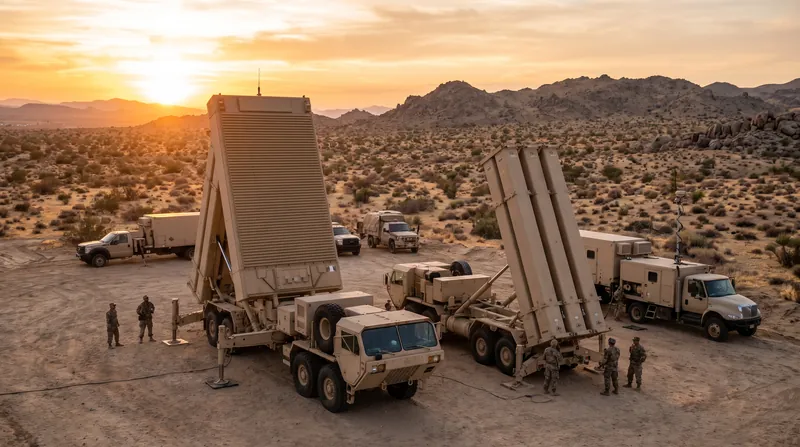

However, the terminal phase presents its own severe limitations. The warhead is traveling at hypersonic speeds, and the interception must occur very close to the intended target. Systems like the Terminal High Altitude Area Defense and Patriot batteries operate exclusively in this final layer.[1][2]

If a terminal interceptor misses, there is no time for a second shot. Furthermore, destroying a nuclear, chemical, or biological warhead at low altitudes can still result in significant collateral damage, radiation scatter, or debris falling on the defended population center.[5][7]

Because no single phase offers a guaranteed interception, modern defense strategy relies heavily on a layered architecture. By integrating sensors and interceptors across all three phases, the system attempts to build a robust shield out of individually fallible components.[2][6]

If a midcourse interceptor has a limited chance of success against a complex decoy cloud, firing multiple interceptors and backing them up with terminal point-defenses mathematically increases the overall system reliability against a limited strike.[1][5]

The Department of War has recently emphasized the need to integrate these disparate systems into a unified command and control network. This architecture allows early-warning sensors from the boost layer to cue fire-control radars in the terminal layer, passing tracking data seamlessly across domains.[6][7]

Ultimately, the mechanics of ballistic missile defense represent a continuous race between offensive countermeasures and defensive sensor fidelity. As adversaries develop maneuverable hypersonic glide vehicles that blur the lines between midcourse and terminal phases, the architecture of defense must evolve from isolated interceptors into a globally integrated web.[5][7]
