Absorbing the Expansion: The Physics of Continuous Welded Rail on High-Speed Networks

The rhythmic "clickety-clack" that defined train travel for over a century is rapidly disappearing from modern networks. In its place is a silent, seamless glide that allows passenger trains to sustain speeds exceeding 300 km/h without shaking themselves apart. This transformation is driven by a single structural shift: the global adoption of Continuous Welded Rail (CWR), a track architecture that eliminates expansion joints entirely.[3][4]

Historically, railway engineers faced a strict physical limit. Steel expands as it warms, and early railways accommodated this by laying track in short 39-foot segments with small gaps between them. When a train's wheels slammed into those gaps, it generated the signature clatter, battered the rolling stock, and capped maximum safe speeds.[3]

Modern high-speed networks take the opposite approach: they refuse to let the steel expand at all. Using thermite or flash-butt welding, engineers fuse standard rail segments into unbroken ribbons of steel that can stretch for miles. The joints are ground perfectly smooth, removing the mechanical weak points that previously dictated maintenance schedules.[3][6]

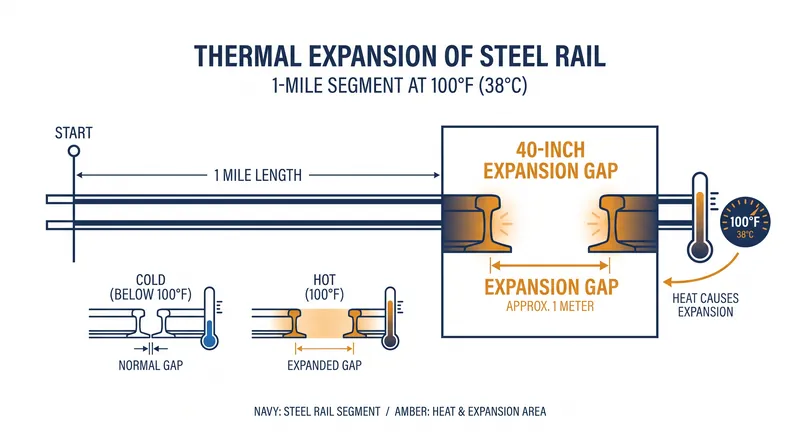

But eliminating the expansion gap does not eliminate the thermal physics. When ambient temperatures rise, the steel still attempts to expand. A 100-degree Fahrenheit temperature increase forces a one-mile stretch of unconstrained steel rail to attempt to lengthen by roughly 40 inches.[6]

Because the continuous rail is physically locked down to the sleepers (ties) and embedded in heavy ballast, it cannot change its length. Instead, the track structure forces the metal to absorb that thermal energy internally as massive compressive stress.[1][3]

The sheer scale of this trapped energy is staggering. According to standard railway engineering formulas, a 52-kilogram-per-meter rail profile generates 1.638 tonnes of expansion force for every 1°C increase in temperature.[1]

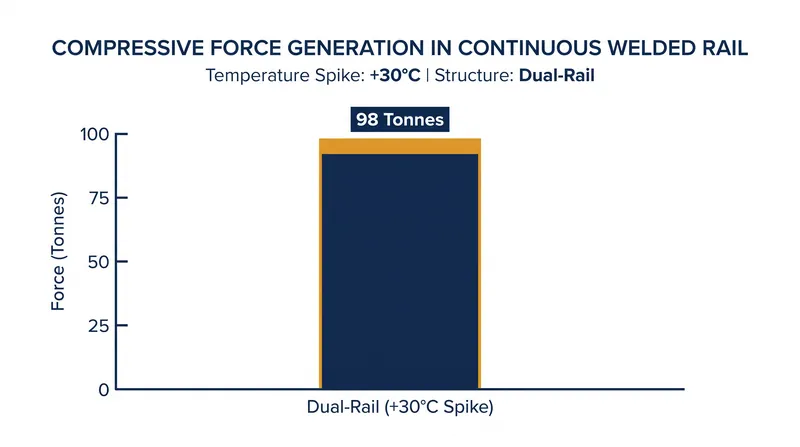

When scaled to a standard dual-rail track structure, a sudden 30°C (54°F) summer temperature spike generates over 98 tonnes of longitudinal compressive force. The track is effectively acting as a giant, tightly wound spring, held straight only by the friction of the crushed stone beneath it and the clamping force of its fasteners.[1][8]

"Any continuous welded rail has a neutral temperature which is essentially the temperature it was the day it was installed," explains a 2023 analysis by Practical Engineering. "It's the temperature at which the rail experiences no stress at all."[6]

This Rail Neutral Temperature (RNT) is the most critical metric in modern track engineering. To prevent the rail from buckling under summer heat, engineers artificially stretch the steel—using hydraulic pullers or specialized heating equipment—before locking it down. By setting the RNT artificially high (often around 95°F or 35°C), the rail spends the majority of its operational life in a state of tension (pulling) rather than compression (pushing).[2][6]

Steel is exceptionally strong under tension, and a stretched rail will not buckle. It is only when the ambient temperature exceeds the RNT that the rail enters compression and the risk of a "sun kink"—a violent, explosive lateral buckling of the track—emerges.[2][3]

Maintaining that high neutral temperature is a constant battle. The physical forces of daily railway operations actively degrade the track's tension. The braking forces of heavy freight trains, the lateral shifting of trains navigating curves, and routine track surfacing work all cause the steel to slowly slip through its fasteners.[2][7]

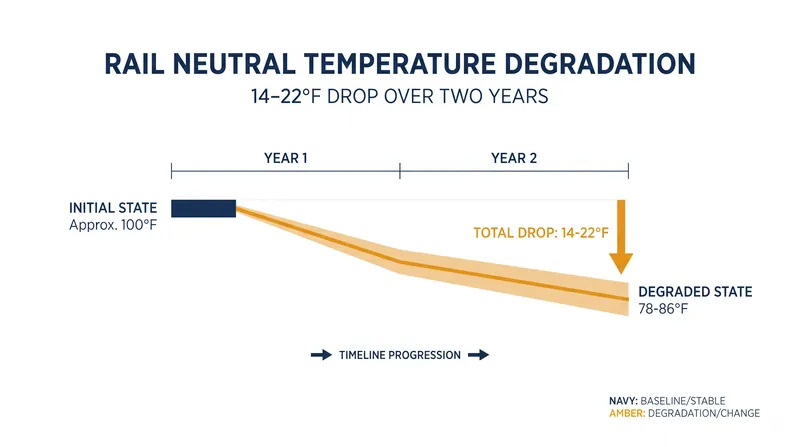

Field research published in the American Railway Engineering Association (AREA) Bulletin tracked this degradation across multiple test sites over a two-year period. The data revealed that the rail's neutral temperature reliably decreased by 14 to 22 degrees Fahrenheit from its initial laying temperature, predominantly dropping during the fall and winter months.[2]

"These results strongly suggest that simply setting a rail laying temperature, particularly a high temperature, is not sufficient in itself to guarantee the elimination of track buckling," the AREA researchers concluded. The gradual drop in RNT means the rail will enter dangerous compression at lower ambient temperatures the following summer.[2]

To contain these immense forces, high-speed rail networks require fundamentally heavier infrastructure than legacy lines. The tracks are anchored to massive reinforced concrete sleepers rather than traditional timber, and the crushed stone ballast is piled in wide, heavy shoulders to provide maximum lateral resistance against the steel's urge to warp.[4]

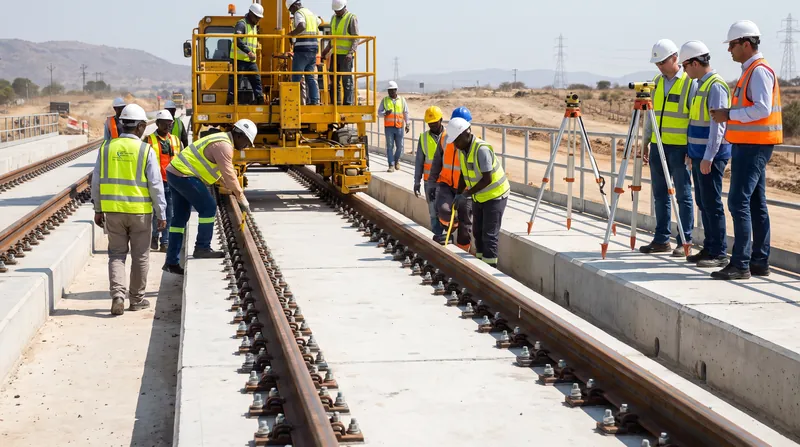

In the most demanding environments, such as the 300 km/h corridors planned for Canada's Alto network or Japan's Shinkansen, engineers increasingly bypass ballast entirely in favor of direct-fixation concrete slab track. While vastly more expensive to install, concrete slabs provide absolute rigidity, ensuring the rail cannot buckle regardless of the compressive load.[4]

The economic payoff for managing this thermal stress is transformative. The Railway Technical Research Institute notes that eliminating joints removes the primary source of track degradation. Continuous welded rail reduces routine track maintenance costs by at least 15% and extends the service life of the rails by 25%, as the steel is no longer being battered at its ends by every passing wheel.[5]

As global temperatures rise and extreme heat waves become more frequent, railways are being forced to adapt their thermal management strategies. Networks are deploying continuous fiber-optic temperature sensors along the rail web and re-evaluating their regional RNT targets to ensure the steel remains safely locked in tension.[3][8]
