The Power-Loss and Insulation Trade-Off That Determines Rail Electrification Voltage Standards
Railway engineers face a brutal geometric compromise: high-voltage AC power drastically reduces transmission losses but requires massive physical clearances that force the rebuilding of bridges and tunnels. This fundamental physics trade-off dictates the architecture of the global rail network.
Share this story
In short
- The physical air gap required to prevent electrical arcing dictates whether a railway can use high-voltage power transmission.
- Stepping up from 3 kV DC to 25 kV AC reduces transmission current by a factor of 8.33, cutting resistive line losses by 98.5%.
- The 25 kV AC standard allows substations to be spaced up to 60 kilometers apart, making it ideal for long-distance high-speed rail.
The outcome of a multi-billion-dollar rail electrification project is determined not in the power plant or the traction substation, but in the physical air gap between the train’s roof and the tunnel ceiling. This clearance—the minimum distance required to prevent a high-voltage electrical arc from jumping from the live wire to the grounded infrastructure—dictates the entire architecture of the railway.
If the gap is too small, the system arcs and shorts out, causing catastrophic failure. If the gap must be large, every tunnel, bridge, and overpass on the route must be rebuilt or raised to accommodate the wire. That single geometric constraint forces railway engineers into a brutal compromise between power transmission efficiency and civil construction costs, shaping the physical reality of every electrified track in the world.[3][5]
Moving a 400-ton passenger train at 300 kilometers per hour requires massive amounts of electrical power, often exceeding several megawatts per train just to overcome aerodynamic drag and mechanical friction.
Because electrical power is the mathematical product of voltage and current, engineers have only two fundamental levers to pull to deliver that massive energy payload: they can either push a massive amount of current at a lower voltage, or push a relatively small amount of current at a very high voltage. This equation governs the entire design philosophy of the traction network, forcing a choice between heavy wires and heavy insulation.[4]
Historically, urban and legacy rail networks opted for the high-current approach, standardizing around Direct Current (DC) systems operating at 1.5 kilovolts (kV) or 3 kV. These medium-voltage DC systems are relatively simple to implement and keep the heavy, complex power-conversion equipment trackside rather than on the train itself.
By placing the rectifiers in stationary substations, the rolling stock remains lighter and cheaper to manufacture, which is highly advantageous for commuter networks that require rapid acceleration and frequent stops. However, pushing high current through a physical wire comes with a severe and unavoidable physical penalty: resistive heating.[1][2]
As electrical current flows through the overhead copper catenary wire, it encounters natural electrical resistance, bleeding valuable energy into the surrounding air as heat. This power loss scales with the square of the current—a mathematical reality that severely limits how far power can travel before it becomes unusable.

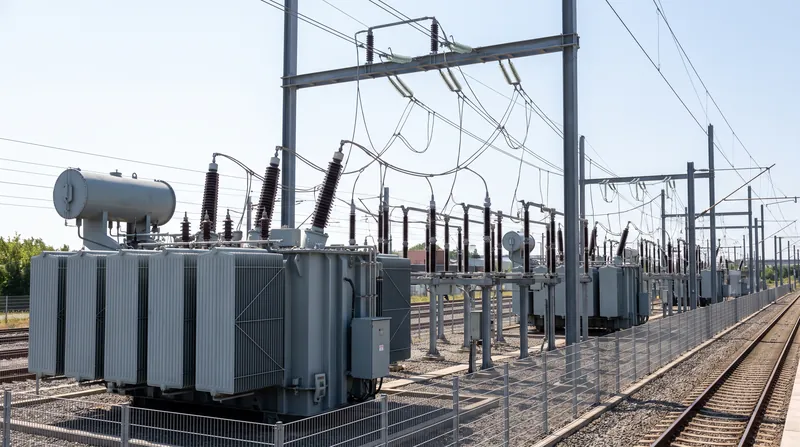

In a standard 3 kV DC system, the voltage drops so rapidly over distance that traction substations must be built every three to five kilometers just to keep the trains moving. For a dense urban metro system, building frequent substations is manageable, but for a cross-country mainline, it becomes an insurmountable infrastructure burden.[2][4]
To solve this transmission bottleneck and enable modern high-speed rail, networks shifted to Alternating Current (AC) at a much higher voltage—specifically, the 25 kV AC standard formalized globally by the International Electrotechnical Commission in the IEC 60850 specification. By stepping the voltage up to 25 kV, the current required to deliver the exact same amount of megawatt power drops by a factor of 8.33. This shift fundamentally changes the economics of power distribution, allowing the railway to draw directly from the national high-voltage grid with far less intermediate processing.[1][5]

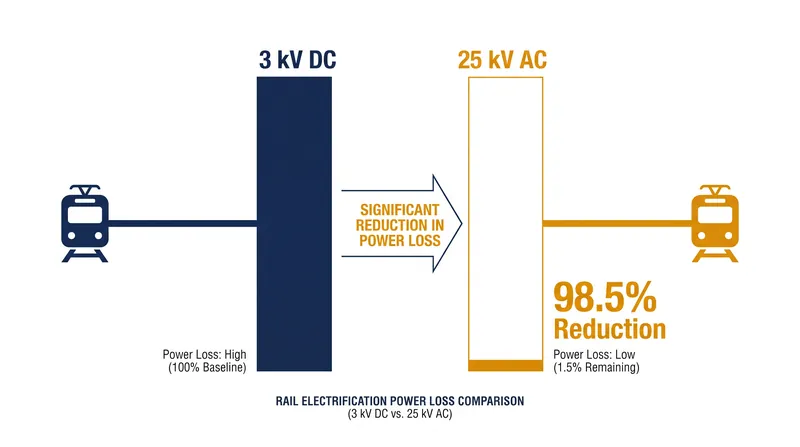

Because resistive line losses scale exponentially with the current, that 8.33-fold reduction in transmission current translates directly to a massive 98.5 percent reduction in transmission power loss. This extraordinary leap in electrical efficiency allows 25 kV AC systems to space their traction substations up to 60 kilometers apart, drastically reducing the amount of trackside electrical infrastructure required across long rural stretches. The high-voltage AC approach is the only mathematically viable way to deliver the immense power required by a high-speed train operating far from a major city center.[4][5]

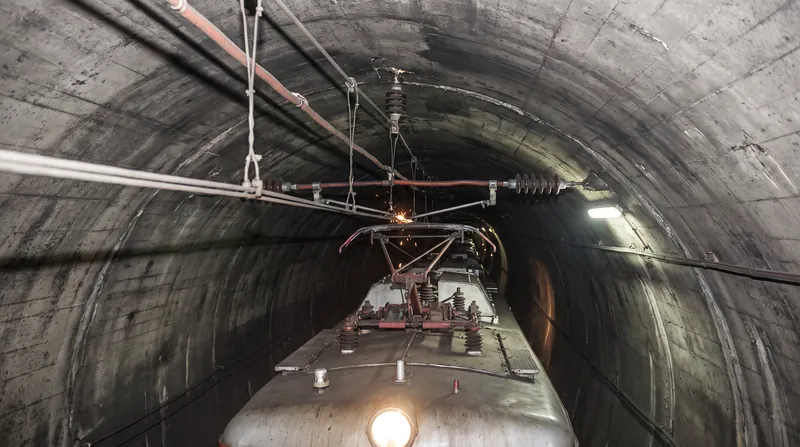

But the 25 kV AC solution introduces its own massive engineering hurdle: the clearance gap. At 25,000 volts, electricity is highly eager to jump through the ambient air to find a ground path, especially in damp or polluted environments.
To prevent catastrophic arcing, the overhead wires must be suspended significantly higher above the train, and the physical ceramic or composite insulators must be much larger. The electrical code dictates strict minimum distances between the live wire, the pantograph, and any surrounding grounded metal or masonry, creating an invisible but absolute spatial envelope around the track.[3]
This strict insulation requirement triggers a cascade of expensive civil engineering consequences. When a legacy rail line is upgraded to 25 kV AC, the existing Victorian-era tunnels, station canopies, and low road bridges suddenly lack the vertical clearance to safely house the live wire.
Infrastructure managers are routinely forced to either demolish and rebuild overpasses, physically lower the trackbed by excavating the ground beneath it, or deploy expensive specialized insulation coatings just to squeeze the high-voltage lines through the existing masonry. The cost of these civil works often dwarfs the cost of the electrical equipment itself.[3][4]
Furthermore, the high-voltage AC strategy shifts a massive weight burden from the trackside infrastructure directly onto the rolling stock. Because the train's traction motors cannot directly use 25 kV AC power, every locomotive or electric multiple unit must carry its own heavy onboard transformer to step the voltage down to a usable level before it reaches the inverters and motors. This requirement fundamentally alters the design of the train, requiring heavier bogies and more robust suspension systems to carry the localized mass of the electrical hardware.
These onboard transformers must be specially engineered to survive a uniquely hostile operating environment. As engineers at Taishan Transformer note, "Railway power systems operate under unique electrical conditions that differ significantly from ordinary industrial or utility power systems," meaning these units must withstand severe thermal stress, continuous operational cycling, and heavy mechanical vibration while maintaining high efficiency. This adds significant weight and complexity to the train itself, making the AC approach less ideal for lightweight urban metro systems that prioritize rapid acceleration and minimal track wear.[2]
The deep technical divide between 3 kV DC and 25 kV AC has historically fragmented the global rail network, forcing passengers to change trains at national borders or city limits where the electrification standards clash.
For decades, this incompatibility acted as a hard barrier to seamless international rail travel, requiring complex operational workarounds or the use of heavy, inefficient diesel locomotives to bridge the gaps. However, recent advancements in solid-state power electronics have mitigated this barrier, allowing manufacturers to build multi-system locomotives capable of dynamically reconfiguring their power intake on the fly.[4][5]
A modern multi-system high-speed train can cruise across a country on a highly efficient 25 kV AC mainline, seamlessly drop its pantograph, switch its internal circuitry, and glide into a legacy urban terminal under a 3 kV DC wire without ever stopping. While these multi-system trains are significantly more expensive to produce and maintain due to their duplicated electrical systems, they represent the ultimate technological bridge across the power-loss and insulation trade-off, allowing operators to utilize the best aspects of both standards.[4][5]
Looking forward, researchers are actively exploring novel medium-voltage DC architectures that attempt to capture the best of both worlds. By pushing DC systems to higher voltages—such as 9 kV DC—engineers hope to significantly reduce the substation density of traditional DC networks without triggering the massive clearance requirements and heavy onboard transformer penalties of the 25 kV AC standard. These experimental systems could offer a middle path for upgrading legacy lines where civil engineering constraints make AC electrification impossible.[2]
Until those experimental medium-voltage systems mature into global standards, the fundamental physics of the power-loss and insulation trade-off will continue to govern railway design. Every new high-speed line built and every legacy commuter line upgraded remains a calculated bet on whether it is cheaper to build more substations or to rebuild the bridges. The invisible geometry of the electrical arc will remain the ultimate arbiter of how the world's railways are powered, built, and operated for decades to come.[5]
Key terms

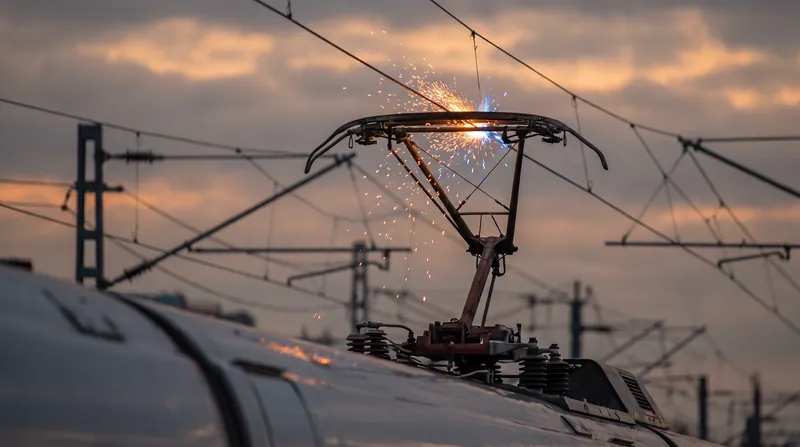

- Pantograph
- The articulated arm mounted on the roof of an electric train that extends upward to collect power from the overhead contact wire.
- Clearance Gap
- The minimum physical distance required between a high-voltage wire and grounded structures (like tunnel ceilings) to prevent electrical arcing.
- Resistive Loss (I²R)
- The energy lost as heat when electrical current encounters resistance while flowing through a conductor.
- Traction Substation
- A trackside electrical facility that receives high-voltage power from the national grid and converts it to the specific voltage and frequency required by the trains.
Reader questions
Why do high-speed trains use 25 kV AC?
High-speed trains require massive amounts of power. Using 25 kV AC reduces the current needed to deliver that power, which drastically cuts resistive heat losses in the overhead wires and allows substations to be spaced further apart.
Why not use 25 kV AC for all railways?
The high voltage requires a much larger physical air gap to prevent electrical arcing. Upgrading legacy urban lines to 25 kV AC often requires rebuilding tunnels and bridges to create enough clearance, which is prohibitively expensive.
How do trains cross borders with different voltages?
Modern multi-system locomotives are equipped with advanced solid-state electronics that can detect the incoming voltage and dynamically reconfigure their internal circuitry to operate on either AC or DC power.
Where opinion splits
High-Speed Rail Operators
Prioritize transmission efficiency and power capacity over long distances.
For operators running trains at 300 km/h across vast rural distances, the 25 kV AC standard is non-negotiable. The sheer power required to overcome aerodynamic drag at those speeds cannot be efficiently delivered at lower voltages without melting the overhead wires or requiring a traction substation every few kilometers. They view the civil engineering costs of bridge and tunnel clearances as a necessary upfront capital expense to unlock long-term operational viability.
Urban Transit Authorities
Prioritize compact infrastructure and lightweight rolling stock.
Agencies managing dense, legacy commuter networks heavily favor 1.5 kV or 3 kV DC systems. In urban environments, building substations every few kilometers is relatively easy, but raising tunnel ceilings or rebuilding city overpasses to meet 25 kV AC clearance requirements is financially ruinous. Furthermore, DC systems keep the heavy transformer equipment trackside, allowing the commuter trains themselves to be lighter, which reduces track wear during frequent stop-and-start operations.
Multi-System Integrators
Focus on bridging the gap between conflicting voltage standards.
Rather than fighting the physics of either standard, rolling stock manufacturers and integrators focus on building trains that can digest both. By equipping locomotives with advanced solid-state power electronics and dynamic pantographs, they allow trains to leverage the transmission efficiency of 25 kV AC on the open mainline and seamlessly switch to 3 kV DC when entering legacy urban terminals, effectively bypassing the infrastructure stalemate.
- High-Voltage AC Proponents
- Advocate for 25 kV AC to maximize transmission efficiency and minimize trackside substations.
- Medium-Voltage DC Advocates
- Argue that DC systems are better suited for dense urban networks with strict clearance limits.
- Multi-System Integrators
- Focus on building rolling stock that can operate across multiple voltage standards.
