How Track Superelevation Balances Centrifugal Force and Minimizes Lateral Wheel Wear

Under Title 49, Section 213.57 of the U.S. Code of Federal Regulations, the maximum allowable elevation of the outside rail on a curved track is strictly capped—often at no more than seven to eight inches above the inner rail. This small vertical difference serves as the primary defense against a train's lateral momentum.[1]

When a train enters a curve, centrifugal force pushes its mass toward the outside of the turn. Without intervention, this outward push forces the wheel flanges against the outer rail, causing severe friction, passenger discomfort, and at extreme speeds, derailment.[6]

Engineers counteract this by banking the track, a practice known as superelevation or cant. "Curve superelevation is the vertical distance that the outer rail is raised above the inner rail," according to the BrainKart railway engineering module.[6]

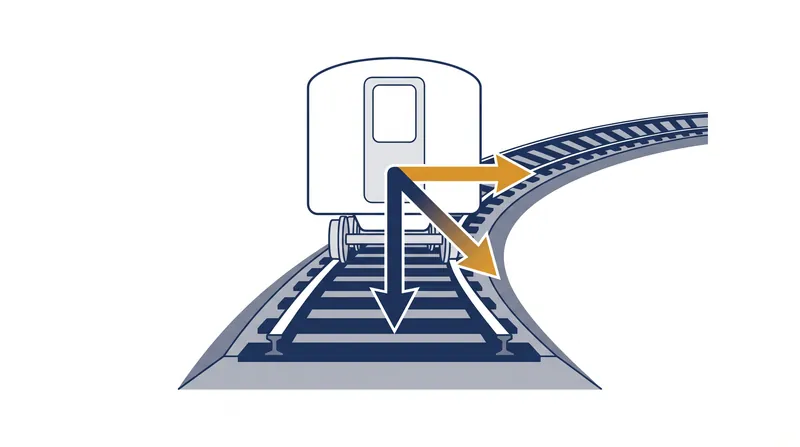

By raising the outer rail, gravity pulls the train inward, neutralizing the outward centrifugal push. If a train travels at the exact "equilibrium speed" for a given curve radius and bank angle, the lateral forces drop to zero.[3]

At this equilibrium speed, the weight of the train is distributed equally across both the inner and outer rails. This minimizes lateral wheel wear and ensures passengers feel only a slight increase in downward pressure, rather than being thrown sideways.[7]

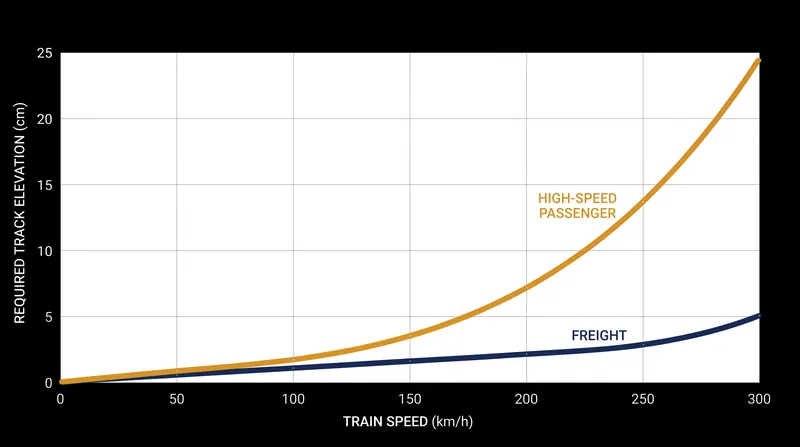

The engineering challenge arises because rail networks rarely host just one type of train. The National Transportation Library's framework for mixed-use corridors highlights the geometric conflict between 110-mph passenger trains and 40-mph freight consists sharing the same steel.[2]

A curve banked perfectly for a high-speed passenger train creates "cant excess" for a slow-moving coal train. The freight train's lack of centrifugal force causes its massive weight to bear down heavily on the inner rail.[2][3]

This cant excess leads to severe structural degradation. The inner rail suffers crushing vertical forces, while the inner wheel flanges grind against the steel, accelerating wear and increasing the risk of low-speed derailment.[3]

Conversely, if a curve is banked for a slow freight train, a high-speed passenger train experiences "cant deficiency." The train rounds the curve faster than the bank can compensate for, throwing weight onto the outer rail.[1][2]

Federal regulations manage this by capping cant deficiency—typically at three to five inches—which dictates the maximum speed any train can safely navigate a specific curve without compromising the track structure.[1]

The structural flexibility of the wheelset also dictates wear patterns. A research paper published in MDPI demonstrates that dynamic wheel-rail interactions under varying cant deficiencies significantly alter the contact patch where the steel wheel meets the rail.[4]

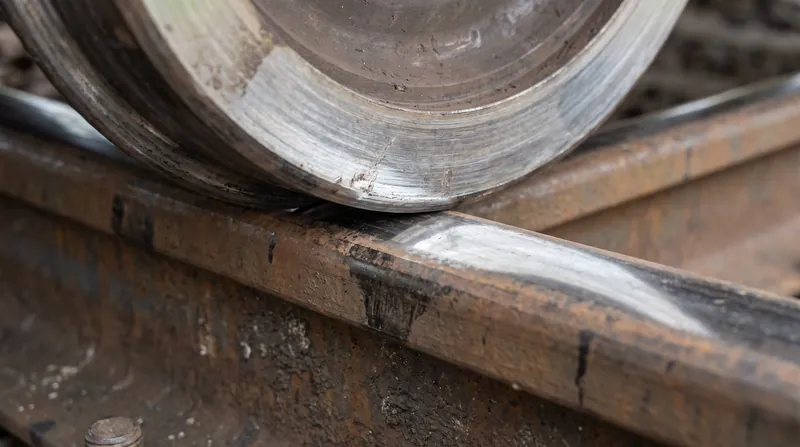

When a train operates at a high cant deficiency, the lateral forces shift the contact patch toward the gauge corner of the outer rail. This concentrated friction accelerates metal fatigue and requires more frequent track grinding.[4]

AI

A systematic investigation in the Journal of Railway Engineering Society found that optimizing rail cant in curved segments of metro lines can substantially reduce both rail wear and the high-frequency wheel-rail noise that plagues urban transit systems.[5]

To mitigate these conflicting requirements, engineers employ transition curves—spirals that gradually increase the track's curvature and elevation from a flat tangent to the full bank of the circular curve.[7]

The University of Technology's geometric design parameters detail how these transition spirals prevent sudden jolts, allowing the train's suspension to smoothly absorb the shifting lateral loads. Track superelevation on shared networks remains an exercise in managed compromise, balancing the speed of passenger transit against the sheer mass of industrial freight.[7][8]
