Catenary Wave Propagation Speed Caps Electric Train Velocity to Prevent Destructive Arcing

The ultimate speed limit of an electric train is dictated not by engine power, but by the mechanical wave traveling down the overhead wire. If a train approaches this wave's propagation speed, violent oscillations cause the pantograph to lose contact, triggering destructive electrical arcing.

By Anastasia Kuznetsova

In short

  1. The maximum speed of an electric train is physically capped by the speed of the mechanical wave its pantograph creates in the overhead wire.
  2. Approaching this wave speed causes violent resonance, forcing the pantograph to bounce and triggering destructive electrical arcs that melt the equipment.
  3. Engineers must use high-tension copper alloys or rigid conductor rails to raise this physical ceiling and enable speeds beyond 350 kilometers per hour.

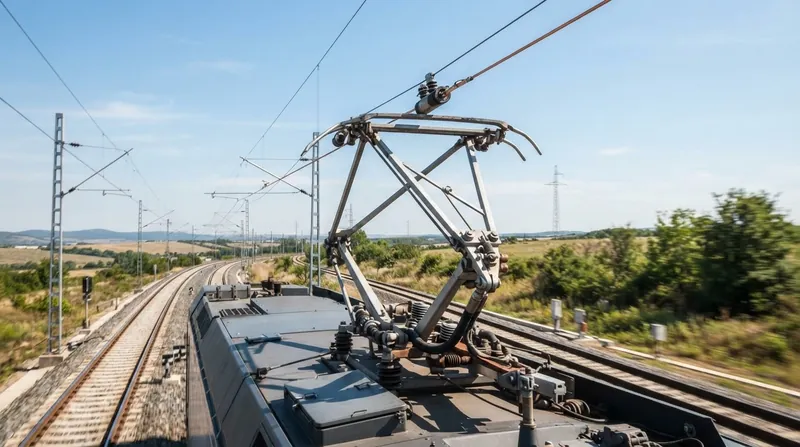

The absolute speed limit of a modern electric train is not determined by the horsepower of its traction motors, but by a mechanical wave traveling through the air above it. When a train's pantograph presses against the overhead contact wire, it pushes the metal upward, sending a ripple racing down the line ahead of the locomotive.[1]

If the train accelerates too close to the speed of that ripple, the outcome is catastrophic. The pantograph catches up to the wave it just created, causing the overhead wire to oscillate violently out of control and break contact.[2]

This phenomenon dictates the engineering of every high-speed rail corridor on Earth. To go faster, engineers must either increase the speed of the wave or abandon flexible wires entirely, because physics strictly forbids the train from outrunning the ripple.[1]

The speed of this mechanical wave is governed by a simple equation: the square root of the wire's tension divided by its linear mass density. A standard copper contact wire pulled to 20,000 Newtons of tension with a mass of 1.35 kilograms per meter produces a wave speed of exactly 121.7 meters per second.[6]

That translates to 438 kilometers per hour, which represents the theoretical absolute ceiling for that specific infrastructure. However, operating exactly at the wave speed causes infinite resonance, meaning trains must stay well below it to maintain stable contact.[2]

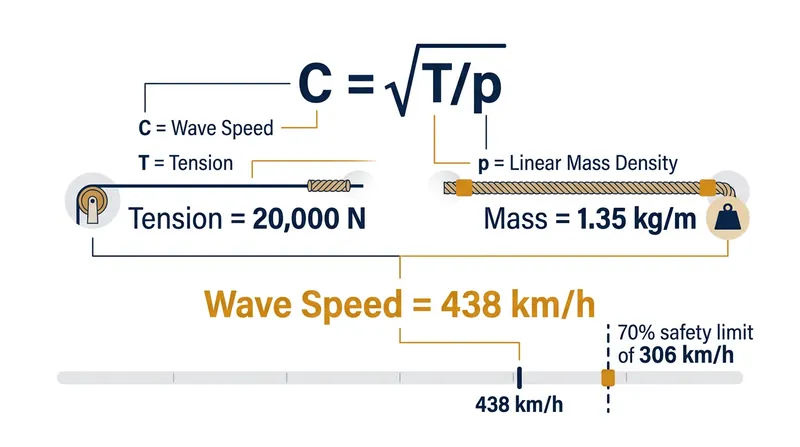

The physical properties of the contact wire dictate the absolute speed limit of the train beneath it.

The 70 Percent Safety Margin

European railway regulations, specifically the EN 50367 standard, impose a strict operational limit to prevent this resonance. Trains are legally and mechanically restricted to running at no more than 70 percent of the catenary wave propagation speed to ensure continuous power.[5]

Applying this regulatory margin to the standard copper wire yields a maximum permitted train speed of just 306 kilometers per hour. Even if a locomotive possesses the electrical power to reach 400 kilometers per hour, the physical properties of the overhead line will force it to stay near 300.[1]

When a train violates this margin and approaches the critical speed, the pantograph experiences severe bounce. The upward force of the pantograph aligns perfectly with the downward phase of the wave, causing the carbon contact strip to physically separate from the copper wire.[6]

This separation lasts only milliseconds, but at high voltages, it is enough to initiate a massive electrical arc. The 25-kilovolt alternating current jumps across the physical gap, turning the surrounding air into a superheated plasma channel that bridges the disconnect.[3]

These arcs reach temperatures capable of instantly melting both the copper contact wire and the carbon-graphite pantograph strip. Repeated arcing not only destroys the train's power collection equipment but can sever the overhead line entirely, halting the entire rail network.[3]

Engineering the Wire Tension

To push train speeds beyond the 306-kilometer-per-hour limit, infrastructure managers must manipulate the variables inside the wave speed equation. The most direct method available to engineers is to increase the mechanical tension applied to the contact wire.[4]

Pulling the wire tighter directly increases the propagation speed of the mechanical ripple. Upgrading the tension from 20,000 Newtons to 27,000 Newtons raises the wave speed to 568 kilometers per hour, pushing the 70 percent operational ceiling up to 398 kilometers per hour.[2]

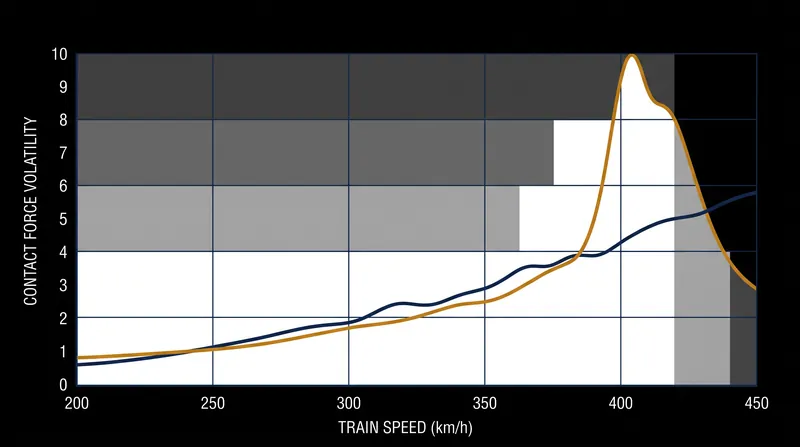

As train speed approaches the wave propagation speed, contact force volatility spikes, leading to physical separation.

However, standard pure copper cannot withstand 27,000 Newtons of tension without permanently stretching and deforming over time. The metal begins to yield under the immense strain, causing the wire to sag dangerously between the support masts and ruin the alignment.[4]

To solve this, metallurgists developed advanced copper alloys, mixing in small amounts of magnesium or silver. These alloys possess significantly higher tensile strength than pure copper, allowing them to be pulled taut enough to support 350-kilometer-per-hour operations without stretching.[1]

The trade-off is that these high-strength alloys are slightly less conductive than pure copper. Trains must draw more current to compensate for the resistance, which generates additional heat in the wire that must be managed by the catenary design.[3]

The Mass Density Dilemma

The other variable engineers can adjust to increase wave speed is the linear mass density of the wire. A lighter wire allows the mechanical ripple to travel faster, raising the critical speed ceiling for the pantograph and enabling faster schedules.[6]

Unfortunately, reducing the mass of the wire requires reducing its cross-sectional area. A thinner wire carries less electrical current, which directly contradicts the massive megawatt power demands of a train traveling at 350 kilometers per hour.[6]

High-speed locomotives draw immense amounts of power to overcome aerodynamic drag, requiring thick, heavy contact wires to prevent the system from overheating. This creates a fundamental engineering paradox: the wire must be heavy to carry the current, but light to outrun the pantograph.[1]

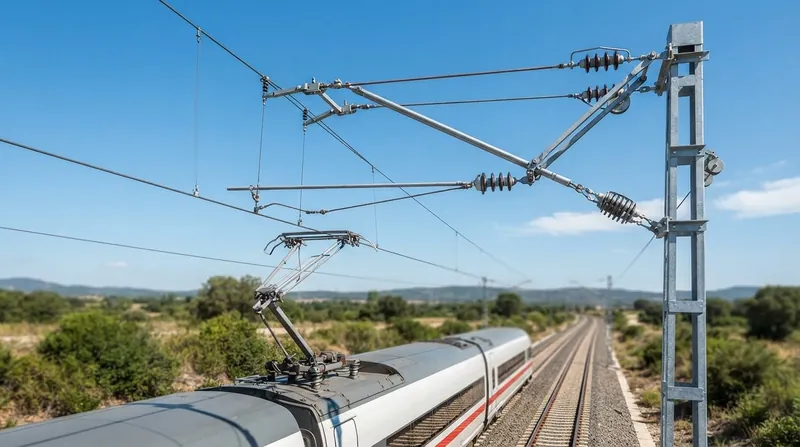

Illustration: A dual-wire system uses a heavy messenger wire to support a lighter contact wire, optimizing the mass density at the point of contact.

Designers compromise by using a dual-wire system, where a heavy messenger wire supports a lighter contact wire via vertical droppers. This distributes the mechanical load and the electrical current, optimizing the wave propagation speed at the exact point of contact.[4]

Even with these optimizations, the aerodynamic uplift on the pantograph itself increases with the square of the train's velocity. At 400 kilometers per hour, the wind pushes the pantograph so hard against the wire that it artificially alters the tension, complicating the wave dynamics further.[2]

Beyond Flexible Catenaries

For speeds approaching 400 kilometers per hour and beyond, the flexible catenary system begins to reach its absolute physical limits. The required tension exceeds the capabilities of even the most advanced copper-magnesium alloys, forcing a rethink of the infrastructure.[1]

To break this barrier, some next-generation rail projects are abandoning flexible wires in favor of rigid conductor rails. An aluminum extrusion clamps the copper contact wire firmly in place, completely eliminating the mechanical wave propagation problem.[4]

Because a rigid rail cannot form a traveling wave, there is no critical speed limit dictated by tension and mass density. The pantograph simply slides along a solid, unyielding surface, allowing for theoretically unlimited speeds without the threat of resonance.[4]

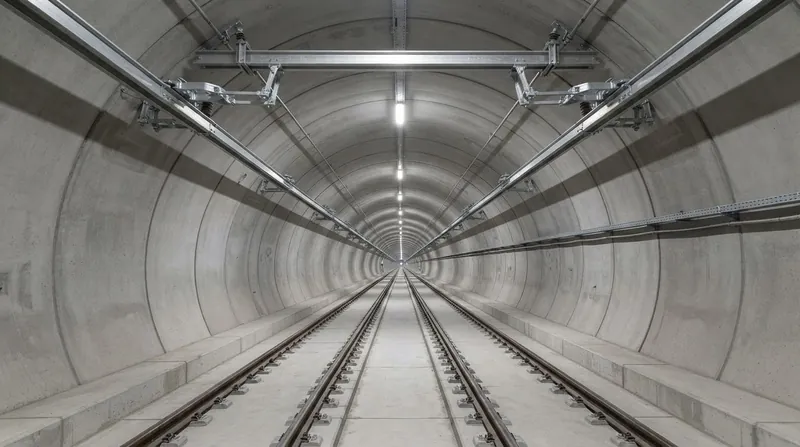

Illustration: Rigid conductor rails eliminate the wave propagation problem entirely, but their weight restricts their use primarily to tunnels.

However, rigid conductor rails are exceptionally heavy and expensive to install on open-air elevated viaducts. They are currently restricted mostly to tunnels and underground sections, where the tunnel ceiling provides continuous structural support for the heavy aluminum rail.[1]

Until rigid systems can be deployed economically across thousands of kilometers of open track, the mechanical wave will remain the ultimate governor of rail speed. Every high-speed train in the world is currently racing against a ripple it can never be allowed to catch.[1]

How we did this

Method
Recomputation of the theoretical maximum train speed based on the mechanical wave propagation limit of standard copper contact wires versus high-strength copper-magnesium alloys.
What we found
Even with infinite engine power, physical wave propagation creates a hard ceiling for electric trains using standard copper catenaries at approximately 306 km/h, requiring a shift to advanced alloys or rigid conductor rails to push past 350 km/h.
What we worked from
  • Standard copper wire tension: 20,000 N — Vehicles
  • Standard copper wire mass density: 1.35 kg/m — Vehicles
  • Regulatory safety margin: 70% of wave speed — CENELEC
Limits of this analysis
This analysis assumes ideal environmental conditions and straight track; crosswinds, track curvature, and aerodynamic uplift on the pantograph further reduce the practical critical speed.

Key terms

Pantograph
The folding, roof-mounted mechanism that extends upward to connect an electric train to the overhead power lines.
Catenary
The system of overhead wires used to supply electricity to a locomotive, typically consisting of a load-bearing messenger wire and a lower contact wire.
Wave Propagation Speed
The velocity at which a mechanical ripple travels down a tensioned wire after being struck or pushed.
Electrical Arcing
A luminous discharge of current that jumps across a gap in a circuit, turning the air into a superheated plasma.
Linear Mass Density
The amount of mass per unit of length of a wire, which directly affects how fast mechanical waves can travel through it.

Frequently asked

Why can't trains just use a thicker wire to carry more power?

A thicker wire increases the linear mass density of the catenary. According to the wave speed equation, a heavier wire causes the mechanical ripple to travel slower, which actually lowers the train's maximum safe operating speed.

What happens if the pantograph loses contact for just a second?

Even a millisecond of separation at 25,000 volts causes the current to jump the gap, creating a plasma arc. This arc can reach tens of thousands of degrees, instantly melting the copper wire and the pantograph's carbon strip.

Do rigid conductor rails have a wave speed limit?

No. Because rigid rails are solid aluminum extrusions clamped to a ceiling, they cannot form a traveling mechanical wave. This eliminates the resonance problem entirely, though they are much heavier and more expensive to install.

Viewpoints in depth

Railway Infrastructure Managers

Focused on maintaining network reliability and preventing catastrophic wire failures.

For the engineers maintaining the physical network, the wave propagation limit is a hard boundary that dictates maintenance schedules. They argue that pushing tension higher to accommodate faster trains exponentially increases the risk of wire snaps and requires far more frequent replacement of the contact wire. Their priority is keeping the operational speed safely within the 70 percent margin to avoid the massive network disruptions caused by arcing and dewirement.

Rolling Stock Manufacturers

Focused on aerodynamic efficiency and active pantograph control to push speed limits.

Train builders approach the problem from the vehicle side, arguing that the catenary cannot solve the issue alone. They advocate for active pantograph suspensions that use sensors and actuators to dynamically adjust the upward pressure in milliseconds. By actively damping the bounce, they believe trains can safely operate closer to the critical wave speed without triggering the destructive resonance that leads to arcing.

Materials Scientists

Focused on developing advanced alloys to alter the fundamental physics of the wire.

Metallurgists view the wave speed limit as a materials problem rather than a purely mechanical one. They are focused on developing new copper-magnesium and copper-silver alloys that offer the tensile strength of steel while retaining the electrical conductivity of pure copper. Their goal is to create a wire that can be tensioned to 30,000 Newtons without yielding, fundamentally raising the wave propagation ceiling for the entire industry.

Infrastructure Operators 40%Vehicle Dynamicists 30%Materials Engineers 30%
Infrastructure Operators
Prioritize network stability and strict adherence to the 70 percent safety margin to prevent wire damage.
Vehicle Dynamicists
Focus on active pantograph control and aerodynamic solutions to safely operate closer to the critical speed.
Materials Engineers
Advocate for advanced high-tension alloys and rigid rail systems to fundamentally raise the physical speed limit.
