How Neutral-Section Phase Breaks Prevent High-Voltage Short Circuits on AC Railways

Grid operators managing national power networks face a strict physical limit when electrifying a railway. They cannot feed a 200-mile rail corridor from a single electrical phase without severely unbalancing the commercial transmission grid. To maintain stability, engineers must slice the overhead catenary into isolated sub-grids.[1]

Each of these sub-grids draws from a different phase of the high-voltage commercial network. By rotating the load across all three phases, operators keep the broader electrical grid balanced. However, this segmentation creates a lethal boundary line in the sky above the tracks.[1]

When a locomotive approaches this boundary, its roof-mounted pantograph slides directly toward a junction where two out-of-sync power feeds meet. If the conductive carbon strip on the pantograph were to touch both wires simultaneously, it would bridge the phases. The resulting short circuit would be catastrophic.[2]

"A phase-to-phase fault at these voltages does not merely trip a breaker; it instantly vaporizes the contact wire and destroys the pantograph assembly," notes a 2025 technical bulletin from the International Journal of Railway Technology. The heat generated by the arc flash exceeds 5,000 degrees Celsius.[2]

The 43-kilovolt differential

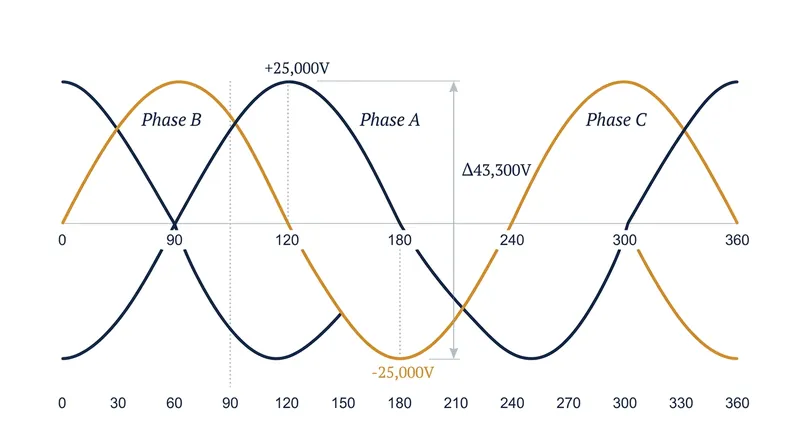

Standard alternating current traction networks operate at 25,000 volts and 50 or 60 hertz. Because the three phases of the commercial grid are offset by 120 degrees, the voltage difference between two adjacent phases is not zero. It is mathematically amplified by the phase shift.[1]

At the exact moment one phase hits its positive peak, the adjacent phase is deep in its negative cycle. The instantaneous potential difference across the boundary reaches 43,300 volts. No standard circuit breaker can suppress an arc driven by that much voltage if a physical bridge exists.[1]

To prevent this, infrastructure engineers install a neutral section, commonly known as a phase break. This is a dead zone spliced directly into the tensioned copper catenary. It physically separates the live sub-grids using heavy-duty ceramic or polytetrafluoroethylene insulators.

The train must coast through this unpowered gap using its own momentum. For a standard commuter train, the neutral section typically spans five to ten meters. This distance guarantees that a single pantograph cannot touch the live wires on both sides of the break simultaneously.

Snuffing the electrical arc

Simply providing a dead zone is not enough to prevent an explosion. If a locomotive enters the neutral section while actively drawing megawatts of power, the sudden break in contact will draw a massive electrical arc. That arc can stretch across the insulators, effectively bridging the phases anyway.[1][2]

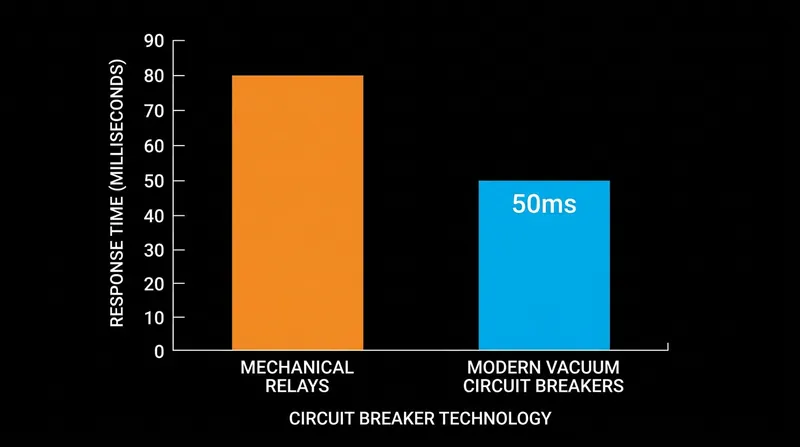

To solve this, trackside Automatic Power Control magnets are installed between 15 and 30 meters ahead of the phase break. When the train passes over these magnets, a sensor triggers the locomotive's onboard vacuum circuit breakers. The breakers snap open in less than 50 milliseconds.

"Opening the main breaker cuts the traction current before the pantograph leaves the live wire, ensuring the transition into the dead zone is completely spark-free," states a 2024 electrification design manual published by Network Rail. The train goes entirely dark for a fraction of a second.

Once the pantograph clears the insulators and contacts the new phase, a second set of trackside magnets signals the train to close its breakers. Power is restored, the traction motors re-engage, and the passengers rarely notice anything more than a brief flicker of the cabin lights.

High-speed rail complications

The engineering math changes drastically when dealing with high-speed rail networks like the French TGV or the Japanese Shinkansen. These trains often run with multiple pantographs raised simultaneously to draw sufficient power. A standard 10-meter neutral section becomes a deadly hazard.[2]

If the distance between the front and rear pantographs is 200 meters, the train itself acts as a massive conductive wire. The front pantograph could touch the second phase while the rear pantograph is still touching the first. The resulting 43,300-volt short circuit would route directly through the train's roof line.[2]

To prevent this, high-speed rail operators must build exceptionally long neutral sections that exceed the total length of the train. Alternatively, they employ active phase-switching substations. These advanced systems electronically switch the phase of the entire track block while the train is inside it.[1][2]

Active switching eliminates the need for dead zones entirely, allowing trains traveling at 320 kilometers per hour to maintain continuous power. However, these solid-state switching stations cost millions of dollars per installation, restricting their use to premium high-speed corridors.[1]

Maintenance and carbon tracking

Even the most robust neutral sections require intense maintenance to prevent catastrophic grid faults. The insulators spliced into the catenary take a severe physical beating. A pantograph traveling at 200 kilometers per hour strikes the rigid insulator with immense mechanical force.[2]

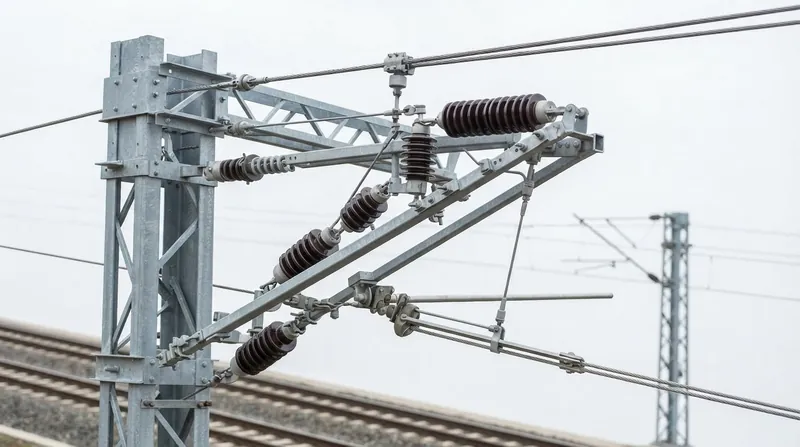

Over time, the carbon strips on the pantograph wear down, leaving a fine layer of conductive graphite dust across the surface of the insulators. If this dust accumulates, it creates a microscopic conductive path across the dead zone, known as carbon tracking.[1][2]

During a rainstorm, this carbon track can allow high-voltage current to creep across the insulator. If the current successfully bridges the gap, it triggers a phase-to-phase flashover. Maintenance crews must regularly scrub the insulators to remove the graphite buildup.[1]

Grid operators monitor the health of these phase breaks using thermal imaging cameras mounted on specialized diagnostic trains. A neutral section showing elevated temperatures indicates that leakage current is beginning to cross the insulators, signaling the need for immediate replacement before the grid fails.[2]

The precise coordination between the track infrastructure and the rolling stock represents one of the most critical safety interfaces in modern rail engineering. A failure in either the trackside magnets or the train's circuit breakers guarantees an immediate and violent electrical fault.[1]

As railway networks expand and power demands increase, engineers continue to refine phase break technology. The transition from heavy ceramic insulators to lightweight composite materials has reduced the mechanical wear on pantographs, ensuring that these high-voltage boundaries remain secure.[2]
