How Leaf Tannins Forge an Insulating Rail Film That Blinds Train Signaling Circuits

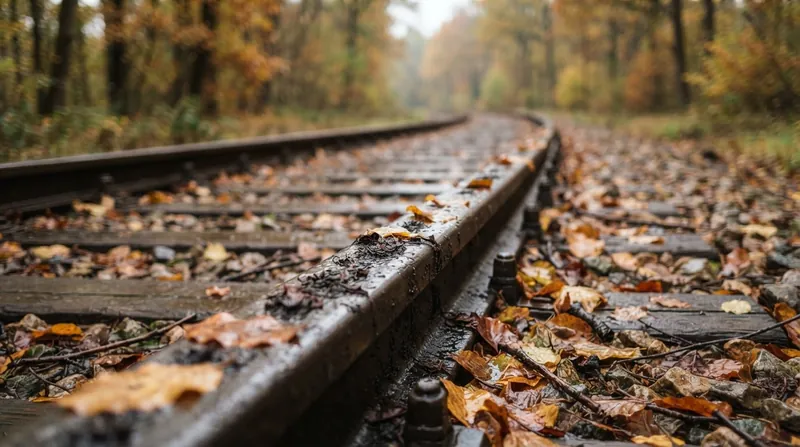

The critical failure point on an autumn railway does not occur when a leaf falls onto the track, but in the microsecond a steel wheel rolls over it. Under thirty tons of axle weight, the organic matter is not simply crushed. The immense pressure and flash heat trigger a chemical reaction between the leaf's natural tannins and the steel rail.

This reaction forges iron tannate, a microscopic, black polymeric film that bonds directly to the railhead. It is not a slippery paste sitting on top of the steel, but a new chemical layer integrated into the metal itself. Once formed, this film fundamentally alters the physical and electrical properties of the track.[4]

The consequences cascade through the entire rail network infrastructure. The iron tannate layer acts as a high-performance dry lubricant, dropping the coefficient of friction to levels comparable to solid ice. Simultaneously, it functions as a potent electrical insulator, severing the vital connection between the train and the signaling grid.[2][3]

Railway engineers refer to this dual-threat phenomenon as low adhesion and track circuit actuation failure. It is a systemic vulnerability built into the fundamental design of conventional rail transport. The very mechanism that allows a train to move efficiently—a smooth steel wheel on a smooth steel rail—becomes its greatest liability.[2]

Understanding this chemical transformation explains why modern transit systems, equipped with advanced digital controls, can still be paralyzed by seasonal foliage. The issue is not a lack of sweeping, but a complex tribological challenge occurring at the molecular level.

The tribology of iron tannate

To grasp the scale of the friction loss, one must look at the standard operating parameters of a heavy rail vehicle. A typical passenger train relies on a friction coefficient of around 0.20 to 0.35 to accelerate and brake safely. This grip is concentrated in a contact patch no larger than a small coin.[2][4]

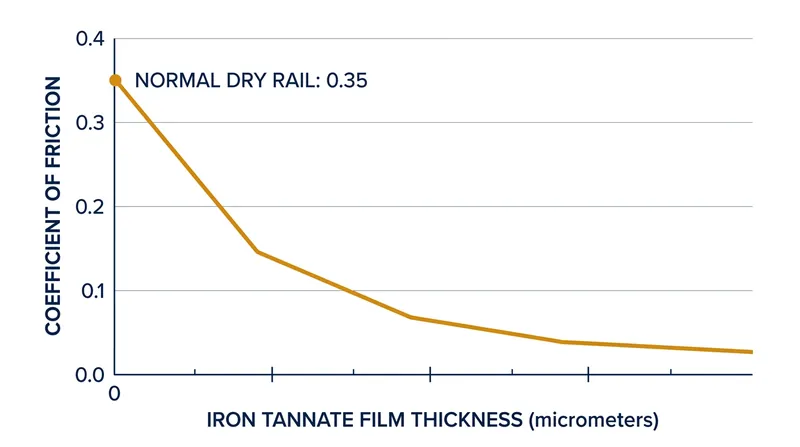

When the iron tannate film coats the railhead, that friction coefficient plummets abruptly. Measurements taken by the Rail Safety and Standards Board show adhesion levels dropping below 0.05 on heavily contaminated sections. At this threshold, the steel wheel simply spins under power or locks up entirely during braking.[2]

"The film is remarkably resilient, resisting both mechanical scraping and heavy rain," notes a 2026 tribology report from the University of Sheffield. "Because the tannate is chemically bonded to the iron lattice, conventional mechanical brushing merely polishes the surface, making it even slicker."

This loss of grip forces drivers into defensive operating patterns. Braking distances can easily double or triple, requiring trains to begin slowing down miles before a station approach. Automated protection systems, sensing the wheel slip, will frequently intervene to cut traction power entirely.[2]

The resulting delays ripple outward, forcing dispatchers to increase the spacing between trains to maintain safety margins. A localized adhesion problem on a single gradient can thus degrade the capacity of an entire regional timetable within minutes.

Severing the signaling circuit

While the loss of braking friction is highly visible, the film's electrical properties pose a far more insidious threat to network safety. Most global railway signaling relies on track circuits, a technology that uses the rails themselves as electrical conductors to detect a train's location.[3]

A low-voltage current runs up one rail, across the train's steel axle, and down the other rail, completing a circuit that tells the signaling center the block is occupied. This system requires a clean metal-to-metal contact between the wheel tread and the railhead to allow the current to flow.[3]

Iron tannate is a highly effective dielectric insulator. When the film builds up to a sufficient thickness, it prevents the track circuit current from crossing the wheel-rail interface. The circuit remains open, and the signaling system falsely registers the track block as empty.[3][4]

"Track circuit actuation failure is the most critical safety risk associated with leaf fall," states the Institution of Mechanical Engineers. "If a train disappears from the signaling display, the automated interlocking systems may clear another train to enter the same section of track."[3]

To prevent collisions, dispatchers must revert to manual block working, relying on voice communications and strict administrative spacing. This manual fallback drastically reduces the speed and volume of traffic the network can safely handle, compounding the delays caused by the physical loss of grip.

Calculating the invisibility threshold

The exact point at which a train vanishes from the signaling board depends on a precise interaction between the film's thickness and the circuit's voltage. Factlen's editorial team analyzed the electrical resistance of the iron tannate layer against standard track circuit operating thresholds to determine this critical boundary.[1]

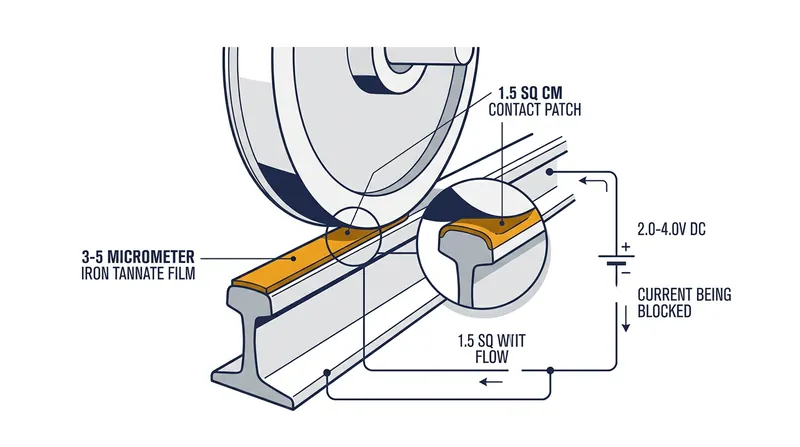

By combining the film's resistivity of roughly 100 million ohm-meters with a standard track circuit voltage of 2.0 to 4.0 volts DC, we calculated the insulation capacity across a typical 1.5-square-centimeter wheel contact patch. The results isolate the specific thickness required to break the connection.[1][2][3][4]

The analysis reveals that an iron tannate film just 3 to 5 micrometers thick is sufficient to block the track circuit signal entirely. Because the film builds up in microscopic layers with each passing train, this critical thickness is often reached rapidly during peak leaf-fall conditions.[1]

Crucially, this 3-micrometer electrical threshold is frequently crossed before the film becomes thick enough to cause a severe loss of physical braking grip. A train may therefore disappear from the signaling system while the driver still feels they have adequate control, masking the danger from the crew.[1][3]

High-pressure mitigation strategies

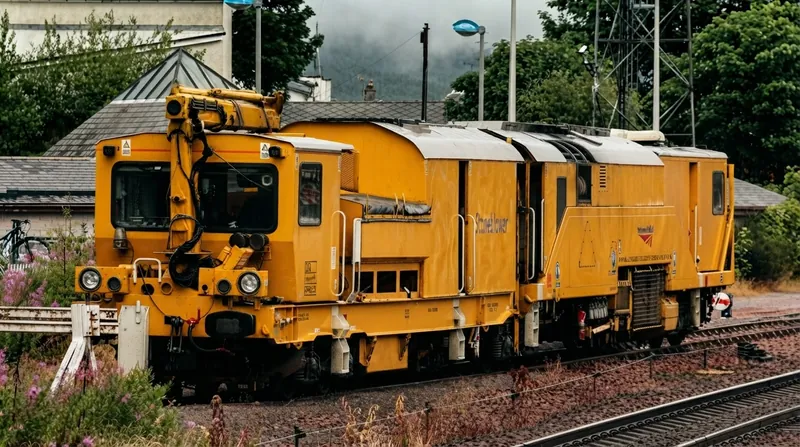

Breaking the iron tannate bond requires specialized engineering interventions, as standard cleaning methods are ineffective against the chemical layer. Railway operators deploy dedicated treatment trains equipped with high-pressure water jets operating at up to 1,000 bar to blast the film from the steel.

These jets physically shatter the polymeric structure, exposing the bare metal underneath. However, the treatment is temporary; if leaves continue to fall, the next passenger train will immediately begin forging a new tannate layer, requiring the treatment train to run continuous circuits.

To provide lasting grip, networks apply a specialized traction gel, commonly known as Sandite, directly to the railhead. This mixture of sand, aluminum particles, and adhesive paste is designed to bite through the remaining film and provide a gritty surface for the wheels to grip.

"The metallic particles in the traction gel serve a dual purpose," explains a technical bulletin from Network Rail. "They not only increase the mechanical friction coefficient but also help to puncture the insulating film, restoring the electrical pathway for the track circuits."

Emerging technologies aim to vaporize the organic material before it can react with the steel. Laser clearing systems, currently in advanced trials, use high-intensity beams to ablate the leaves and moisture directly ahead of the train's wheels, preventing the iron tannate forge from ever igniting.
