1,435 mm, 1,668 mm, and 1,067 mm: The Engineering Trade-offs Driving Global Rail Gauge Selection

In 1829, on the damp soil of North West England, engineer George Stephenson laid the tracks for the pioneer Liverpool & Manchester line. He spaced the inner faces of the steel rails exactly 1,435 millimeters apart—a measurement equivalent to 4 feet and 8.5 inches. That specific dimension, born from the axle width of pre-industrial horse-drawn coal wagons, would eventually dictate the physical constraints of global trade. Today, that exact spacing is known as standard gauge, and it forms the mechanical foundation for the vast majority of the world's train networks.[2]

The decision of how far apart to place two rails is the single most consequential engineering choice in railway construction. It dictates the maximum safe speed of the rolling stock, the permissible weight of the cargo, the sharpness of the curves the train can navigate, and the sheer volume of earth that must be moved to carve a path through a mountain. A wider stance offers lateral stability; a narrower stance offers agility and cost savings.[3]

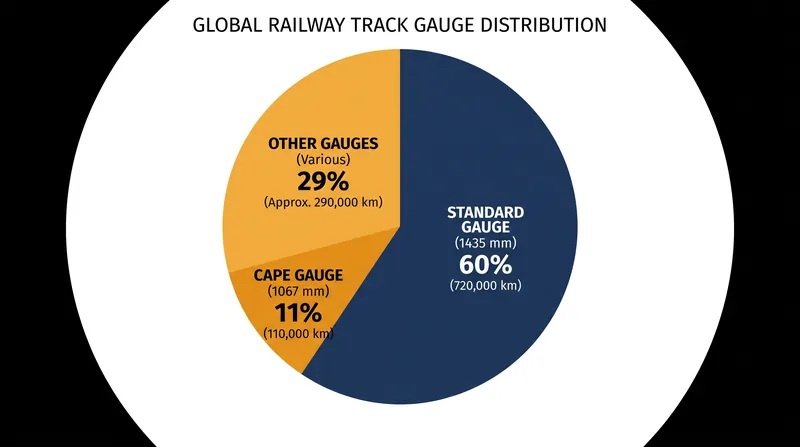

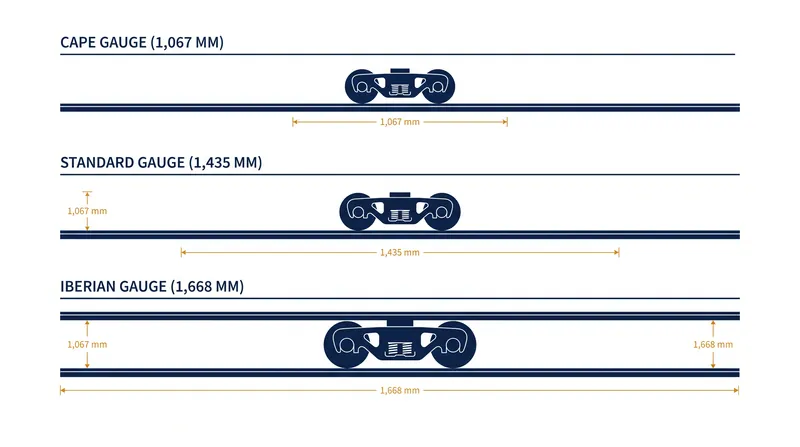

Across the globe, three dominant gauge families illustrate these competing physical demands: the 1,435 mm standard gauge, the 1,668 mm Iberian broad gauge, and the 1,067 mm Cape narrow gauge. While standard gauge accounts for approximately 60 percent of the world's railways—spanning roughly 720,000 kilometers of track—the remaining 40 percent represents deliberate engineering deviations designed to solve specific geographic, economic, or strategic problems.[3]

The physics of rail transport are unforgiving. A train is essentially a massive, low-friction projectile guided entirely by the interaction between a flanged steel wheel and a steel rail. When a locomotive enters a curve, centrifugal force pushes the vehicle's center of gravity outward. The wider the distance between the rails, the higher that center of gravity can safely sit without the vehicle tipping over.[2]

This desire for maximum stability and load capacity drove the development of broad gauges. In the mid-19th century, engineers in Spain and Portugal opted for a wider track to accommodate larger locomotives capable of hauling heavy loads over the steep gradients of the Iberian Peninsula. Spain initially built its network to a 1,672 mm gauge, while Portugal utilized a 1,664 mm gauge.[4]

In 1955, the two nations agreed to a compromise to ensure seamless cross-border interoperability. They established the Iberian gauge at exactly 1,668 mm. This dimension makes it the second-widest gauge in regular use globally, sitting just 8 millimeters narrower than the 1,676 mm Indian gauge. The 1,668 mm stance provides exceptional lateral stability, allowing for spacious passenger carriages and heavy freight loads, but it requires wider tunnels, broader bridges, and gentler curves.[2][4]

Conversely, when capital is scarce and terrain is hostile, engineers shrink the track. Narrow gauges sacrifice top speed and maximum payload in exchange for a tighter turning radius and drastically reduced construction costs. A narrower track means less dynamite, less excavated rock, and narrower bridges.[3]

The most successful of these narrow configurations is the 1,067 mm Cape gauge. Originally championed by Norwegian engineer Carl Abraham Pihl for the mountainous terrain of Norway, the gauge earned its famous moniker after the Cape Province of South Africa adopted it as a standard in 1873.[3]

Today, Cape gauge ranks third globally in terms of utilization. It covers more than 110,000 kilometers of track, accounting for approximately 11 percent of the world's railways. It dominates the networks of Japan, New Zealand, South Africa, and much of sub-Saharan Africa. In Japan, the 1,067 mm gauge proved so effective at navigating the archipelago's mountainous topography that it remains the standard for the legacy network, even as the high-speed Shinkansen lines utilize the 1,435 mm standard gauge.[2][3]

The coexistence of these different gauges creates a logistical bottleneck known as a break-of-gauge. When a train traveling on a 1,435 mm track meets a 1,668 mm track, the physical infrastructure simply stops matching the vehicle. Historically, this required unloading all cargo and passengers and transferring them to a new train—a labor-intensive process that crippled supply chain efficiency.[5]

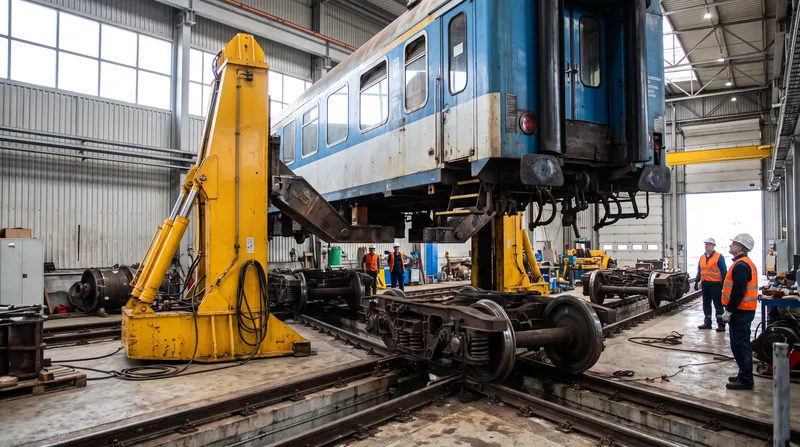

Modern engineering has engineered solutions to this friction. At the borders between different gauge zones, specialized facilities employ massive wagon jacks to lift entire trains off their bogies—the wheeled undercarriages that hold the axles. The standard-gauge bogies are rolled out, broad-gauge bogies are rolled in, and the train is lowered back down to continue its journey.[5]

More advanced rolling stock utilizes variable gauge axles. These sophisticated wheelsets can physically slide inward or outward along the axle while the train moves slowly through a specialized transition track. This technology allows high-speed passenger trains in Spain to transition seamlessly between the 1,435 mm standard gauge of the high-speed network and the 1,668 mm Iberian gauge of the legacy network without stopping.[2][5]

The push for international standardization remains a powerful force in railway engineering. The International Union of Railways (UIC), in collaboration with the Organization for Cooperation of Railways (OSJD), continuously updates the technical standards that govern how vehicles interact with the track. In January 2021, the UIC published the first edition of IRS 50505-1, a comprehensive document defining the rolling stock construction gauge.[1]

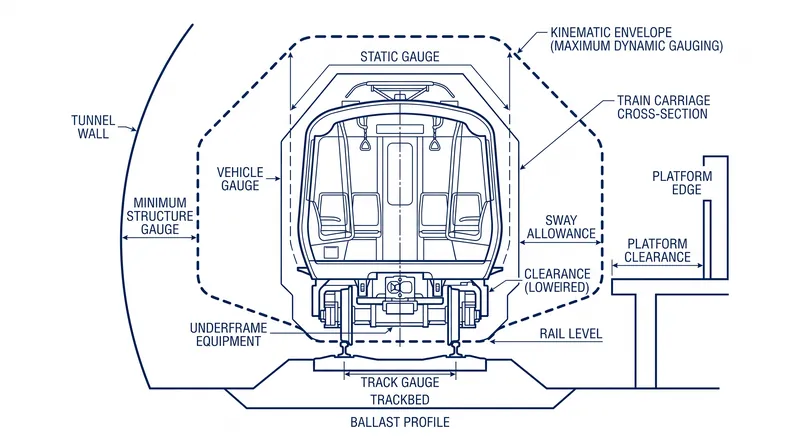

The goal of these standards is to eliminate the friction of cross-border transport. As the UIC notes in its official documentation, the organization "develops and distributes IRSs in order to help railway stakeholders to achieve greater harmonisation and collaboration in daily railway operations." By standardizing the kinematic envelope—the maximum physical space a moving train can occupy without hitting a tunnel wall or a platform—engineers ensure that a standard-gauge wagon loaded in Germany can safely navigate the infrastructure of France or Italy.[1]

Yet, the legacy of the 19th-century gauge decisions remains permanently etched into the earth. The 1,520 mm Russian gauge, originally designed by engineer Pavel Melnikov to increase load capacity across the vast, flat expanses of the Russian Empire, still dictates the logistics of Eastern Europe and Central Asia.[2][3]

The global railway network is not a monolith, but a patchwork of localized engineering compromises. The 1,435 mm standard gauge won the battle for global dominance through early industrial momentum, but the 1,668 mm Iberian gauge and the 1,067 mm Cape gauge survive because they solved specific physical problems that the standard gauge could not. The distance between the rails is never arbitrary; it is a permanent record of the terrain, the economy, and the engineering priorities of the era in which it was laid.[2][3][4]
