Rebuild the Track or Rebuild the Train: The Engineering Behind Variable-Gauge Railways

Infrastructure ministries and Trans-European Transport Network (TEN-T) coordinators face a binary choice when connecting incompatible rail networks: rebuild the track, or rebuild the trains. Their next major intervention window arrives with the 2027–2032 funding cycle, where billions will be allocated to bridge the "break of gauge" between Europe's 1,435-millimeter standard tracks and the broader Iberian (1,668 mm) and Russian (1,520 mm) systems.[3]

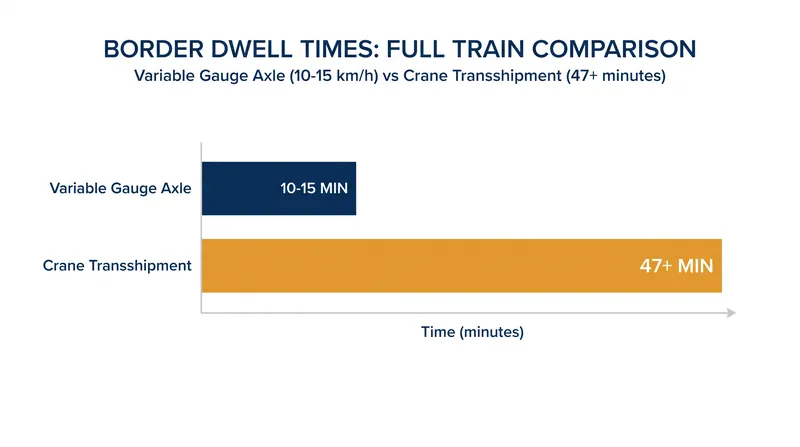

The physical gap between these standards has historically required trains to stop at borders for transshipment or bogie exchange. Even at highly optimized border crossings, such as the Altynkol railway station between China and Kazakhstan, gantry cranes require at least 47 minutes to move containers from a standard-gauge train to a 1,520-millimeter broad-gauge train. To eliminate this bottleneck, engineers have developed two competing solutions: dual-gauge track infrastructure and variable-gauge axles (VGA).[1][2][3]

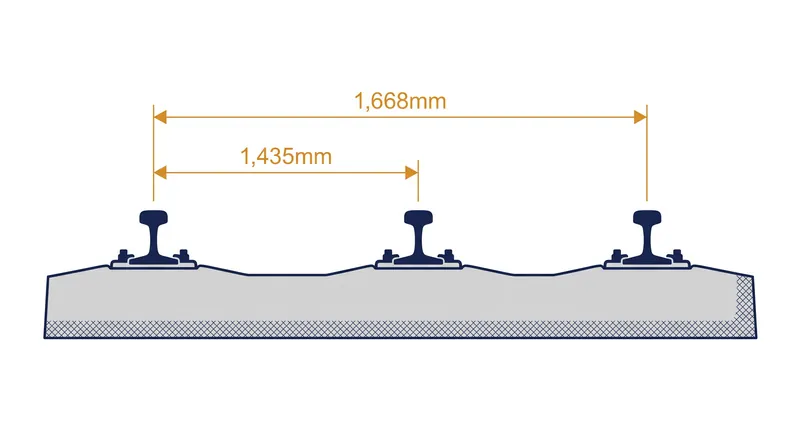

Dual-gauge track solves the problem in the dirt. By laying three (or sometimes four) rails on the same sleepers, infrastructure managers allow differently calibrated wheelsets to operate on the same line. If the difference between the two gauges is large enough—such as between the 1,435-millimeter standard gauge and a 1,067-millimeter narrow gauge—a three-rail configuration is possible, allowing both systems to share one common rail.[1]

However, dual-gauge infrastructure is exceptionally complex. The turnouts—the mechanical switches that guide trains from one track to another—must simultaneously accommodate the geometric and dynamic requirements of two incompatible wheel-rail systems. At an obtuse crossing where a wider gauge diverges across a narrower one, movable points are required to maintain a continuous rolling path and prevent derailments. Because of these construction and maintenance costs, operators increasingly prefer to put the complexity on the train itself.[1]

Variable-gauge axles allow a train to adjust the distance between its wheels while in motion. Spanish manufacturer Talgo pioneered this technology, which has been in revenue service at the Portbou and Irun crossings on the Spanish-French border since 1969, and is now a cornerstone of cross-border and mixed-network operations.[2][4]

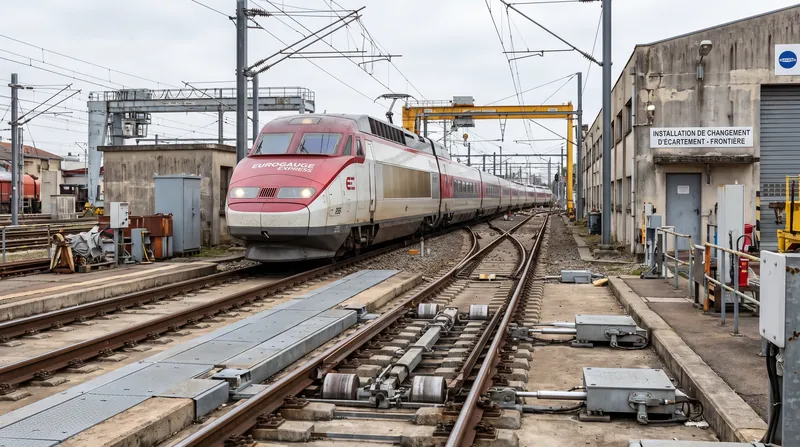

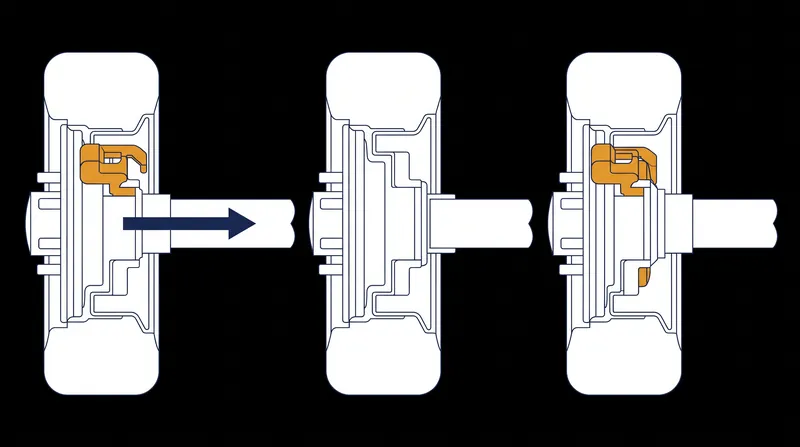

The mechanism relies on a specialized gauge-changing facility installed at the border or network junction. As the train passes through at a controlled speed of 10 to 15 kilometers per hour, the facility's guide rails converge or diverge. The system unlocks the wheel bearings, forces the wheels to slide laterally along the axle to the new width, and then locks them securely back into place.[2][4]

"Variable gauge technology, which has been used in thousands of operations since it was first launched several decades ago, gives our trains the edge in that they are able to adapt to any railway network and cross all borders seamlessly," notes Talgo's engineering documentation. This mechanical orchestration allows passenger trains to cross gauge boundaries at a rate of one axle per second without stopping.[2][4]

While VGA technology has revolutionized passenger travel, freight presents a stiffer challenge. Variable-gauge bogies historically limit the maximum axle load, making them unsuitable for heavy freight traffic. Consequently, freight trains crossing into Poland from Ukraine, or Spain from France, still largely rely on crane transshipment or time-consuming bogie exchanges.[2][3]

Manufacturers have been developing gauge-changing systems for freight wagons since 2014, aiming to withstand the immense fatigue of heavy-haul operations. The European interoperability specification for freight cars (WAG-TSI) only consolidated approvals for these heavy-duty systems in late 2019, and they are now undergoing rigorous commercial testing.[2]

Until these freight systems achieve widespread commercial deployment, the break of gauge will continue to dictate a bifurcated strategy. Passenger networks will increasingly rely on the mechanical elegance of variable axles, while heavy freight corridors will justify the steel-and-concrete expense of dual-gauge track or massive transshipment hubs. The decisions made in the upcoming TEN-T funding rounds will lock in these physical architectures for the next half-century.[5]
